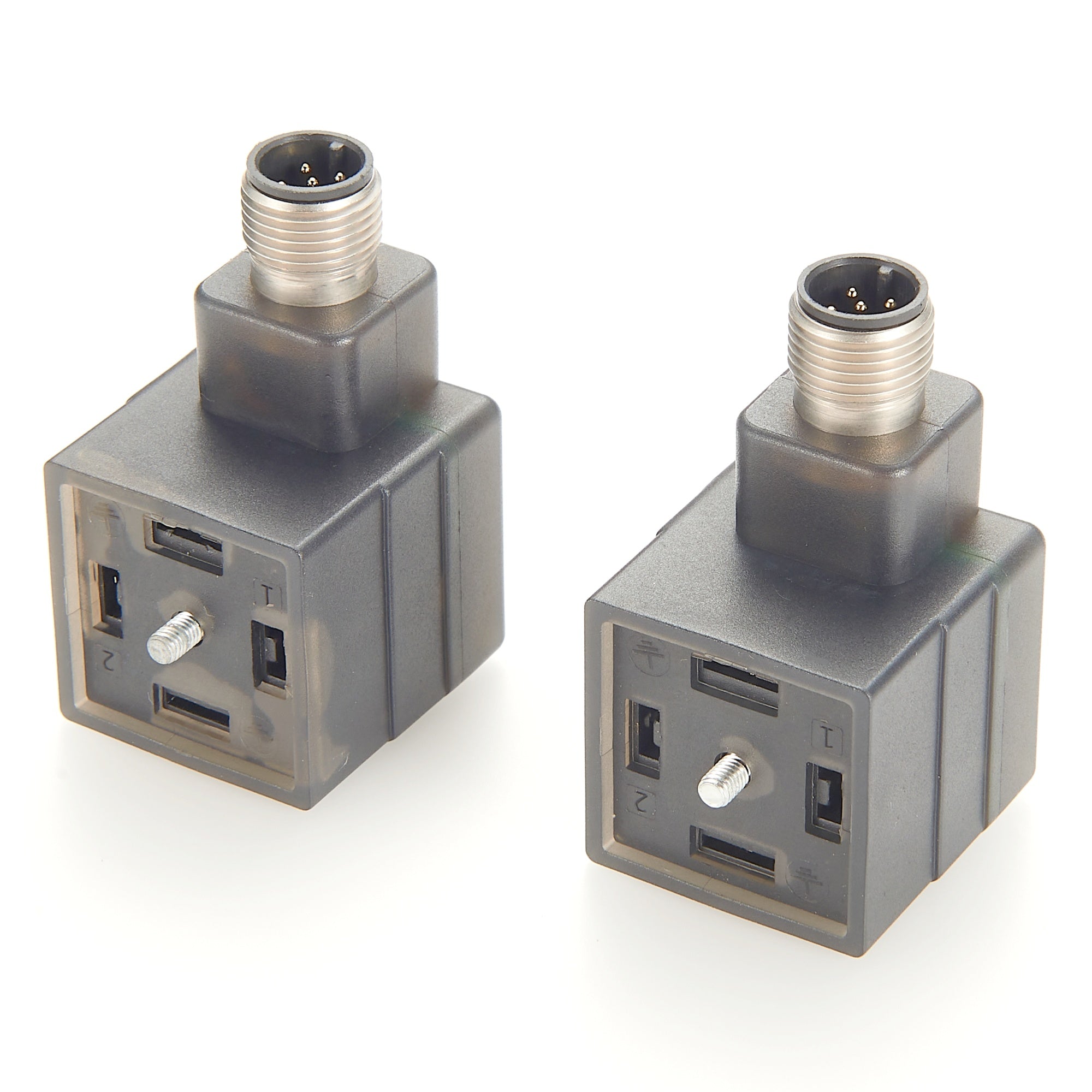

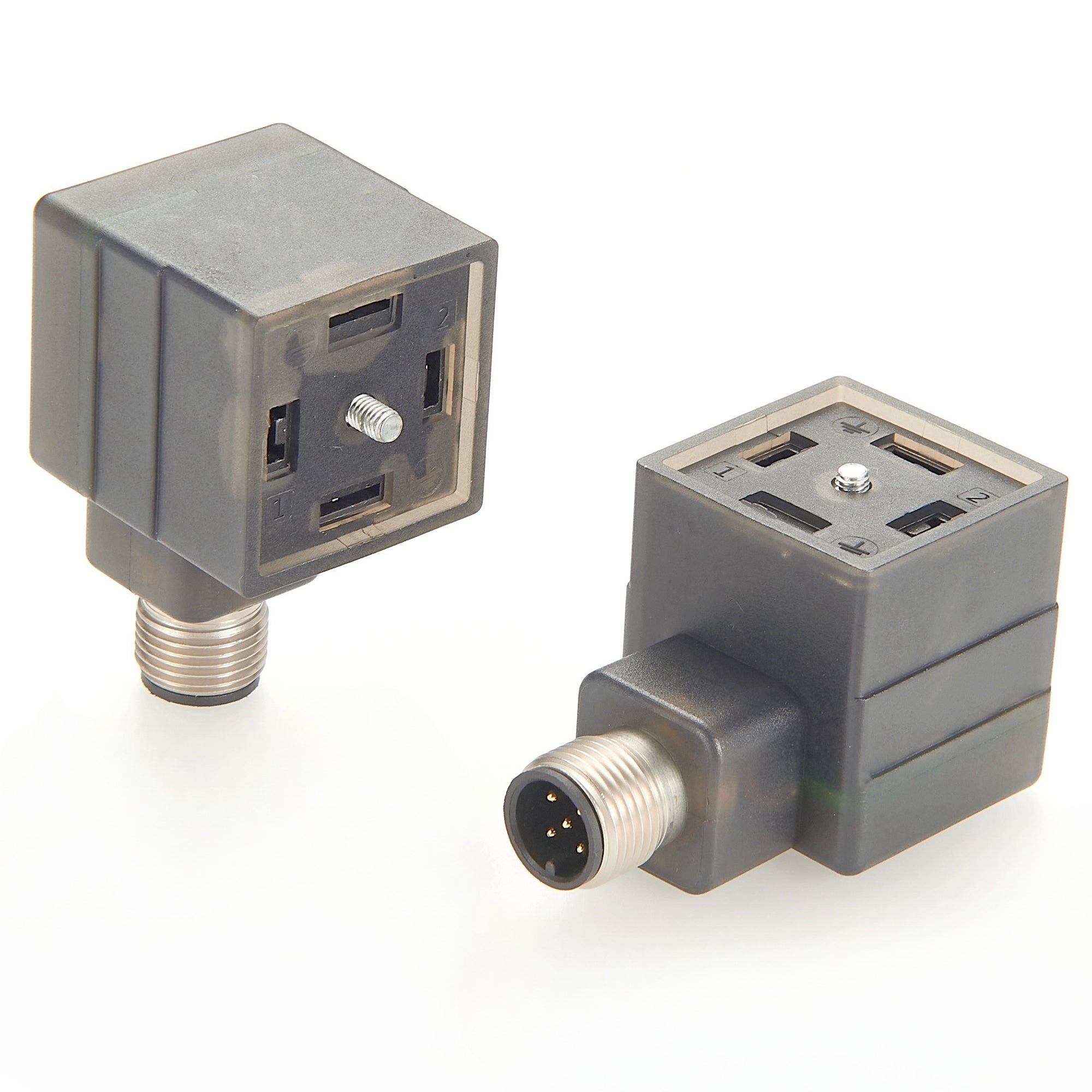

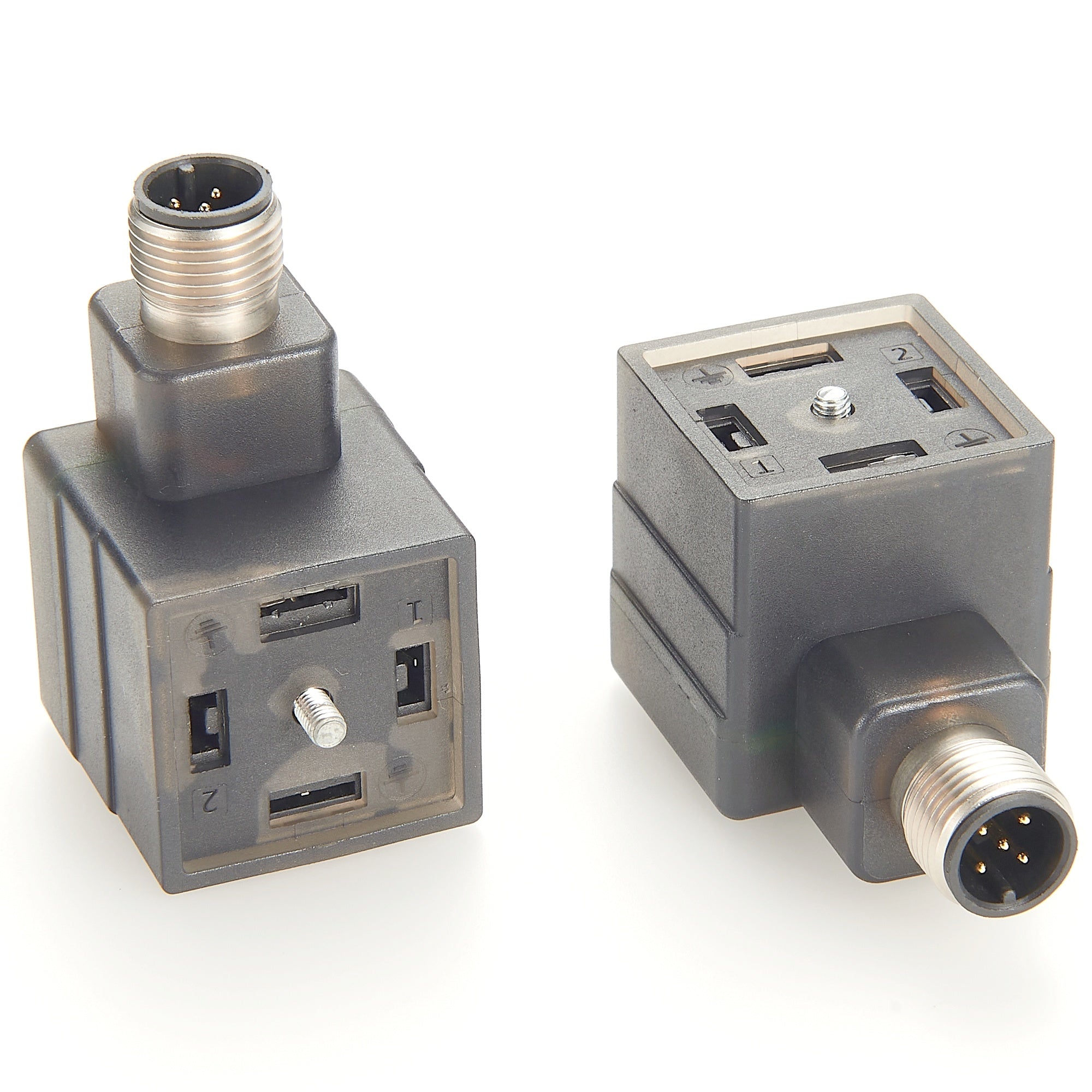

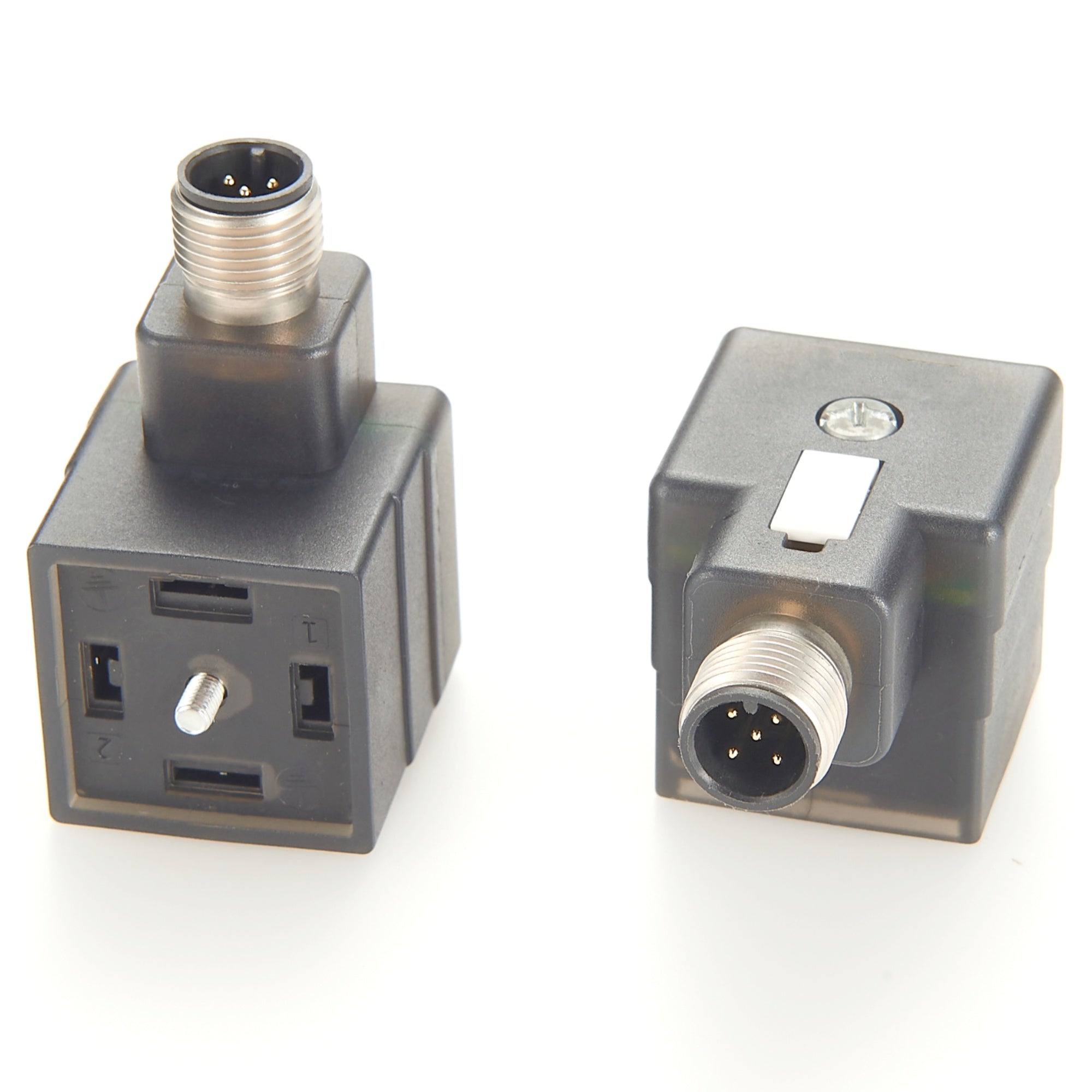

DIN Valve Adapter to M12 5 Pin Connector for pressure switches according to DIN EN 175301-803, form A, with LED operation and function indicator. Fully compatible with Lumberg Automation / Hirschmann VAD 3C-4-1-M12-5 (46568). Premier Cable Part No.: PCM-DV-002
The DIN 43650 Form A to M12 Adapter from Premier Cable is a high-quality solenoid valve connector, fully compatible with Lumberg Automation / Hirschmann VAD 3C-4-1-M12-5 46568. It converts your existing DIN 43650 Form A valve connections to the industry-standard M12 connector system to enable seamless connection between different types of connectors, ideal for industrial automation, hydraulic systems, and pneumatic systems.
|
Brand Name |
PremierCable |
Body Style |
Right Angle |
|
Origin |
Mainland China |
Contact Resistance |
≤5 mΩ |
|
Part No. |
PCM-DV-002 |
Nominal Voltage |
24V |
|
Type |
DIN 43650 Solenoid Valve Connector |
Rated Voltage |
32V |
|
Product Name |
VAD 3C-4-1-M12-5 DIN Valve Adapter to M12 5 Pin |
Rated Current |
4A (at 40°C) |
|
Connector A |
M12 A-Code 5 Pin Male | Operating Temperature | -25° to +80°C |
|
Connector B |
DIN 43650 Form A Solenoid Valve 3+PE Female | Standard |
EN 175301-803 |
|
IP Rating |
IP67 | Compatible with | Lumberg Automation / Hirschmann VAD 3C-4-1-M12-5 46568 |
