$24.00 Excl. VAT
Guaranteed secure & safe checkout.

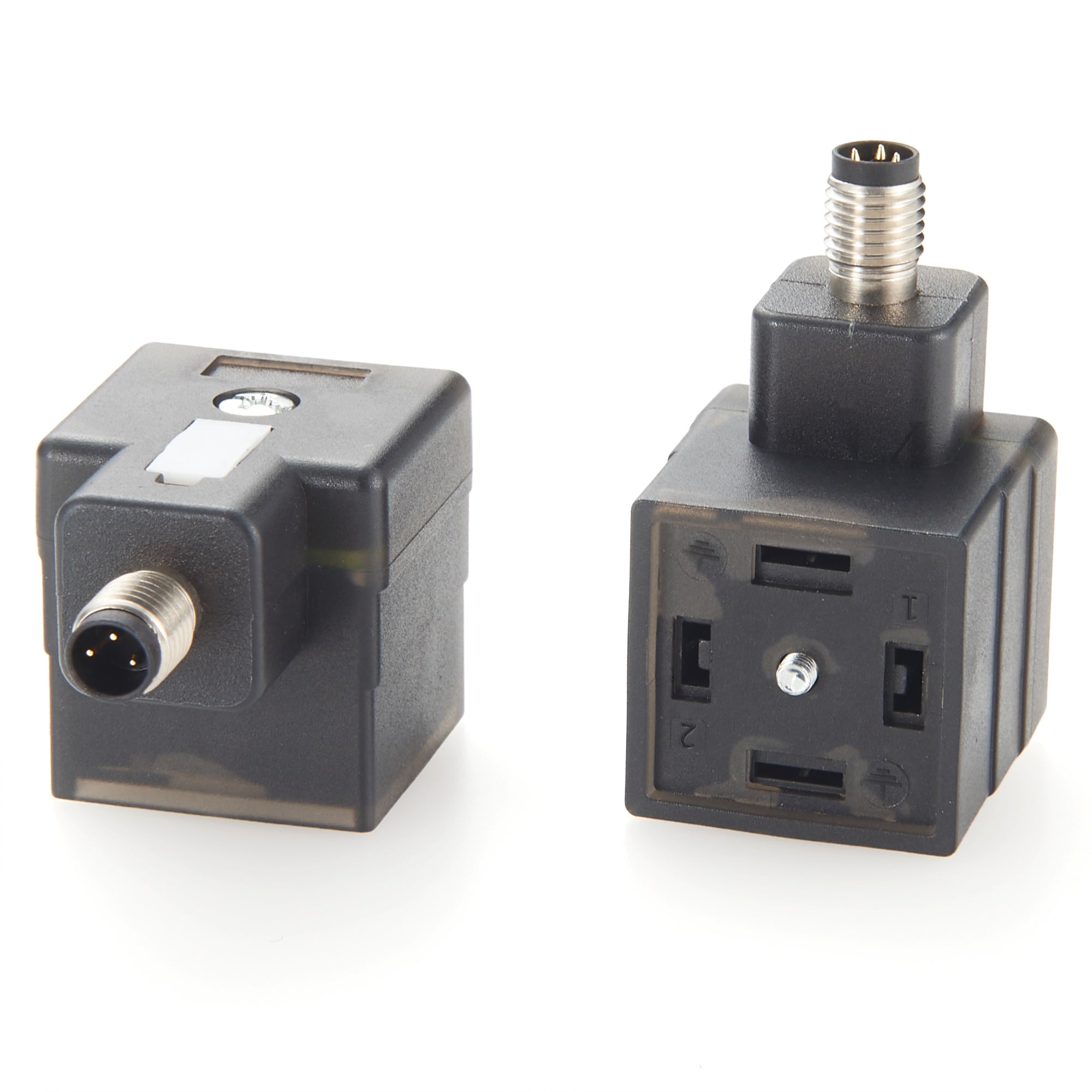

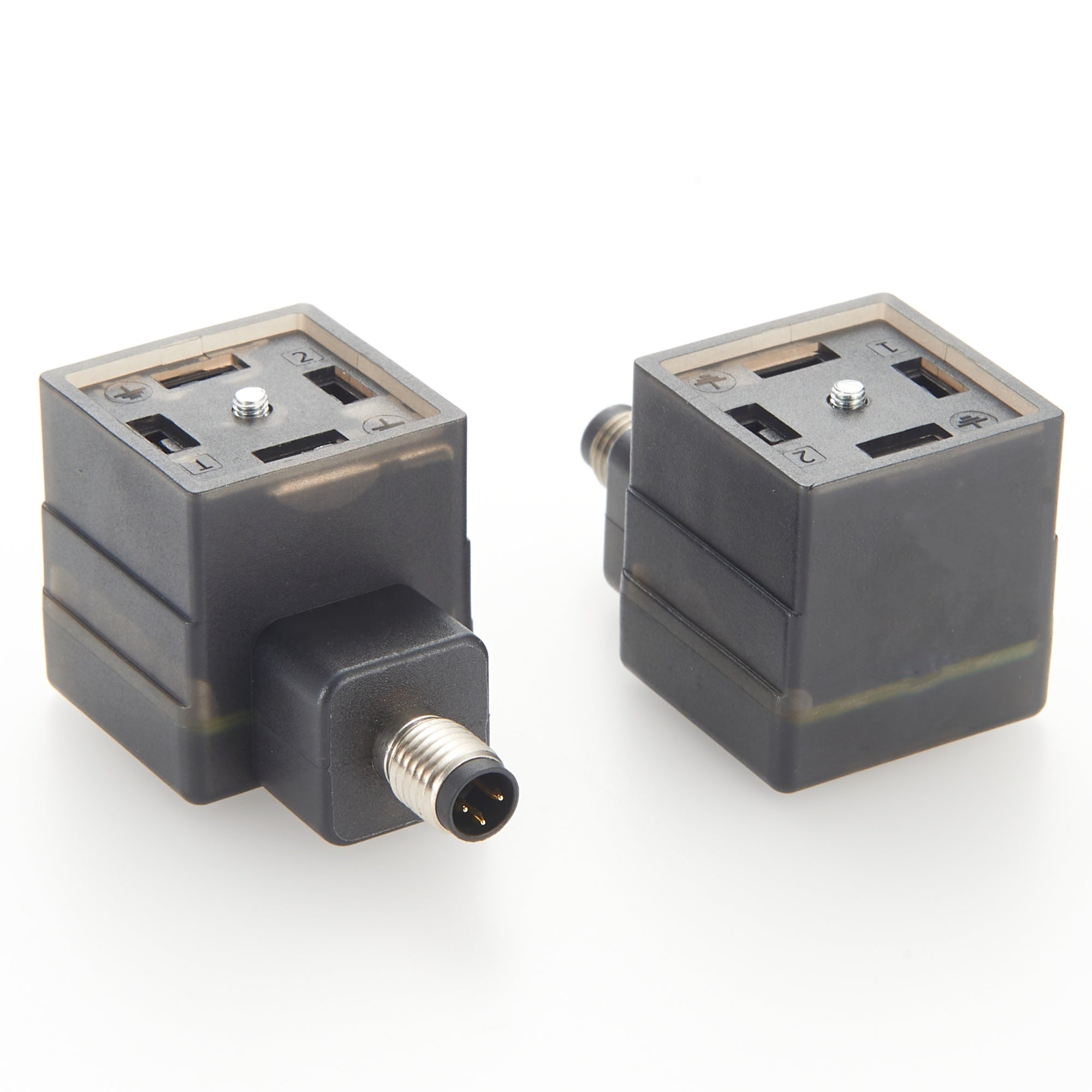

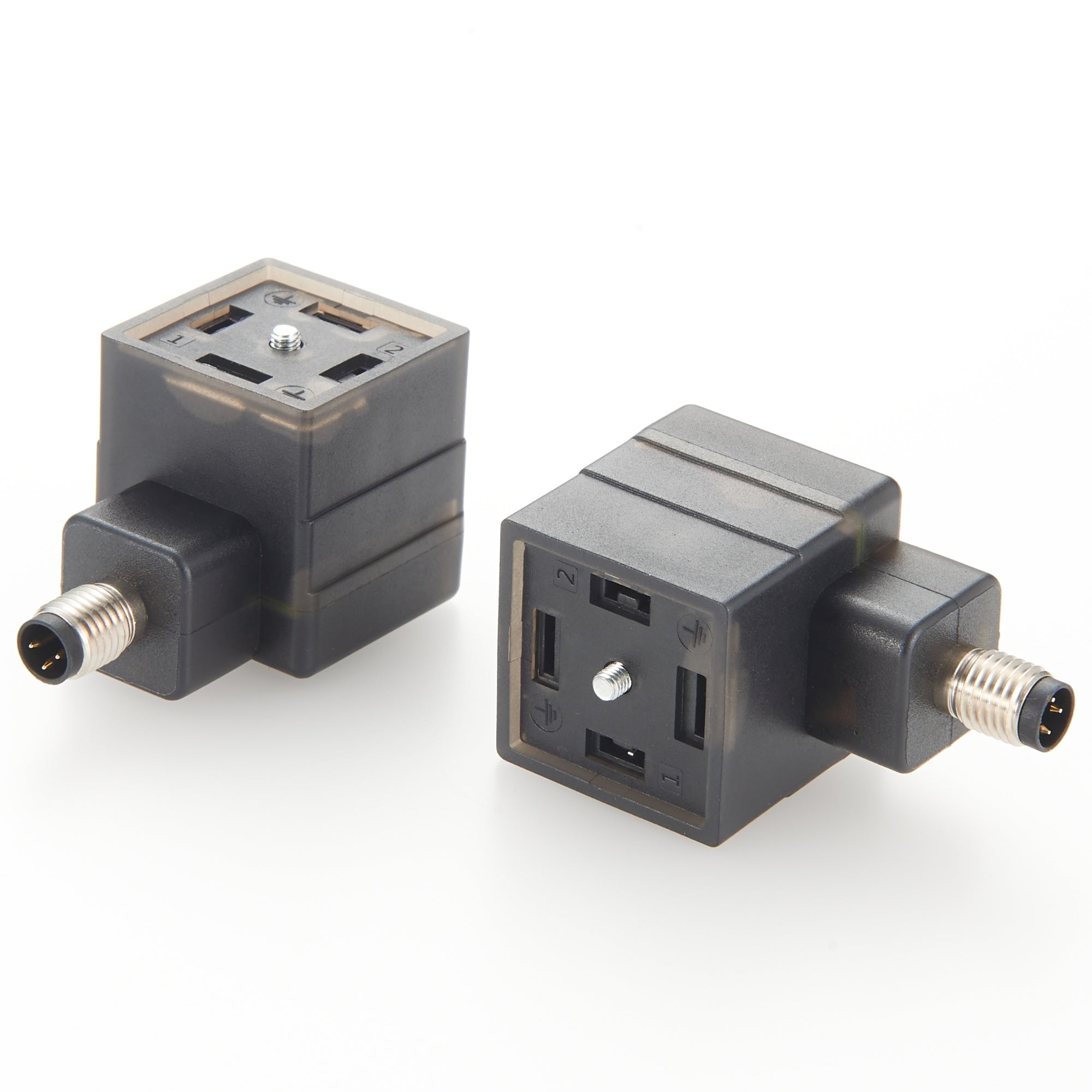

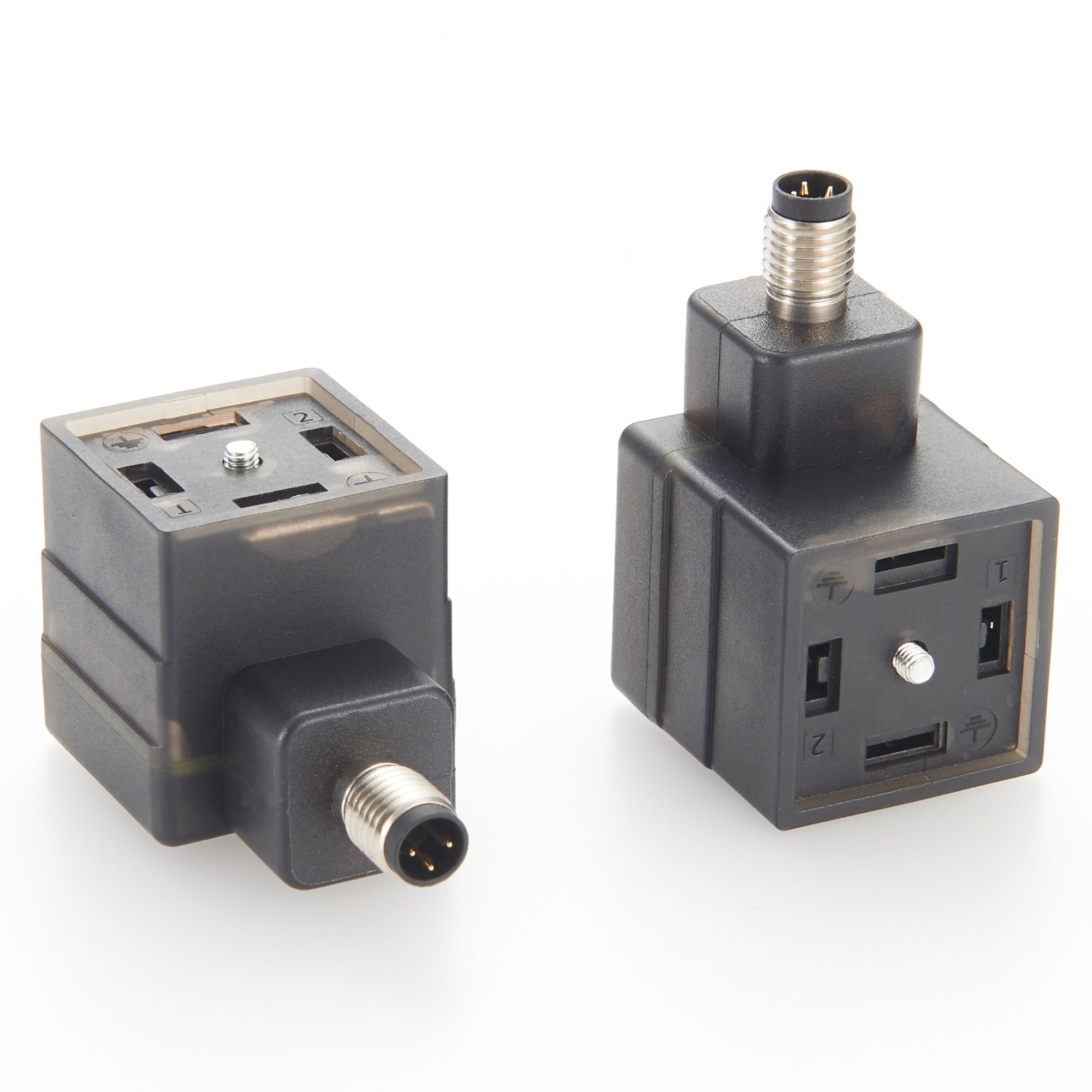

DIN 43650 Form A Solenoid Valve Adapter with M8 3-pin Male Plug Connector according to DIN EN 175301-803 with LED function indicator and varistor voltage protection. Rated for 4A current and 24V voltage, fully compatible with Lumberg Automation / Hirschmann VAD 1A-1-3-M8-3 (12142). Premier Cable #: PCM-DV-010
The DIN Valve Adapter to M8 3 Pin is a reliable and excellent alternative to the Lumberg Automation / Hirschmann VAD 1A-1-3-M8-3 12142. It provides 100% functionality and compatibility, making it an ideal solution for industrial automation, hydraulic, and pneumatic control systems. It designed to convert traditional DIN solenoid valve interfaces into standardized M8 3-pin industrial connection interfaces, enabling efficient and safe connection between solenoid valves and control systems.
Main Applications:
Email: sales06@premier-cable.net for other model: VB 1A-1-2-M8-3 (12198)
|
Brand Name |
PremierCable |
Body Style |
Right Angle |
|
Origin |
Mainland China |
Contact Resistance |
≤5 mΩ |
|
Part No. |
PCM-DV-010 |
Nominal Voltage |
24V |
|
Type |
DIN 43650 Solenoid Valve Connector |
Rated Voltage |
32V |
|
Product Name |
VAD 1A-1-3-M8-3 DIN Valve Adapter to M8 3 Pin |
Rated Current |
4A (at 40°C) |
|
Connector A |
M8 3 Pin Male | Operating Temperature | -25° to +80°C |
|
Connector B |
DIN 43650 Form A Solenoid Valve 2 Pin Female | Standard |
EN 175301-803 |
|
IP Rating |
IP67 | Compatible with | Lumberg Automation / Hirschmann VAD 1A-1-3-M8-3 12142 |
