⚠️⚠️⚠️ Please note: There is only one USB-to-serial chip in the adapter, so only one protocol can be active at a time. ⚠️⚠️⚠️

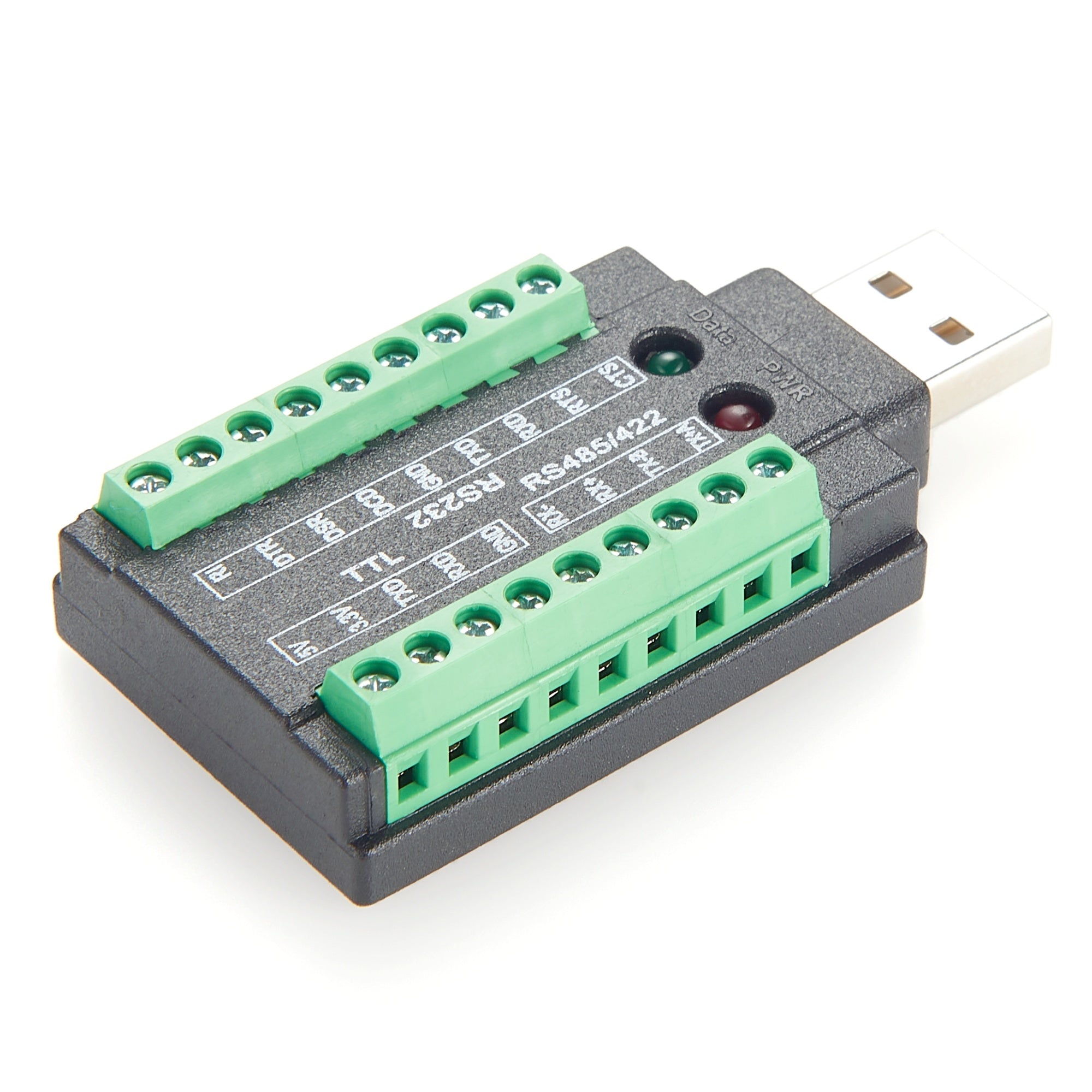

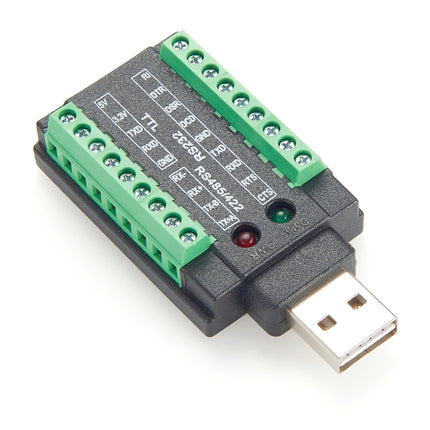

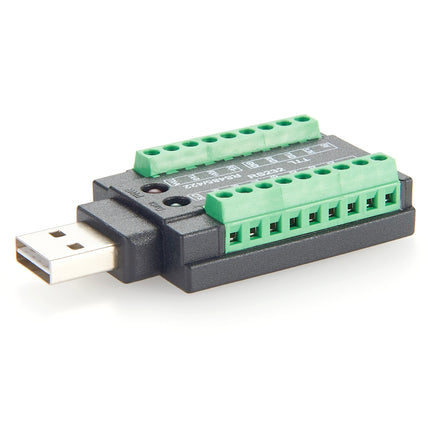

The Premier Cable PCM-KW-468 is a versatile 4-in-1 USB to RS232 RS485 RS422 TTL Serial Adapter with FTDI FT232RNL Chipset. It combines four serial interfaces into a single adapter, enabling connection to multiple types of serial devices while eliminating the need for additional adapters or cables:
- USB to TTL Adapter
- USB to RS232 Adapter
- USB to RS485 Adapter
- USB to RS422 Adapter
⭐ Key Features:
★ Double-Sided USB Interface: The USB interface is reversible and can be inserted in either orientation, making connection easier and reducing connection errors.
★ Multi-Protocol Support: Integrates RS232, RS485, RS422, and TTL interfaces, allowing users to connect different types of serial devices with a single adapter.
★ Advanced Chip: Built-in FTDI FT232RNL chip ensures stable and reliable USB-to-serial conversion, providing wide compatibility with various devices and operating systems.
★ Multiple Voltage Outputs: Supports 3.3V and 5V logic levels, compatible with a wide range of serial devices operating at different voltage levels.
★ LED Indicators: A red power LED and a green data LED provide real-time monitoring of the connection and communication status for the device.
★ Terminal Block Design: All serial interfaces feature screw terminals, allowing easy installation without soldering or special tools.
★ Plug and Play: Simply plug the 4 in 1 USB to Serial Adapter into a computer’s USB Type-A port for instant use, no additional drivers required.
⚠️⚠️⚠️ (If not recognized, please contact me for the driver or download it online from the official FTDI website.) ⚠️⚠️⚠️
