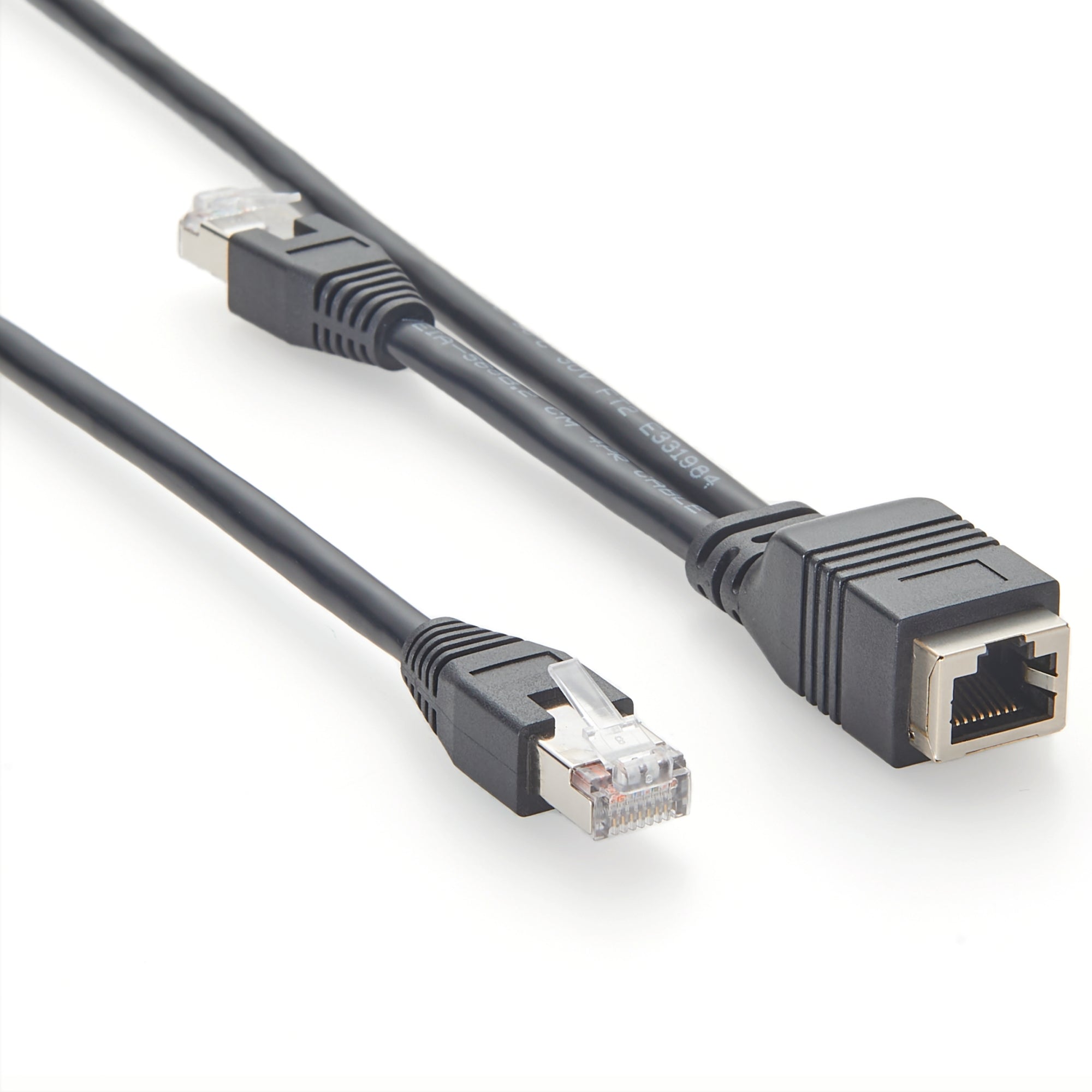

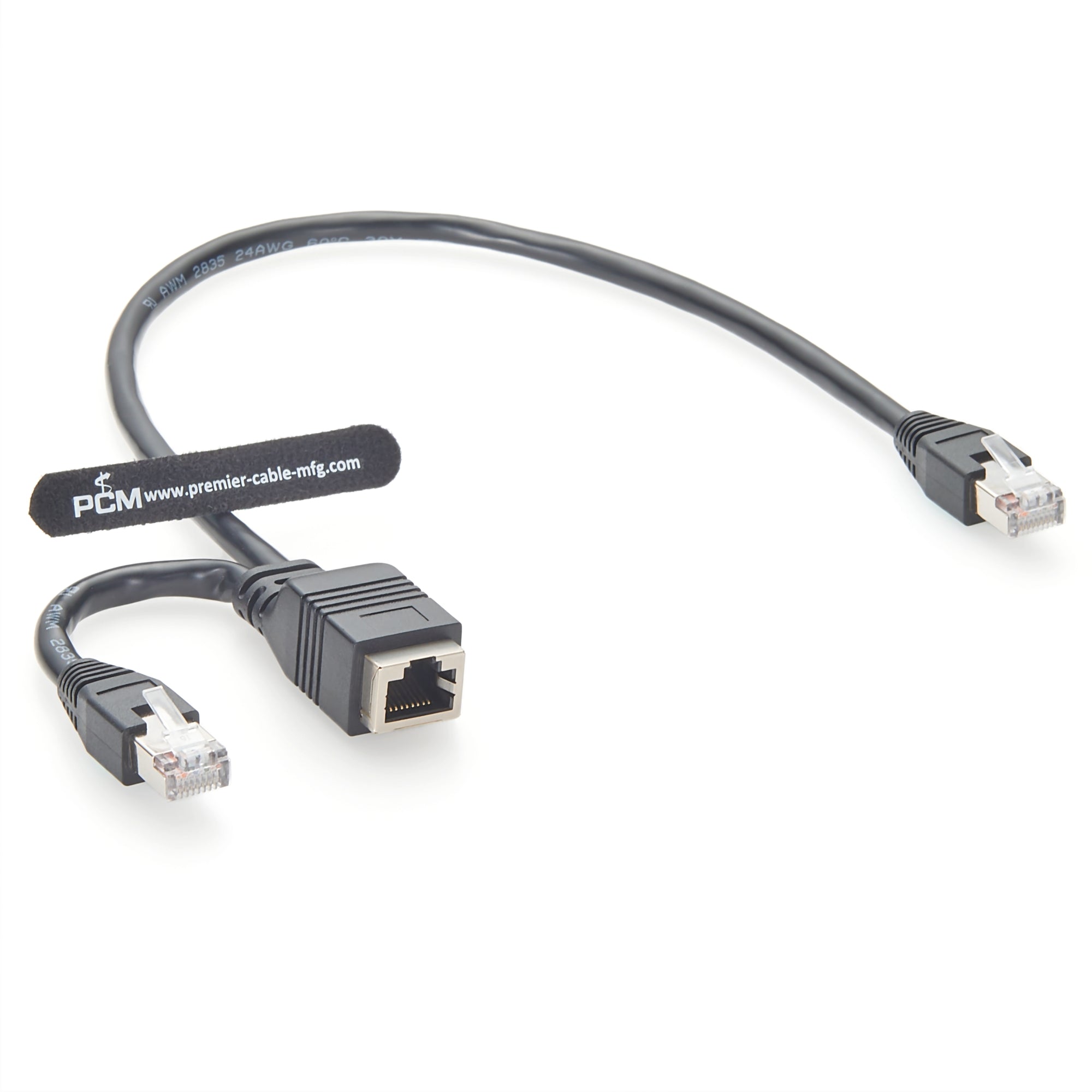

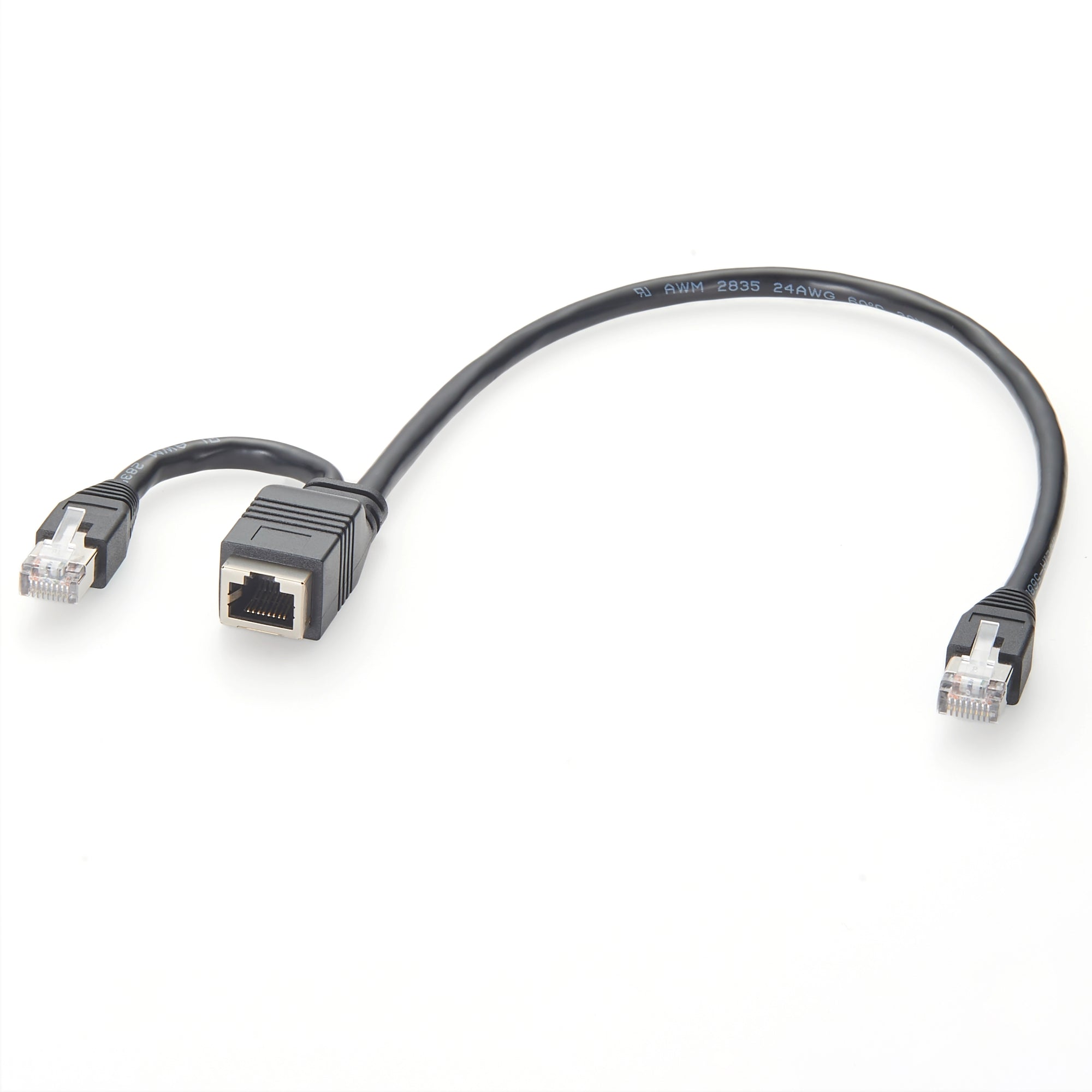

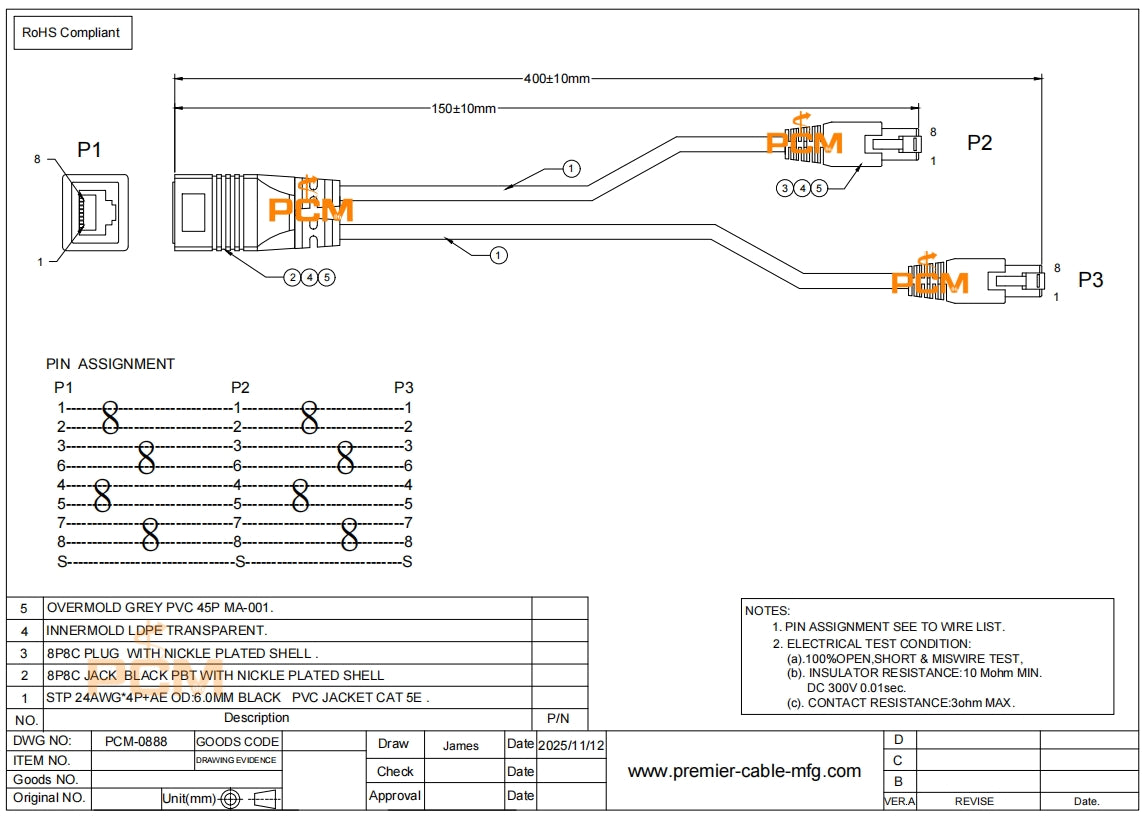

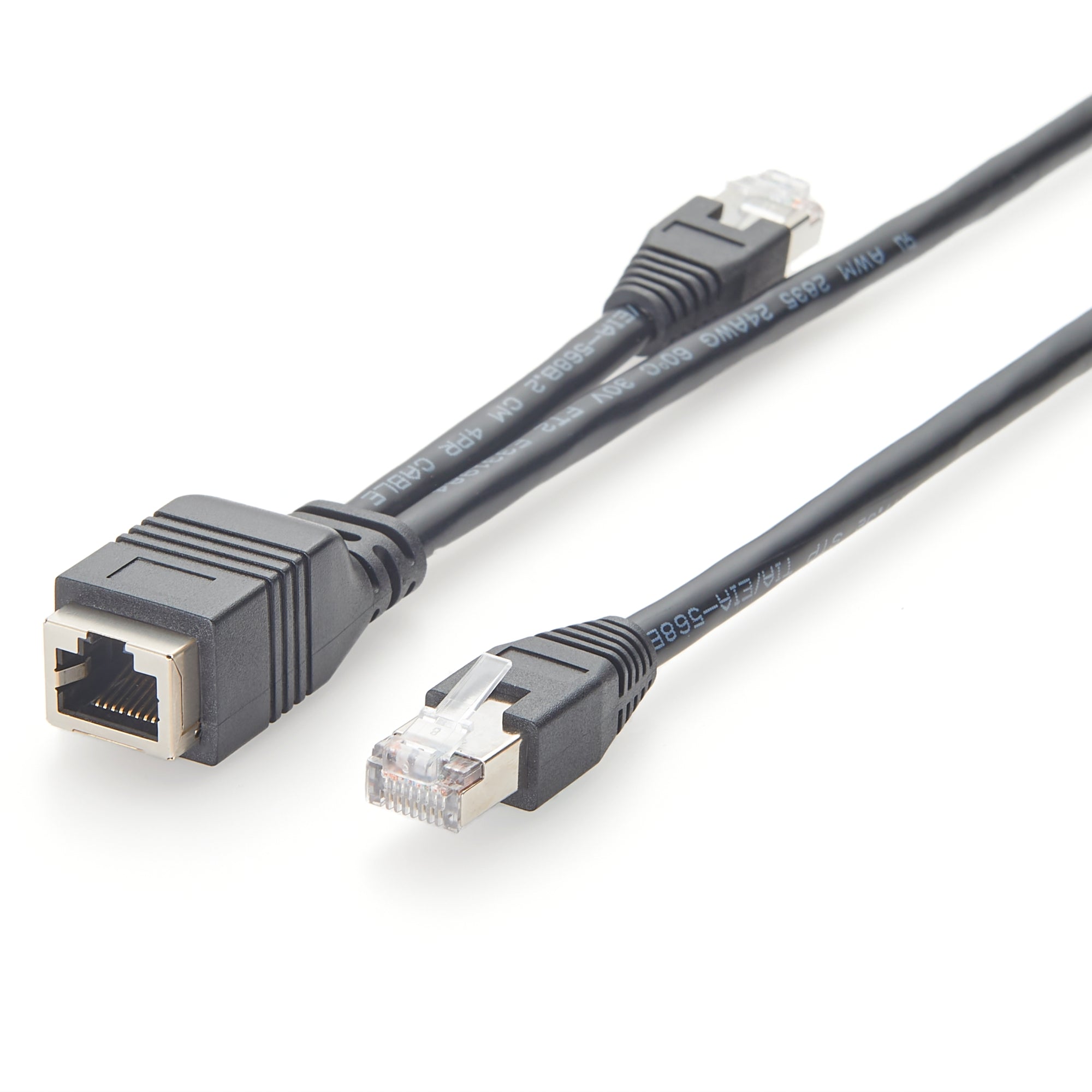

The PoE Cable Combiner RJ45 Splitter Cable Adapter, Part Number: PCM-0888 is a passive Ethernet PoE combiner splitter designed to transmit power and data to two devices over a single Ethernet cable. This adapter features 2 × RJ45 male connectors to 1 × RJ45 female connector with a 1:1 straight-through pinout, ensuring reliable signal integrity without any internal switching or conversion.
The PCM-0888 delivering up to 30W per port with a maximum transmission distance of 100 meters 328 ft. It is compatible with 10/100/1000 Mbps Ethernet networks and can also be used with non-PoE devices for data-only transmission when connected to a standard switch or router.
This PoE combiner splitter is widely used in scenarios where cabling resources are limited and additional network devices need to be deployed without running extra Ethernet lines. Installation is quick and requires no software configuration.
Typical Applications:
- IP Cameras
- VoIP Phones
- Wireless Access Points
- Industrial Ethernet devices
- CCTV surveillance systems
- Network expansion for printers or additional terminals
