Right Angle M12 L-Code Power Cable

Right Angle M12 L-Code Power Cable

Product form

$60.00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    M12 L-Code Power Supply Cable for PROFINET and PROFIBUS I/O Modules, Industrial Automation, and Robotics, Female Angled | 10 Million Cycle Times Drag Chain Cable | IP67 Protection Rating | Part No.: PCM-S-0544 | Available in 2m and 5m Length

    • 24/7 Customer Support
    • No MOQ & Ready to Ship
    • Fast Lead Time: Less than 3 days!
    • Global Shipping: Anywhere, anytime!
    • Customizable Lengths & Bulk Orders Available
    • Note: The prices are for small-scale orders. For bulk quantities or customized specifications, please feel free to contact me at sales06@premier-cable.net or via the online chat for a tailored quotation.
    Description

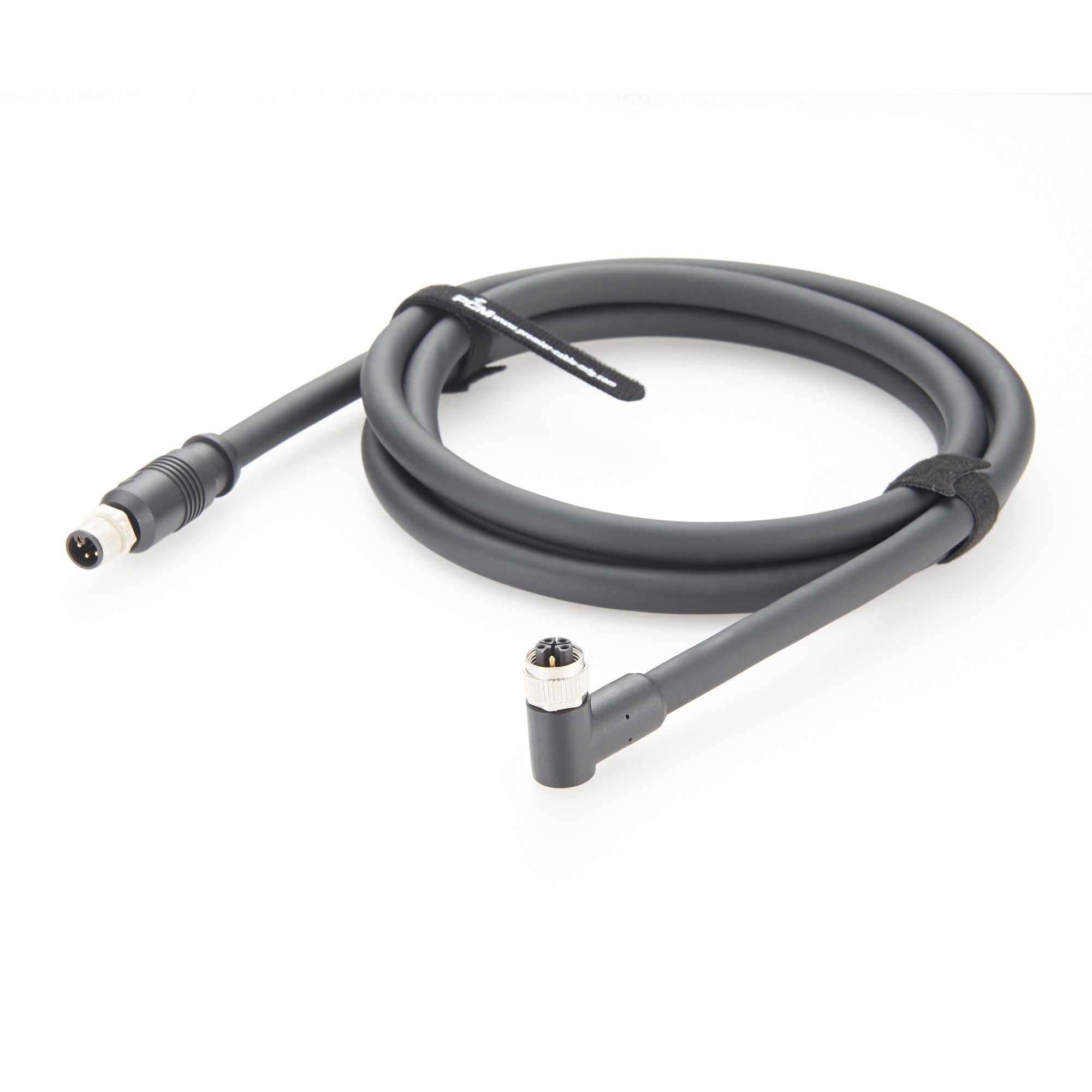

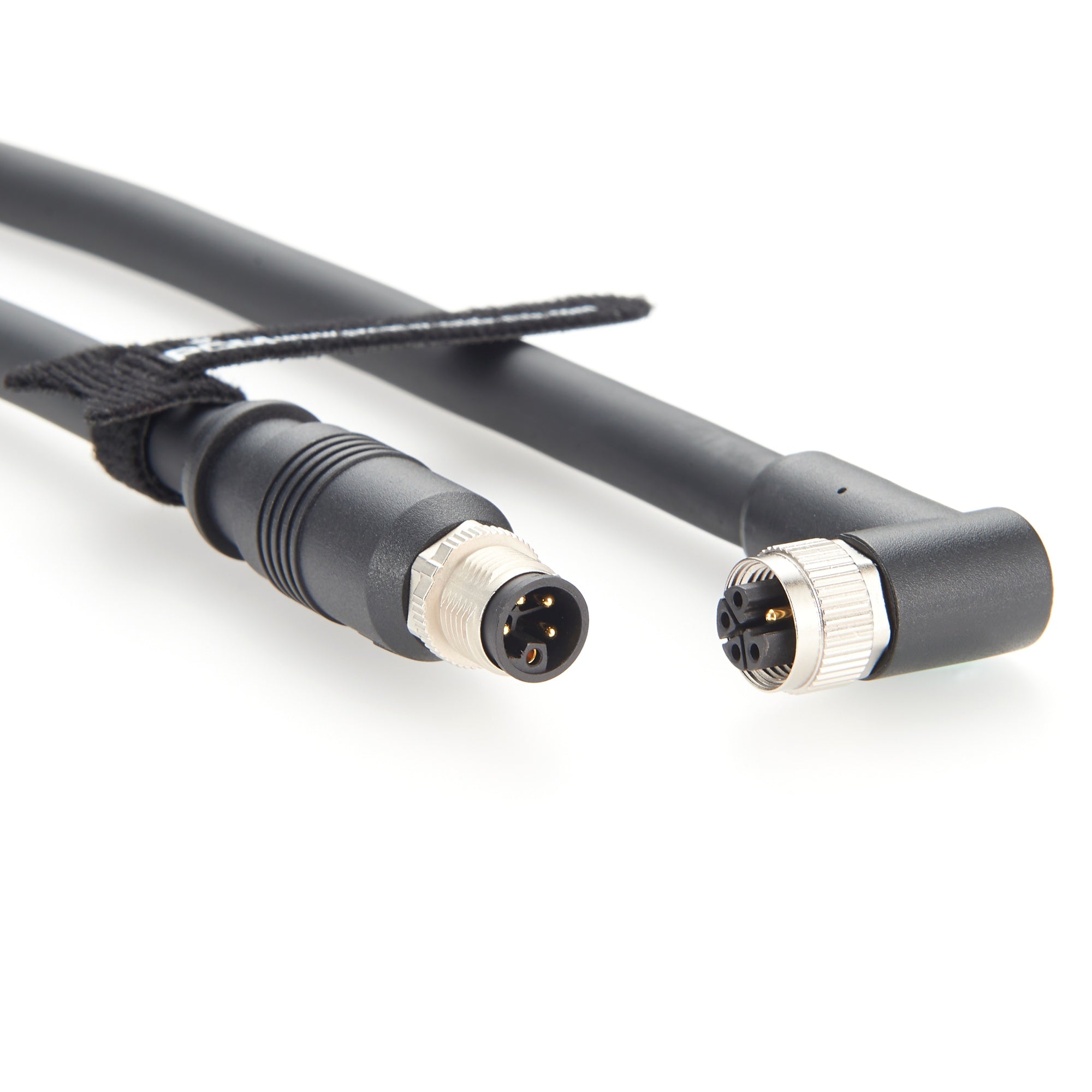

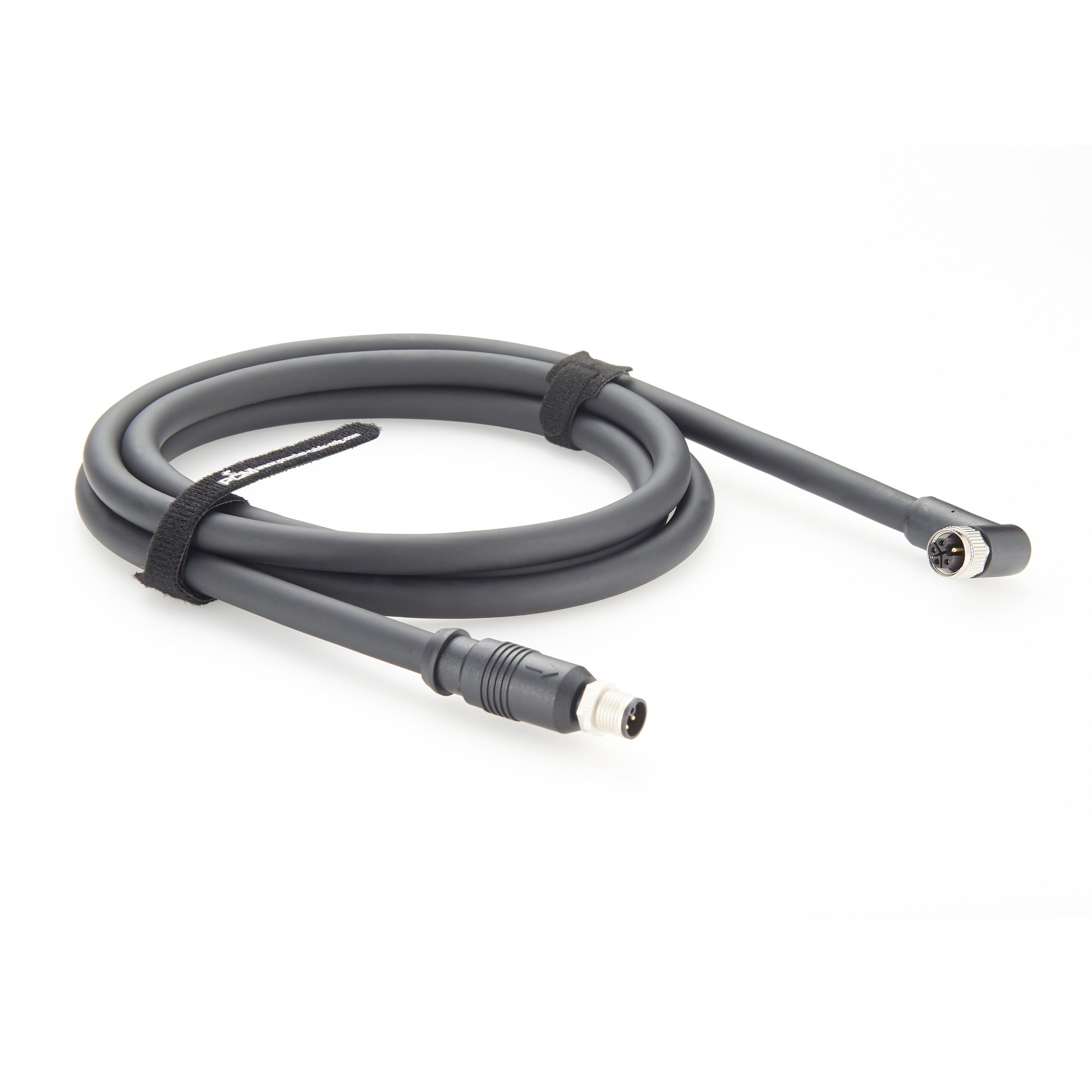

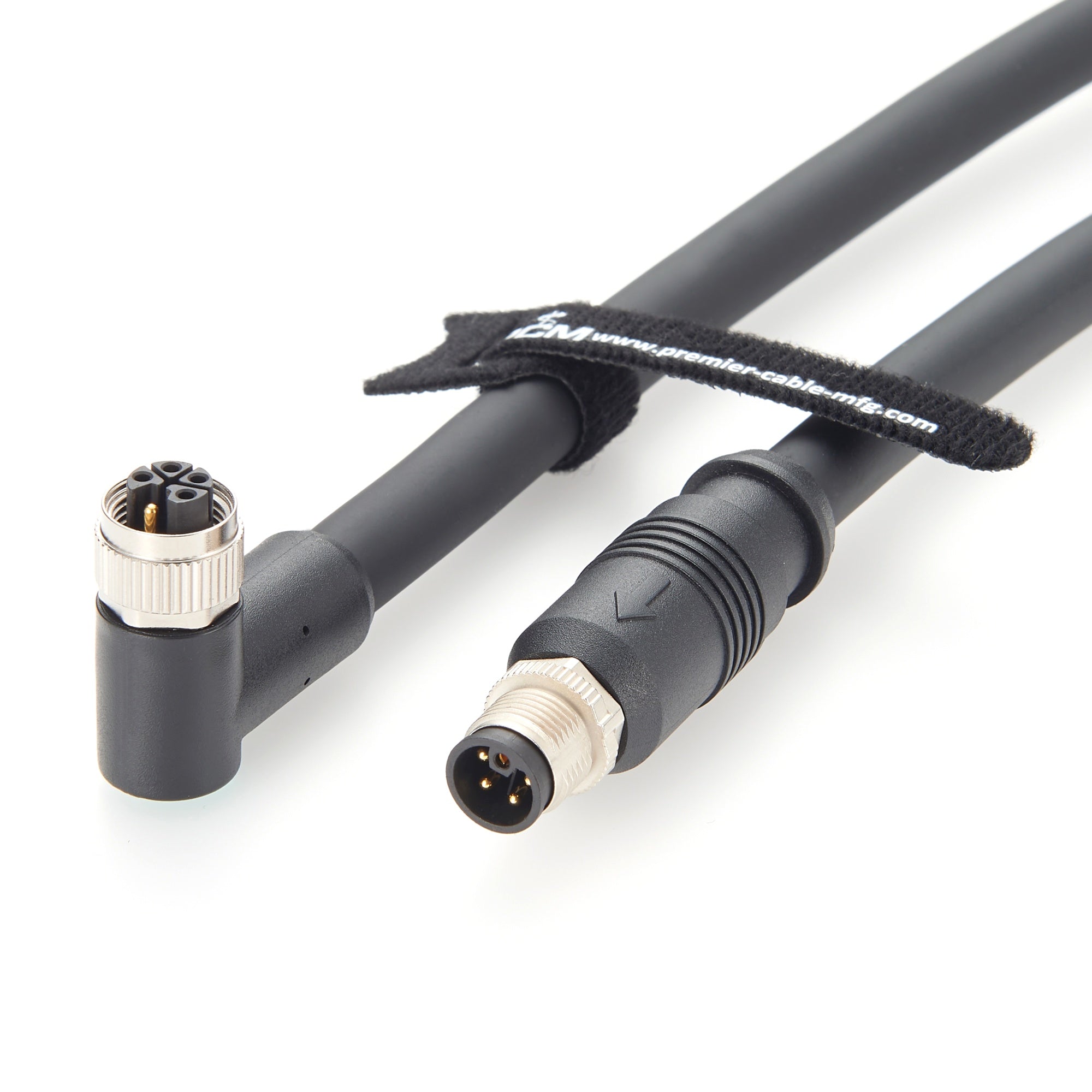

    ★ The Premier Cable Right-Angle M12 L-Code Power Cable features a 90° female connector, enabling easy wiring in confined spaces.

    ★ Capable of handling 16A at 63V, making it suitable for demanding power applications.

    ★ Rated for 10 million bending cycles, ideal for dynamic drag chain applications, ensuring stable performance during long-term continuous motion.

    ★ Rated IP67, providing excellent protection against dust and water while enhancing system reliability and safety.

    ★ Features a shielded design to minimize electromagnetic interference (EMI), and enhance power stability.

    ★ Widely used Fieldbus Ethernet I/O boxes, Profinet power supply devices, robotics, vision systems, sensors, actuators, small server DC motors & drives, industrial automation, industrial communications, and more.

    Specification

    Brand Name

    Premier Cable

    Cable Diameter

    11.0mm

    Origin

    Mainland China

    Shielded

    Yes

    Part No.

    PCM-S-0544

    Housing Material

    PVC

    Type

    M12 L-Code Cable Assembly

    Contact Material

    Gold-Plated

    Product Name

    Right Angle M12 L-Code Power Supply Cable

    Rated Current

    16A

    Connector A

    M12 L-Code 5 Pin (4+PE) Male, Straight

    Rated Voltage

    63V AC/DC

    Connector B

    M12 L-Code 5 Pin (4+PE) Female, Right Angle

    Wire Gauge

    16AWG (1.5mm²)

    Connector Standard

    IEC 61076-2-111

    Drag Chain

    ≥ 10 million Cycles

    Protecting Rating

    IP67

    Operating Temperature

    -40°C to +85°C

    Cable Length

    2m, 5m, Or OEM



    Drawing
