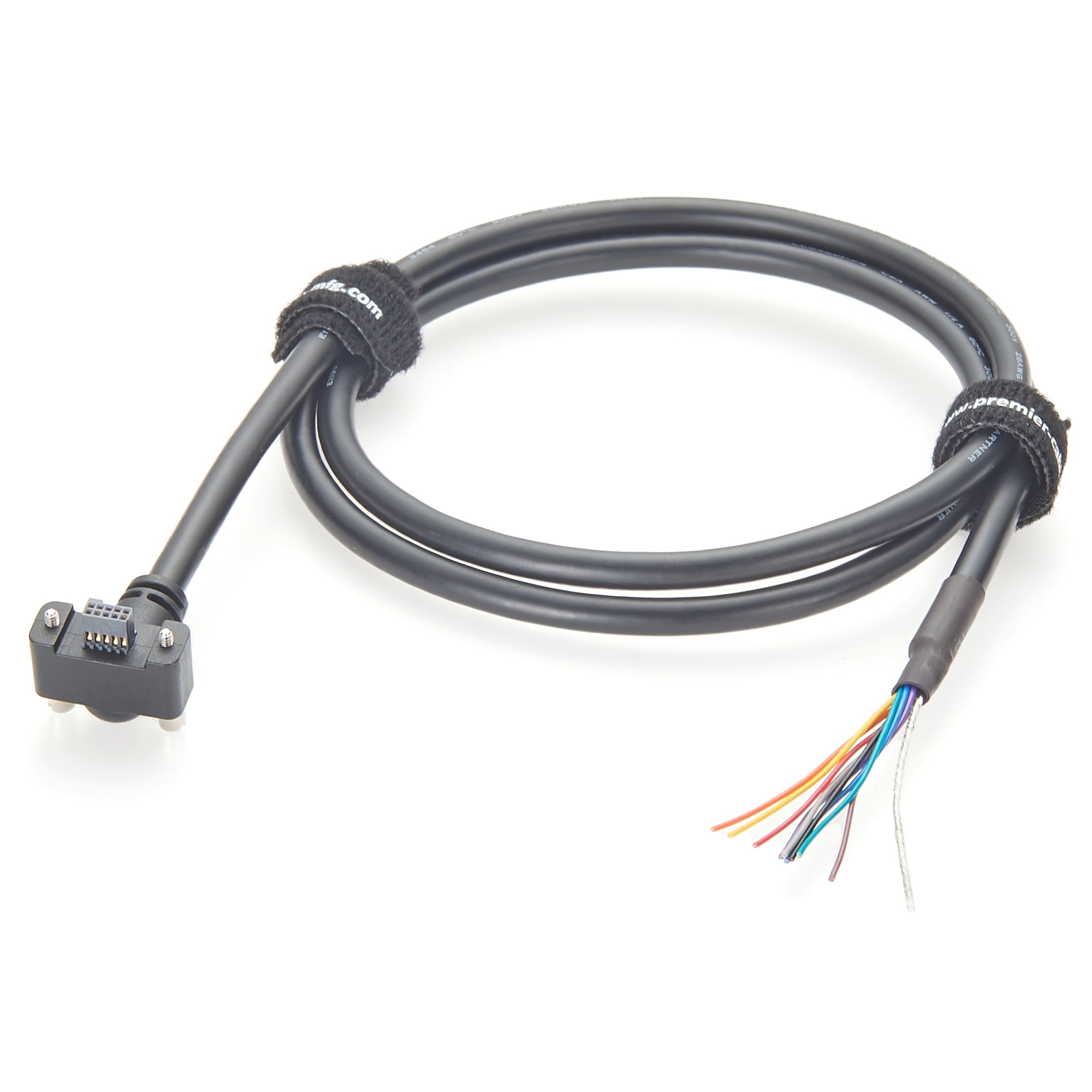

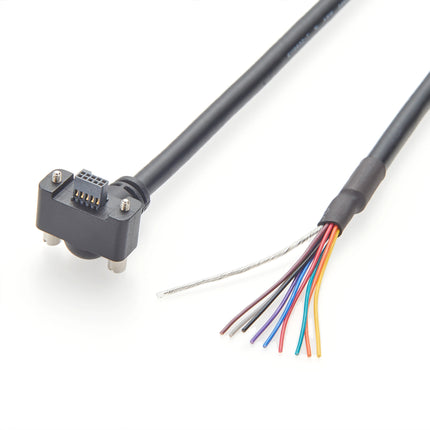

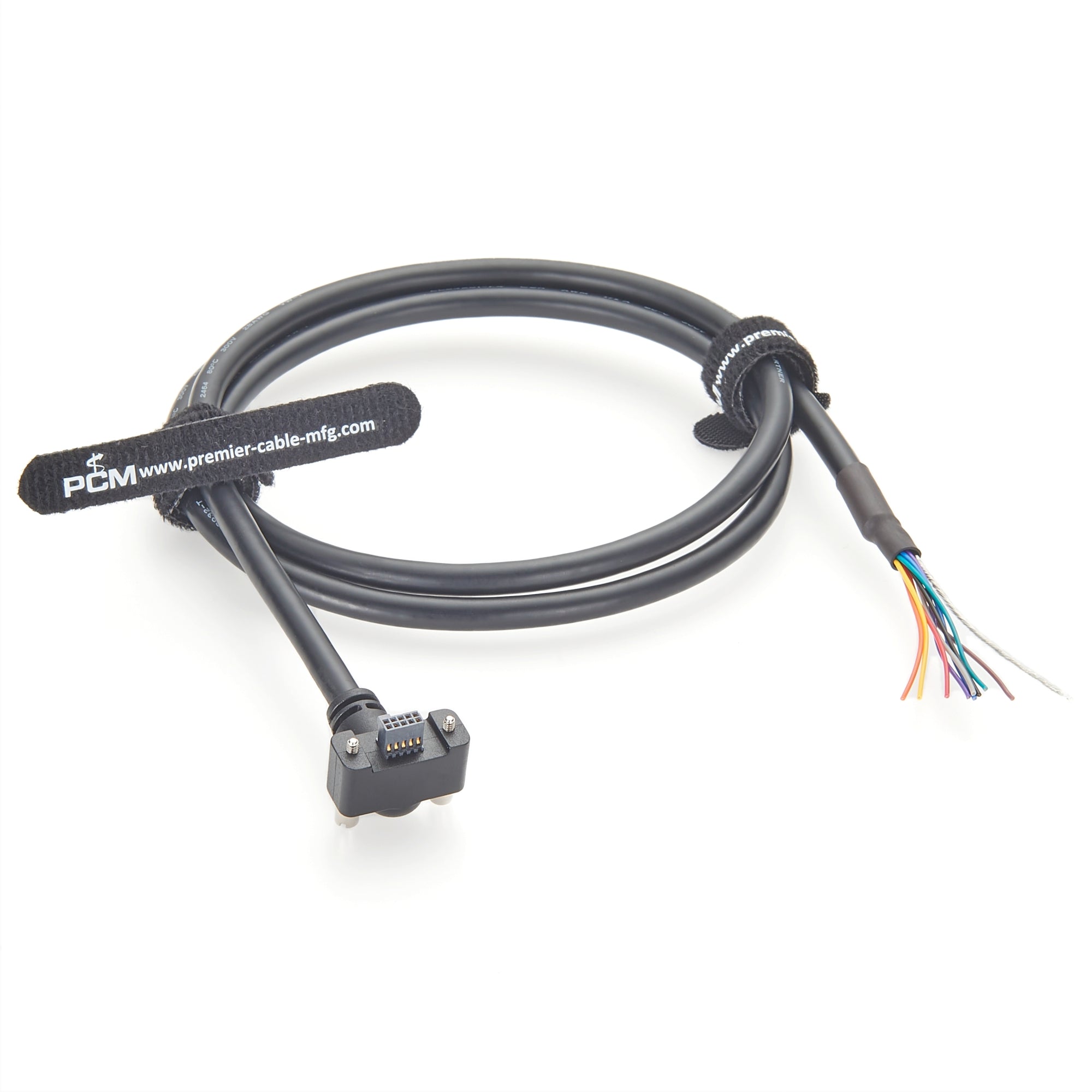

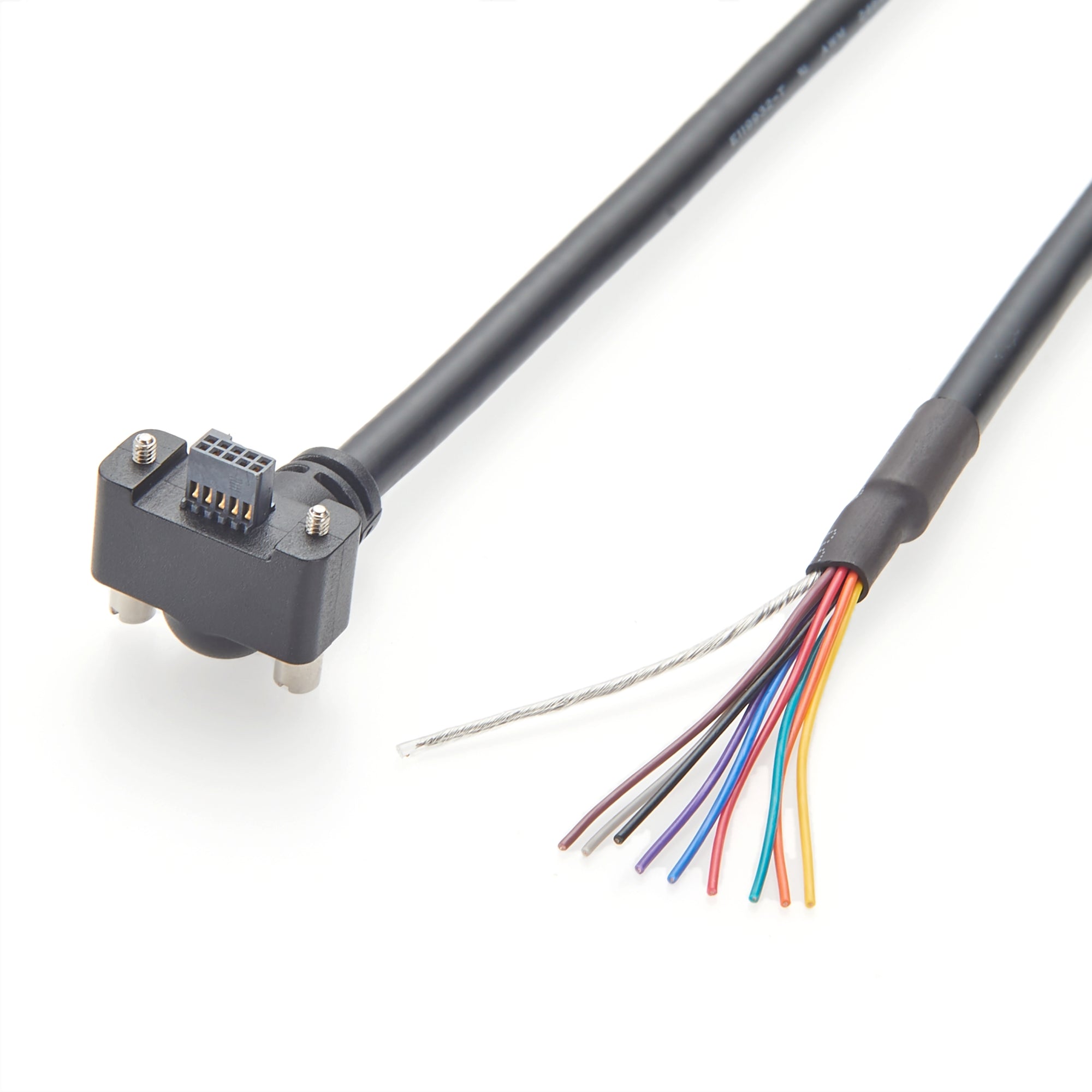

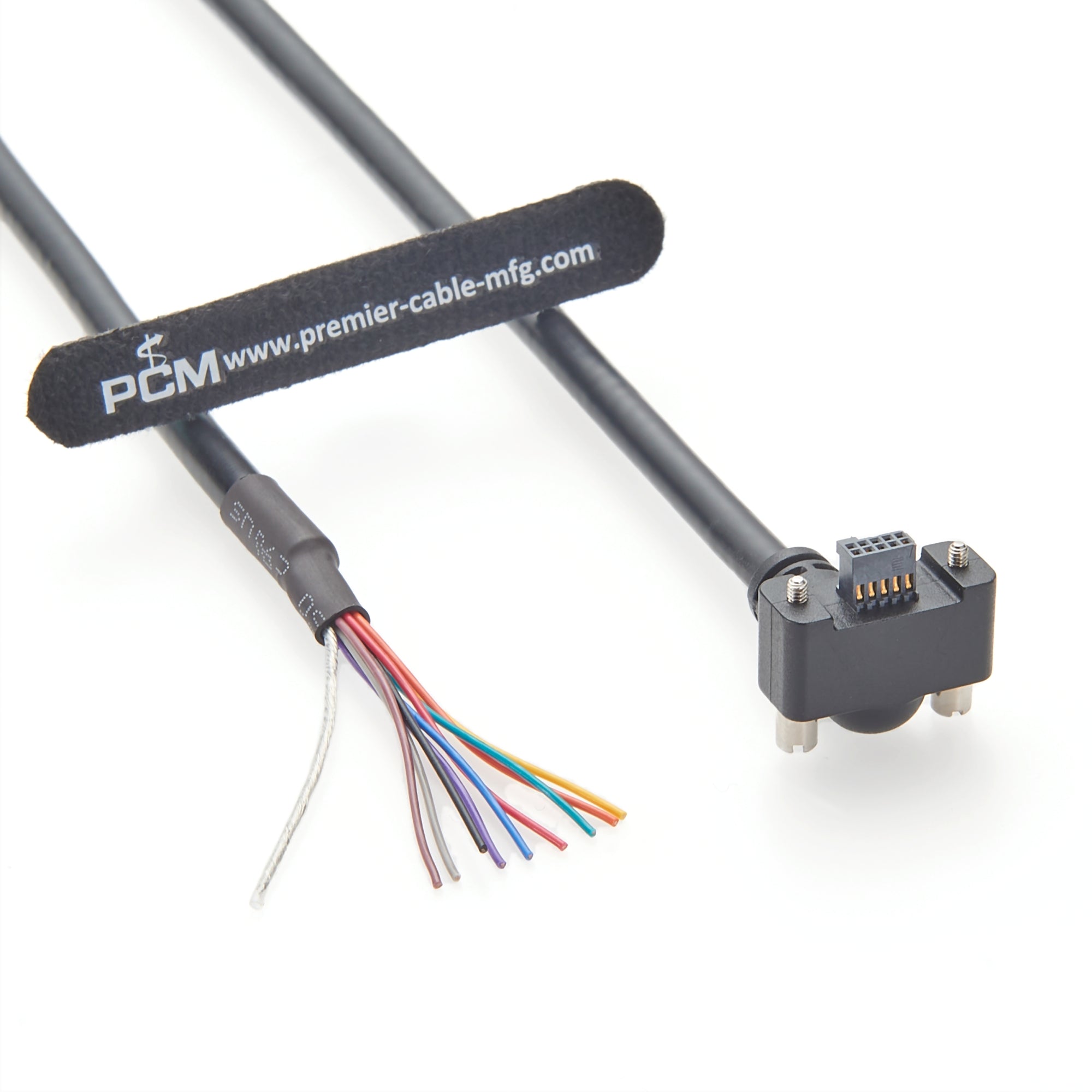

The PCM-S-0702 Right Angle 90-Degree I/O Power Cable is specifically designed for Teledyne DALSA Genie Nano GigE cameras.
It features a SAMTEC TFM-105 10-Pin female connector with a 90-degree right-angle design on the camera side, providing an optimal low-profile connection for space-constrained machine vision installations.
The opposite end is equipped with tinned flying leads, allowing flexible and secure integration of power input and I/O trigger signals into industrial control systems.
The right-angle connector design reduces cable stress, improves routing efficiency, and minimizes the required installation space, making it ideal for compact camera mounts and enclosed vision systems.
Key Features:
- 90-Degree Right-Angle Design
Saves space, improves cable routing, and reduces mechanical stress at the camera interface.
- SAMTEC TFM-105 10-Pin Female Connector
Fully compatible with Teledyne DALSA Genie Nano GigE camera I/O interfaces.
Enables easy termination for power supply and GPIO / trigger signal wiring.
Main Applications:
- Industrial Automation
- Machine Vision Systems
- Imaging & Inspection Systems
- Camera Power and Trigger Integration
- Compact Vision and Embedded Camera Installations
