Profinet Power Supply Cable M12 L-Code

Profinet Power Supply Cable M12 L-Code

Product form

$46.00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

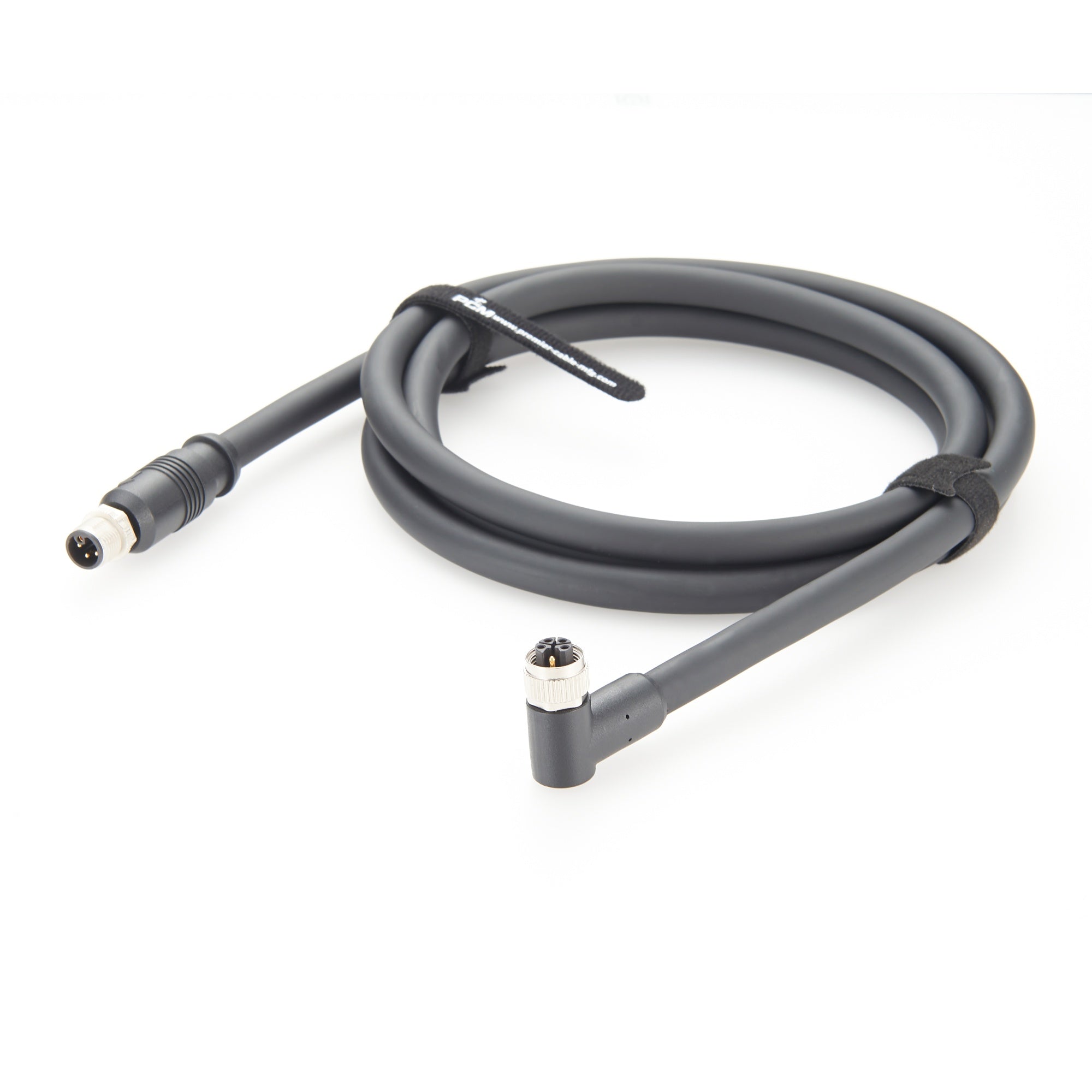

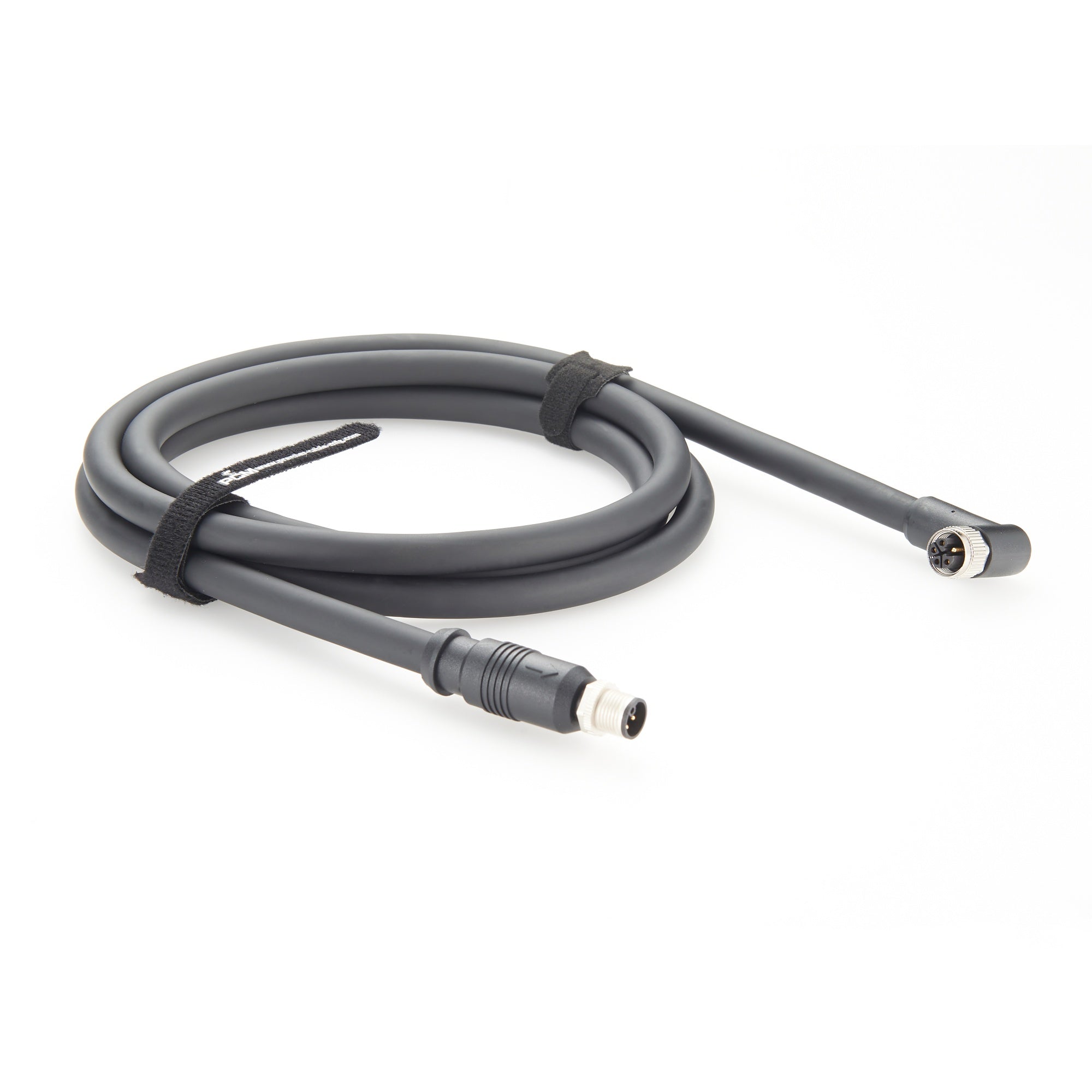

    M12 L-Code Power Cable, 10 Million Cycles of High Flex Drag Chain Cable,  90° Angled Female Connector with 45° PE Pin, Supports up to 63V AC/DC and 16A, Premier Cable Part No.: PCM-S-0532, Ideal for Sensors, Actuators, Robotics, PROFINET I/O Modules.

    • 24/7 Customer Support
    • No MOQ & Ready to Ship
    • Fast Lead Time: Less than 3 days!
    • Global Shipping: Anywhere, anytime!
    • Customizable Lengths & Bulk Orders Available
    • Note: The prices are for small-scale orders. For bulk quantities or customized specifications, please feel free to contact me at sales06@premier-cable.net or via the online chat for a tailored quotation.
    Description

    The Profinet Power Supply Cable M12 L-Code from Premier Cable is designed for reliable and efficient power supply in industrial automation and PROFINET devices. The following are some key features:

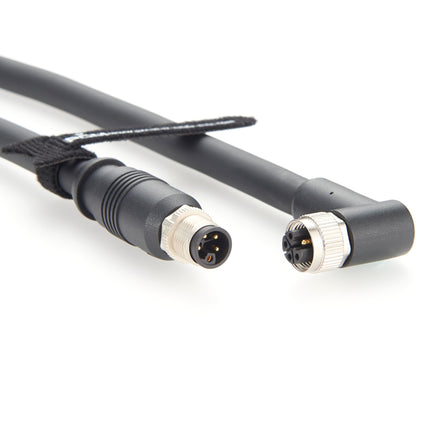

    ★ The M12 L-Code Power Cable features a right-angle female connector on one end, saving installation space and reducing cable strain.

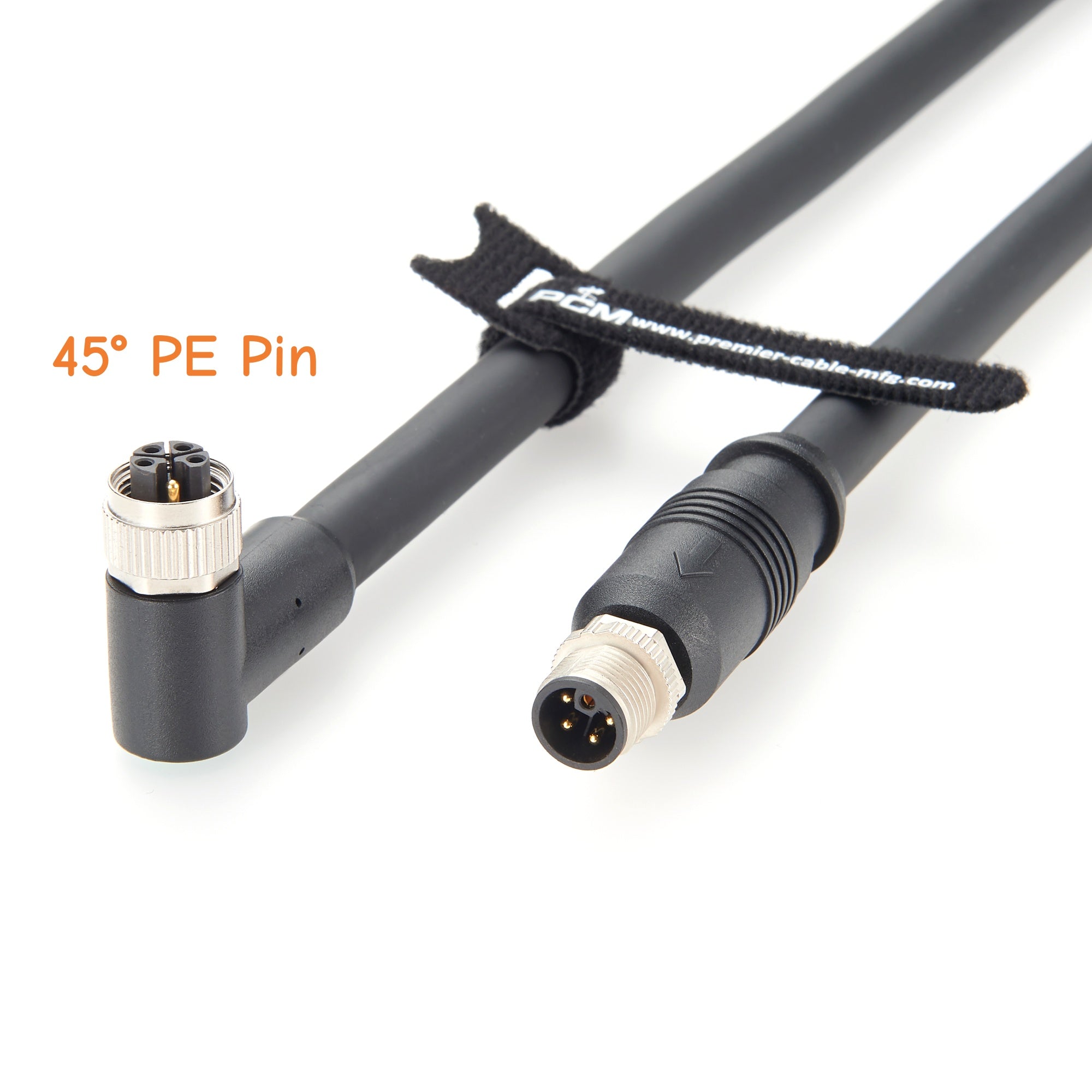

    ★ The 90° angled M12 L-Code power connector features a 45° tilted PE pin to reduce bending stress and prevent interference with other equipment or cables.

    ★ The Profinet Power Supply Cable M12 L-Code handles up to 16A per pin and supports 63V AC/DC, suitable for high-current and low-voltage applications.

    ★ Built with high-flex drag chain cable technology rated for 10 million cycles, it ensures exceptional durability in dynamic drag chain applications.

    ★ IP67-rated for preventing dust and water from entering the connector, reducing risk of short circuits, corrosion, or contact failure.

    Main Applications:

    • Robotics
    • Vision Systems
    • Motors & Drivers
    • Sensors & Actuators
    • Industrial Automation
    • PROFINET I/O Modules
    Specification

    Brand Name

    Premier Cable

    Cable Diameter

    11.0mm

    Origin

    Mainland China

    Shielded

    Yes

    Part No.

    PCM-S-0532

    Housing Material

    PVC

    Type

    M12 L-Code Cable Assembly

    Contact Material

    Gold-Plated

    Product Name

    M12 L-Code Power Cable

    Rated Current

    16A

    Connector A

    M12 L-Code 5 Pin (4+PE) Male, Straight

    Rated Voltage

    63V AC/DC

    Connector B

    M12 L-Code 5 Pin (4+PE) Female, Right Angle (45° PE Pin)

    Wire Gauge

    16AWG (1.5mm²)

    Connector Standard

    IEC 61076-2-111

    Drag Chain

    ≥ 10 million Cycles

    Protecting Rating

    IP67

    Operating Temperature

    -40°C to +85°C

    Cable Length

    2m, 5m, Or OEM



    Drawing
