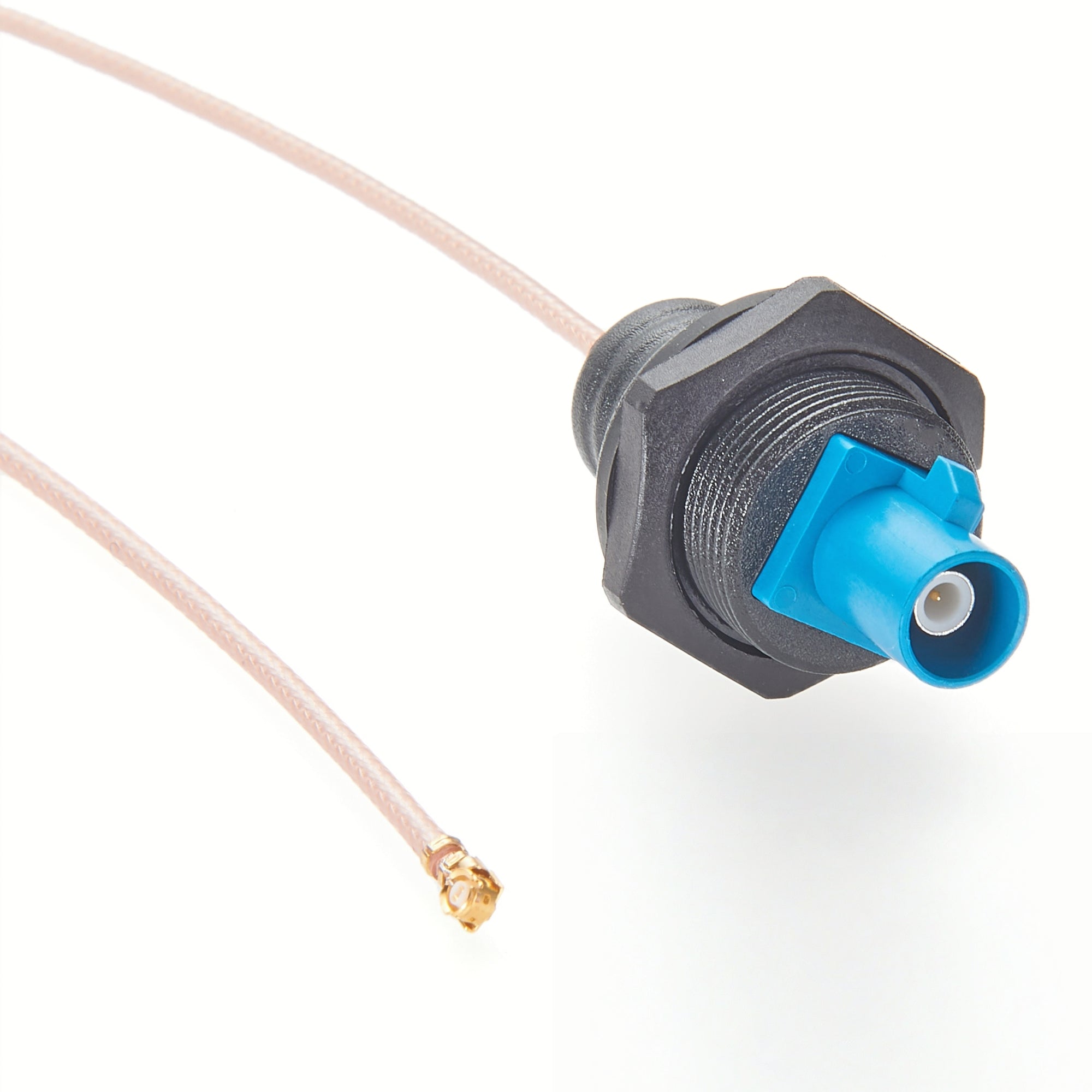

The Panel Mount FAKRA to I-PEX RF Cable Assembly is a high-performance 50 Ohm RF coaxial adapter cable designed to interconnect compact RF modules with automotive-grade Fakra antenna systems.

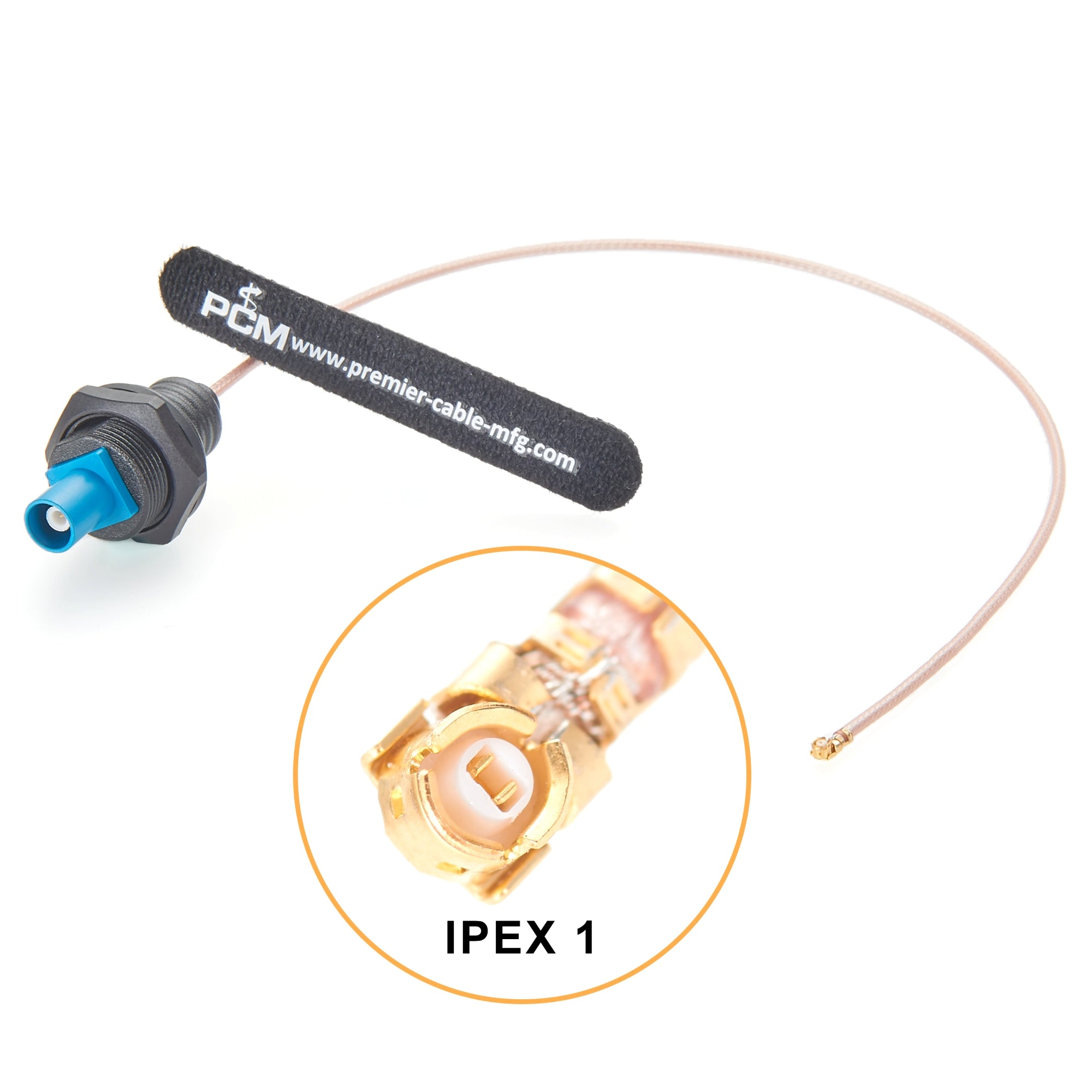

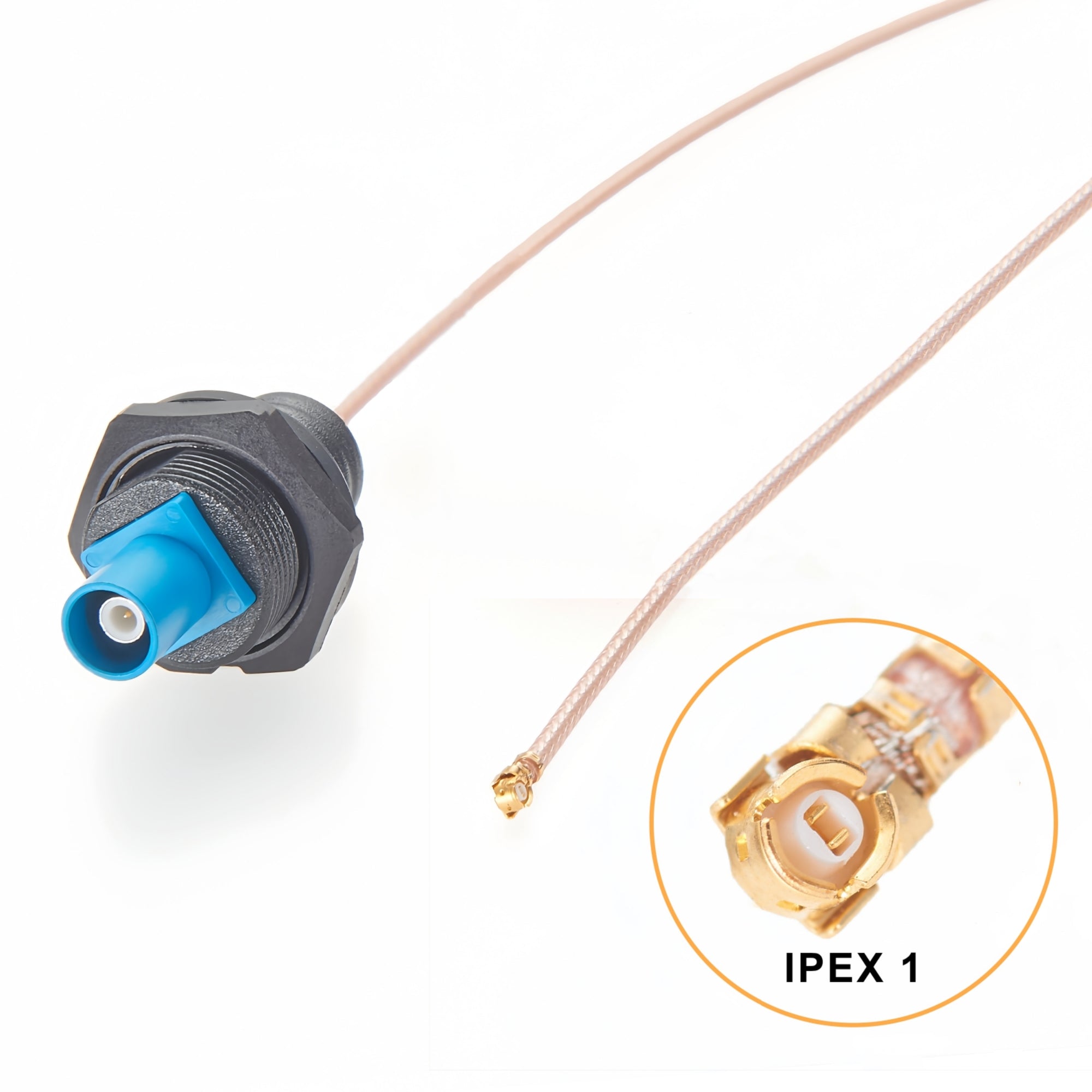

This cable assembly features an I-PEX Gen 1 & MHF Gen 1 micro RF connector on one end and a Fakra Z-Code male straight bulkhead connector on the other, enabling seamless RF signal transition from space-constrained PCBs to rugged, sealed external antenna interfaces.
Manufactured with RG178 micro-coaxial cable OD 1.78 mm, the assembly provides excellent signal integrity, low insertion loss, and stable impedance control, suitable for Wi-Fi, Bluetooth, LTE, GNSS, and IoT wireless communication.

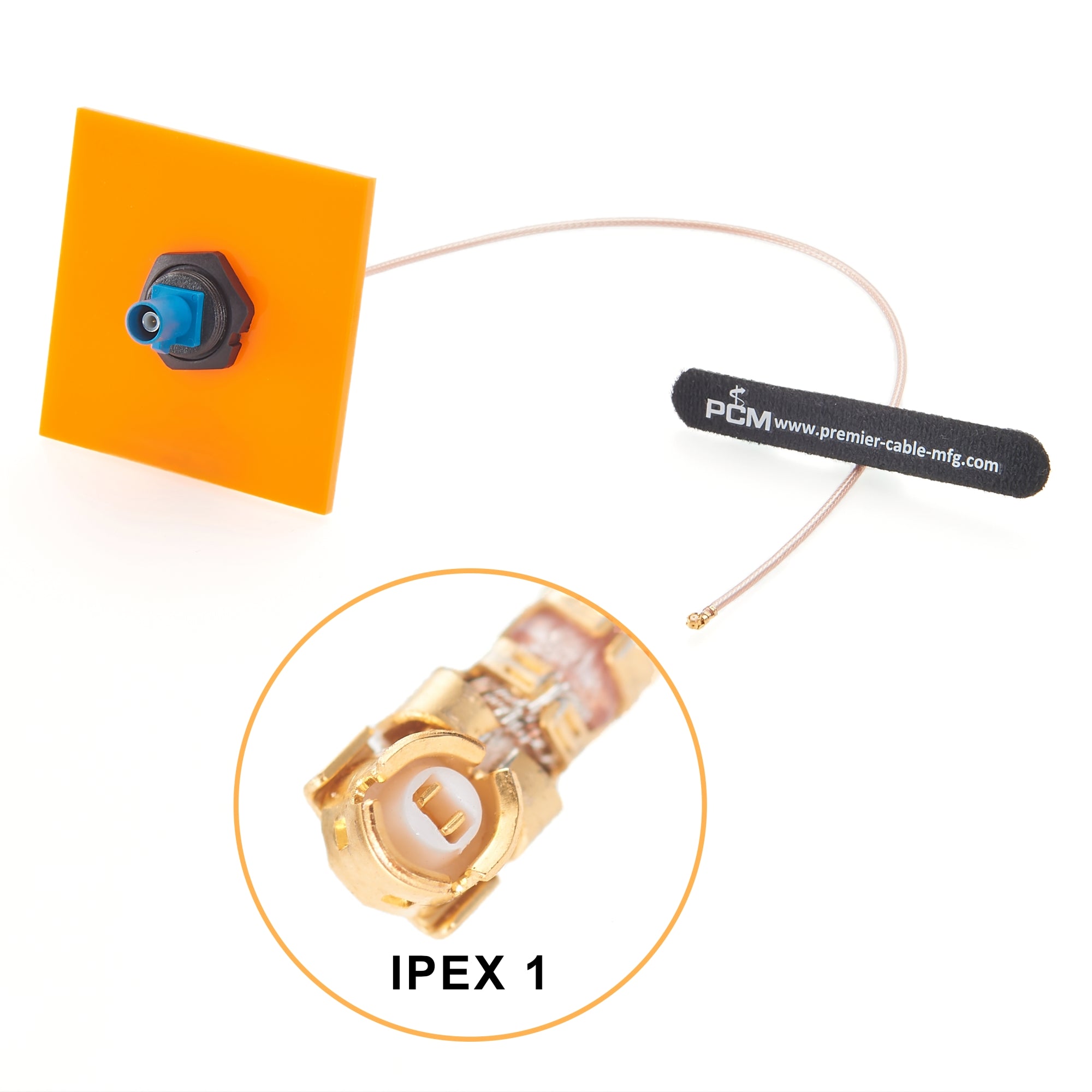

The Fakra panel-mount connector supports front mounting with a 16 mm panel cutout and delivers IP67-rated protection, making it ideal for automotive, industrial, and outdoor enclosures where vibration resistance and environmental sealing are required.
I-PEX & MHF Gen 1 – Usage
- RF test ports on compact PCBs
- IoT and embedded wireless modules
- Low-profile, space-limited RF designs
- Wi-Fi and Bluetooth antenna connections

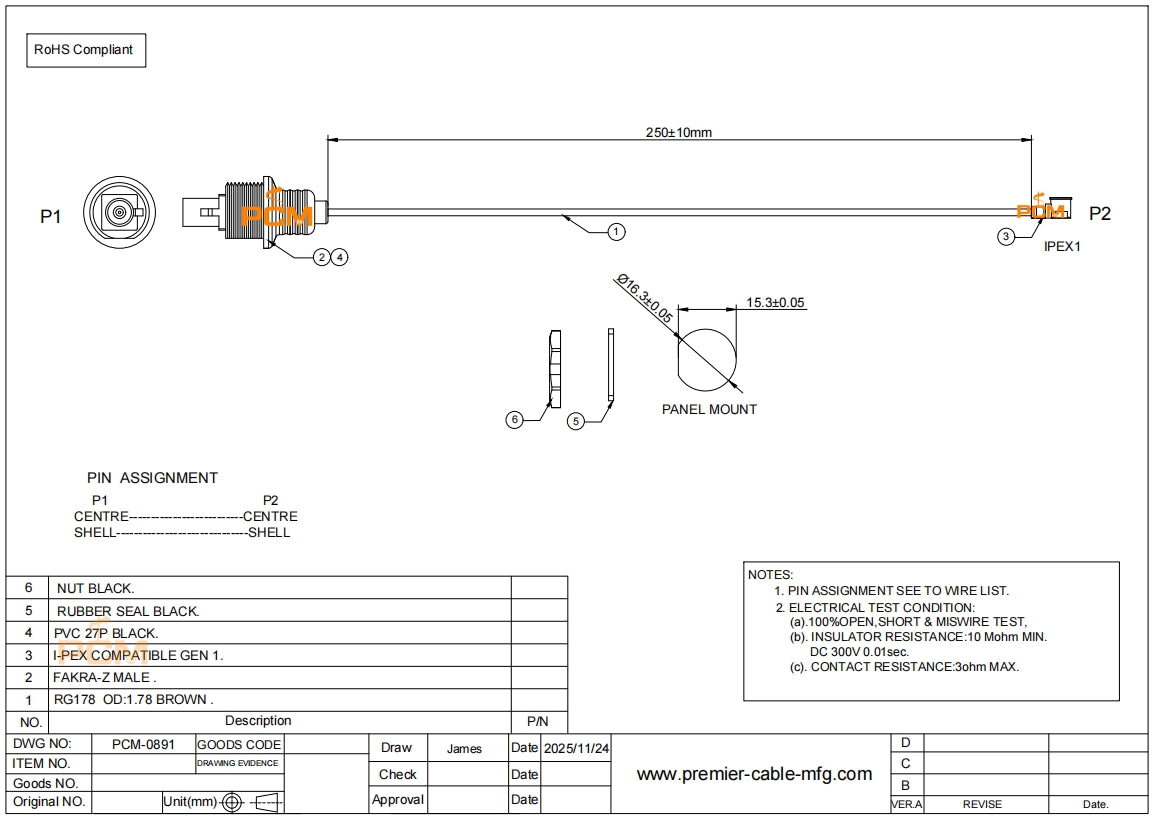

Key Specifications:
- Cable Type : RG178
- Cable OD : 1.78 mm
- Impedance : 50 Ohm
- Panel Cutout : 16 mm
- Ingress Protection : IP67 Fakra sideI-PEX Connector : Gen 1 & MHF Gen 1
- Fakra Connector : Z Code Male, Straight, Bulkhead, Front Mount
