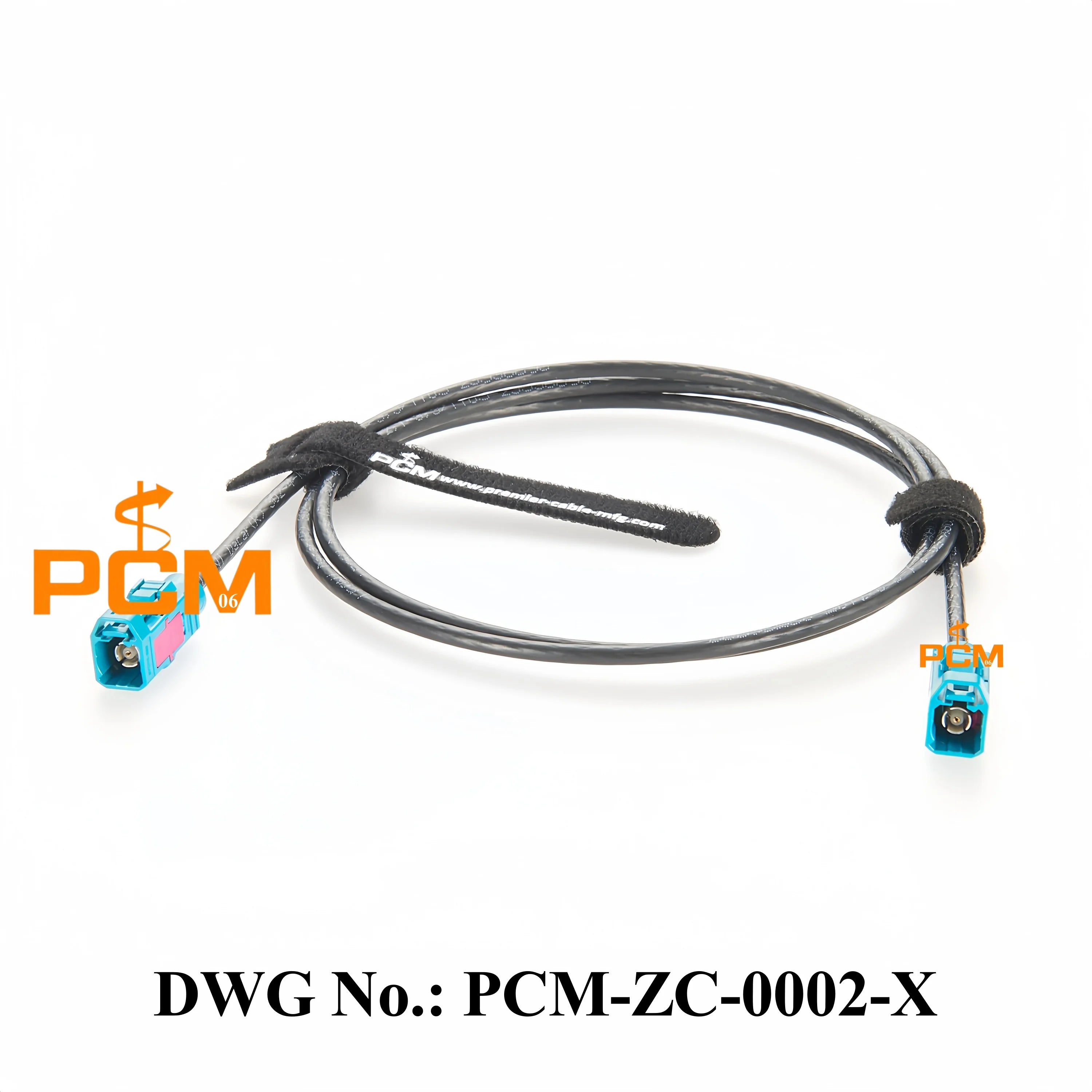

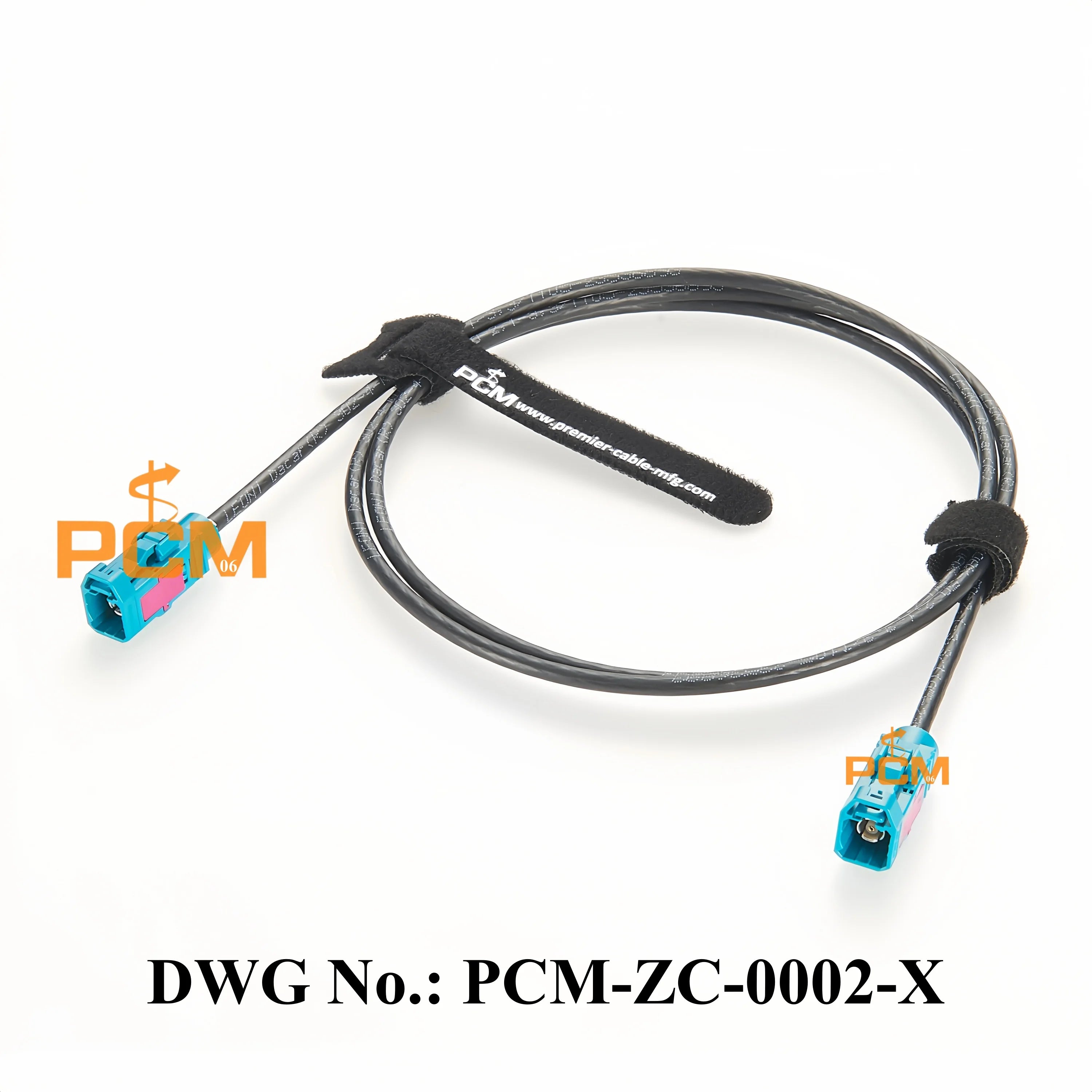

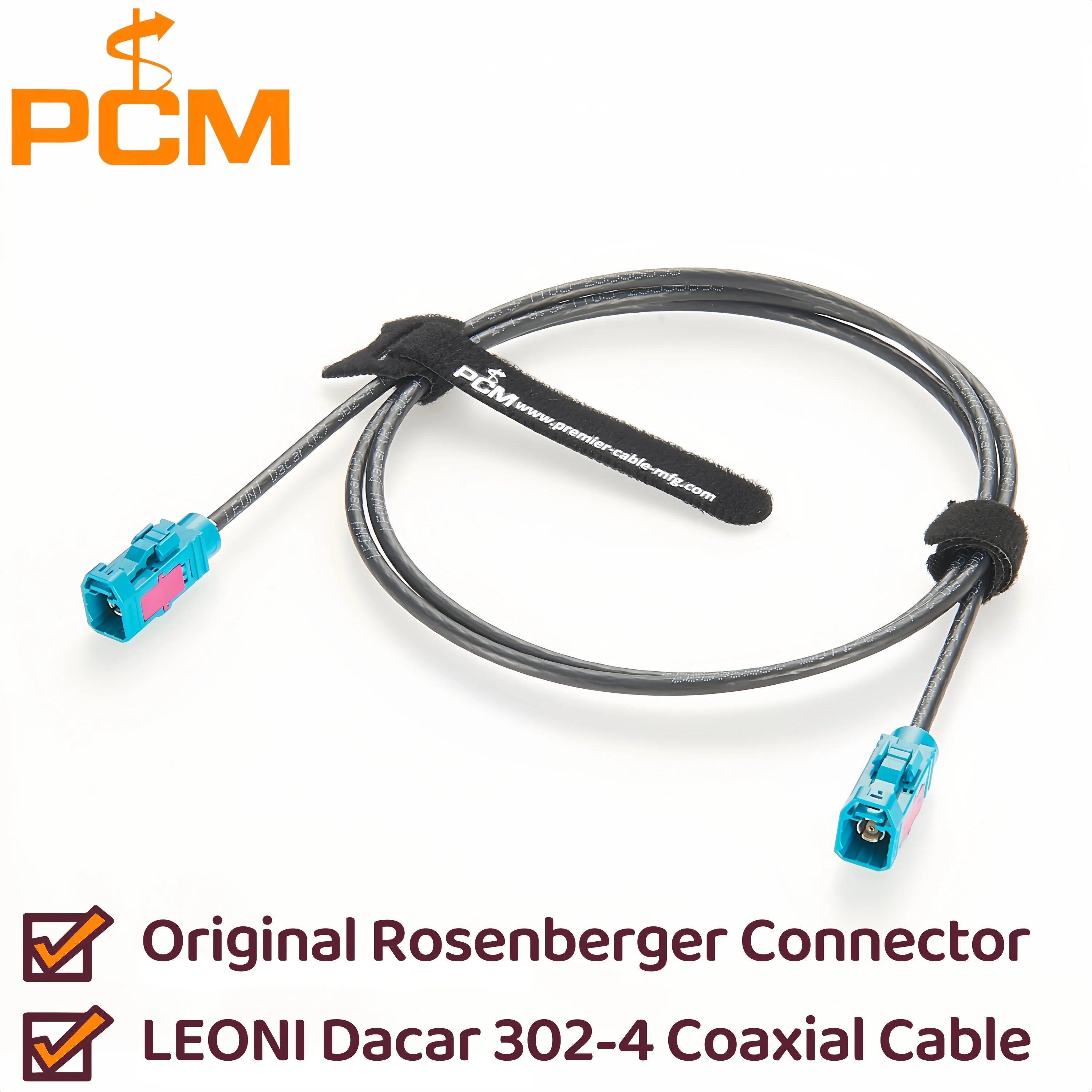

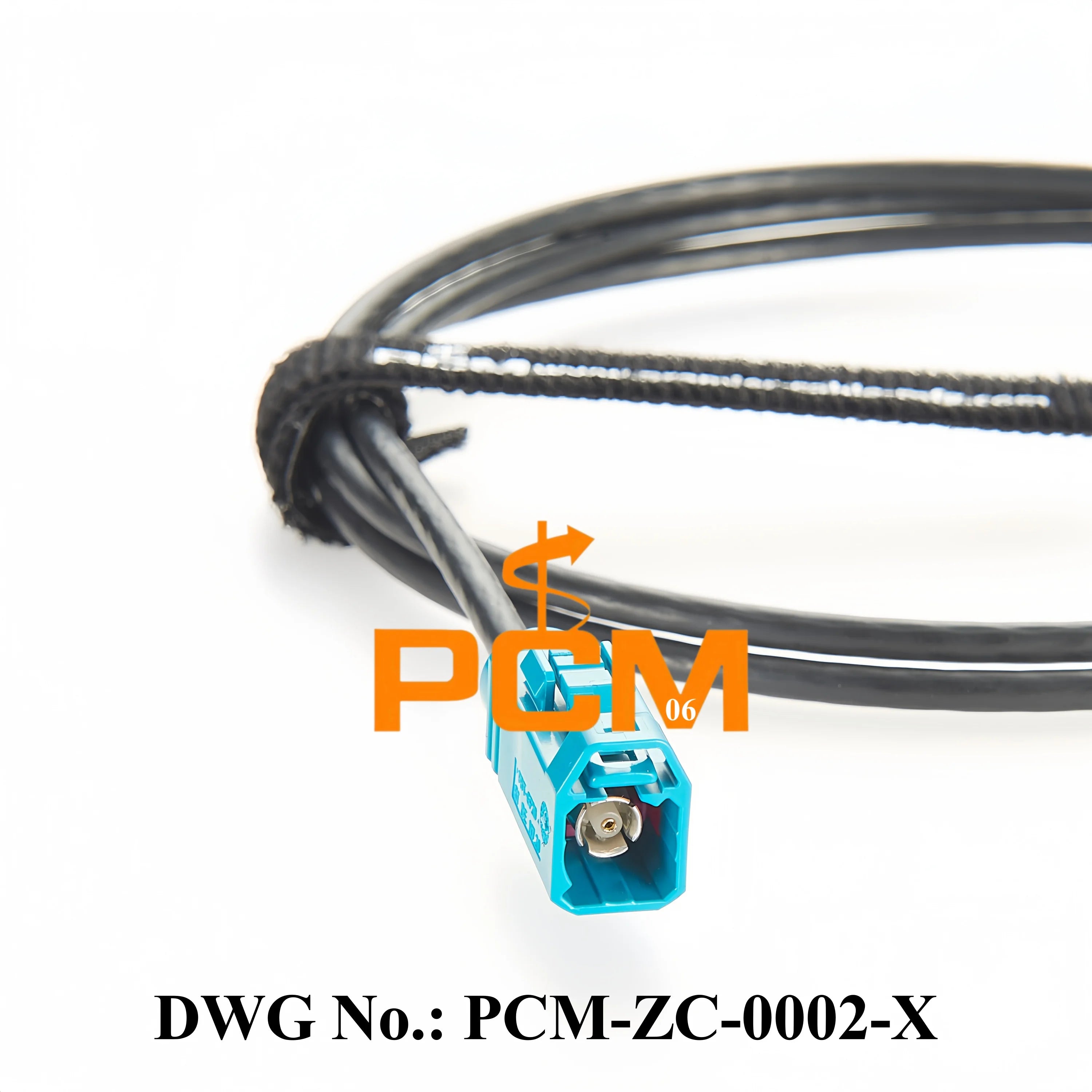

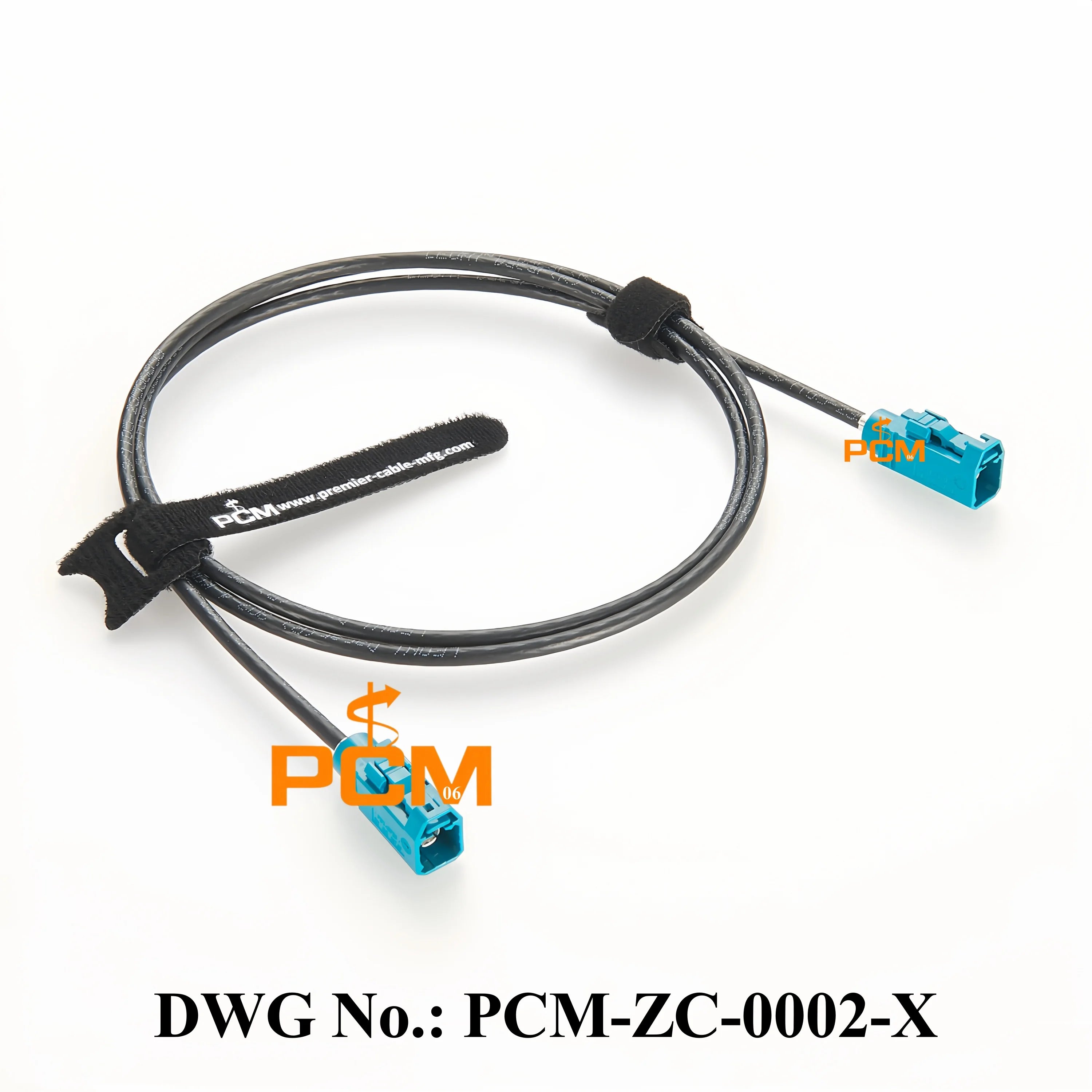

Original Rosenberger 59Z113-000-Z FAKRA Z Female to Female RF Coaxial Cable Assembly FPD-Link III GMSL2 FAKRA Cable for Cameras

Original Rosenberger 59Z113-000-Z FAKRA Z Female to Female RF Coaxial Cable Assembly FPD-Link III GMSL2 FAKRA Cable for Cameras

Product form

$11.50 $10.35 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • 24/7 Customer Support
    • No MOQ & Ready to Ship
    • Fast Lead Time: Less than 3 days!
    • Global Shipping: Anywhere, anytime!
    • Customizable Lengths & Bulk Orders Available
    • Note: The prices are for small-scale orders. For bulk quantities or customized specifications, please feel free to contact me at sales06@premier-cable.net or via the online chat for a tailored quotation.
    Description

    The FAKRA Z Female Jack to Female Jack RF Coaxial Cable Assembly not only supports frequencies up to 6GHz, ensuring secure and reliable high-frequency signal transmission, but also provides excellent shielding, effectively minimizing external electromagnetic interference (EMI) and radio frequency interference (RFI). Additionally, the minimum retention force latch of the FAKRA connectors is typically 110 N, which means they can withstand at least 110 Newtons of pulling force, maintaining stable connections even under vibrations and mechanical stress.

    Applications

    • Back Camera Systems
    • Machine Vision Systems
    • GPS Navigation Systems
    • Satellite Antenna Systems
    • GMSL / FPD-Link Cameras
    • Embedded Vision Cameras
    • V2X Communication Systems
    • Automotive Electronic Systems
    • In-Vehicle Infotainment (IVI) Systems
    • Advanced Driver Assistance Systems (ADAS)
    Specification

    Hign-concerned Chemical

    None

    Origin

    Mainland China

    Brand Name

    PremierCable

    Connector Type

    FAKRA Female Connector, Z Code (Water Blue), Rosenberger 59Z113-000-Z

    DWG No.

    PCM-ZC-0002

    Connector Direction

    Straight

    Wire

    LEONI DACAR 302-4 Coaxial Cable

    Locking Mechanism

    Latch-Locking

    Characteristic Impedance

    50 Ohm

    Frequency Range

    DC to 6GHz

    Temperature Range

    -40 °C to +105 °C





    Drawing
