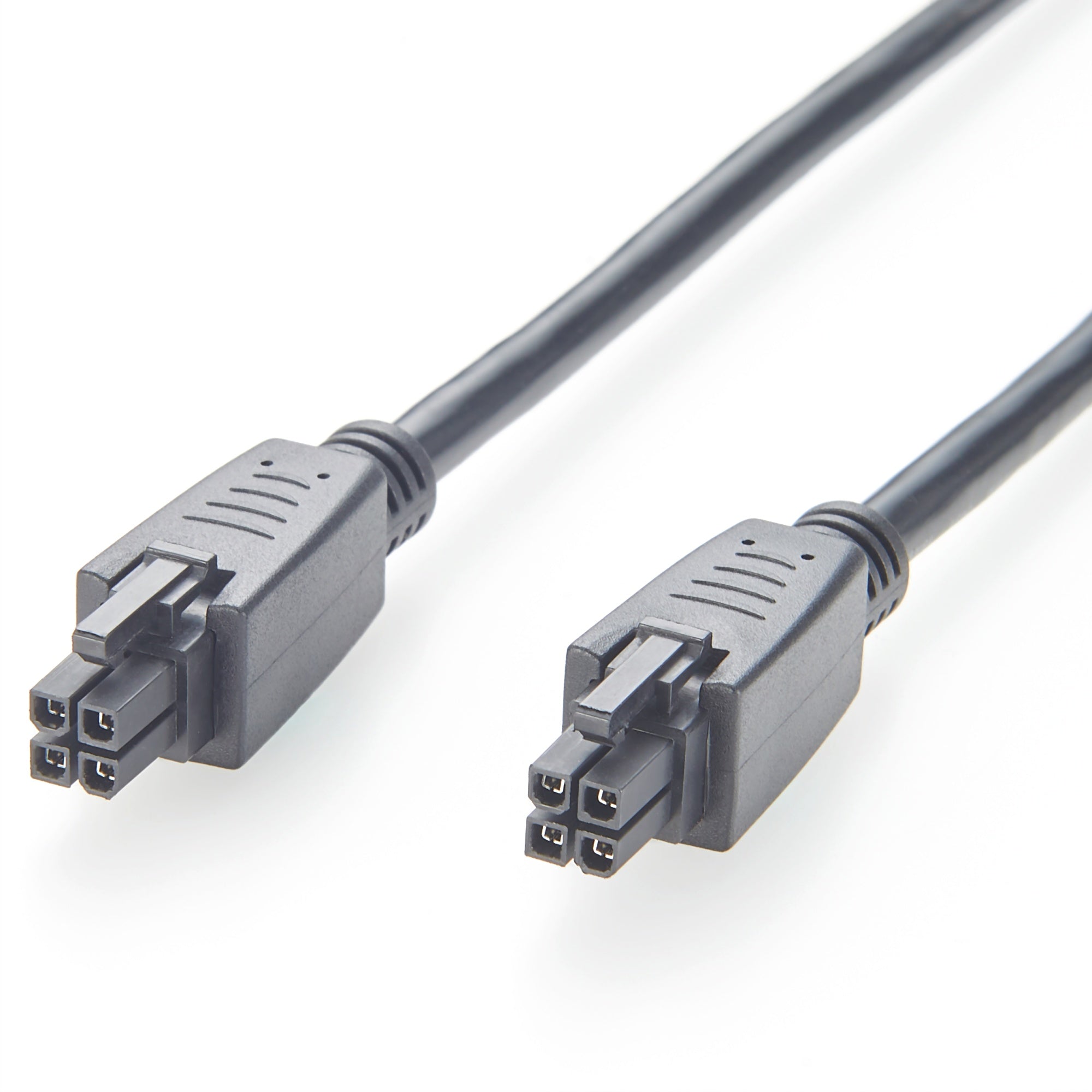

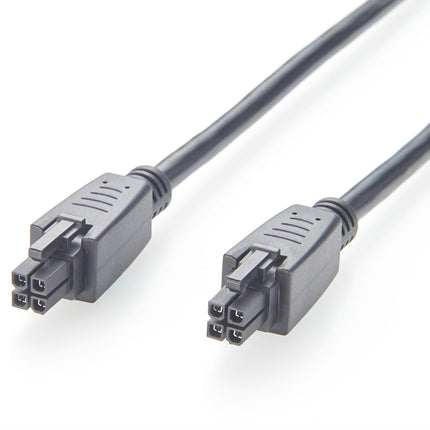

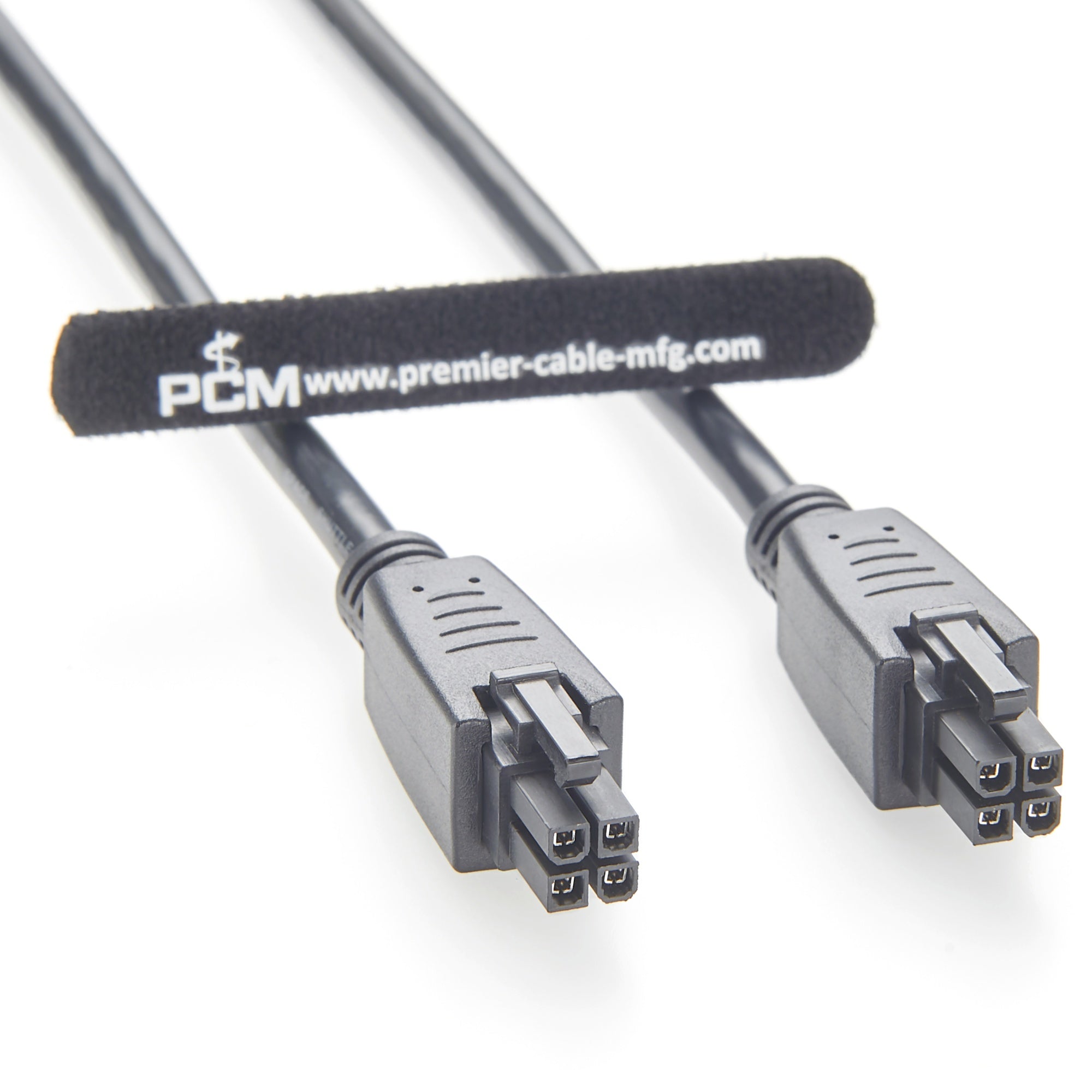

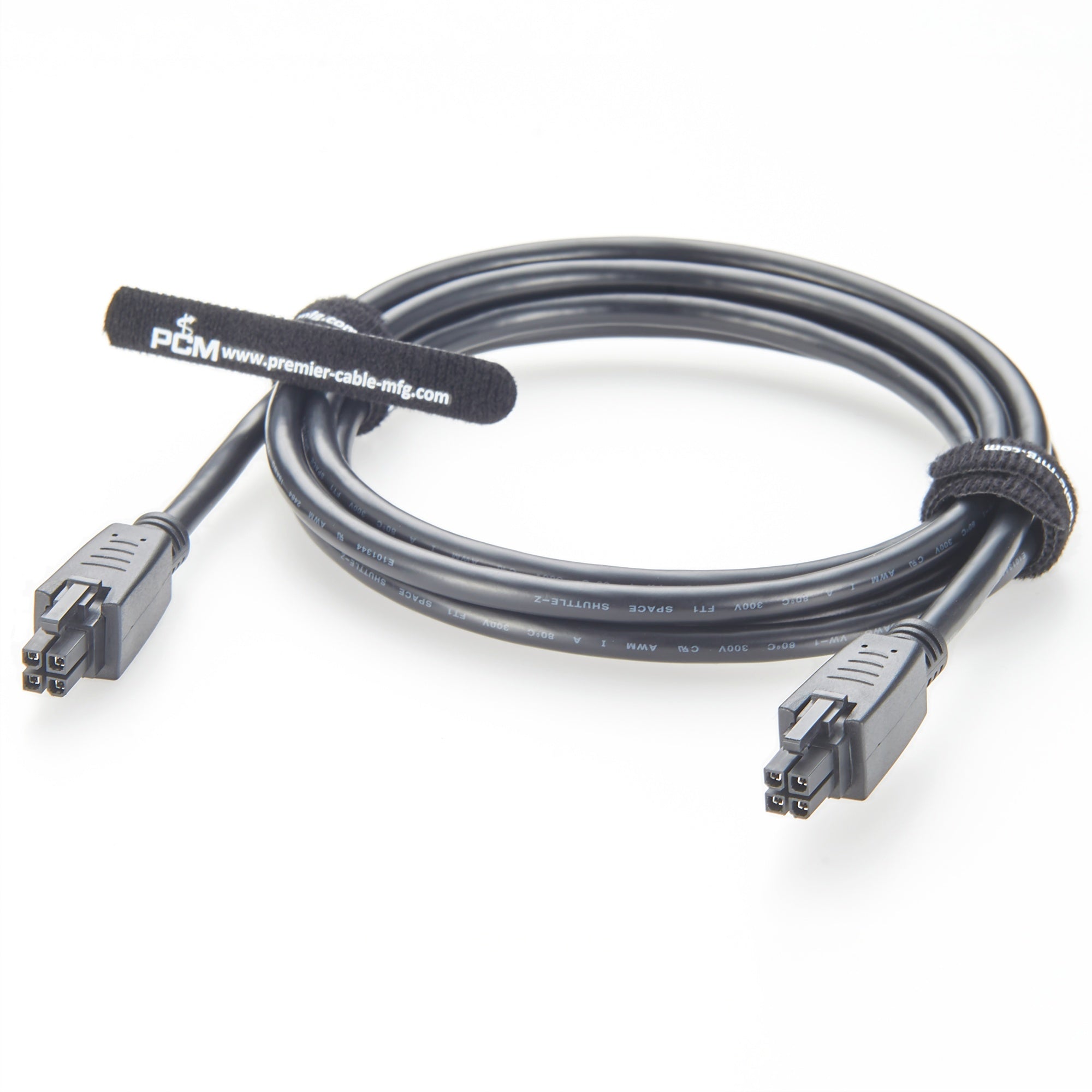

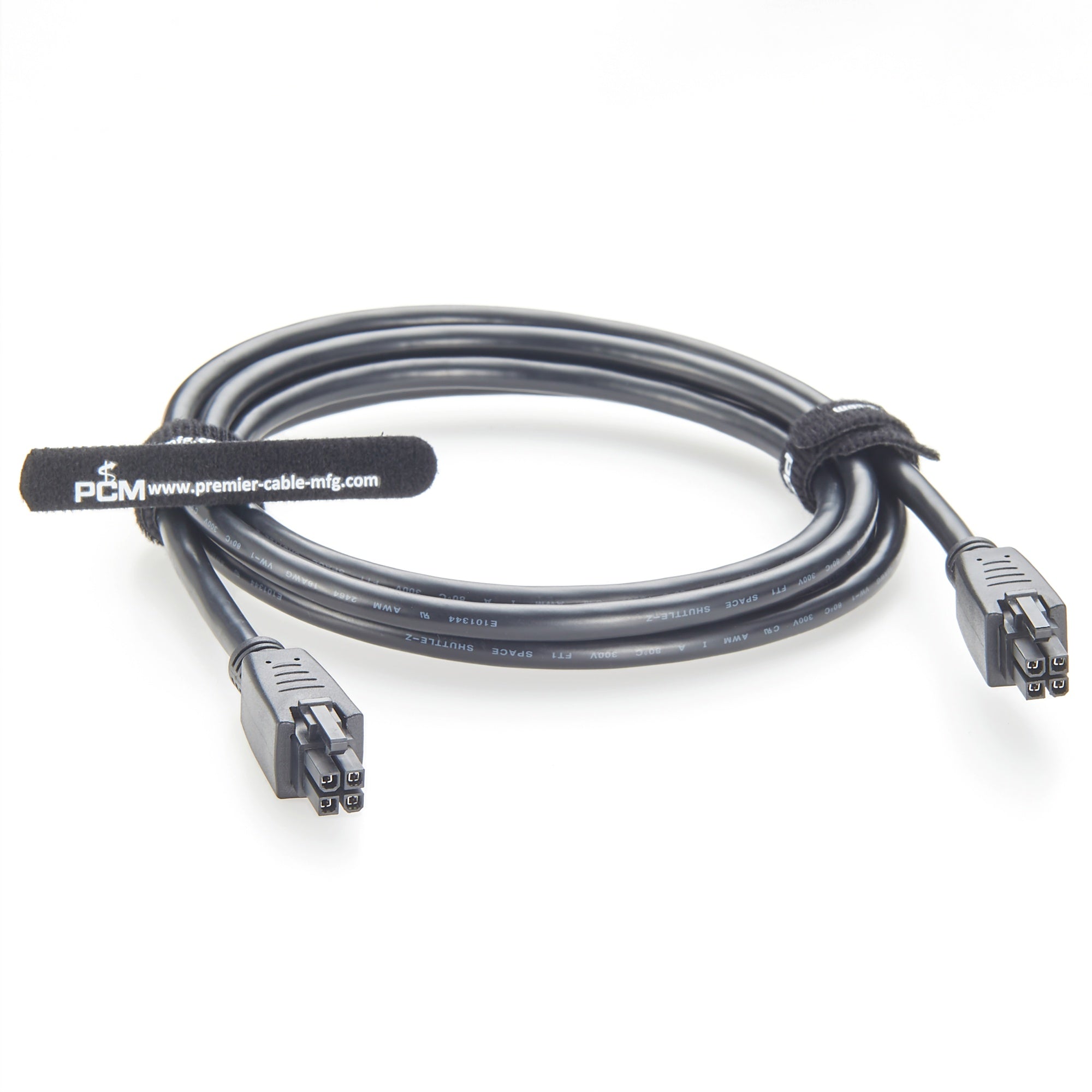

The Premier Cable PCM-0881 is a high-quality Mini-Fit Jr. 4.2mm pitch power and signal cable assembly, featuring Molex 39-01-2040 connectors on both ends. Designed as an Off-the-Shelf OTS overmolded cable, it offers robust electrical performance and secure mating for power distribution and signal transmission in demanding environments.

This dual-row, 4-circuit cable supports up to 7.5A per contact and 300V AC, utilizing UL 2464 18AWG wire to ensure superior conductivity and insulation. The 2.0-meter cable length provides flexible installation in both industrial and embedded system layouts.

The Mini-Fit Jr. Series 245135 is widely recognized for its compact design, high current capacity, and versatile modular structure, making it an excellent choice for servo motors, power supplies, control panels, robotics, industrial automation system and mechatronic devices.

Its pre-molded strain relief enhances cable durability, while the dual-ended Mini-Fit Jr. configuration simplifies plug-and-play integration for wire-to-board and wire-to-wire interconnects in OEM and field installations.

Key Features:

• Molex Series : 245135
• Pitch : 4.20mm Mini-Fit Jr.
• Connector : Molex 39-01-2040
• Rated 7.5A per contact 300V AC
• UL 2464 18AWG cable 2.0m length
