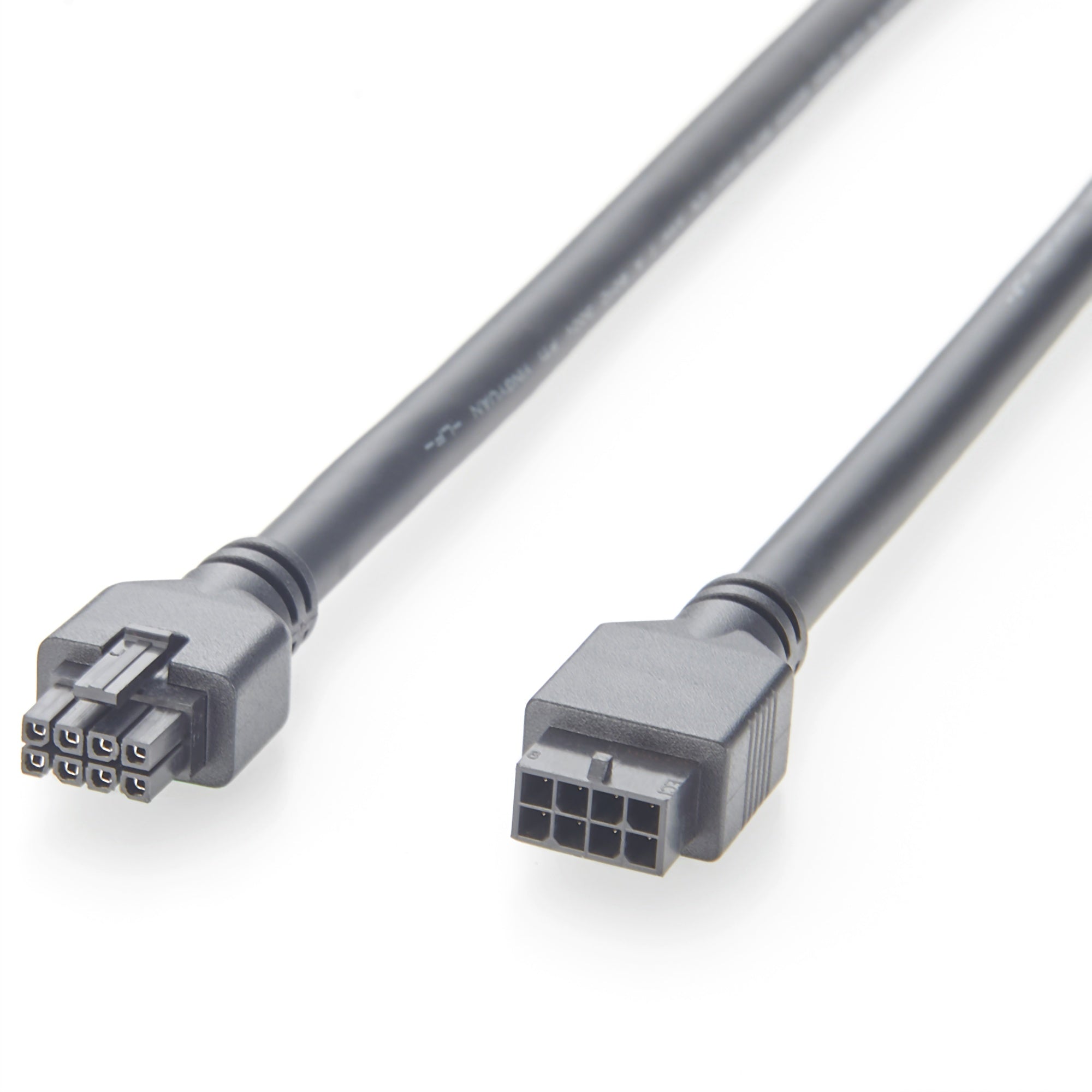

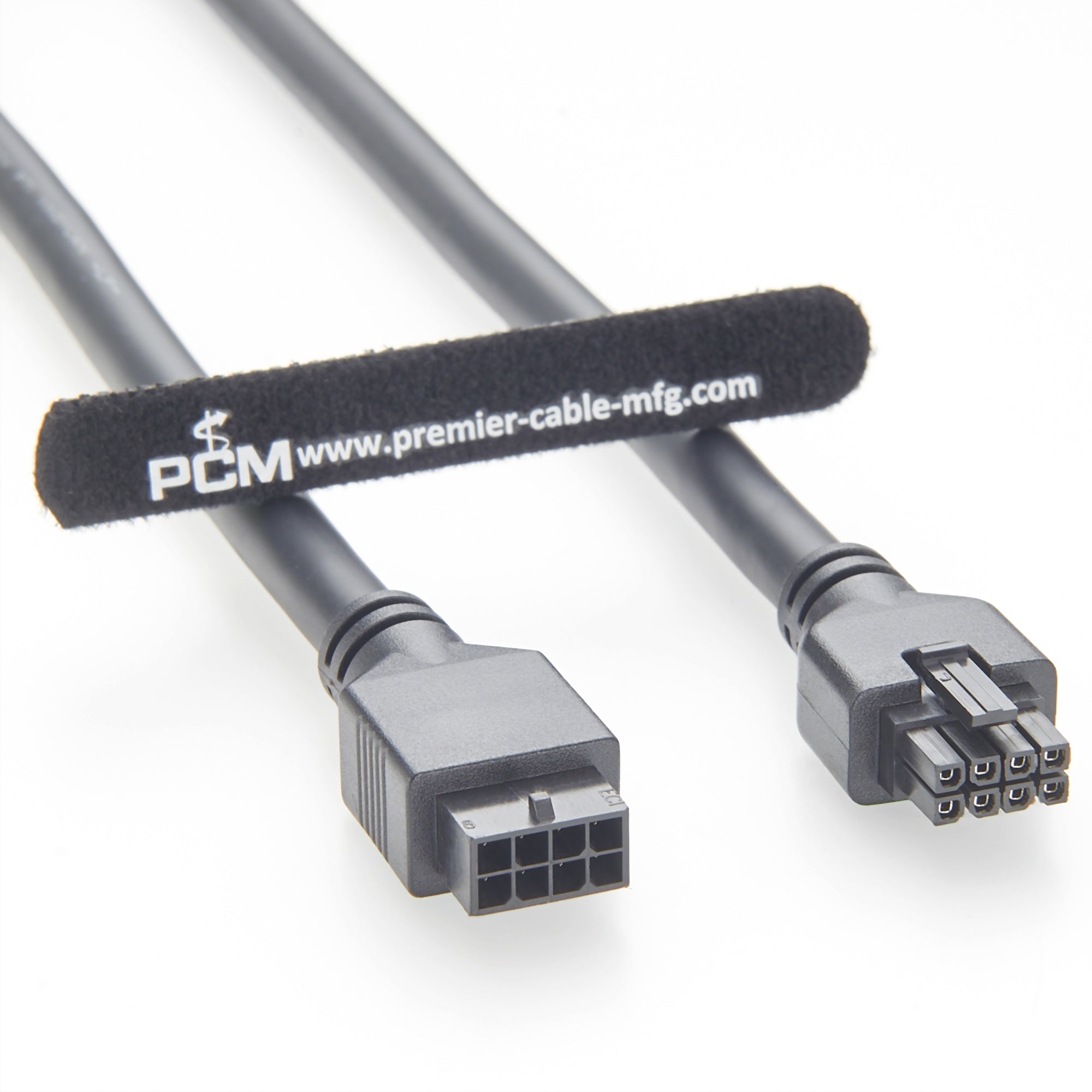

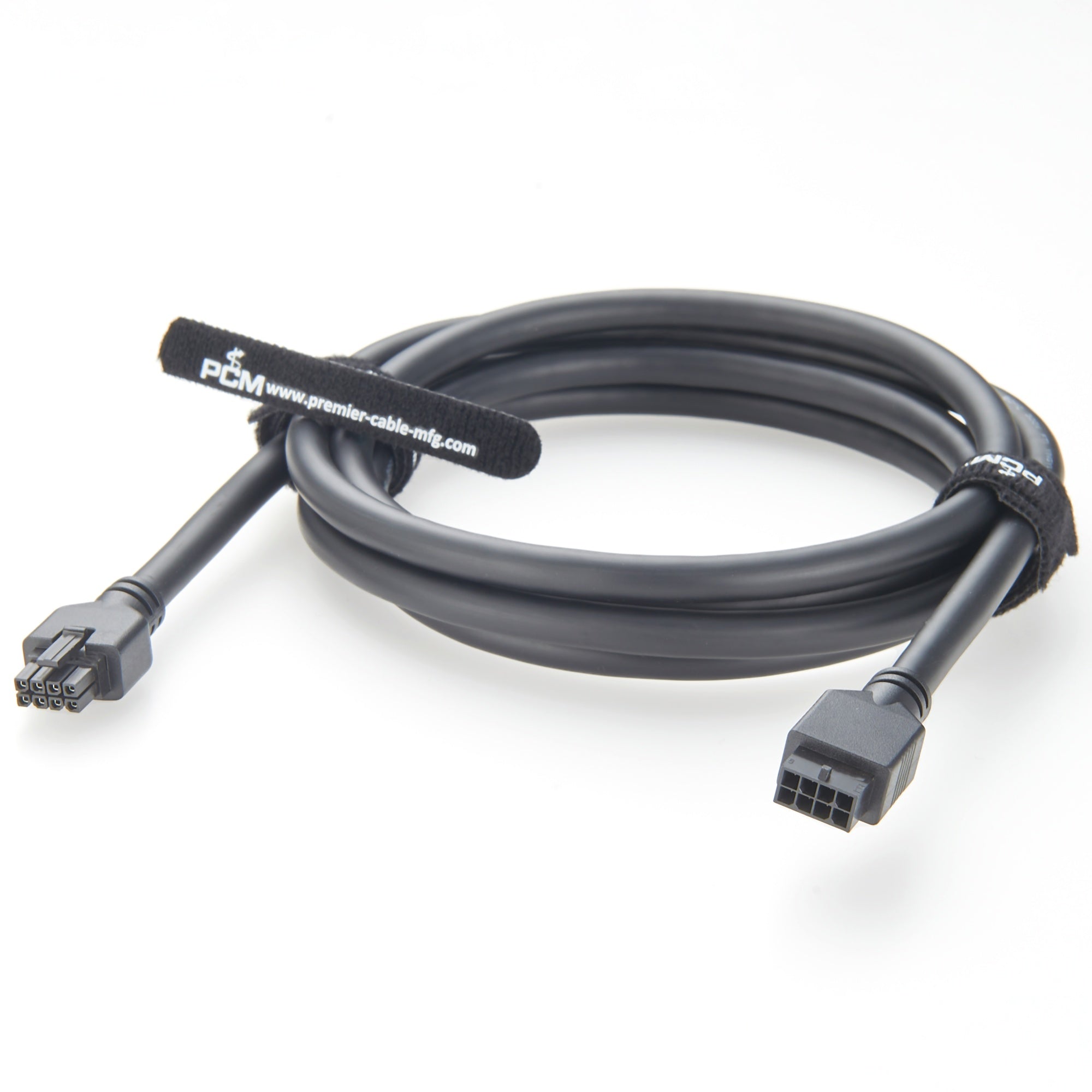

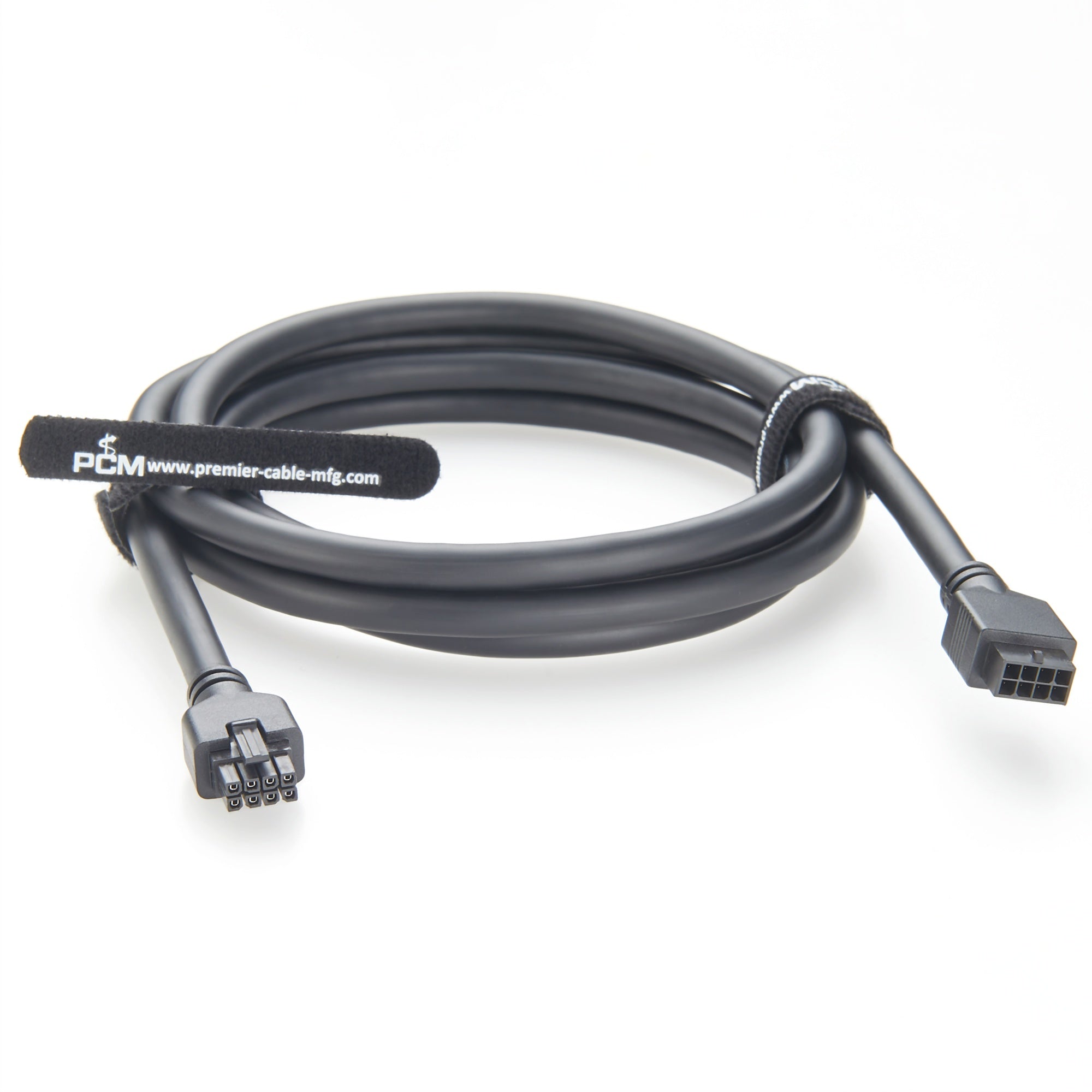

The Micro-Fit 3.0 male to female overmolded extension cable assembly provides a reliable and durable solution for power and signal transmission in wire-to-wire or wire-to-board applications. Equipped with Molex 43025-0800 male and Molex 43020-0801 female connectors, the dual-row 8-circuit design supports up to 3.5A per contact and 300V AC.

Constructed with UL2464 20AWG cable, this 2.0-meter assembly ensures stable current and signal delivery while its overmolded design provides superior strain relief and mechanical protection. Ideal for extending existing Micro-Fit 3.0 connections in power supply systems, industrial automation, communication equipment, and control devices.

Key Features:

• Molex 43025-0800, 43020-0801 Connector
• Rated 3.5A per contact, 300V AC maximum
• Dual-row, 8-circuit configuration, 3.00mm pitch
• UL2464 20AWG wire for consistent power and signal transmission
• Ideal for power, signal, wire-to-wire, and wire-to-board applications
• Overmolded connector design for enhanced durability and strain relief
