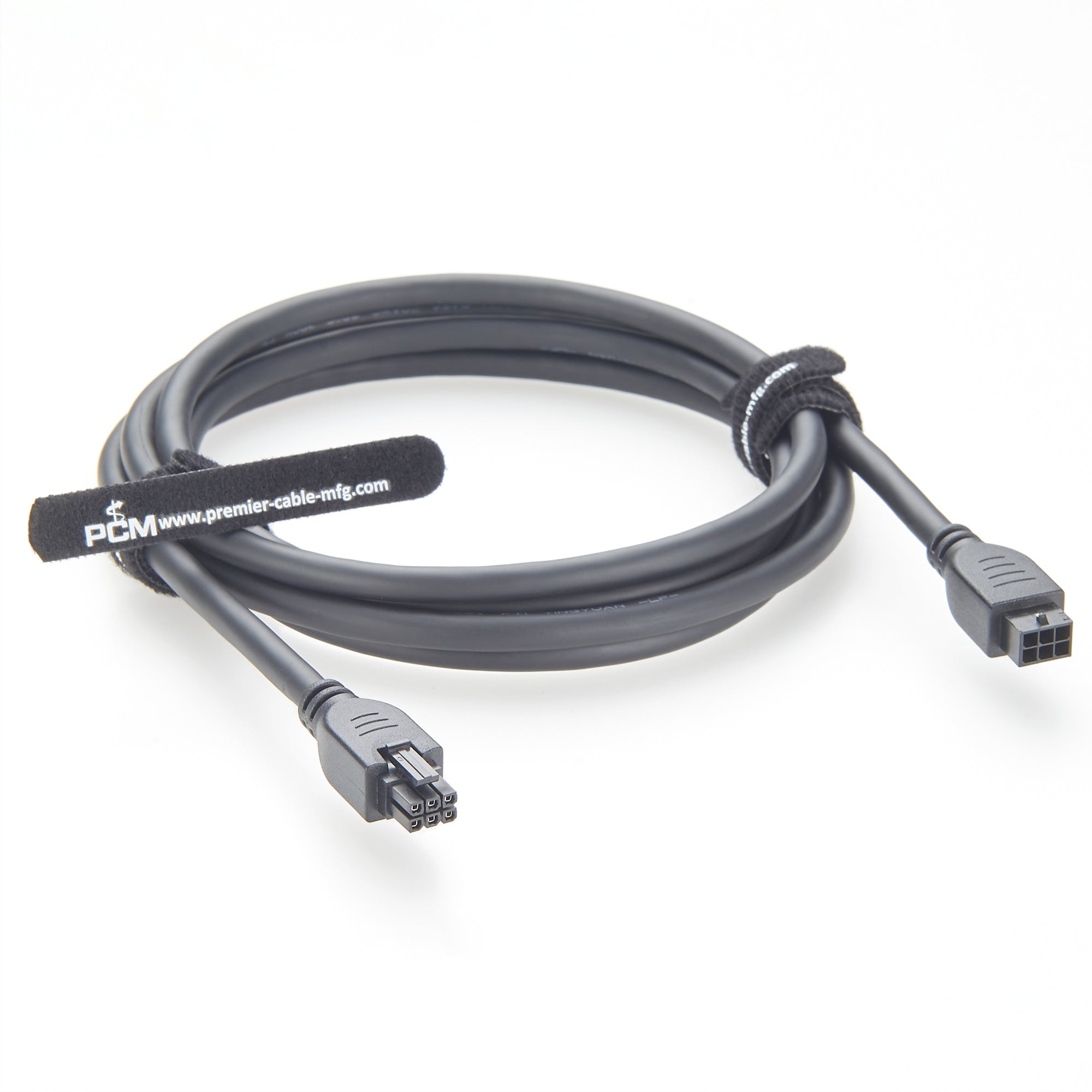

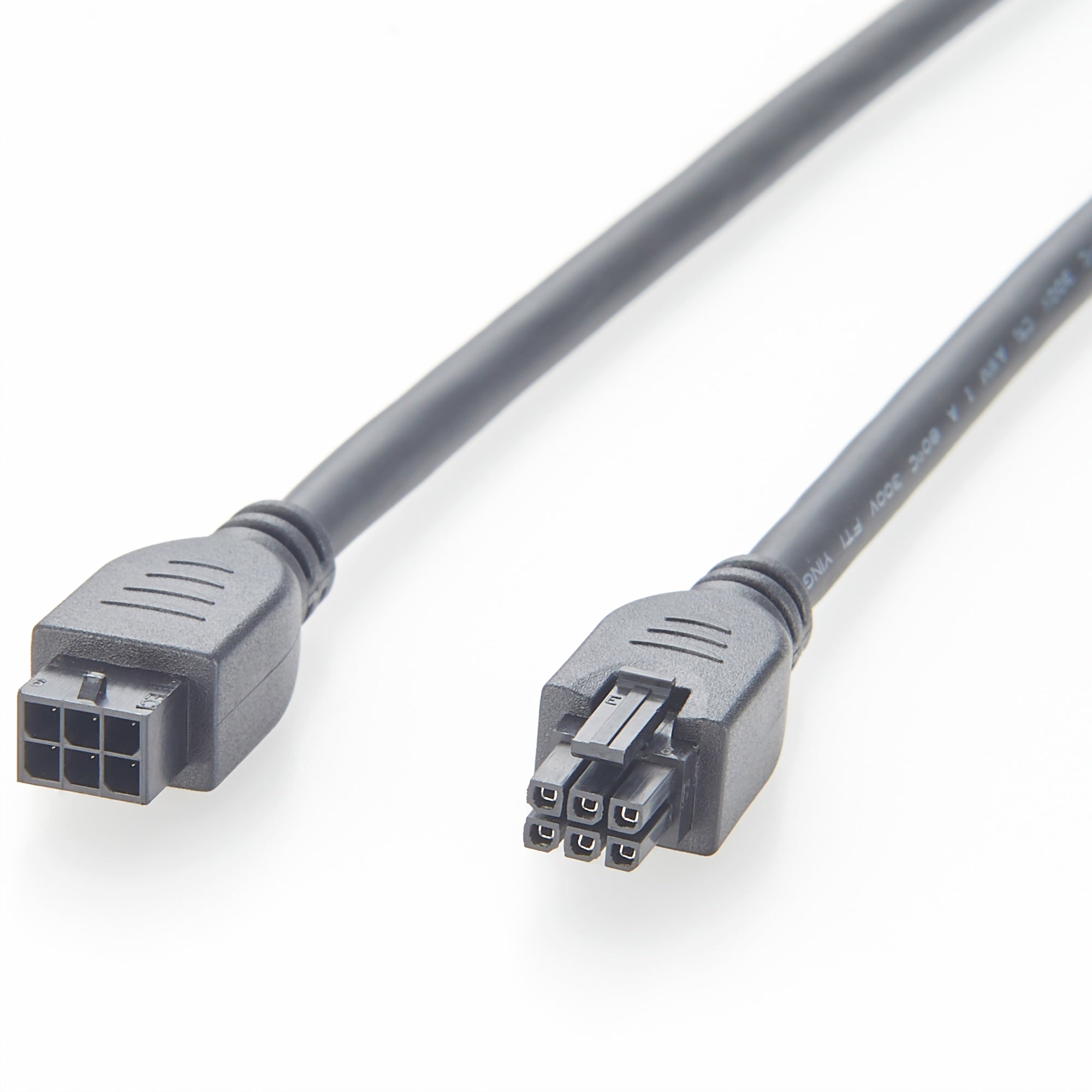

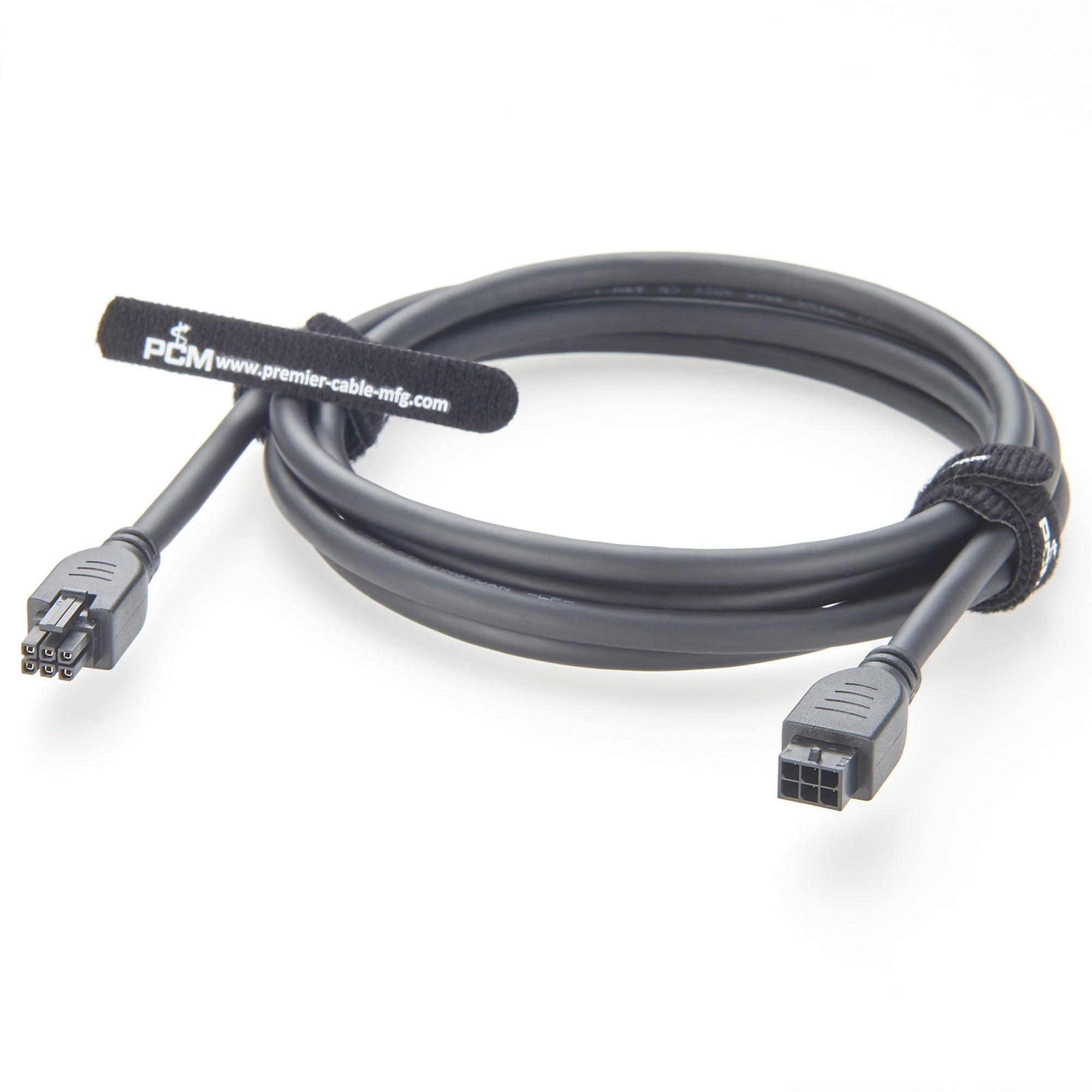

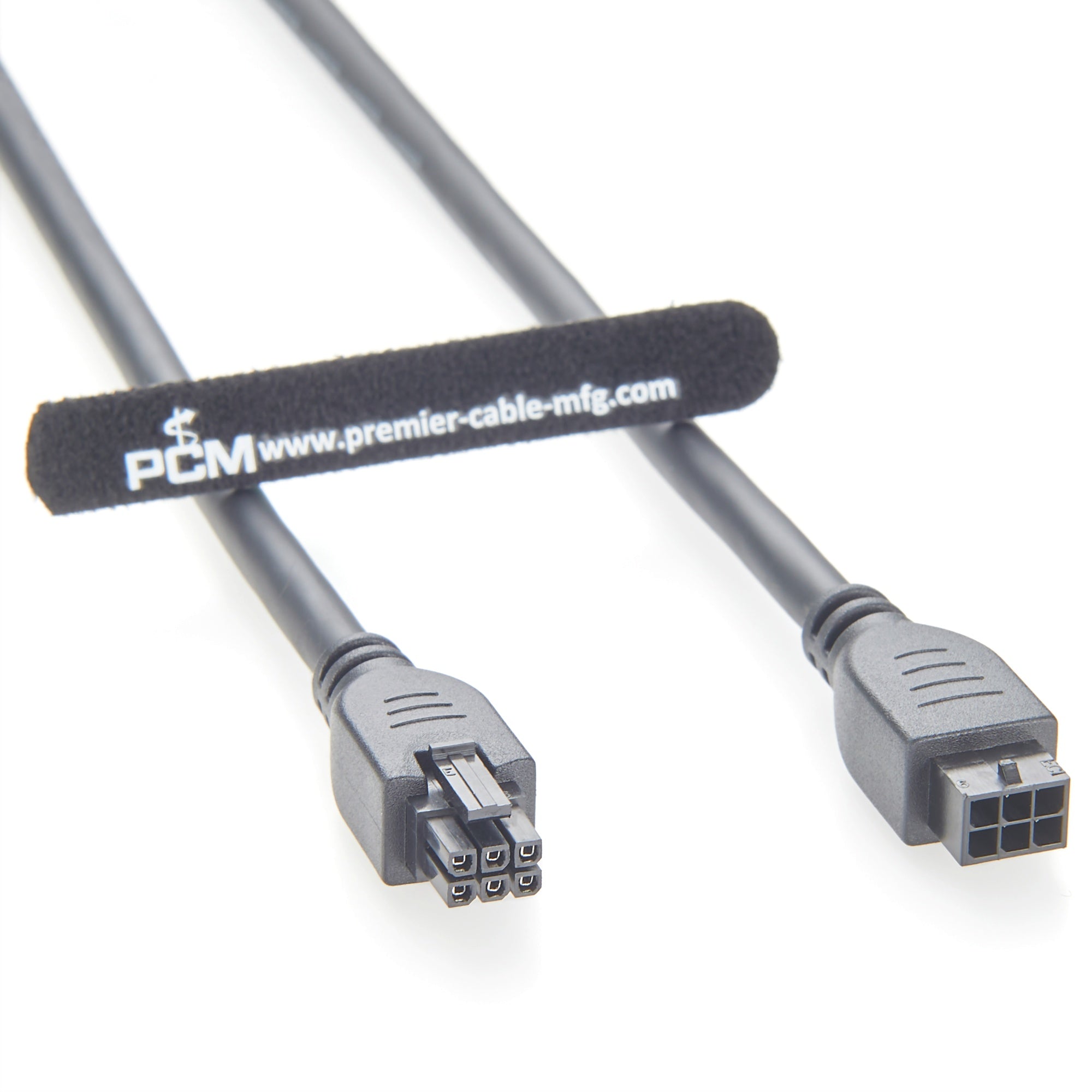

The Micro-Fit 3.0 to Micro-Fit 3.0 Off-the-Shelf OTS Overmolded Extension Cable Assembly features a dual-row, 6-circuit design with a male connector Molex 43025-0600 on one end and a female connector Molex 43020-0601 on the other. With a 2.0-meter UL2464 20AWG cable, the assembly supports up to 4.0A per contact and 300V AC, providing reliable power and signal transmission. Its overmolded construction offers excellent strain relief and durability, ideal for extending wire-to-board and wire-to-wire connections in power, industrial automation and control system applications.

Key Features:

• 6 Pin Micro-Fit 3.0 extension cable
• Rated 4.0A per contact 300V AC maximum
• Molex 43025-0600 43020-0601 Connector
• Dual-row, 6-circuit configuration with 3.00mm pitch
• UL2464 20AWG wire ensures stable power and signal performance
• Ideal for wire-to-wire and wire-to-board power or signal extension applications
