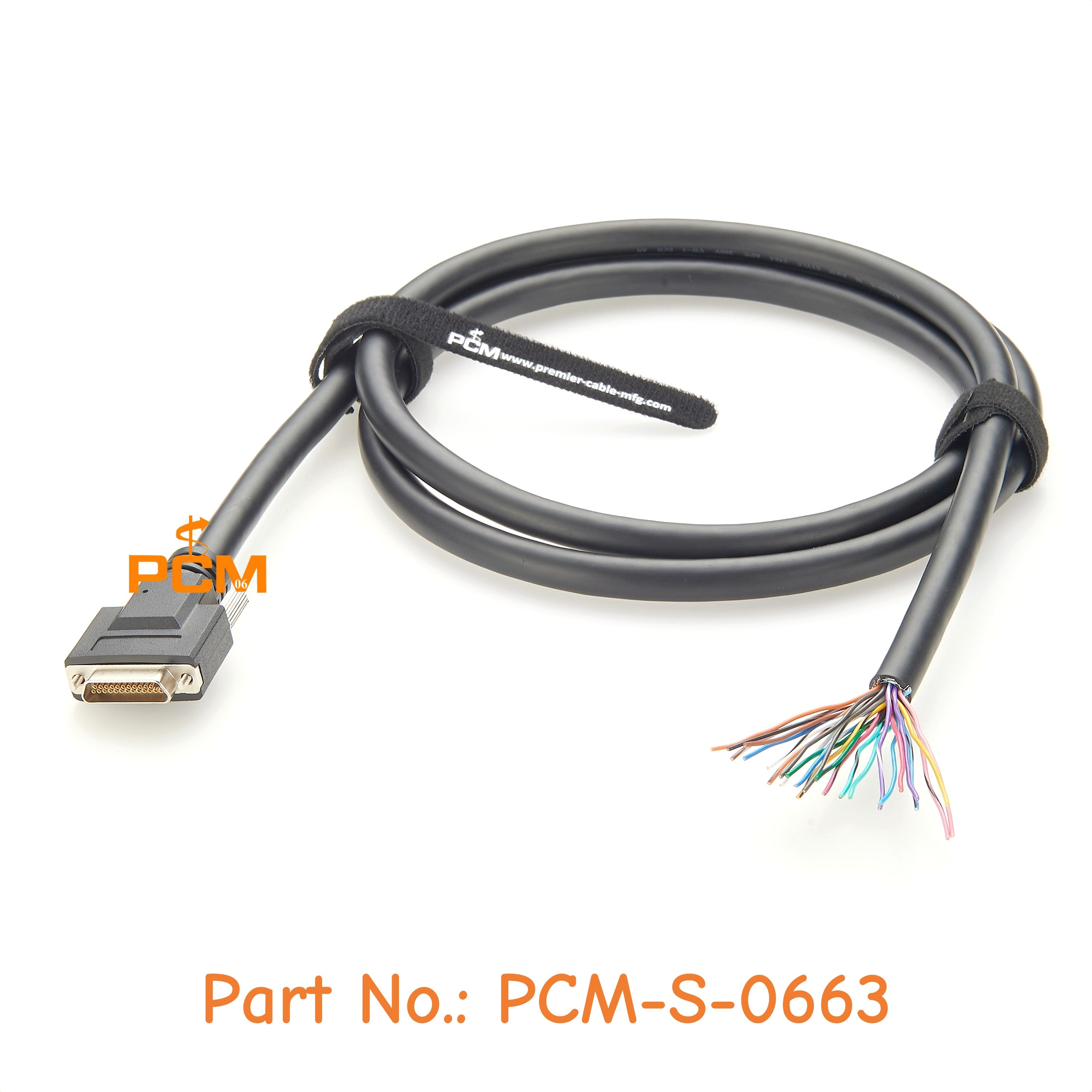

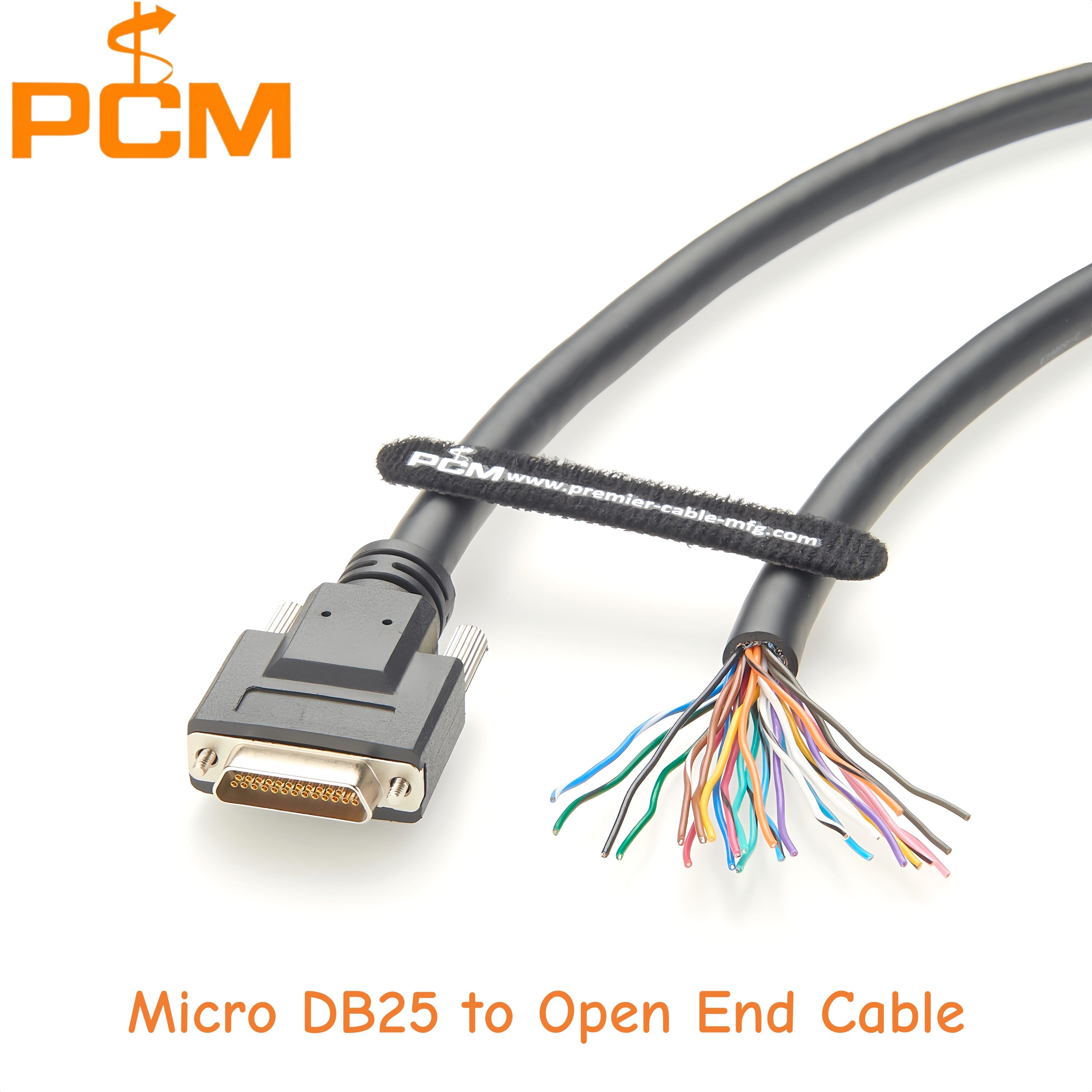

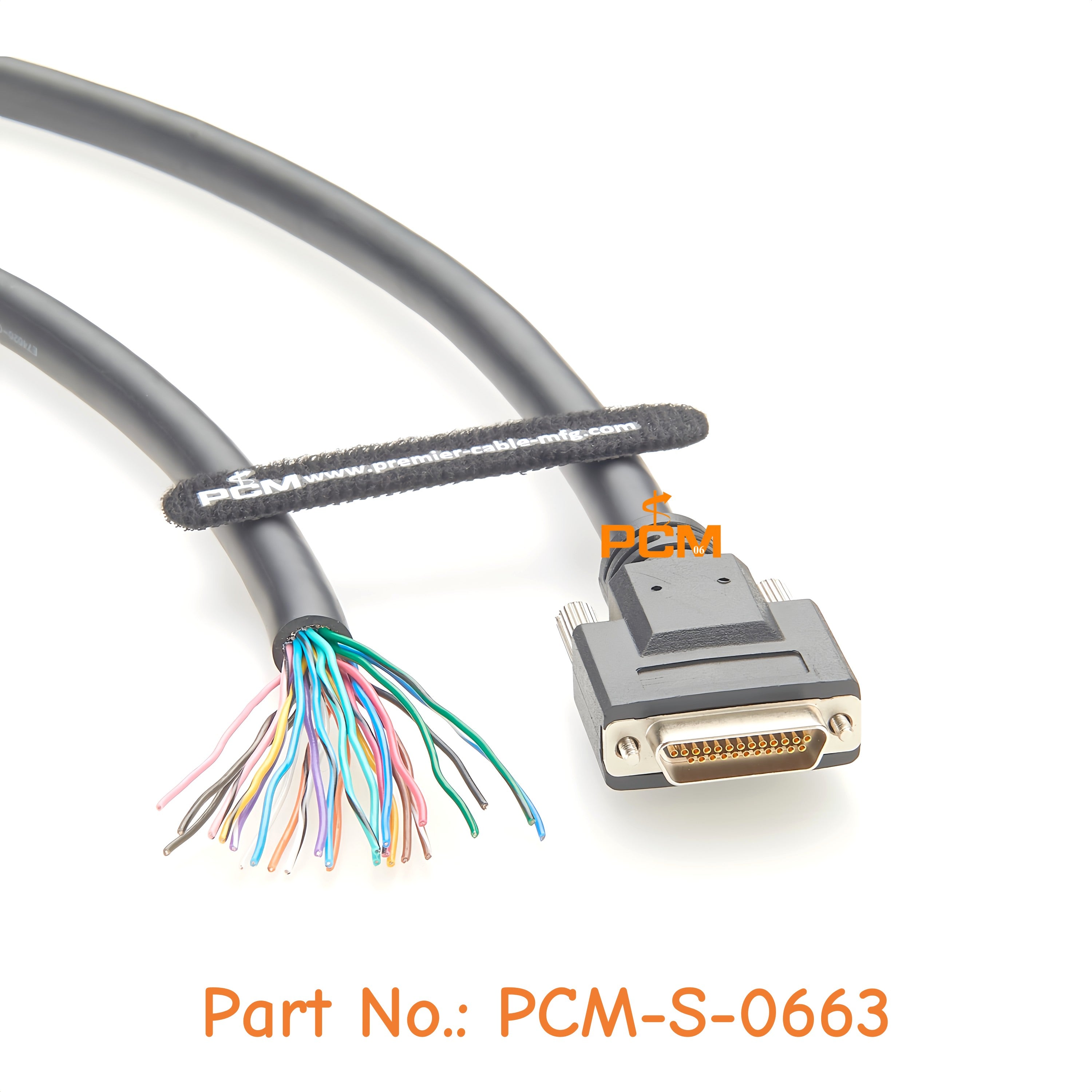

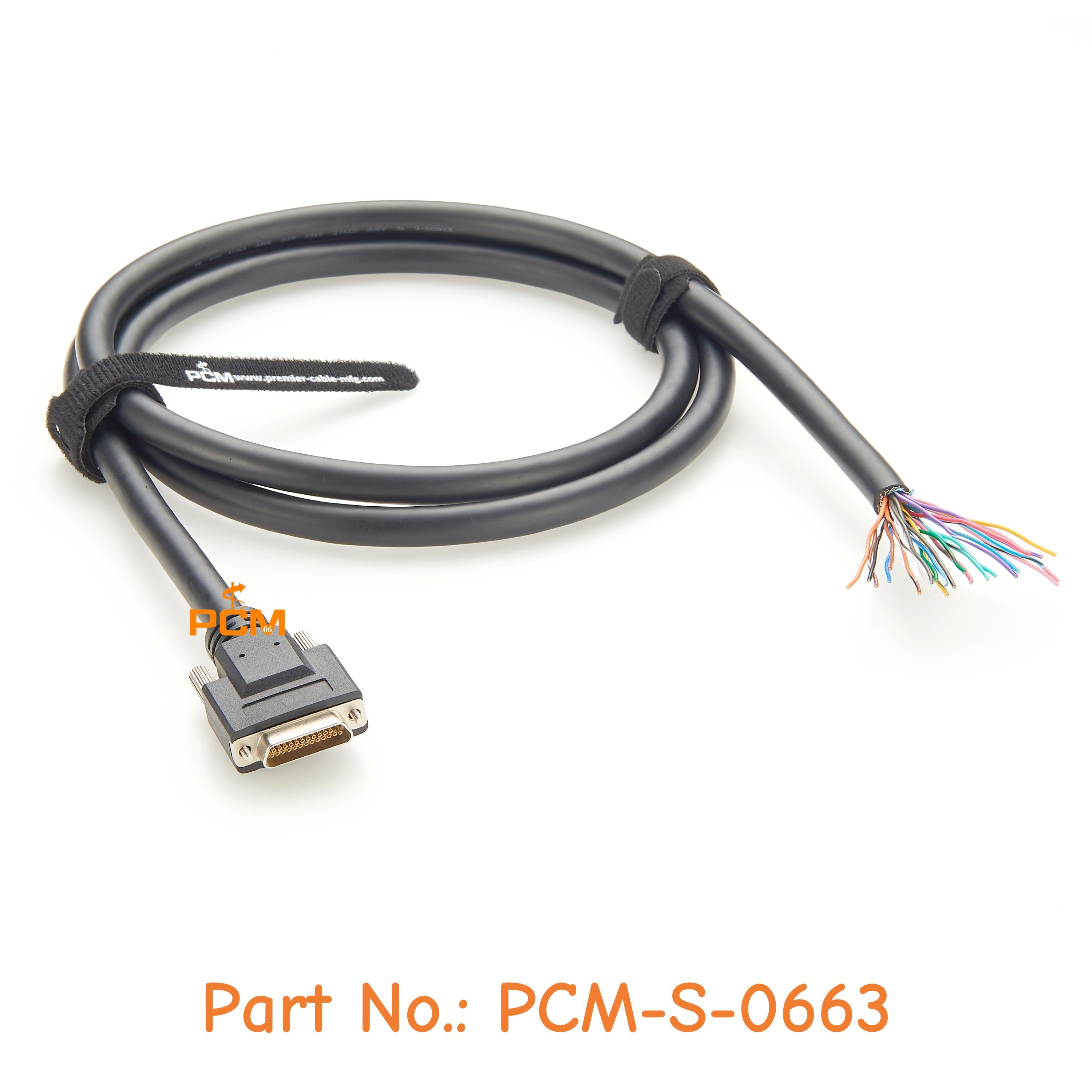

Micro DB25 25 Pin Micro-D Female to Open End Power and Signal Cable Assembly for LXI DIO Trigger Compatible with Molex 834249021

Micro DB25 25 Pin Micro-D Female to Open End Power and Signal Cable Assembly for LXI DIO Trigger Compatible with Molex 834249021

Product form

$44.00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • 24/7 Customer Support
    • No MOQ & Ready to Ship
    • Fast Lead Time: Less than 3 days!
    • Global Shipping: Anywhere, anytime!
    • Customizable Lengths & Bulk Orders Available
    • Note: The prices are for small-scale orders. For bulk quantities or customized specifications, please feel free to contact me at sales06@premier-cable.net or via the online chat for a tailored quotation.
    Description

    Features a 25 pin Micro-D connector on one side, compatible with Molex 834249014 connector, ensuring stable and reliable connectivity.

    The open-end design offers flexible connections, allowing users to easily connect to terminal equipment and customize wiring according to specific needs.

    The Micro DB25 connector is more compact compared to traditional DB25 connectors, making it ideal for space-limited applications.

    Equipped with #2-56 UNC screws, providing a secure locking mechanism that effectively prevents loosening and thereby ensures stable connection during operation.

    All connectors overmolded with black PVC provide enhanced mechanical strength, excellent sealing and insulation, and improved durability against chemical exposure for reliable, long-lasting performance.

    Fully compatible with Molex 25 Circuits Micro-D Single Ended Power and Signal Cable Assemblies (Part Number: 834249019, 834249020, and 834249021).

    Suitable for high density applications, supporting seamless connection to Pickering's LXI DIO/Trigger port.

    Specification
    Type Micro-D Cable Assembly Product Name Micro DB25 to Open End Power and Signal Cable Assembly
    Part No. PCM-S-0663 Connector Type Micro DB25 Connector (Molex 834249014 compatible)
    Gender Female-Pigtail Length 1m, Or OEM
    Cable Diameter 8.0 mm Wire Gauge 28AWG*25C + ADB
    Screw #2-56 UNC, OD: 5.0 * 37.5 mm Compatible with Molex 834249019, 834249020, 834249021
    Drawing
