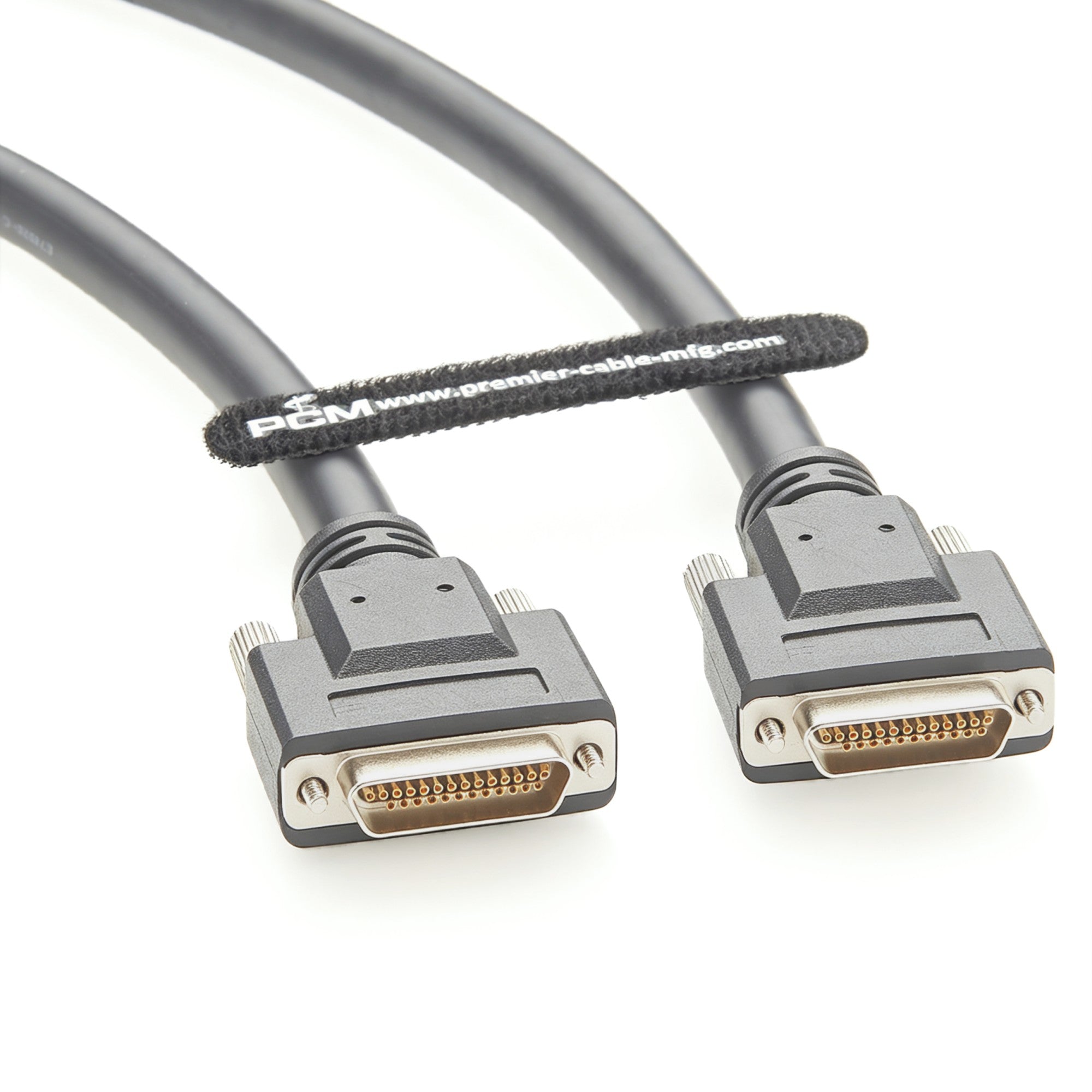

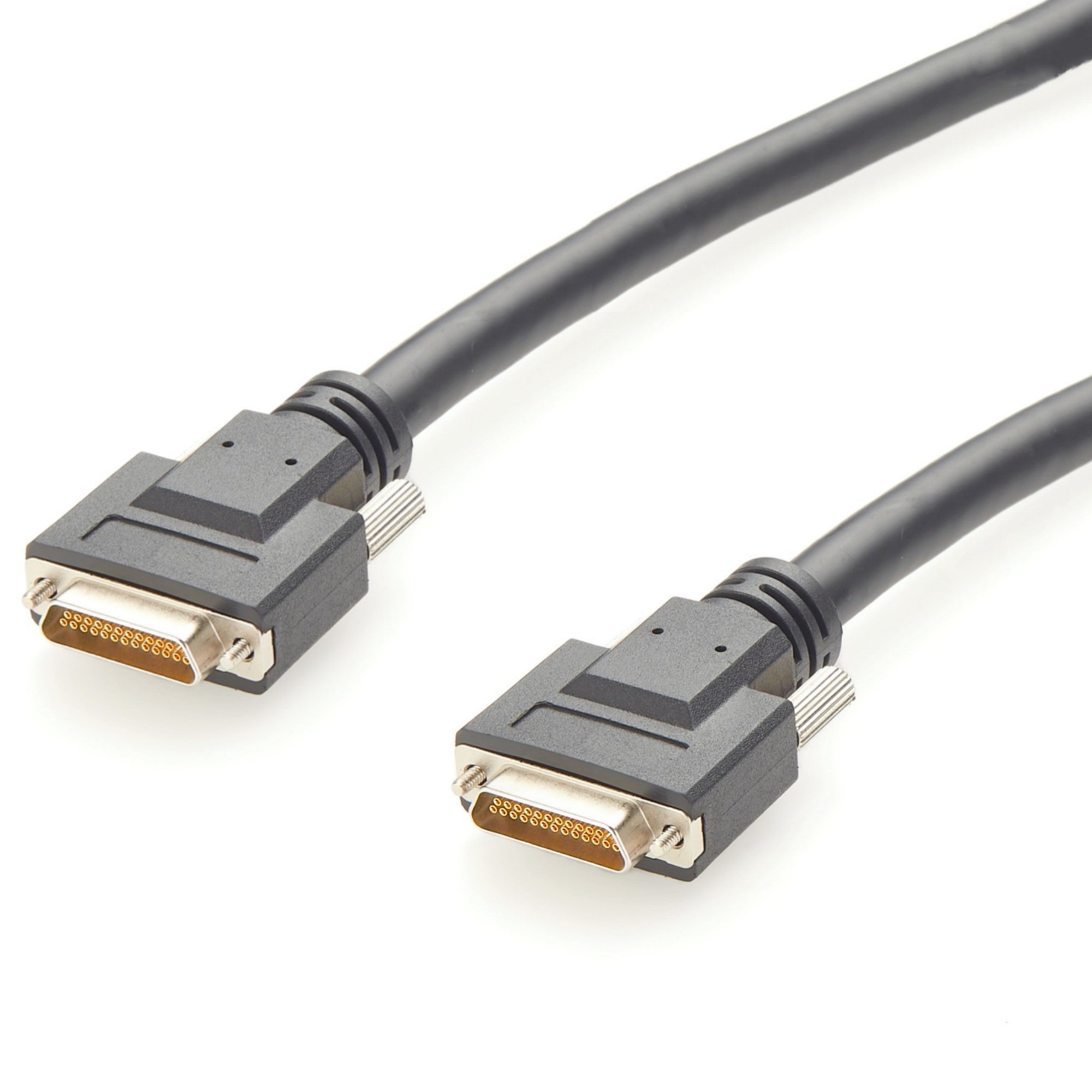

Micro-D Cable Assembly Micro DB25 Female to Female Cable

Micro-D Cable Assembly Micro DB25 Female to Female Cable

Product form

$148.00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    25 Pin Micro-D Cable Assembly, Female to Female, suitable for high density applications including connection to Pickering's LXI DIO/Trigger port. Compatible with Molex 834249056, 834249057, 834249058, 834249059, and 834249066. Premier Cable Part No.: PCM-S-0786



    Description

    The 25 Pin Micro-D Cable Assembly is a high-performance, high-density power and signal cable assembly. Featuring a 25-way Commercial Micro-D (CMD) female-to-female design with a compact 1.27mm (0.050 inch) contact spacing, it provides excellent space efficiency, reliable connectivity, and stable signal transmission for demanding electronic applications, such as industrial, medical, telecommunications, and aerospace.

    The Premier Cable Micro DB25 Female to Female Cable is compatible with Molex Micro-D cable assemblies, including the following part numbers:

    • 834249056: 0.2m
    • 834249057: 0.46m
    • 834249058: 0.91m
    • 834249059: 1.83m
    • 834249066: 3.66m

    For custom cable length, please contact us at:

    Specification
    Brand Name PremierCable Cable Length 2m
    Origin Mainland China Contact Pitch 1.27 mm
    Product Name Micro DB25 Female to Female Cable Screw #2-56 UNC
    Connector Micro DB25 Structure Overmolded Design
    Gender Female to Female Compatible with Molex 834249056, 834249057, 834249058, 834249059, 834249066
    Drawing
    Micro-D Cable Assembly Micro DB25 Female to Female Cable
