Premier Cable PCM-S-0748 is a high-reliability M23 Hybrid Panel Mount Cable Assembly designed for advanced industrial systems requiring integrated transmission of power, signal, and Ethernet data.

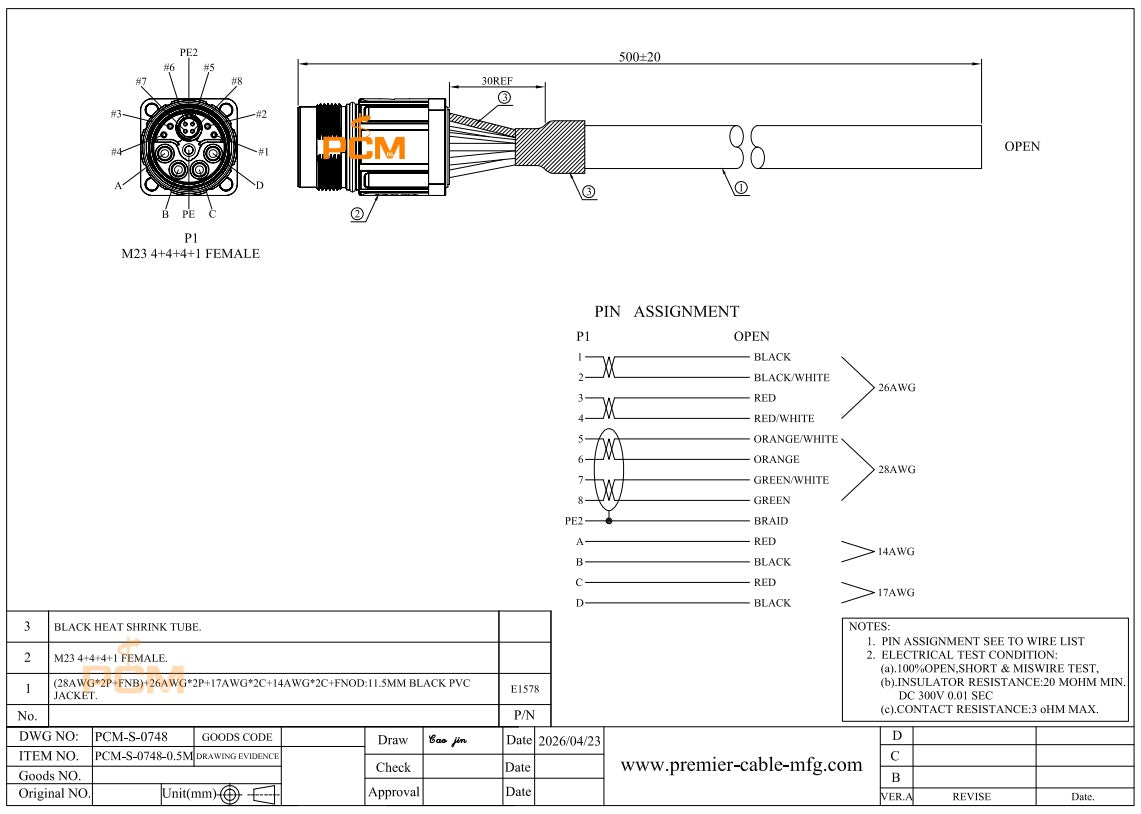

This solution features an M23 hybrid flange chassis mount receptacle on the panel side and a 0.5-meter open cable end, allowing customers to perform custom internal termination，soldering, crimping, or PCB integration within equipment. It is particularly suitable for applications where standardized external interfaces must connect seamlessly to customized internal wiring architectures.
The hybrid interface consolidates multiple transmission paths into a single compact connector, significantly reducing installation space, minimizing wiring complexity, and improving system reliability.

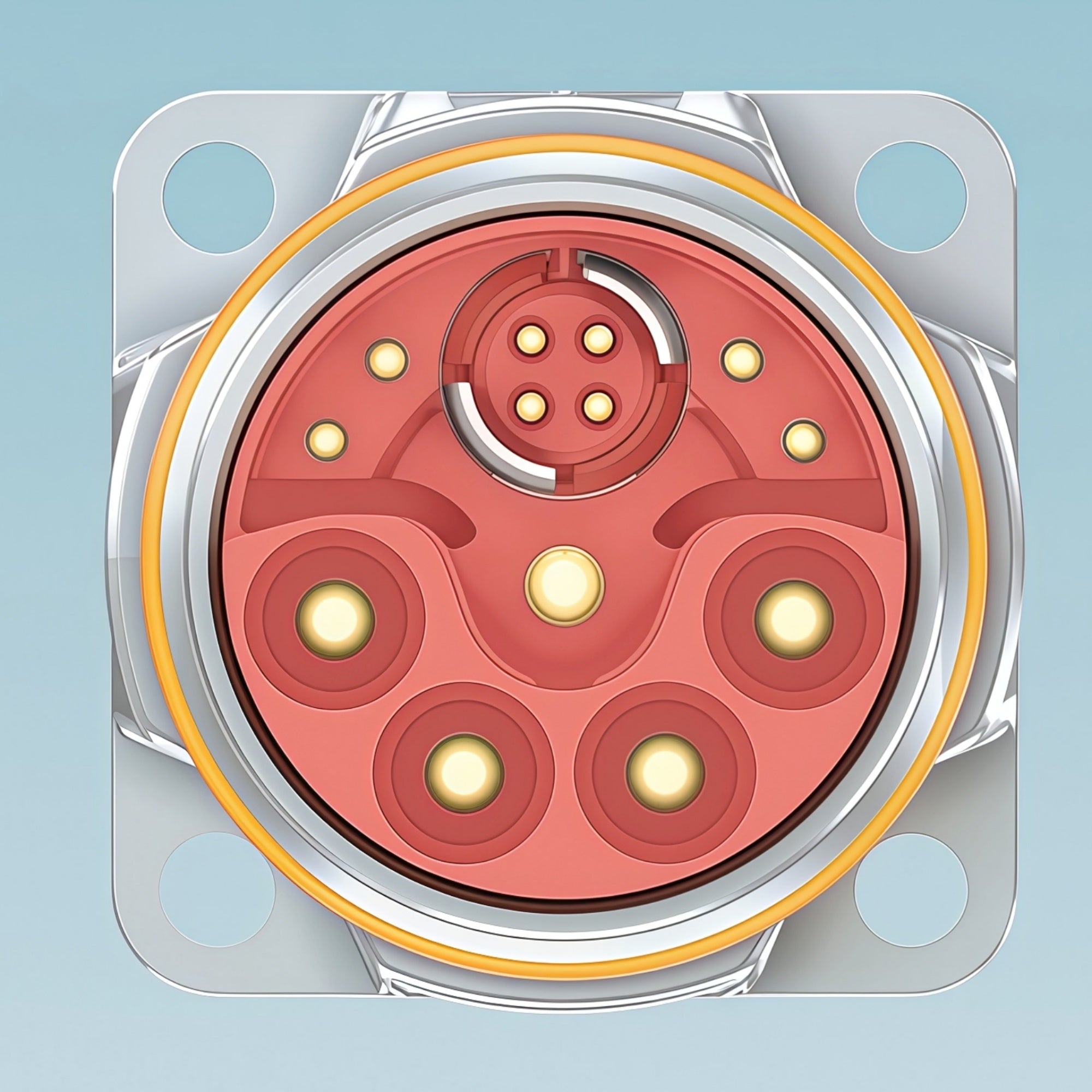

The connector configuration supports:
- Signal Contacts : 4-pin configuration
- Data Transmission : 4-pin CAT5 Ethernet
- Power Contacts : (4+1) pins up to 850V / 30A

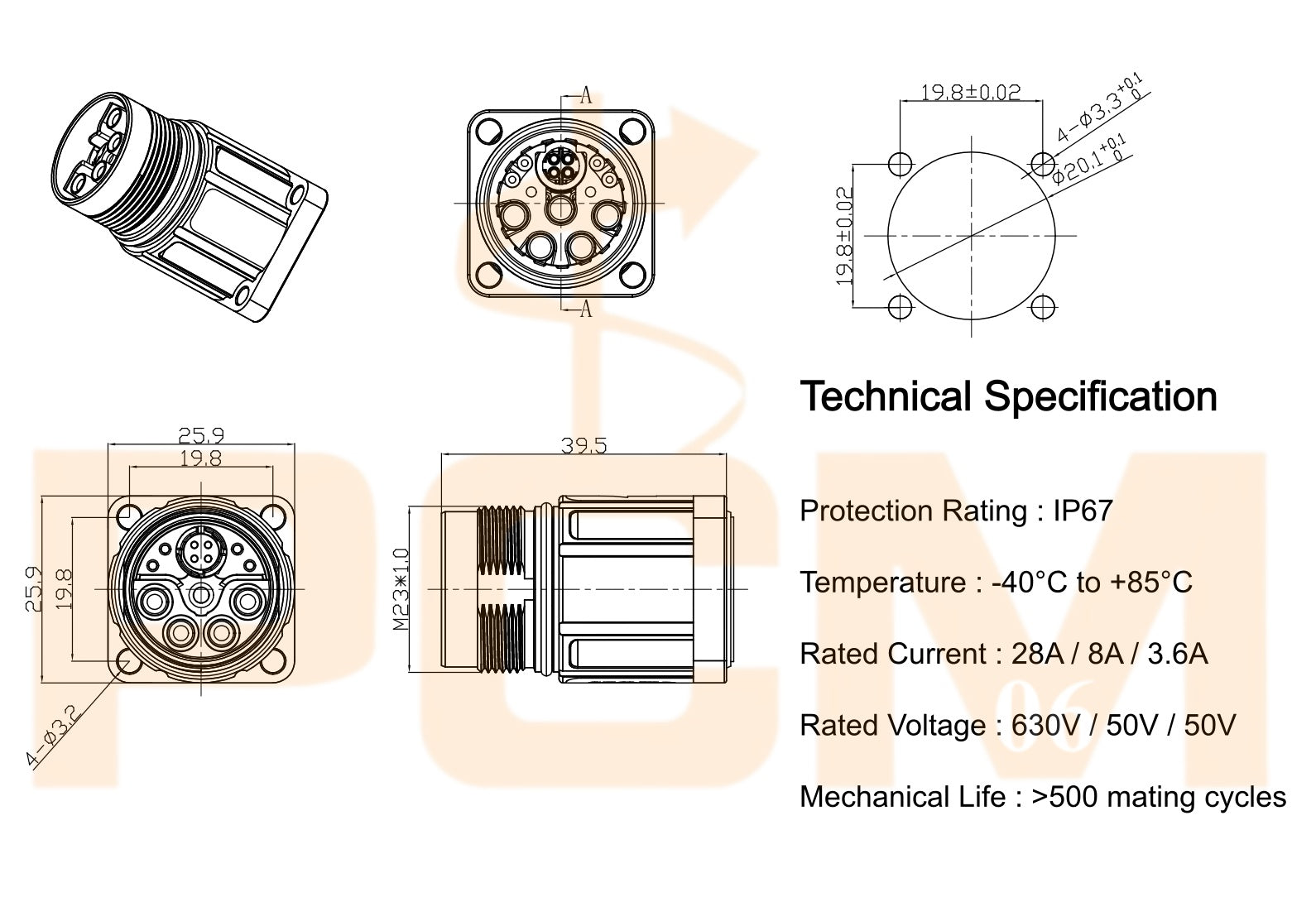

Key Technical Features
- Environmental Protection : IP67
- Mechanical Durability : >500 mating cycles
- Wide Operating Temperature : -40°C to +85°C
- Industrial Ethernet Support : CAT5 data transmission
- EMC Performance : 360° shielding for EMI/RFI suppression

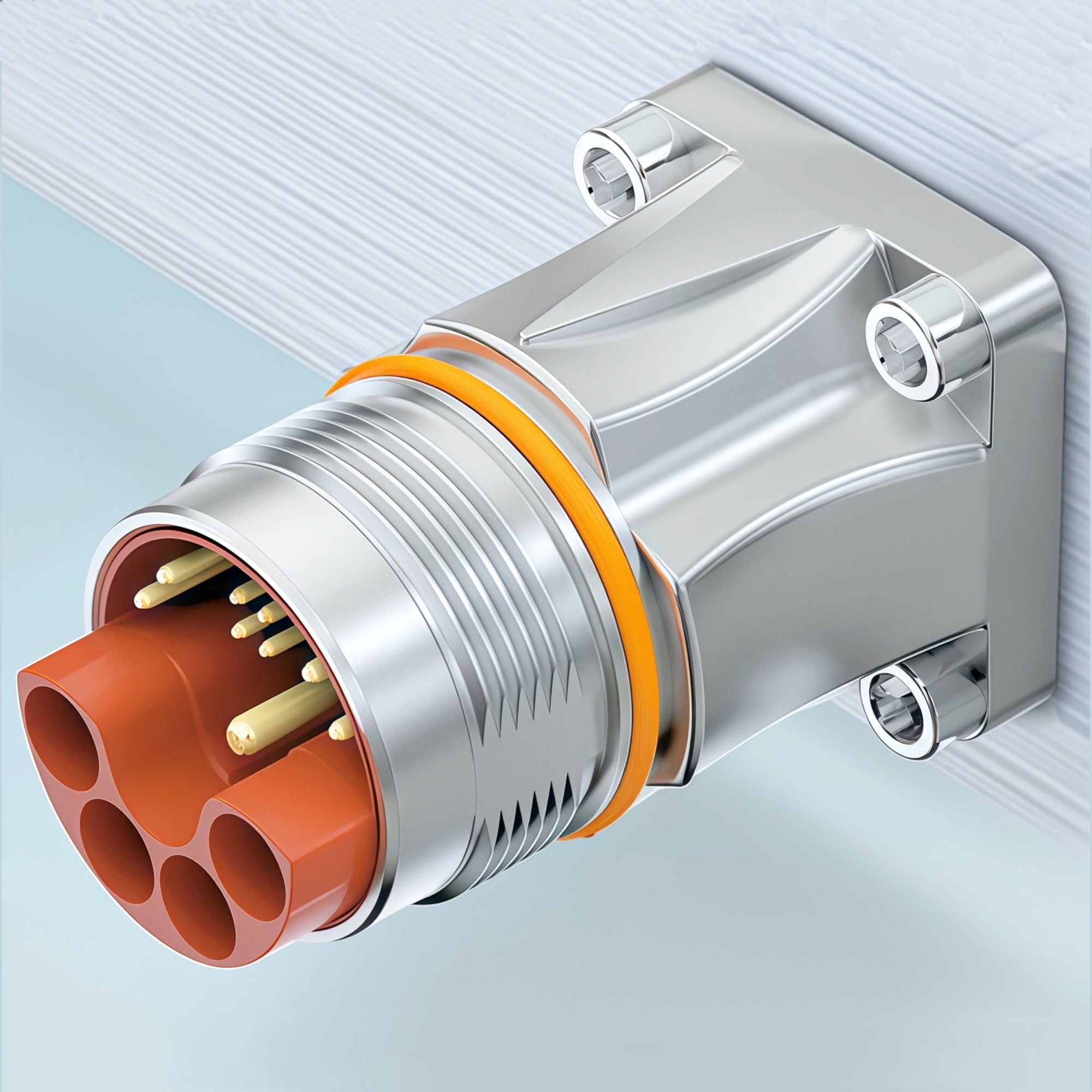

- Panel Mount Interface : Flange chassis mounting for equipment enclosures
- Hybrid Integration : Combines power, signal, and industrial Ethernet in one interface
Typical Applications
This M23 hybrid panel mount cable is specifically designed for high-integration industrial systems, including :
1. Industrial Robotics
- Internal wiring between robot control units and actuators
- Combined power supply and feedback/data communication
2. Servo Drive & Motor Systems
- Reduces multiple cable runs into a single hybrid interface
- Integrated connection for servo motors, encoders, and drive units
3. Industrial Automation Equipment
- Clean panel interface with flexible internal termination
- PLC systems, control cabinets, and distributed I/O modules
4. Drive & Motion Control Systems
- Ensures stable power delivery and deterministic communication
- Reliable hybrid connection for high-performance motion control
5. Smart Manufacturing & CNC Systems
- Improved installation efficiency and maintenance accessibility
- Compact, high-density wiring for automated production equipment
