Hybrid Male-to-Male Cable is a high-performance industrial connectivity solution that integrates power, signal, and Ethernet transmission into a single cable assembly. Designed for modern automation systems, it simplifies wiring architecture, reduces installation time, and saves space.

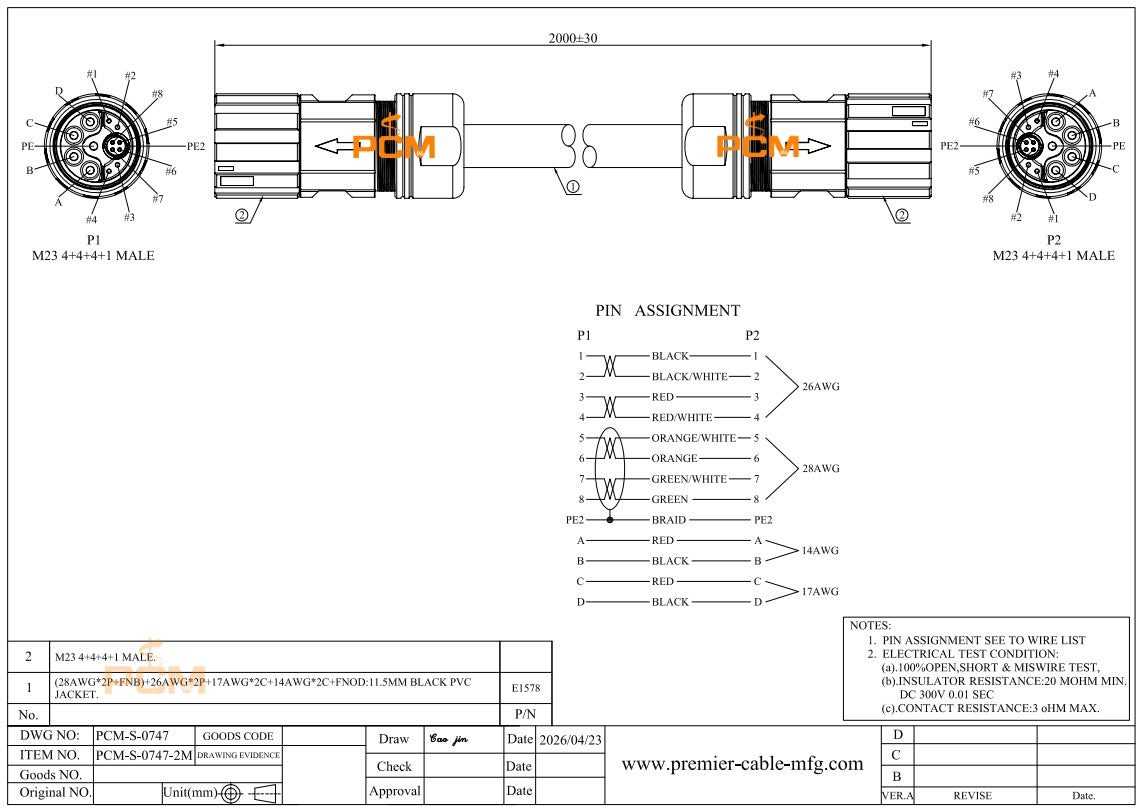

The M23 Hybrid connector supports up to (4+1) power contacts rated at 850V / 30A, along with 4 signal pins and 4-pin CAT5 Ethernet, enabling simultaneous power delivery and high-speed data communication.
Built for harsh industrial environments, this cable features IP67 protection, excellent resistance to shock and vibration, and 360° EMC shielding, ensuring stable and interference-free performance.
Key Features
- High Power Capacity : Up to 850V / 30A
- Wide Temperature Range : -40°C to +85°C
- 360° EMC Shielding : Reliable signal integrity
- Long Mechanical Life : Over 500 mating cycles
- IP67 Rated : Dustproof and waterproof for industrial use
- Ethernet Communication : Integrated CAT5 data transmission
- Hybrid Design : Combines power, signal, and data in one connector
Application
- Industrial Automation System : PLCs, control cabinet
- Robotics : Simplified cabling for robotic arms and automation cells
- Transportation Systems : Rail and onboard equipment connectivity
- Smart Manufacturing Equipment : CNC machines, packaging system
- Servo Drives & Motors : Integrated power and feedback communication
- Material Handling & Logistics : Conveyors and automated sorting system
