M12 Y Code Termination Resistor

M12 Y Code Termination Resistor

Product form

$24.00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

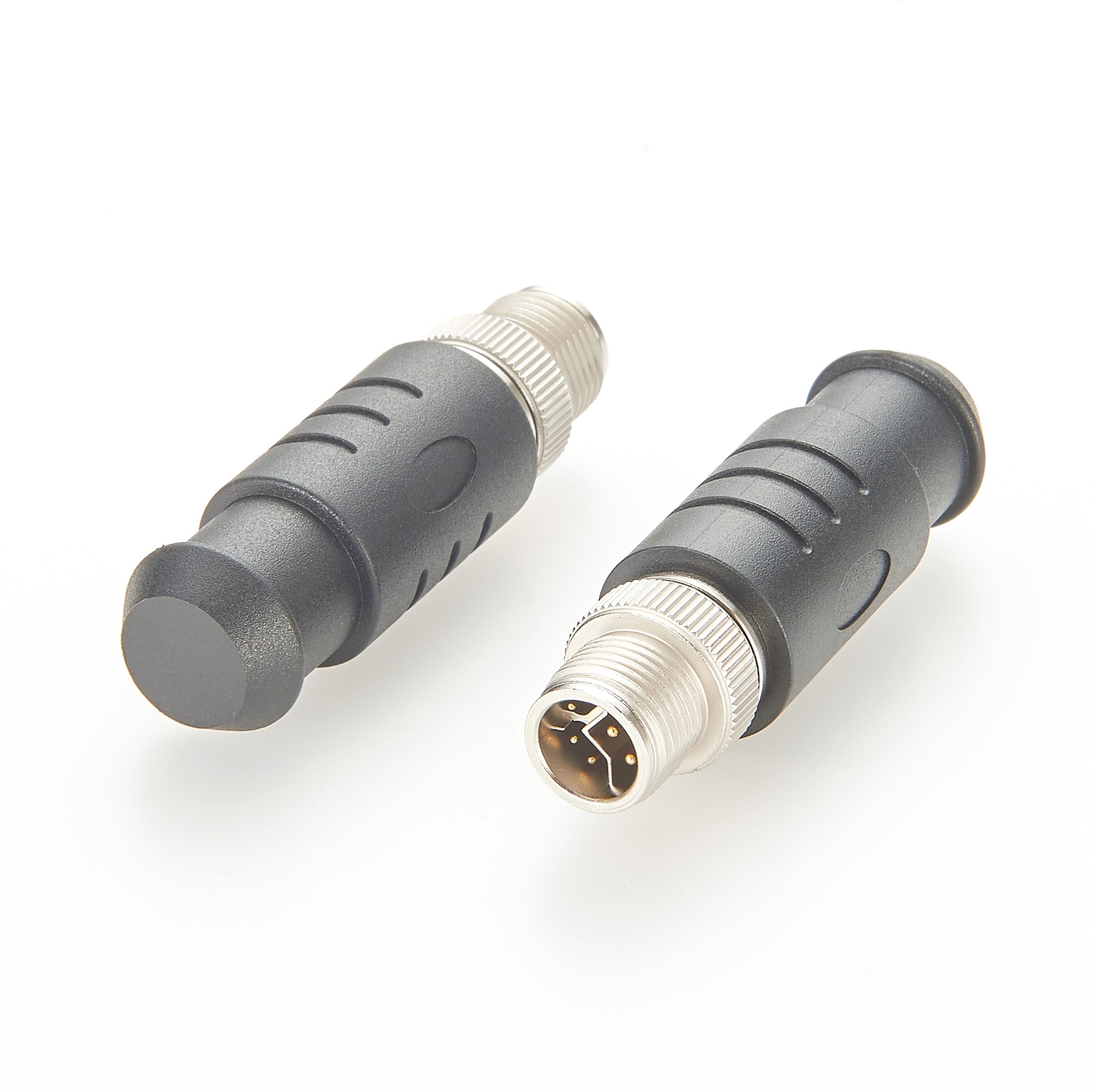

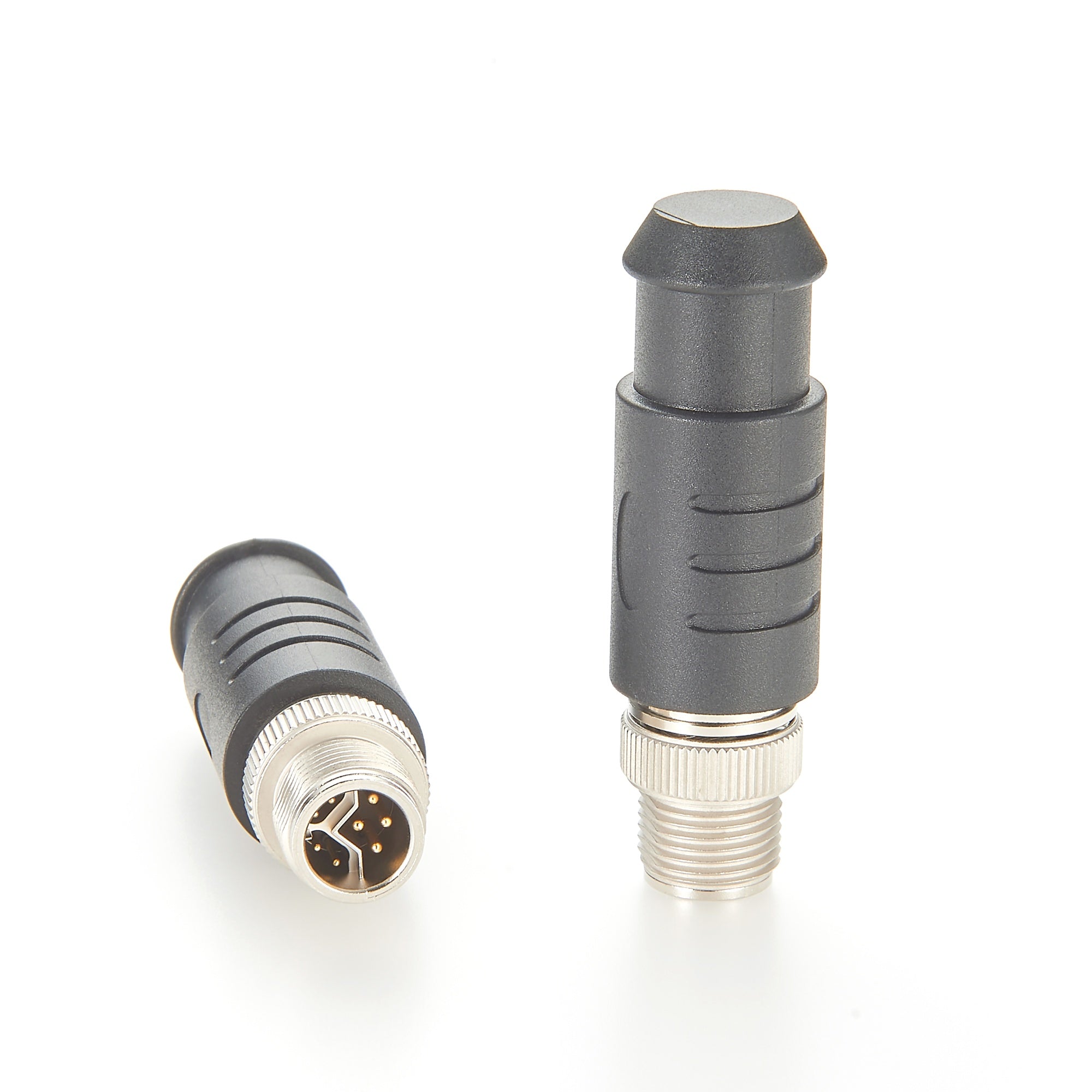

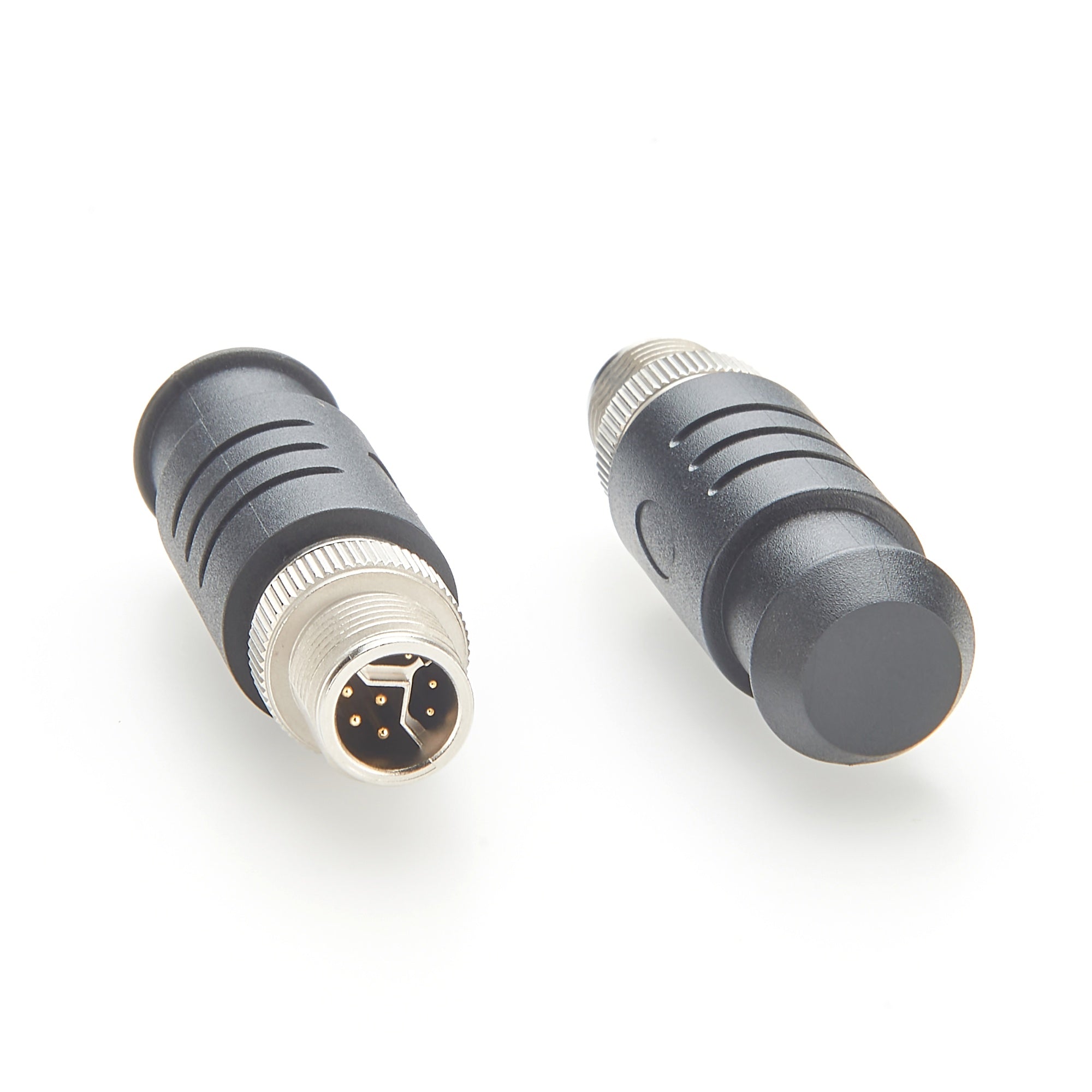

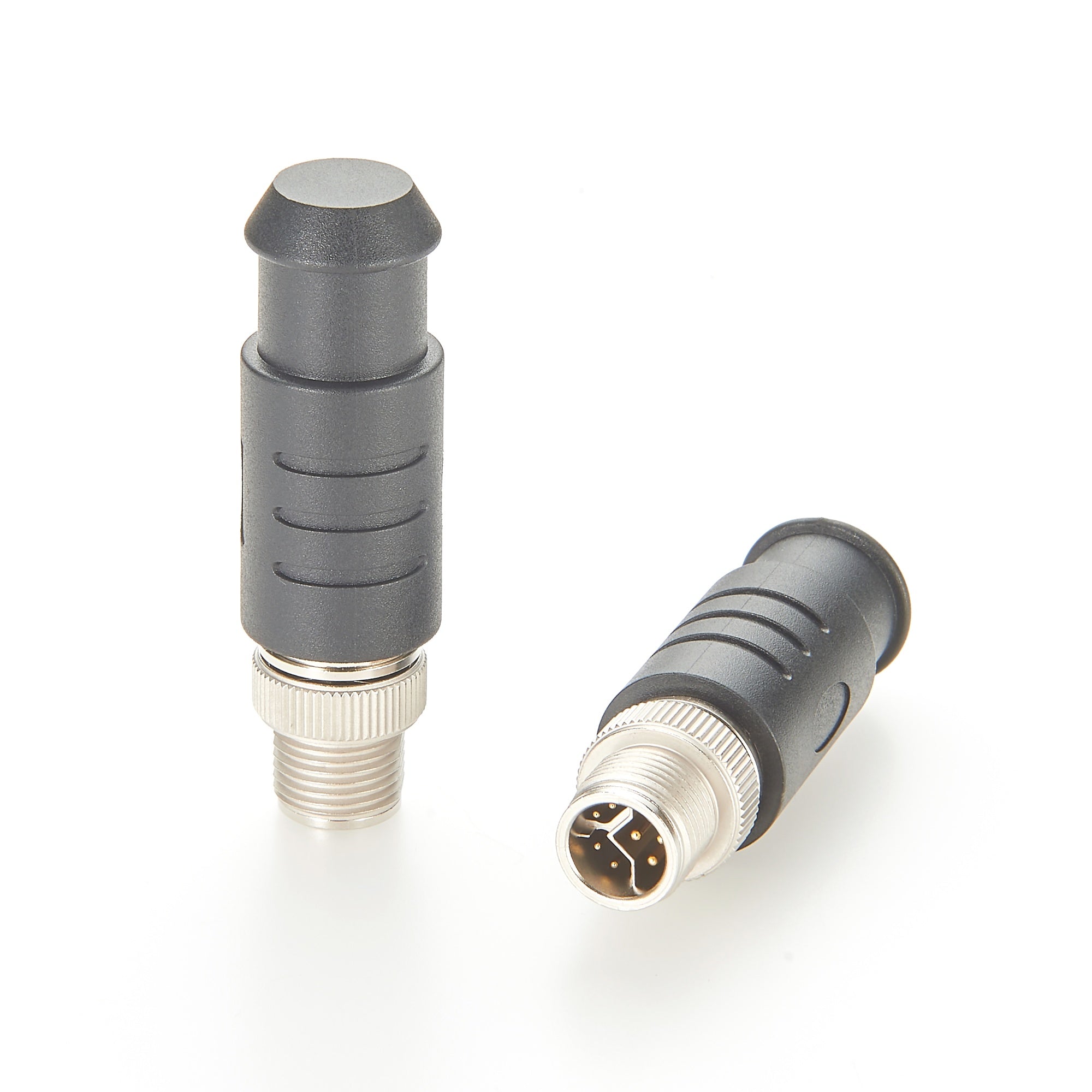

    The M12 Y Code 8 Pin Terminator with 120 Ohm data resistor and 1000 Ohm power resistor for Fieldbus termination, EtherCAT endpoints, I/O systems, compact controller modules | Part No.: PCM-HD-0156 | IP67 Waterproof Rating

    • 24/7 Customer Support
    • No MOQ & Ready to Ship
    • Fast Lead Time: Less than 3 days!
    • Global Shipping: Anywhere, anytime!
    • Customizable Lengths & Bulk Orders Available
    • Note: The prices are for small-scale orders. For bulk quantities or customized specifications, please feel free to contact me at sales06@premier-cable.net or via the online chat for a tailored quotation.
    Description

    The PCM-HD-0156 from Premier Cable is a high-performance M12 Y-Code Terminating Resistor specially designed for used in Cat5e Ethernet + power hybrid networks. It includes two key resistors:

    • 120 Ohm Resistor: Placed between Pin 1 and Pin 2 for preventing signal reflections, and ensuring stable data transmission in Profinet, Ethernet/IP, and EtherCAT networks.
    • 1K Ohm Resistor: Positioned between Pin 5 and Pin 6 for load balancing or voltage stabilization of power lines.

    Suitable for:

    • Fieldbus Termination
    • EtherCAT Endpoints
    • Industrial Automation
    • Robotic Control Systems
    • Machine Vision Systems
    • I/O System for Compact Control Cabinets
    • Profinet, Ethernet & EtherCAT Network Systems
    Specification
    Brand Name Premier Cable Origin Mainland China
    Part No. PCM-HD-0156 Product Name  M12 Y-Code Terminator
    Connector Type M12 Y-Code 8 Pin Male Connector Standard IEC 61076-2-113
    Waterproof Rating IP67 Contact Plating Gold-Plated
    Resistor 1 120 Ohm, 0.5W (Pin 1 - Pin 2) Resistor 2 1K Ohm, 0.5W (Pin 5 - Pin 6)
    Data Support Cat5e, 100 Mbps  Power Support  60 V AC/DC, 6 A
    Mechanical Life > 500 Mating Cycles Operating Temperature -40 °C to +85 °C
    Drawing
