M12 to Hirschmann G Series G4KW1F Cable Assembly

M12 to Hirschmann G Series G4KW1F Cable Assembly

Product form

$22.00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    M12 to Hirschmann G Series G4KW1F / G4W1F Cable Assembly for Sensors, Actuators, Small Drives, Solenoid Valves, Pneumatic Valves, Hydraulic Valves, etc. Rated at 24V, 4A. Available in 1m & 2m Lengths. Premier Cable Part No.: PCM-DV-015

    Description

    The Premier Cable PCM-DV-015 is a high-performance M12 to Hirschmann G Series G4KW1F Cable Assembly designed to provide stable electrical connection support for automation control systems, hydraulic systems, and pneumatic systems. One end features a Hirschmann-compatible G4KW1F rectangular connector with a 4-pin configuration, which can mate with Hirschmann G series surface mounted industrial connector with solder contacts such as G 4 A 1 M and G 4 A 5 M, enabling reliable connection to solenoid valves, pneumatic valves, hydraulic valves, and proportional valves, or electric cylinders. And the other end is a standard M12 A-code 4 pin female circular connector, allowing seamless integration with sensors, actuators, small drives.

    Specification
    Brand Name PremierCable Cable Length 1M, 2M, Or OEM
    Origin Mainland China Protection Class IP67
    Part No. PCM-DV-015 Rated Voltage 24 V AC/DC
    Product Name M12 to Hirschmann G4KW1F Cable Assembly Rated Current 4A
    Connector A M12 A Code 4 Pin Female Operating Temperature -25°C to +80°C
    Connector B Hirschmann G series G4KW1F/G4W1F Connector, 4 Pin, Female Fitting to G 4 E 1 M…, G 4 A 1 M…., G 4 A 5 M
    Pin Assignment 1-1, 2-2, 3-3, 4-4 Compatible with Hirschmann G4KW1F

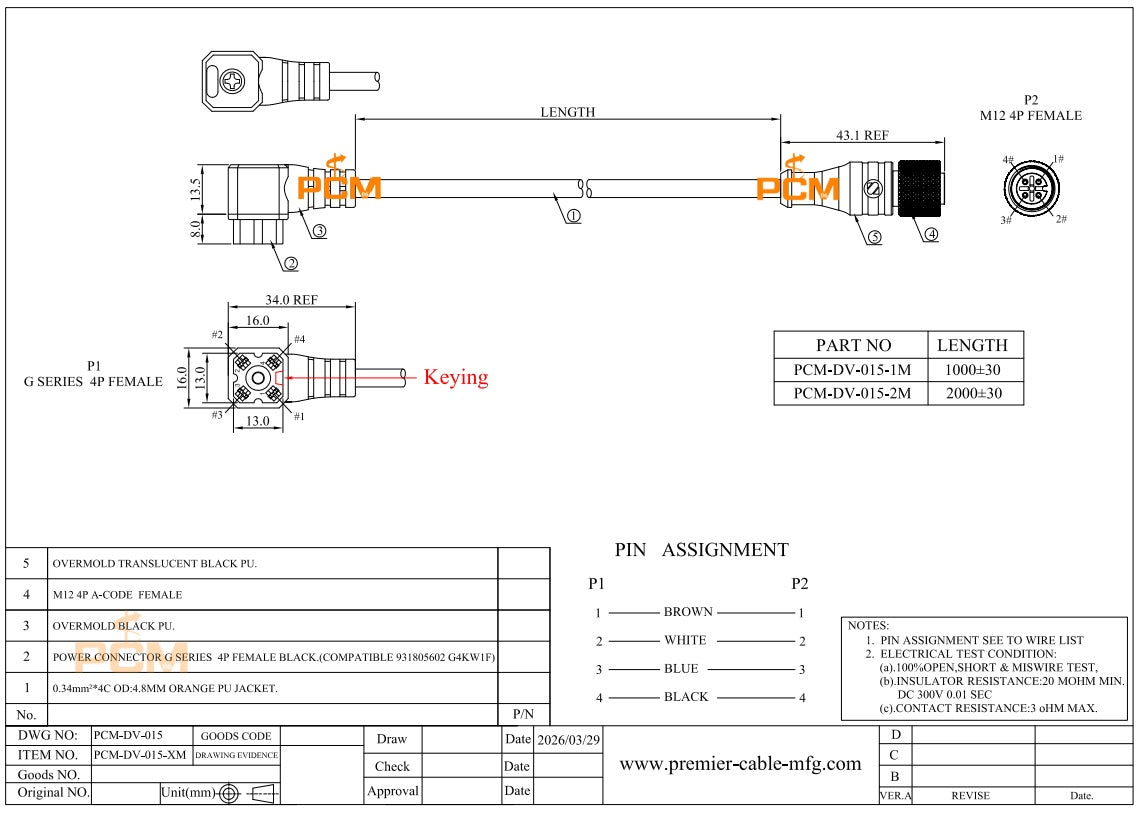

    Drawing

    Pin Assignment: 1:1, 2:2, 3:3, 4:4

    M12 to Hirschmann G Series G4KW1F Cable Assembly

    M12 to Hirschmann G Series G4KW1F Cable Assembly
