Name: M12 Power L-Code Profinet Cable Assemblies
Brand: Premier Cable Co., Ltd
SKU: PCM-S-0546
Price: 34.0 USD

M12 Power L-Code Profinet Cable Assemblies

- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

M12 Power L-Code Profinet Cable Assemblies

- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Product form

PCM-S-0546 / 2M

Part No.

PCM-S-0546

Length

2M

$34.00 Excl. VAT

Guaranteed secure & safe checkout.

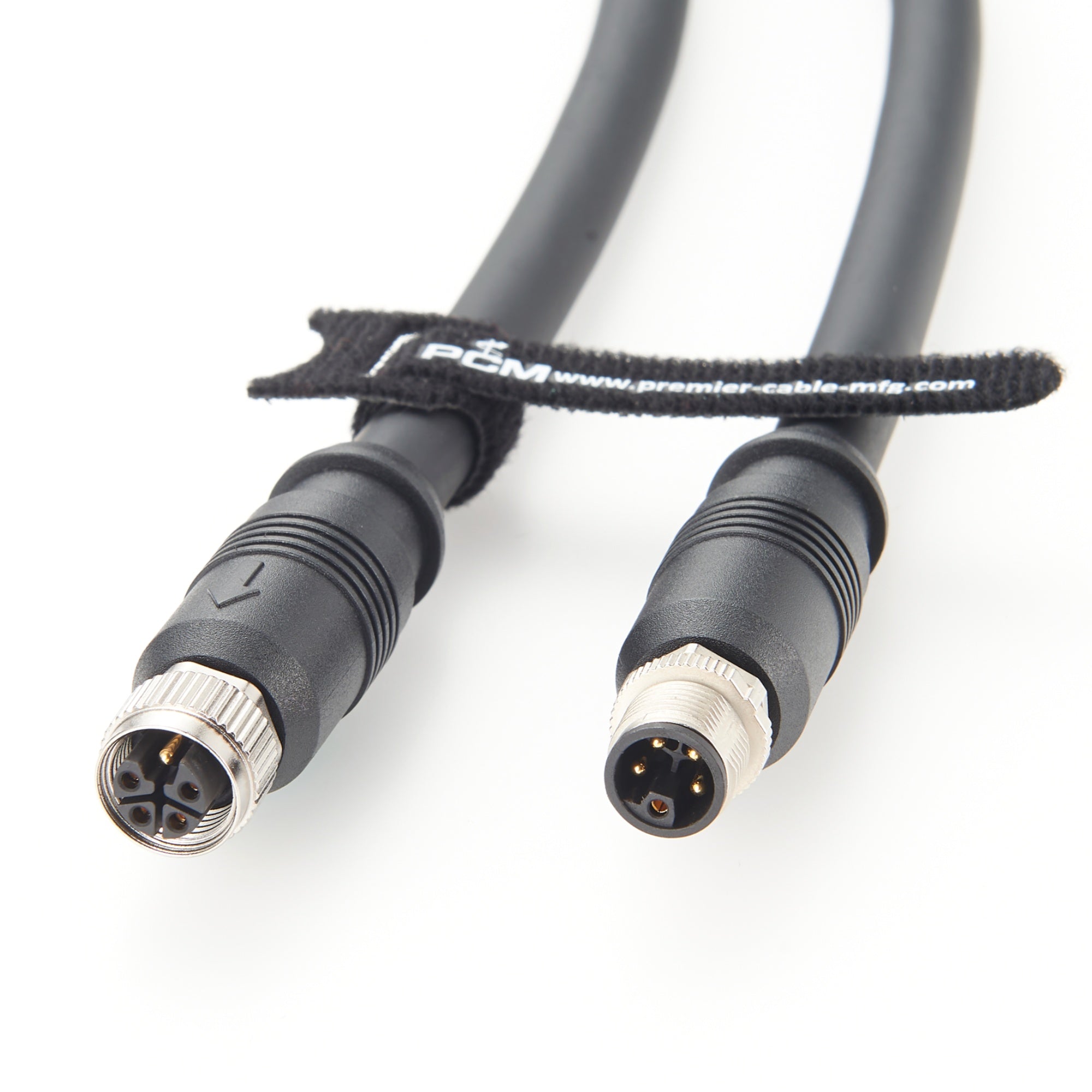

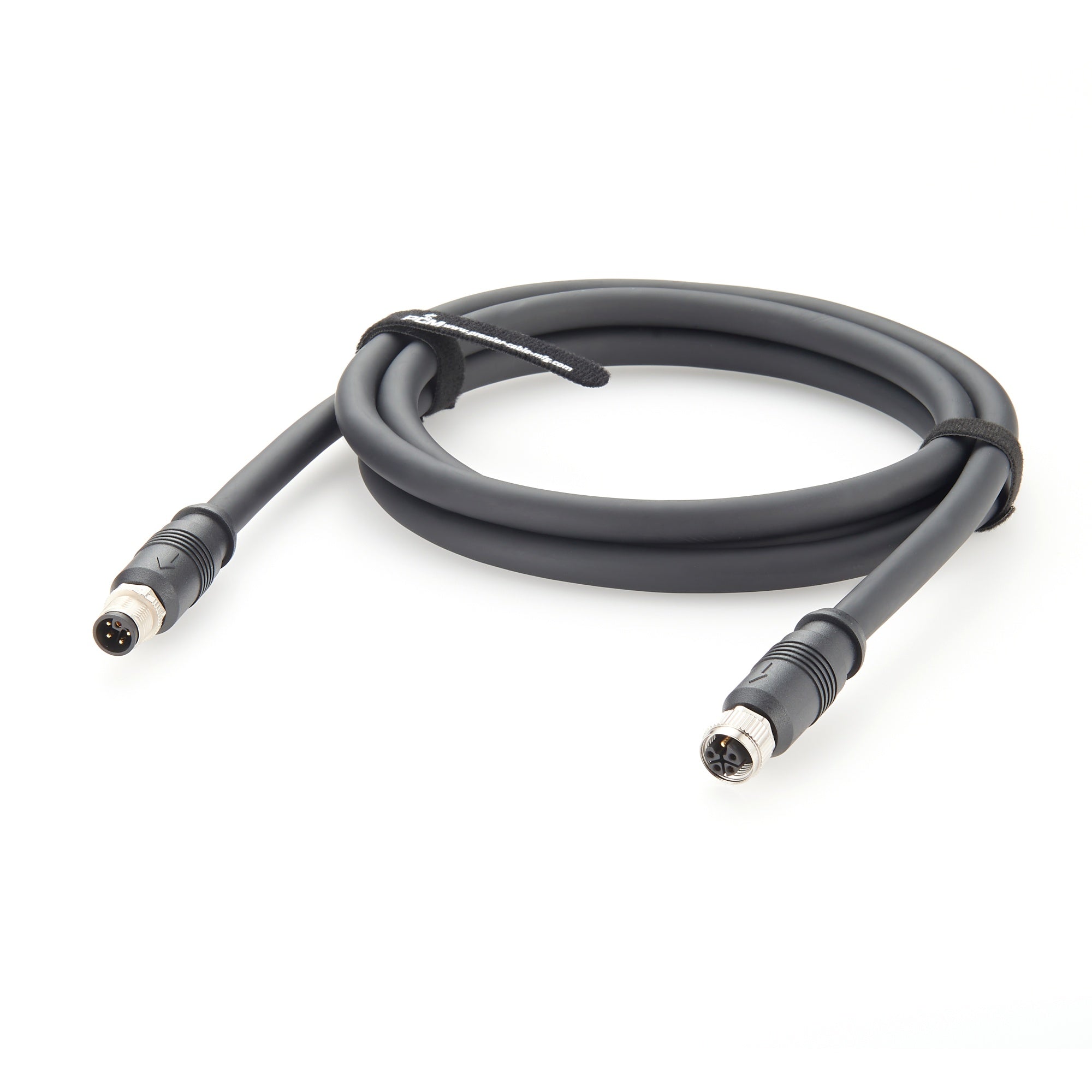

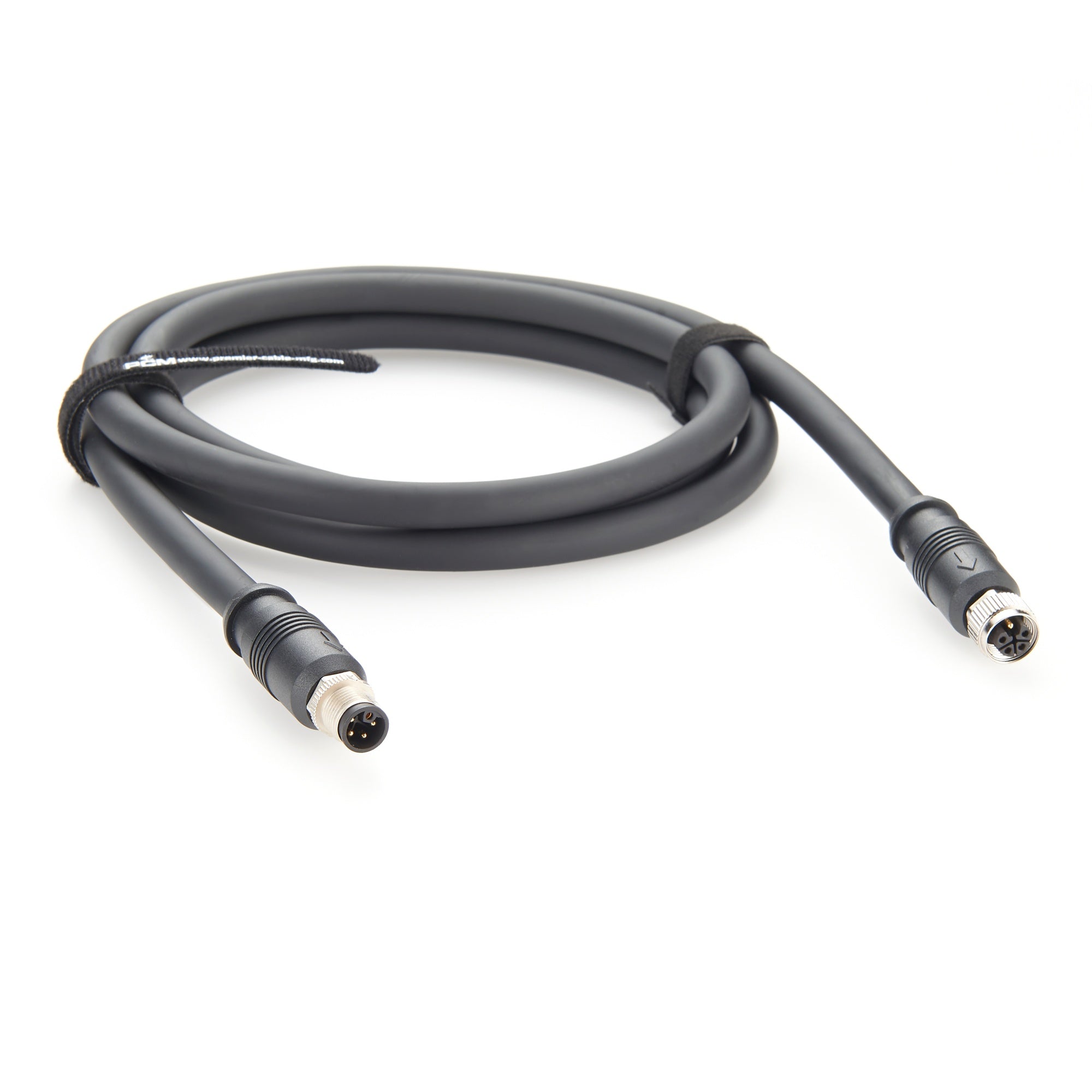

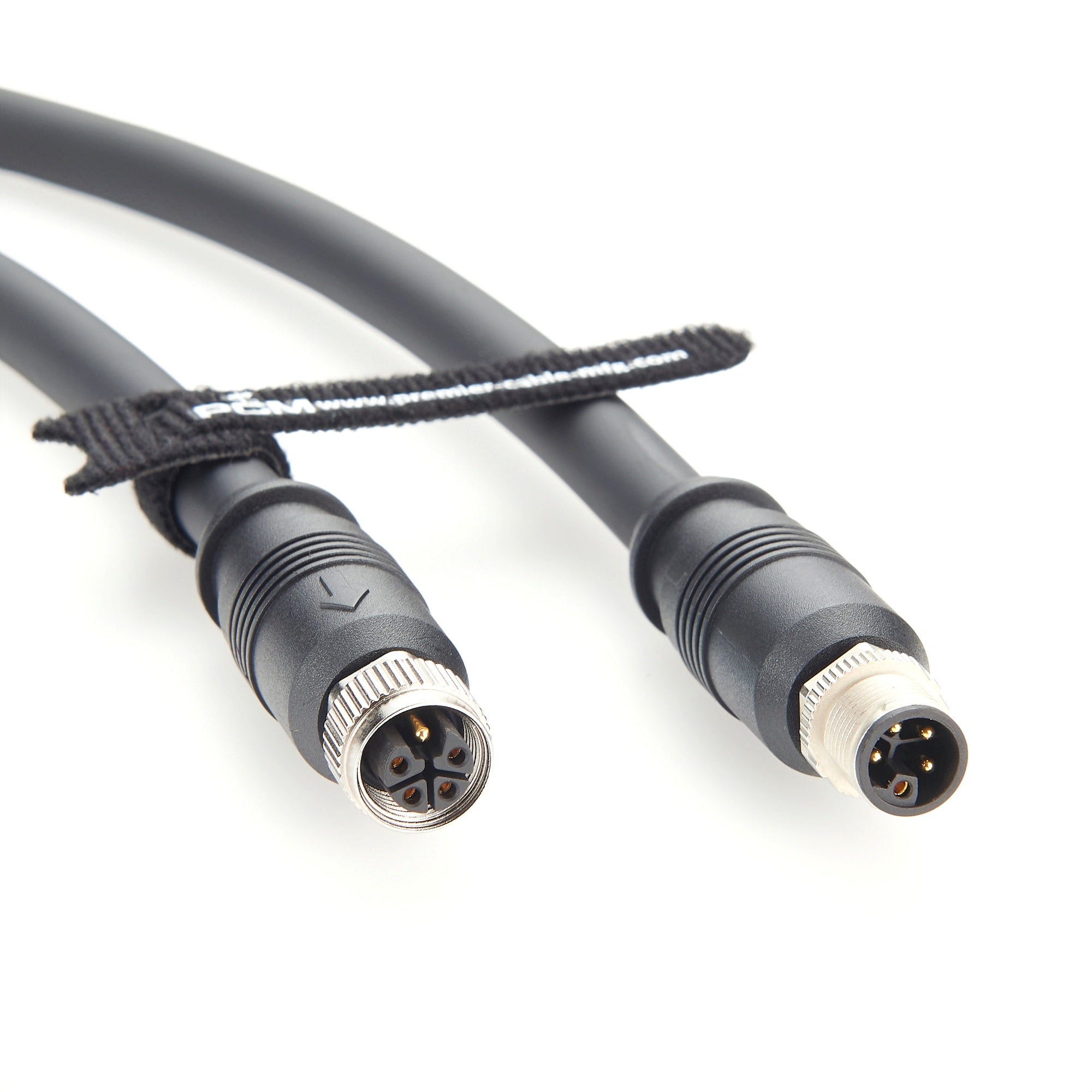

High Flex Profinet Power Supply Cable M12 L-Coded 5 Pin (4+PE) Male to Female | 63V/16A | Premier Cable Part No.: PCM-S-0546 | Supports 10 Million Drag Chain Cycles | Suitable for Use in Robotics, I/O Modules, Field Distribution Boxes, Power Supply Devices, etc.

24/7 Customer Support

No MOQ & Ready to Ship

Fast Lead Time: Less than 3 days!

Global Shipping: Anywhere, anytime!

Customizable Lengths & Bulk Orders Available

Note: The prices are for small-scale orders. For bulk quantities or customized specifications, please feel free to contact me at sales06@premier-cable.net or via the online chat for a tailored quotation.

Description

★ The Premier Cable M12 Power L-Code Connectors and Cable Assemblies is designed for DC power supplies with 63VDC / 16A where a high current and low voltage are required.

★ Adopts standard M12 L-Code 5-pin connectors (4 power pins + protective earth) on both sides, offering up to 40% space savings compared to traditional 7/8" connectors.

★ Supports up to 16A current per pin, providing four times the power of standard M12 connectors, and enabling a reliable and efficient power supply.

★ With an IP67 protection rating, providing excellent dust and water resistance for reliable performance in harsh or wet environments

★ Designed to withstand up to 10 million drag chain cycles, ensuring long-term durability in dynamic industrial applications.

Typical Applications of M12 Power L-Code PROFINET Cable Assemblies:

Robotics
I/O Modules
PROFINET Devices
Small servo motors
Factory Automation
Power Supply Devices
Field Distribution Boxes
Industrial Control Systems
Industrial Ethernet Equipment

Specification

Brand Name	Premier Cable	Protecting Rating	IP67
Origin	Mainland China	Cable Length	2m, Or OEM
Part No.	PCM-S-0546	Cable Diameter	11.0mm
Type	M12 L-Code Cable Assembly	Shielded	Yes (360° Full Shielding)
Product Name	M12 L-Coded Profinet Power Supply Cable	Rated Current	16A
Connector A	M12 L-Code 5 Pin Male	Rated Voltage	63V AC/DC
Connector B	M12 L-Code 5 Pin Female	Wire Gauge	16AWG (1.5mm²)
Connector Direction	Straight	Drag Chain	≥ 10 million Cycles
Pin Assignment	4 + PE	Operating Temperature	-40°C to +85°C

Drawing
