M12 Power L-Code Panel Mount Connector

M12 Power L-Code Panel Mount Connector

Product form

$8.00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

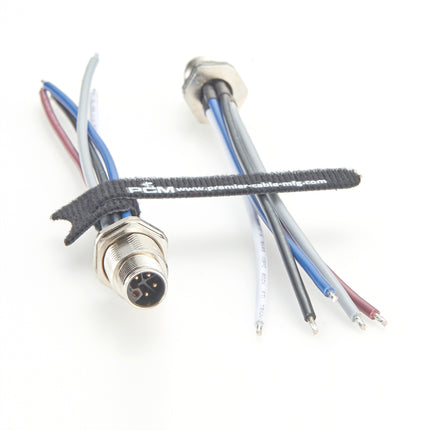

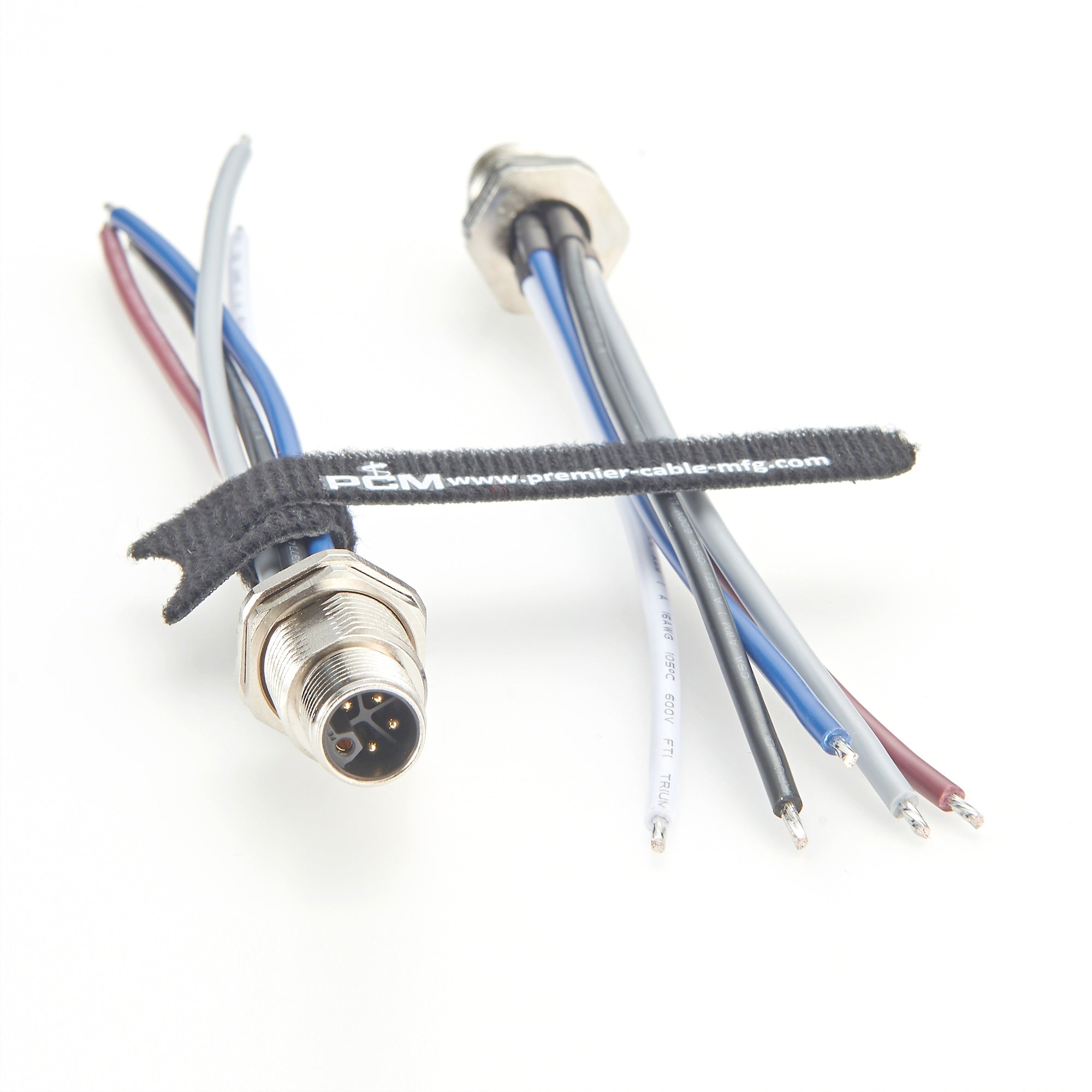

    M12 L Code Power Connector Panel Front Mount Receptacle with Wires supports up to 16A per pin, 63V AC/DC, and 0.75 KW of power, proving an effective solution for high-power applications. | Premier Cable Part No.: PCM-S-0533

    • 24/7 Customer Support
    • No MOQ & Ready to Ship
    • Fast Lead Time: Less than 3 days!
    • Global Shipping: Anywhere, anytime!
    • Customizable Lengths & Bulk Orders Available
    • Note: The prices are for small-scale orders. For bulk quantities or customized specifications, please feel free to contact me at sales06@premier-cable.net or via the online chat for a tailored quotation.
    Description

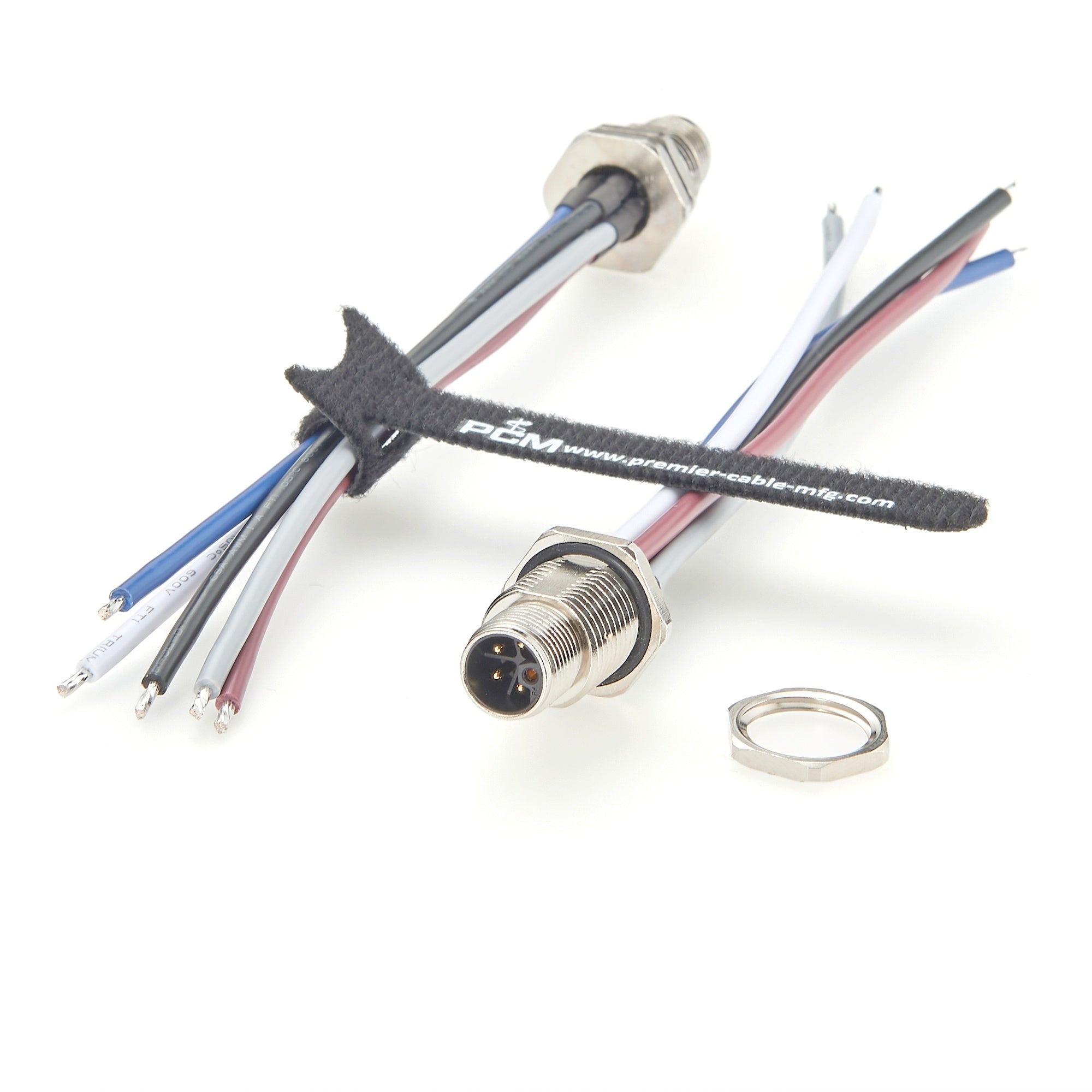

    ★ The M12 Power L-Code Panel Mount Connector is designed to be securely installed on a panel or enclosure for reliable and convenient power supply.

    ★ Equipped with 4 power pins and 1 protective earth (PE), the M12 Power L-Code Panel Mount Connector for secure and reliable power connections.

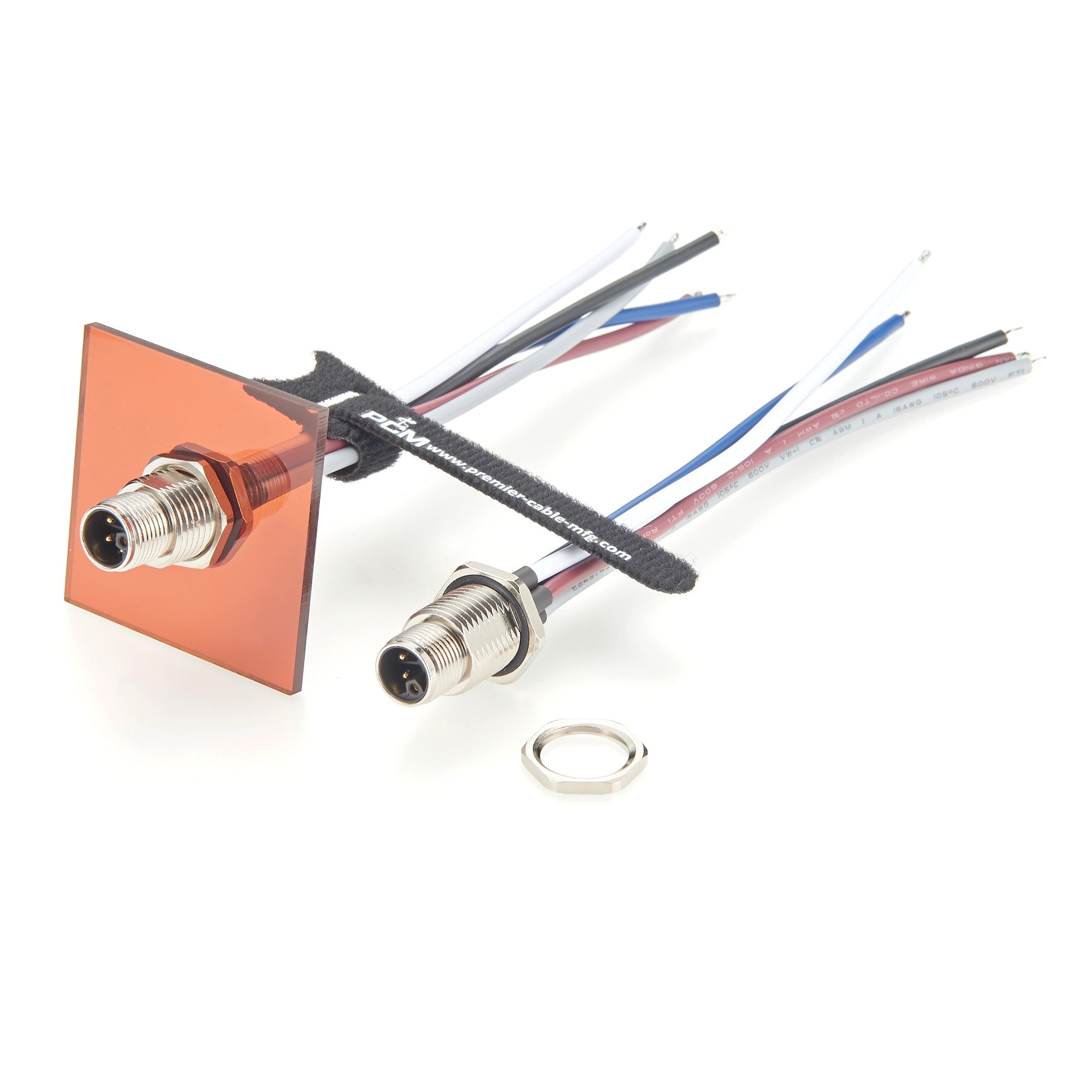

    ★ The M12 Power L-Code Panel-Mount PCB Connector features a front panel mount design with a recommended cutout size of 15.3 mm for secure and stable installations.

    ★ With pre-wired 0.15 meter 16AWG wires, the Panel Mount M12 L Code Power Supply Cable enables quick installation, thereby improving efficiency.

    ★ The M12 L Coded Bulkhead Connector with an IP67 Protection Rating for enhancing protection against dust and water ingress.

    Specification

    Brand Name

    Premier Cable

    Length

    0.15m, Or OEM

    Origin

    Mainland China

    Protecting Rating

    IP67

    Part No.

    PCM-S-0553

    Rated Current

    16A

    Type

    M12 Power L-Code Connectors and Cable Assemblies

    Rated Voltage

    63V AC/DC

    Product Name

    M12 L-Code Panel Mount Power Connector

    Wire Gauge

    16AWG

    Connector Type

    M12 L-Code 5 Pin Male

    Mounting Type

    Front Panel Mount

    Connector Direction

    Straight

    Recommend Panel Cutout Size

    15.3mm

    Pin Assignment

    4 + PE

    Operating Temperature

    -40°C to +85°C
    Drawing
