$46.00 Excl. VAT
Guaranteed secure & safe checkout.

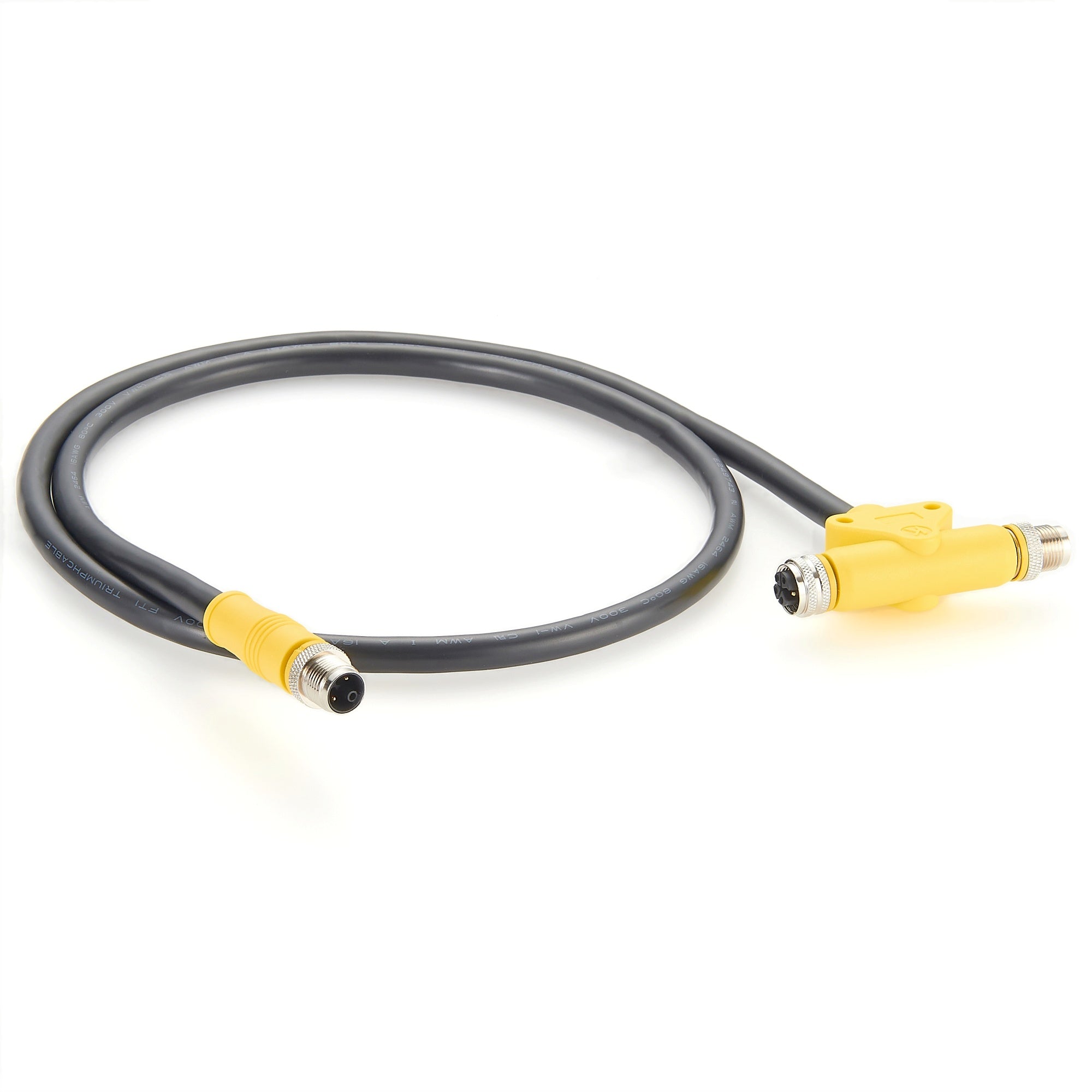

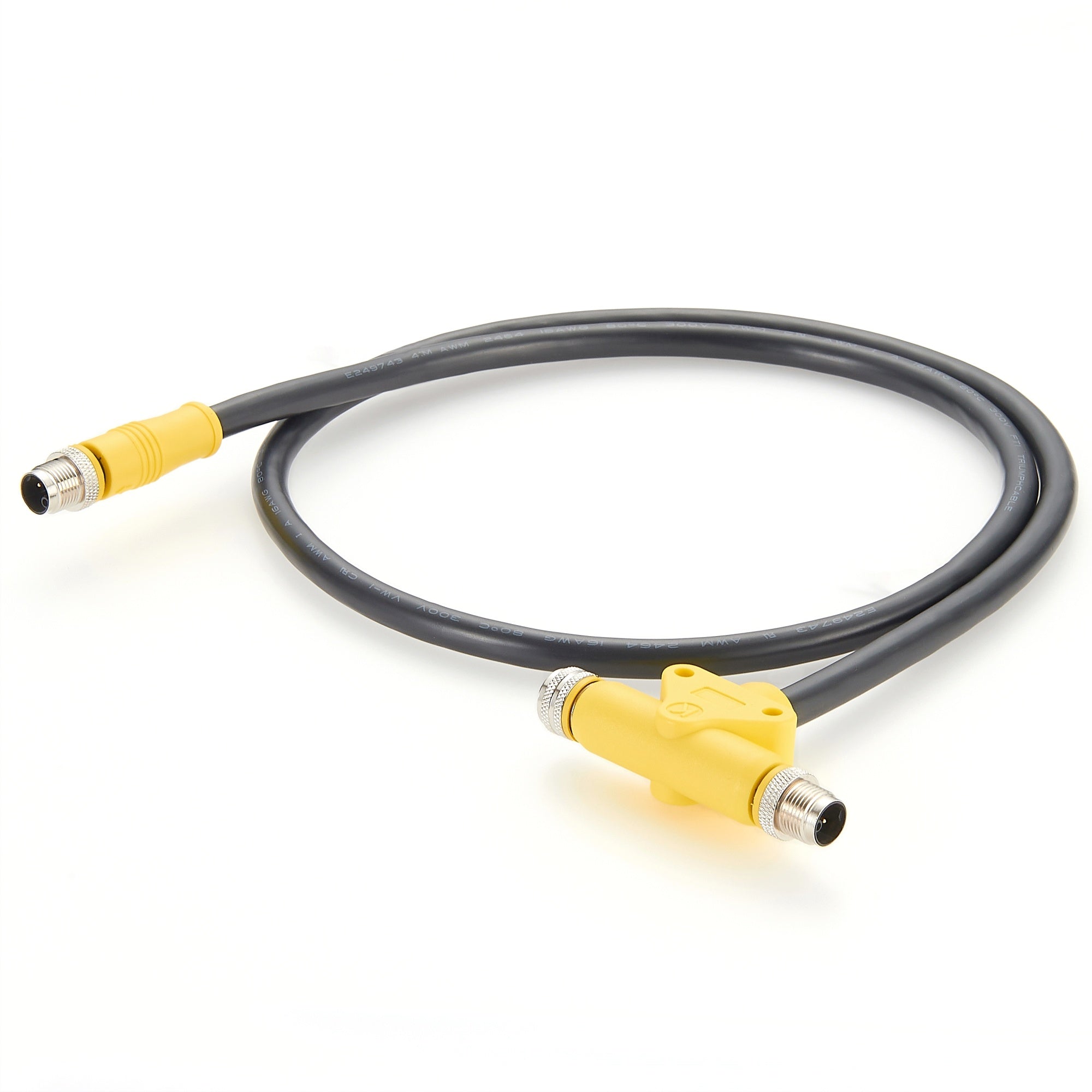

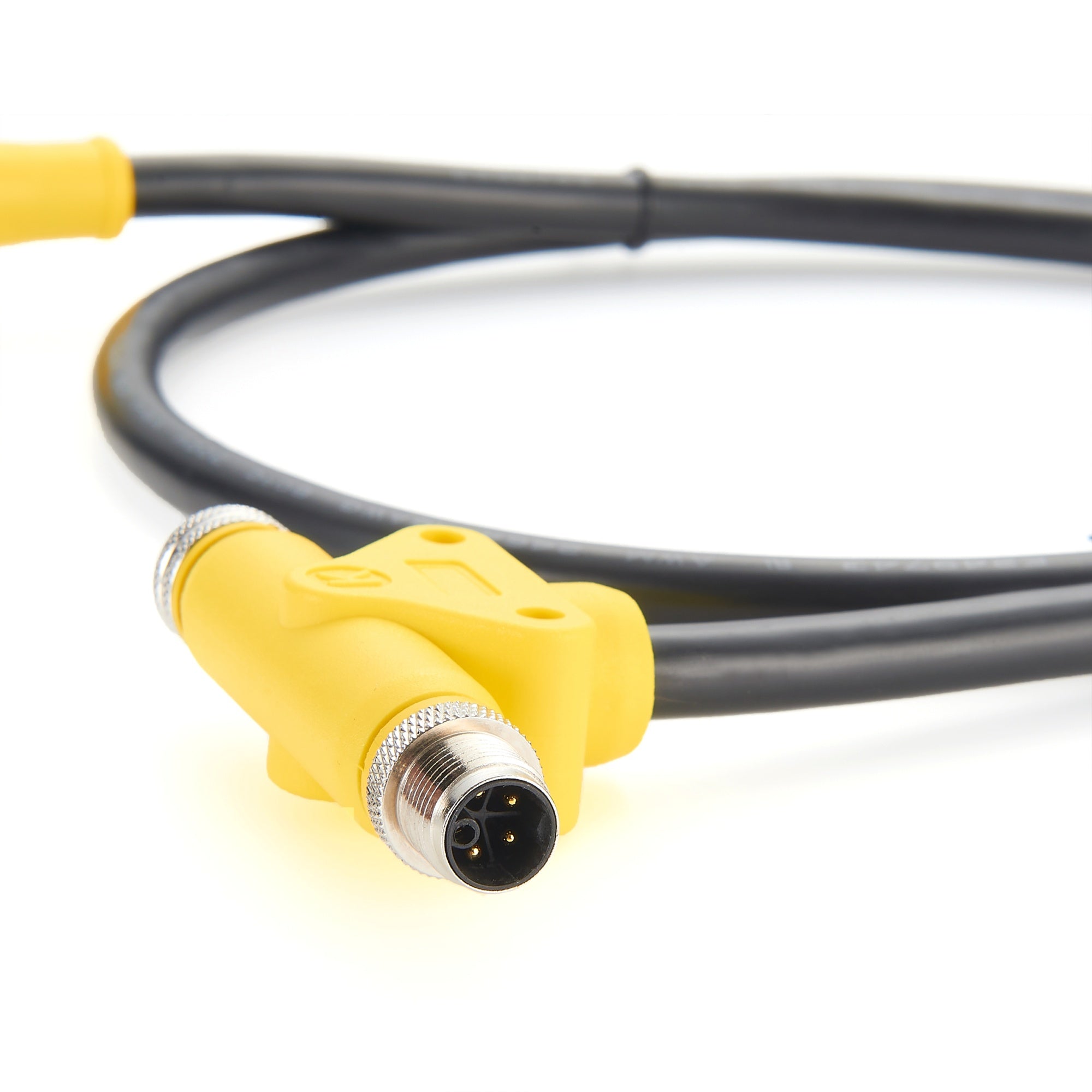

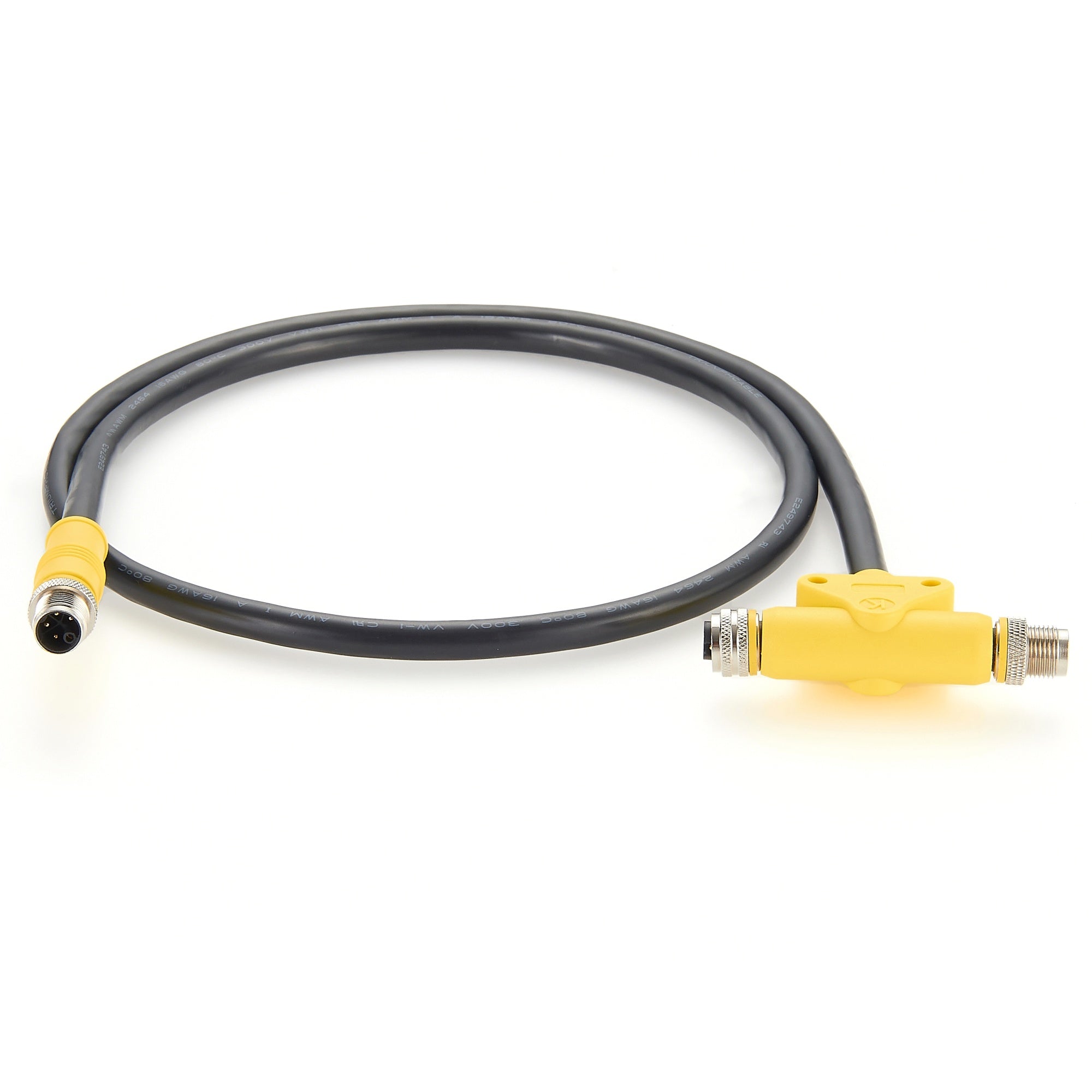

M12 K-Code Power Splitter Cable with 4+PE contacts, IP67-rated and 12A/630V AC, designed for reliable and efficient power distribution to multiple industrial devices. Ideal for frequency converters, telemetry modules, AC/DC motors and drivers. Premier Cable P/N: PCM-S-0451
★ T-Splitter Design: The M12 Power K-Code T-Splitter Cable features a T-shaped configuration, allowing one input to efficiently distribute power to two outputs, thereby enabling efficient power distribution to multiple devices.
★ High-Current Capacity: Constructed with 18AWG conductors, the M12 K-Coded T-Splitter Cable supports up to 12 A per pin at 630 V AC, making it perfect for demanding high-power industrial applications.
★ Standard Compliance: Designed according to the IEC 61076-2-111 standard, the M12 K-Code T-Splitter Power Cable ensures seamless connectivity with other M12 K-Code devices and modules without the need for any modifications.
★ IP67-Rated Protection: With full dust and water resistance, the M12 K-Code T-Splitter Power Extension Cable delivers reliable performance even in wet or dusty industrial environments.
★ Wide Applications: The M12 K-Code Power T-Splitter Cable is suitable for supplying power to AC/DC motors, linear motors, stepper motors, frequency converters, control systems, and lighting systems.
|
Brand Name |
Premier Cable |
Cable Length |
1m, Or OEM |
|
Origin |
Mainland China |
Protecting Rating |
IP67 |
|
Part No. |
PCM-S-0456 |
Housing Material |
PVC |
|
Product Name |
M12 K-Code Power Splitter Cable |
Contact Material |
Gold-Plated |
|
Input Port |
M12 K-Code 5 Pin (4+PE) Male |
Rated Current |
12A |
|
Output Port 1 |
M12 K-Code 5 Pin (4+PE) Female |
Rated Voltage |
630V AC |
|
Output Port 2 |
M12 K-Code 5 Pin (4+PE) Male |
Rated Power |
Up to 7kW |
|
Housing Design |
T-Shape |
Jump Wire |
18AWG |
|
Connector Standard |
IEC 61076-2-111 |
Power Cable |
16AWG*5C, OD: 8.7mm |
