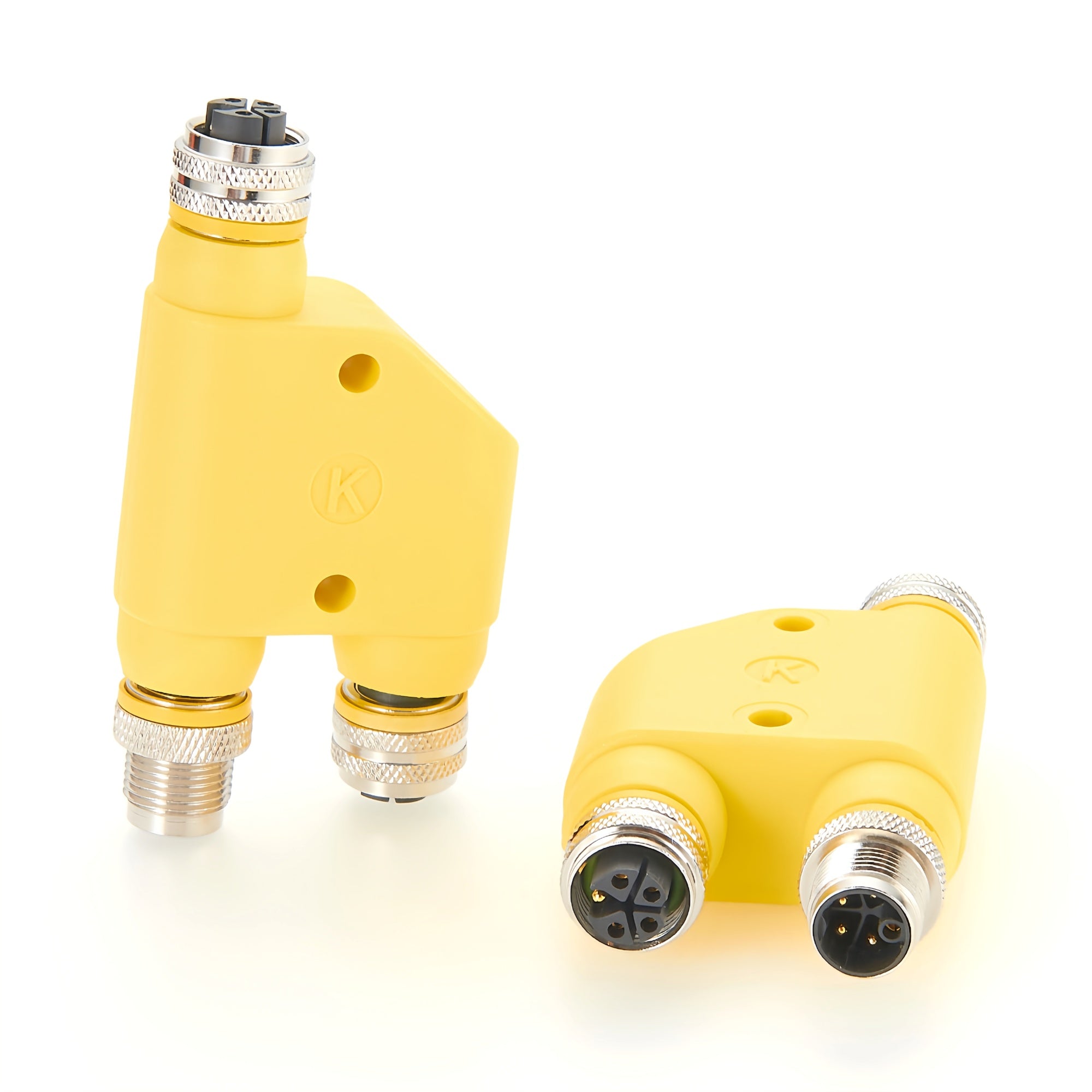

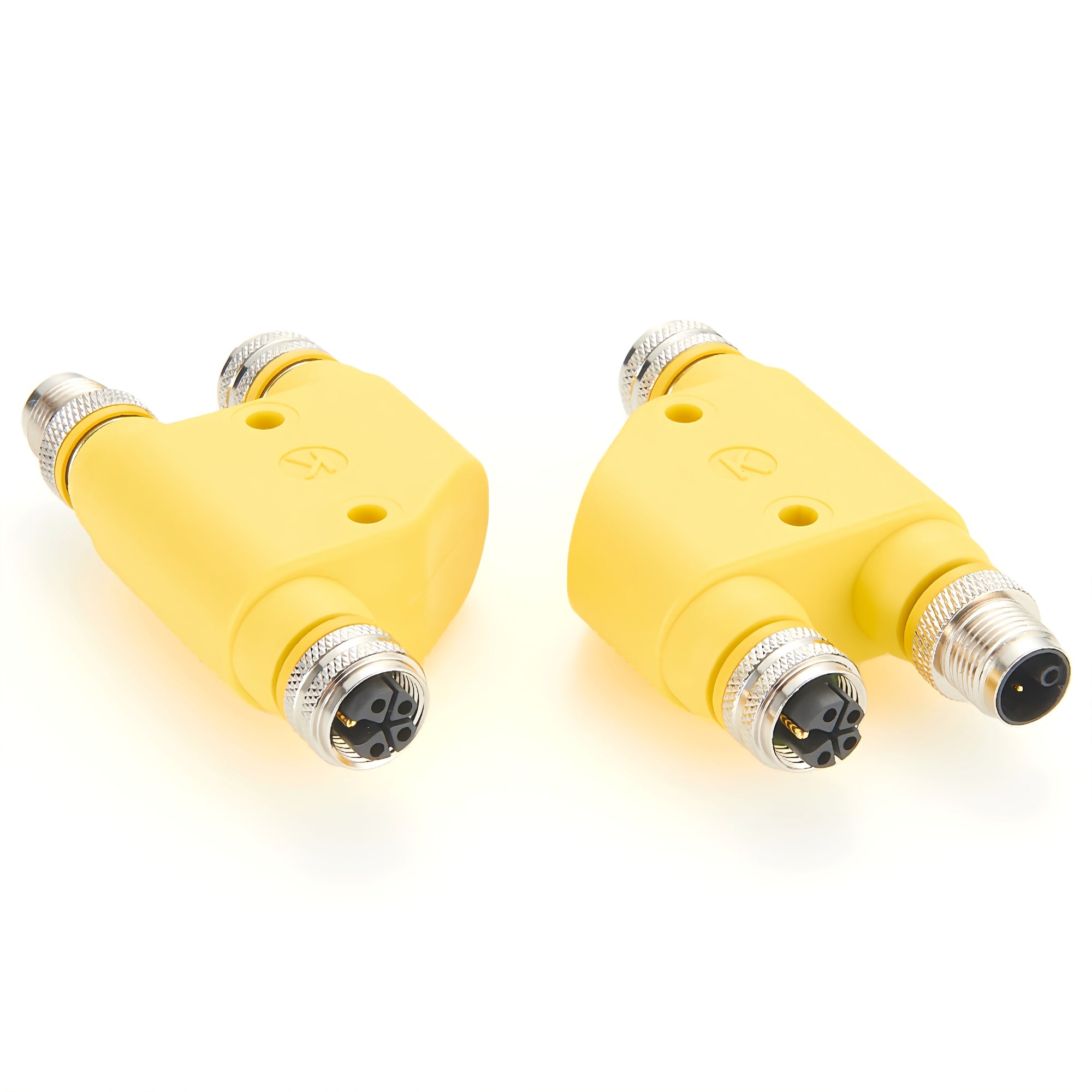

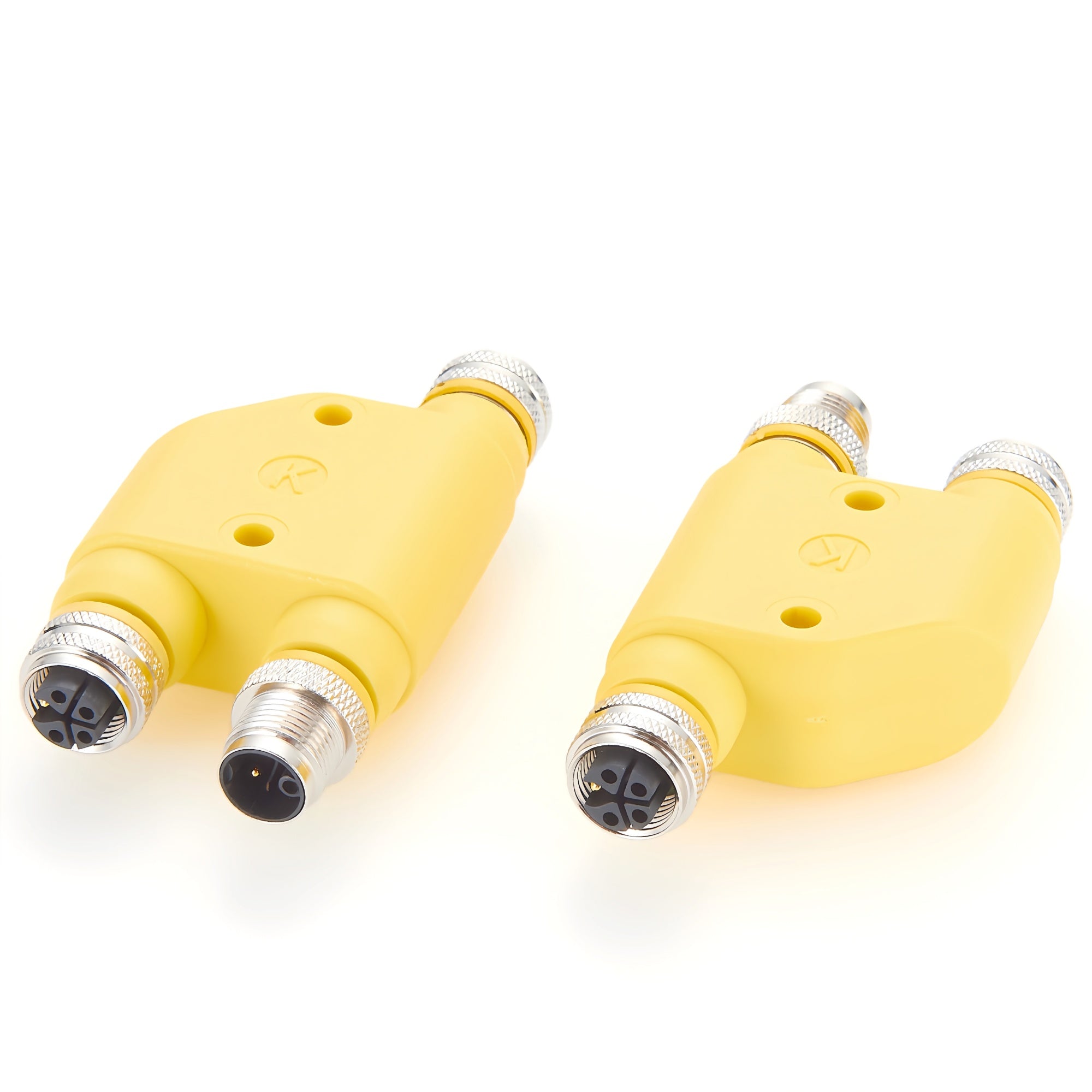

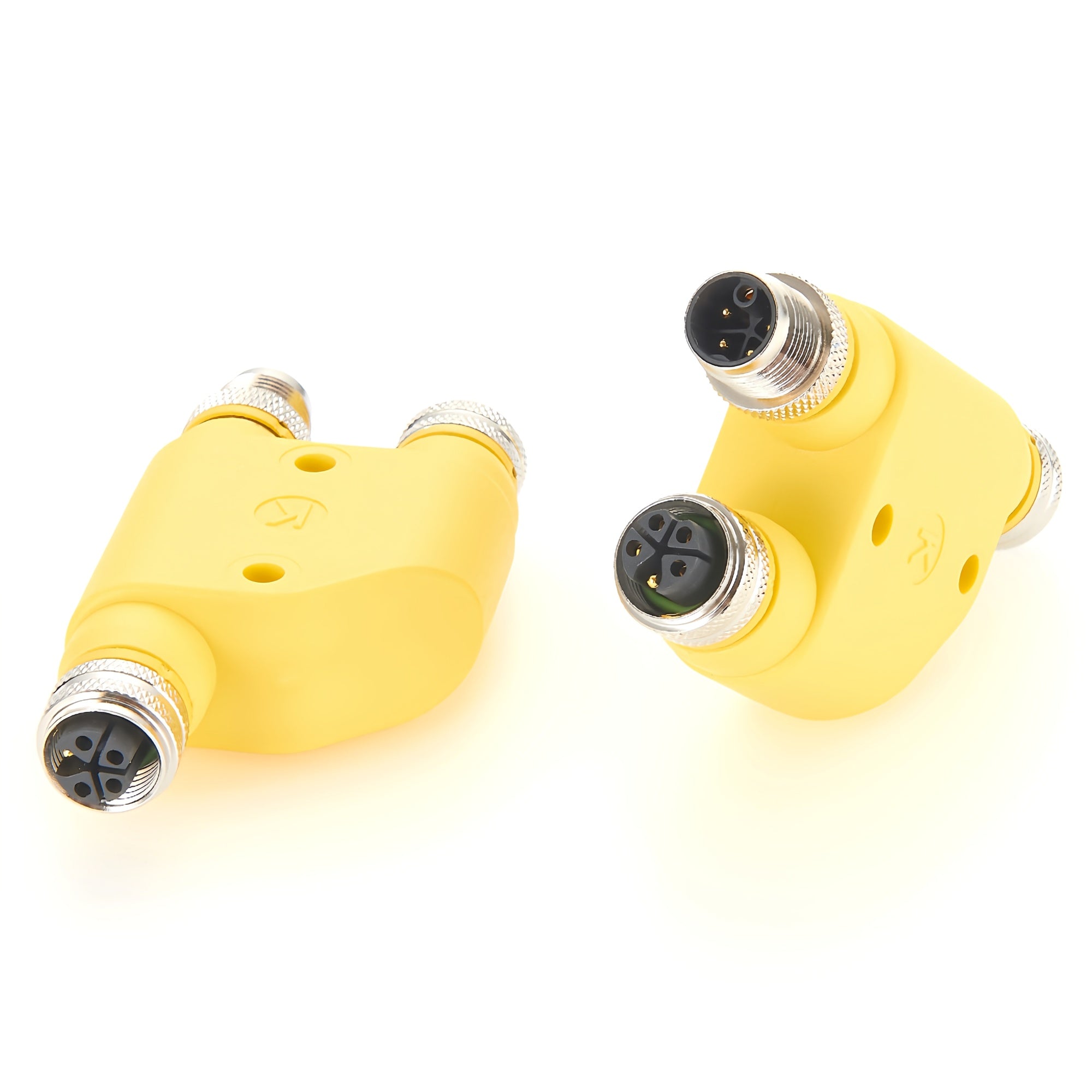

The Premier Cable M12 Power H-Splitter K-Code is a high-performance industrial M12 power splitter with an H-shaped design. Featuring 5-pin (4+PE) M12 K-Code connectors—one input and two outputs, it delivers reliable and efficient power distribution to multiple devices without the need for additional M12 power connectors. Constructed with 18AWG conductors rated at 12A and 630V AC, it is ideal for AC motors, servo drivers, frequency inverters, auxiliary power distribution for control systems.

Input/Output Configuration:

• Input Port: 1 x M12 K-Code 5 Pin (4+PE) Female
• Output Ports: 1 x M12 K-Code 5 Pin (4+PE) Male + 1 x M12 K-Code 5 Pin (4+PE) Female

Features of M12 Power K-Code H-Splitter:

• M12 K-Code Connector: Complies with IEC 61076-2-111 standard, specifically designed for AC power applications.
• H-Splitter Design: Splits one input into two outputs, enabling flexible compact and efficient power distribution.
• High Power Capacity: The M12 K-coded connector supports 630 V / 12 A, which allows for power transmission up to 7kW.
• Pin Configuration: 5 Pin (four power contacts + one protective earth), ensuring safety and reliability.
• Stable Connection: Standard M12 threaded locking prevents loosening from vibration, ensuring reliable performance in industrial environments.
• High Protection Rating: IP67 rated for dustproof and waterproof performance, suitable for harsh or outdoor environments.

Main Applications M12 K-Code Power Connector H-Splitter:

• AC/DC motors and drivers
• Frequency converters
• Power distribution equipment
• Compact LED and lighting fixtures
• Control systems power
• Onboard lighting power
• Telemetry modules
• Power supplies for switches
