M12 Power T-Splitter, K-Coded 4+PE, with 1 Male Input and 2 Female Outputs. Supports 12A per pin at 630V AC. Ideal for supplying power to frequency converters, stepper motors, telemetry modules, control and lighting systems. Premier Cable P/N: PCM-S-0450

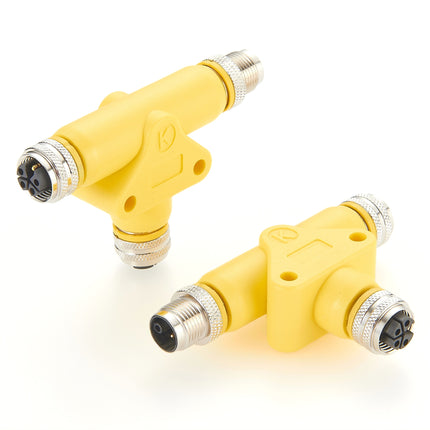

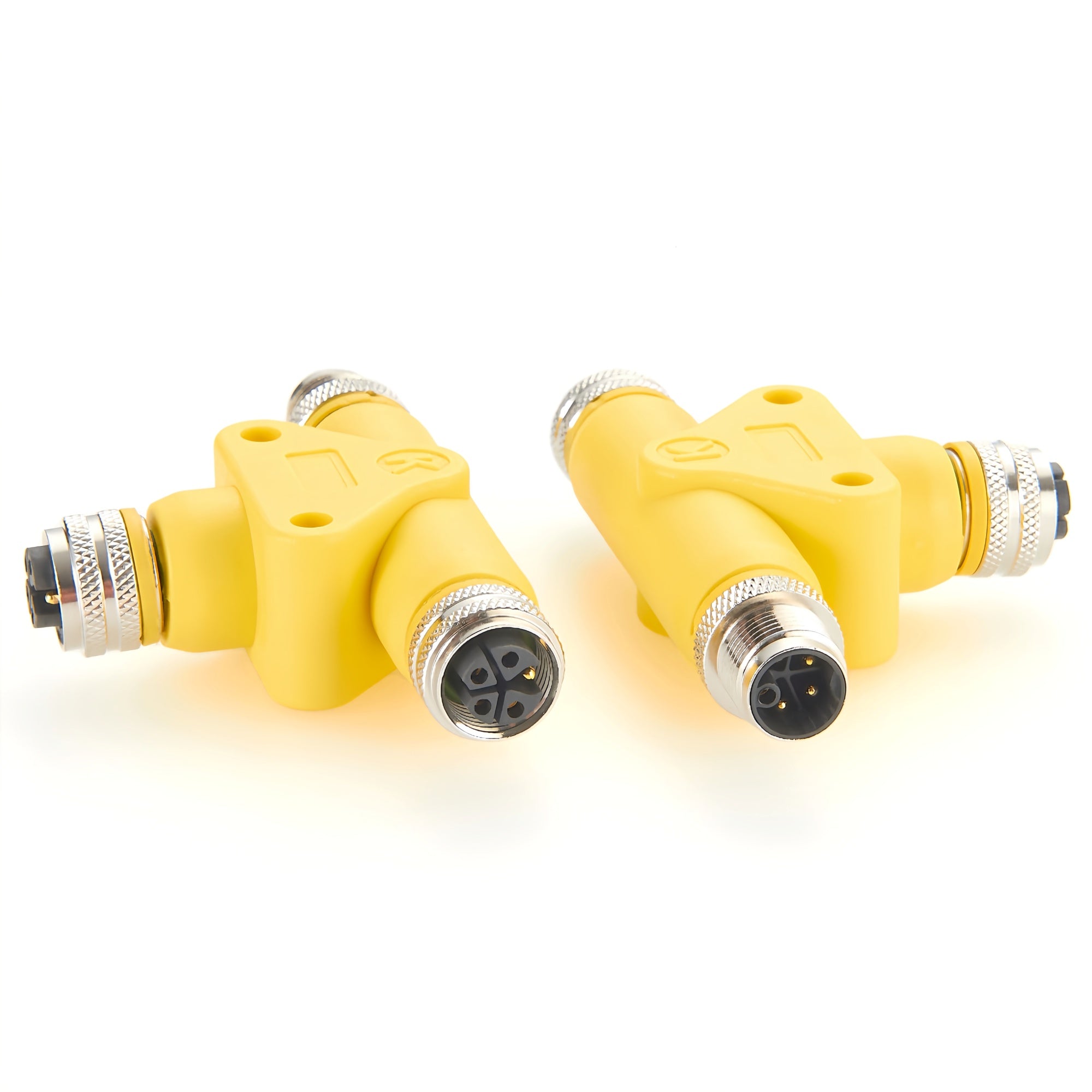

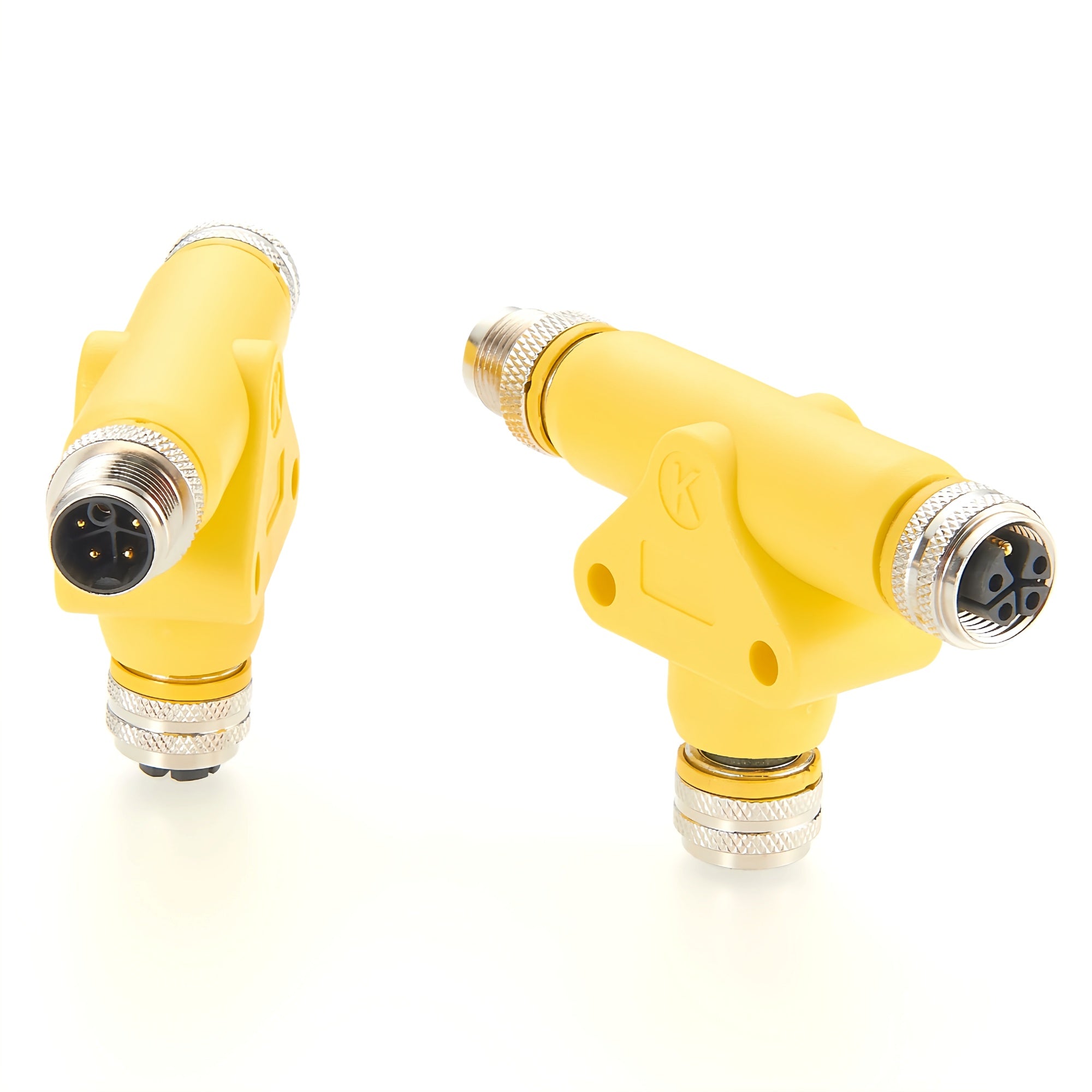

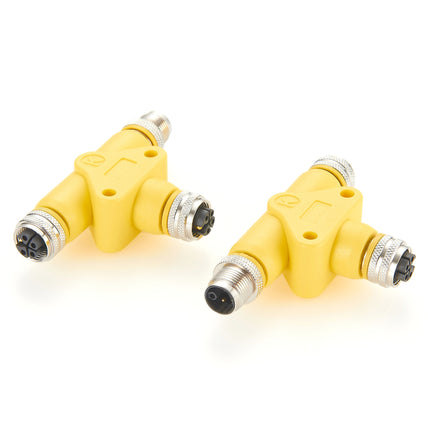

The Premier Cable M12 Power Connector K-Coded T-Splitter is an industrial-grade power distributor with an IP67 protection rating, designed for efficient, reliable, and safe power transmission in demanding industrial environments. Its T-shaped design allows a single power input to be split into two outputs, enabling multiple devices to be powered simultaneously without additional distribution modules. It features standard M12 K-Coded 4+PE interfaces, supporting 12A per pin at 630V AC. This makes it suitable for AC/DC motors, linear motors, stepper motors, frequency converters, industrial control systems, and onboard lighting systems.
Port Configuration:
Standardized Design:
The M12 K-Code T-Splitter is designed in accordance with the IEC 61076-2-111 standard, ensuring compatibility with M12 K-Code power connectors and M12 K-Code AC power cable assemblies from other manufacturers.
Typical Applications:
|
Brand Name |
Premier Cable |
Protecting Rating |
IP67 |
|
Origin |
Mainland China |
Housing Material |
PVC |
|
Part No. |
PCM-S-0450 |
Contact Plating |
Gold-Plated |
|
Product Name |
M12 K-Coded Power T-Splitter |
Rated Current |
12A |
|
Input Port |
M12 K-Code 5 Pin (4+PE) Male |
Rated Voltage |
630V AC |
|
Output Port |
2 x M12 K-Code 5 Pin (4+PE) Female |
Rated Power |
Up to 7kW |
|
Connector Design |
T-Shape |
Conductor |
18AWG |
|
Connector Standard |
IEC 61076-2-111 |
|
|
