M12 Panel Mount Cable B Code 5 Pin Male

M12 Panel Mount Cable B Code 5 Pin Male

Product form

$7.00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

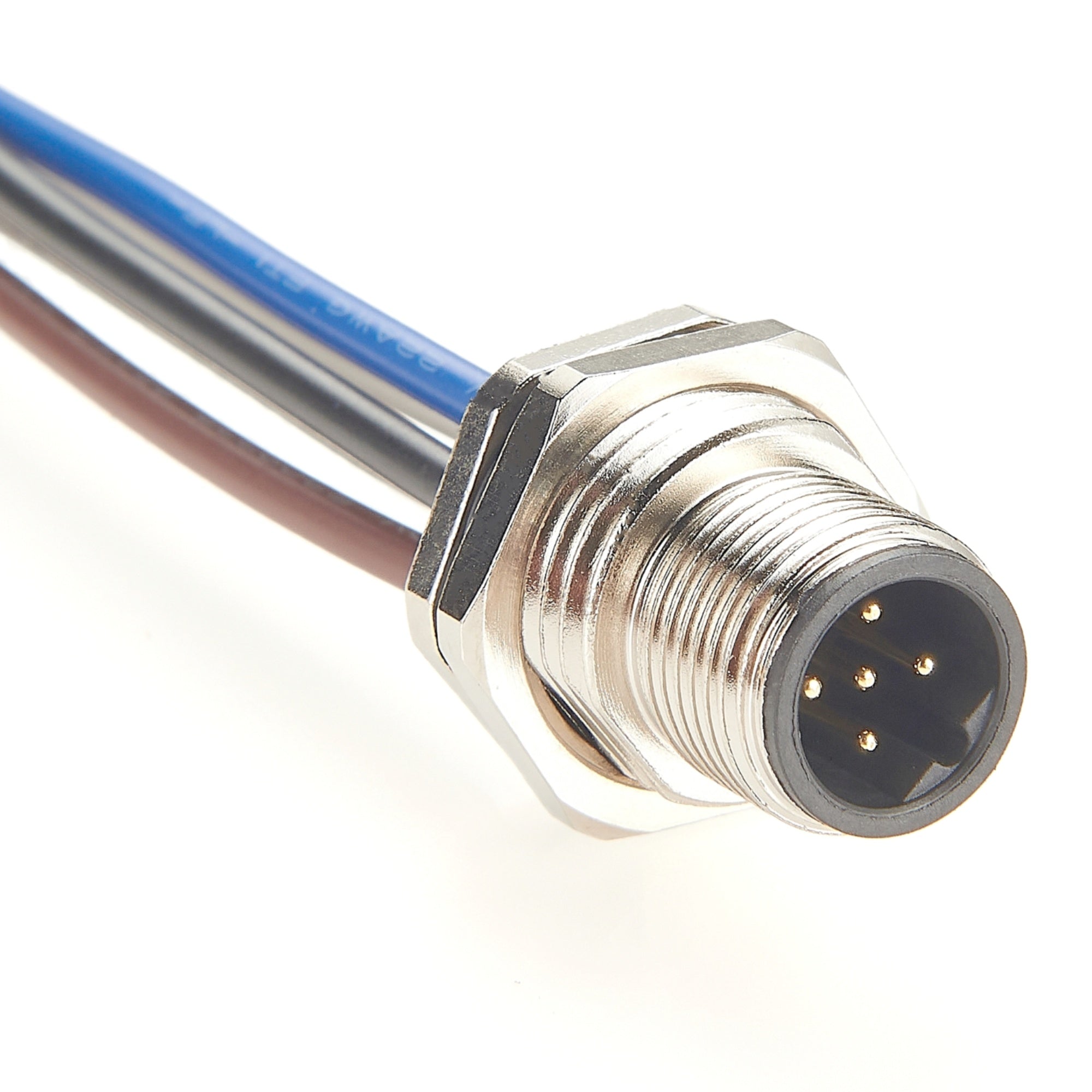

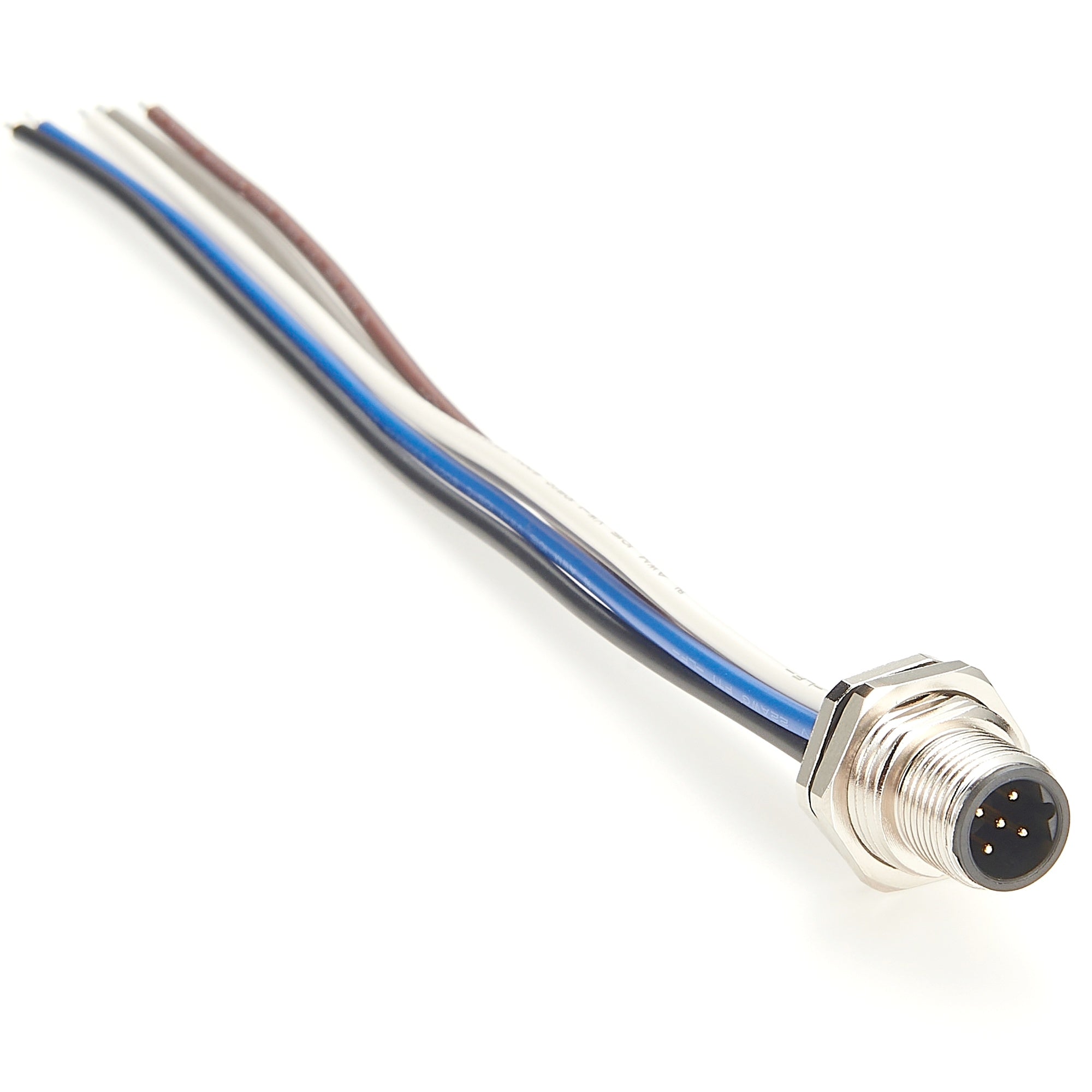

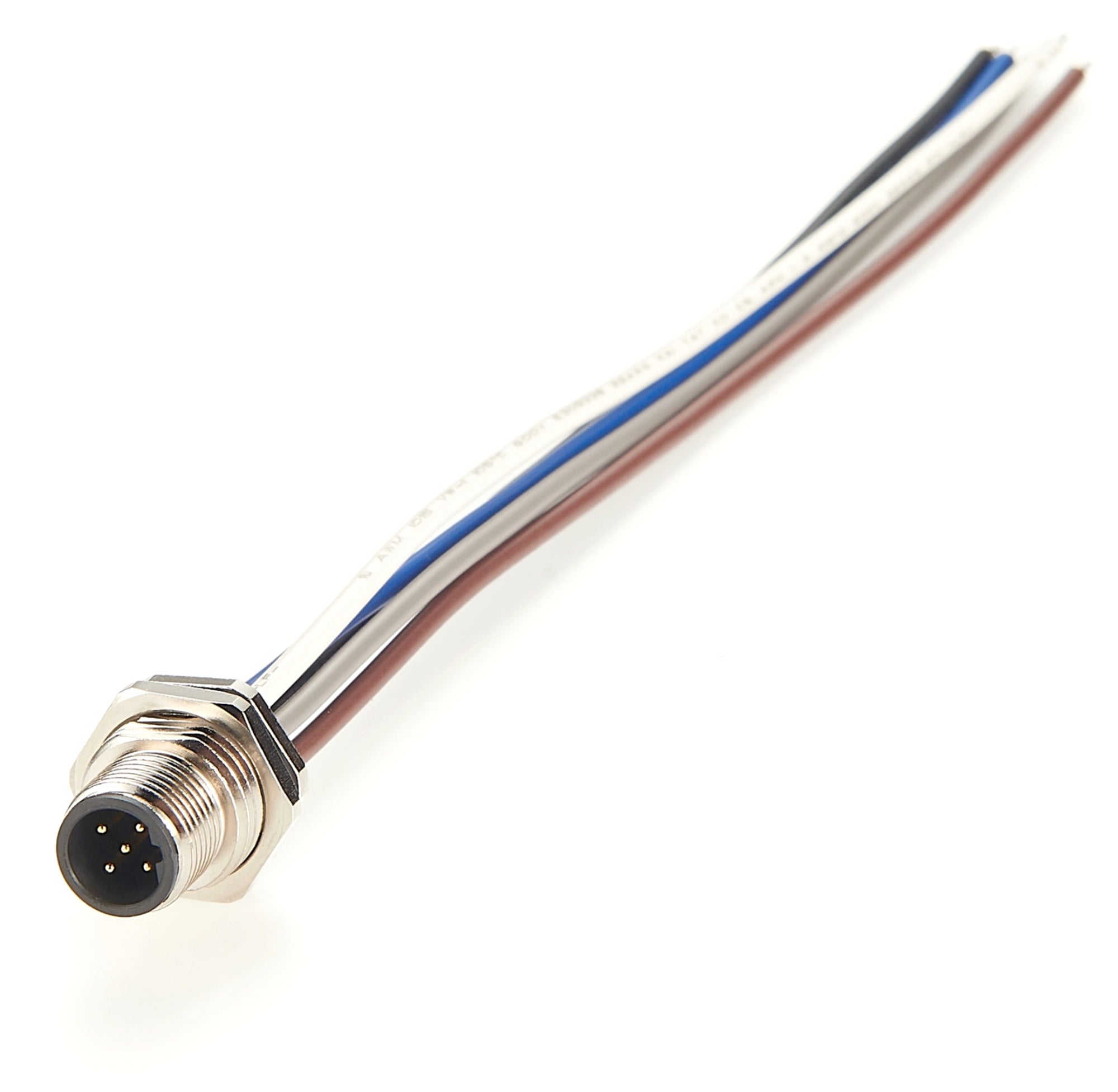

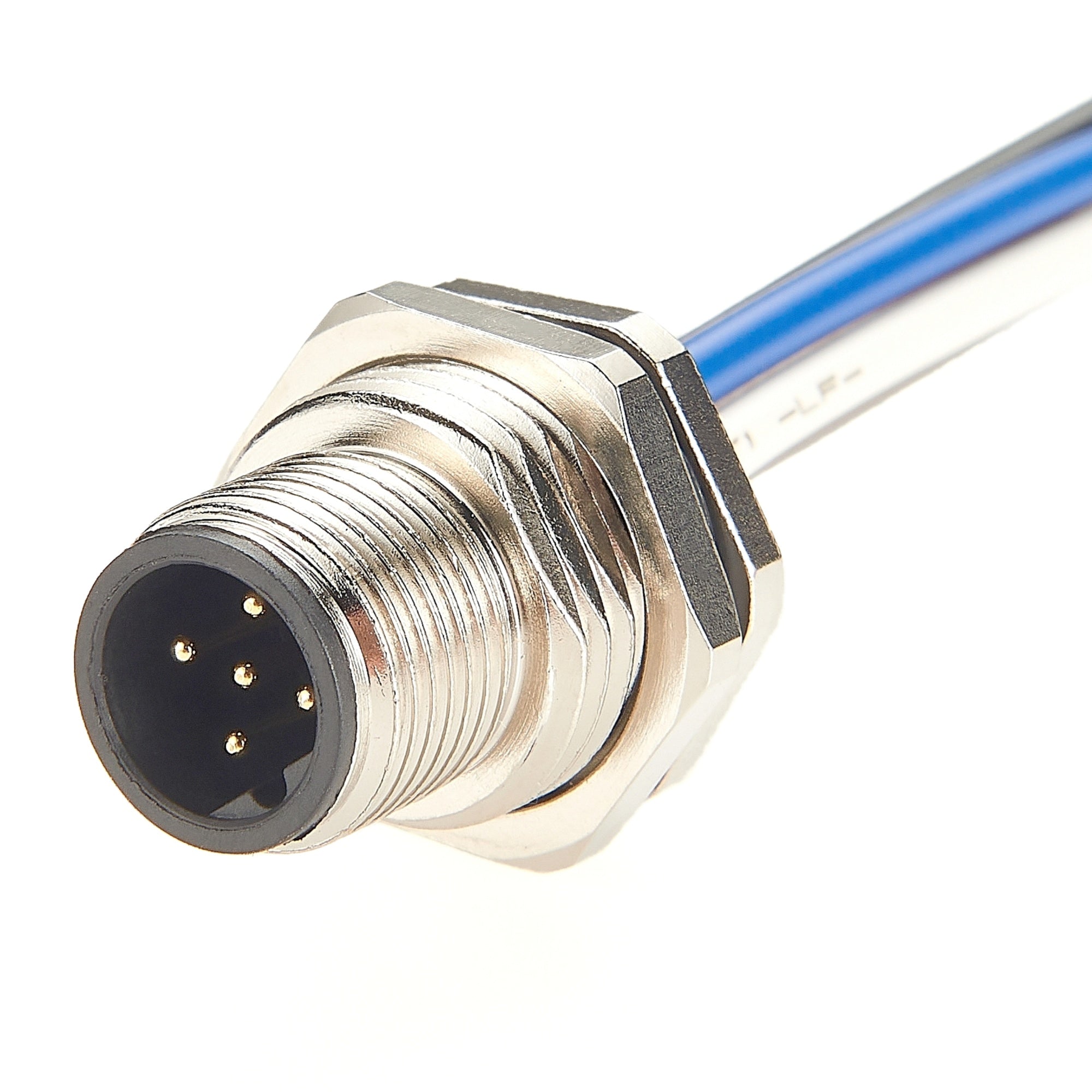

    M12 B Code 5 Pin Male Front Panel Mount Bulkhead Connector with 5-Core 22AWG Pigtail Wire for PROFIBUS-DP, Interbus, RS-485 Fieldbus System. IP67 Waterproof & Ø16mm Panel Cutout Size. Premier Cable Part No.: PCM-HD-0100

    • 24/7 Customer Support
    • No MOQ & Ready to Ship
    • Fast Lead Time: Less than 3 days!
    • Global Shipping: Anywhere, anytime!
    • Customizable Lengths & Bulk Orders Available
    • Note: The prices are for small-scale orders. For bulk quantities or customized specifications, please feel free to contact me at sales06@premier-cable.net or via the online chat for a tailored quotation.
    Description

    The M12 B-Code 5 Pin Male Panel Mount Cable from Premier Cable provides a stable and reliable connectivity solution for demanding industrial communication systems. Featuring a rugged M12 B-coded 5-pin male connector with a front panel-mount configuration, it ensures secure installation in panels, cabinets, enclosures, and equipment enclosures. Simply open a Ø16 mm hole to enable quick and easy installation.

    Equipped with a 5-core 22 AWG hook-up wire, it not only ensures reliable signal transmission but also simplifies installation by eliminating the need for additional cables. And it also supports a wide range of communication protocols, including CAN Bus, CANopen, PROFIBUS, PROFINET, CC-Link, and DeviceNet, making it an excellent choice for flexible and reliable network integration.

    Main Features of M12 Panel Mount Cable B Code 5 Pin Male:

    • IP67 Waterproof Protection
    • M12 B-Code 5 Pin Male Circular Connector
    • Front Panel or Chassis Mount Design
    • Recommended Ø16 mm Cutout Size
    • Colored 5-core 22AWG Pigtail Wires
    • Rugged and Durable Construction

    Specification

    Brand Name

    Premier Cable

    Cable Length

    0.2m, Or OEM

    Origin

    Mainland China

    Cable Diameter

    2.4 ± 0.1mm

    Part No.

    PCM-HD-0100

    Waterproof Rating

    IP67

    Type

    M12 Panel Mount Wire

    Wire Gauge

    22AWG

    Product Name

    M12 B-Code 5 Pin Male Front Panel Mount Cable

    Mounting Type

    Panel Mount / Chassis Mount

    Connector Type

    M12

    Mounting Feature

    Front Mount

    Code

    B Code

    Recommended Cutout Size

    Ø16.0mm

    Number of Pins

    5 Pin

    Supported Protocols

    NMEA2000, CAN Bus, CANOpen, DeviceNet

    Gender

    Male




    Drawing
