M12 B Code 5 Pin Panel Mount Cable

M12 B Code 5 Pin Panel Mount Cable

Product form

$8.00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

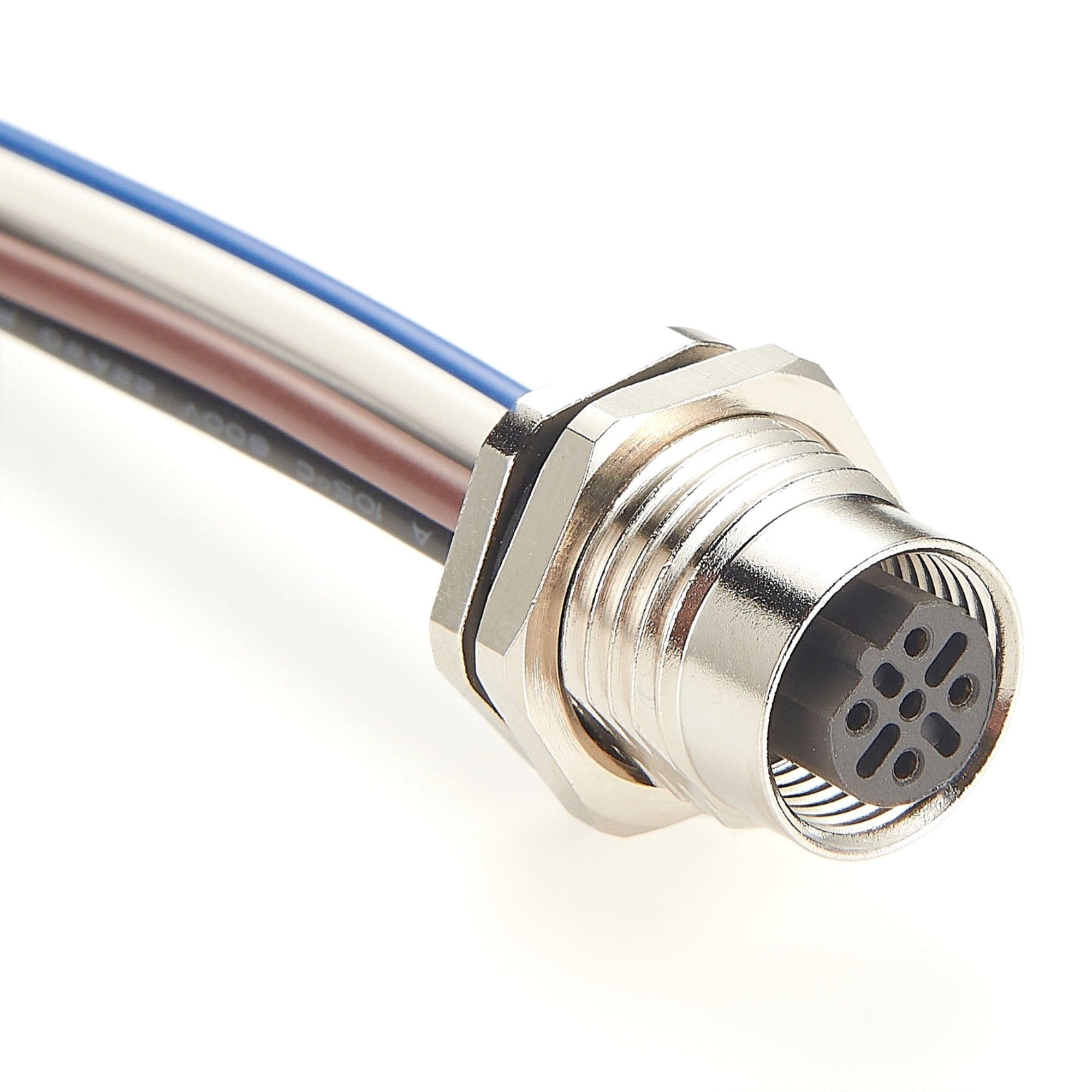

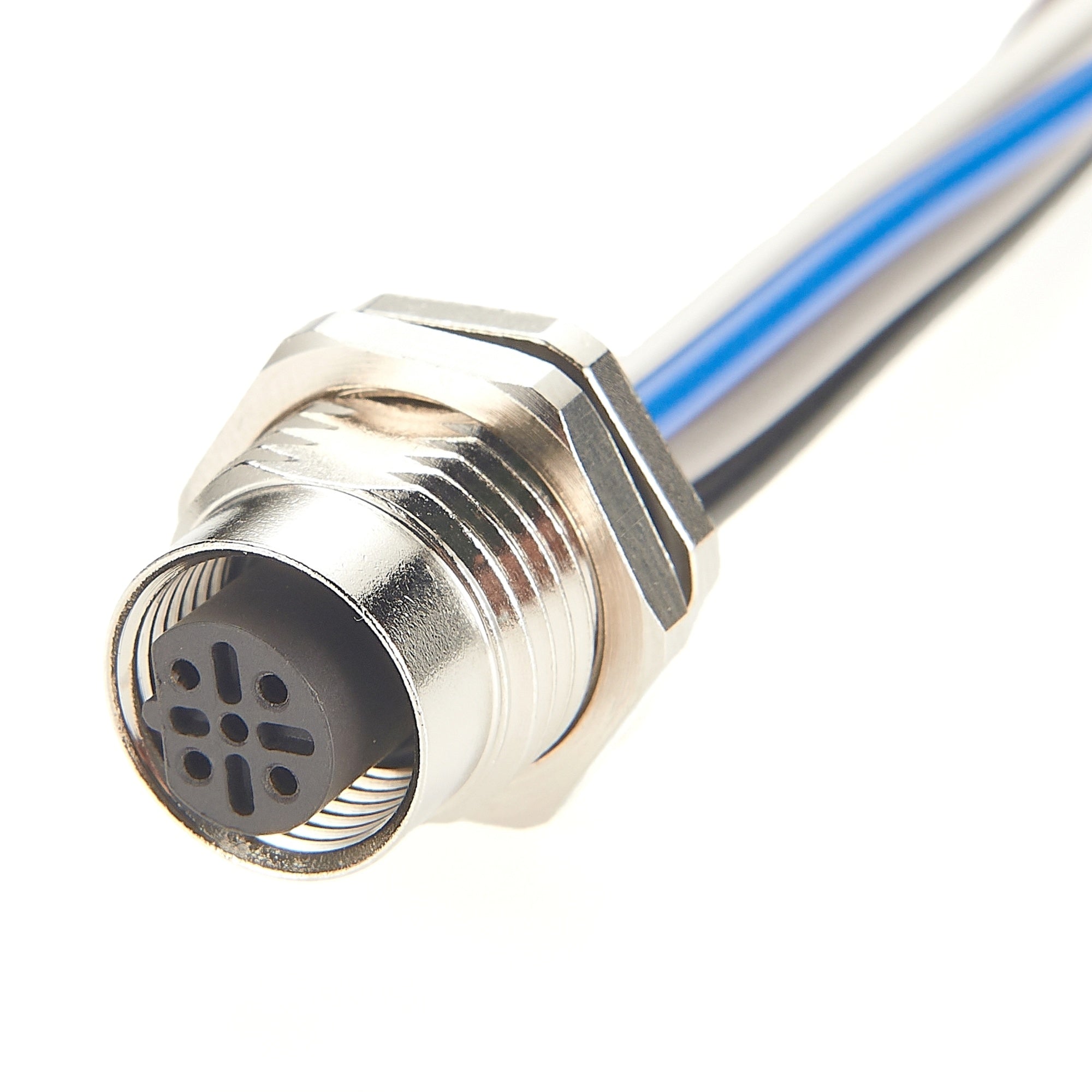

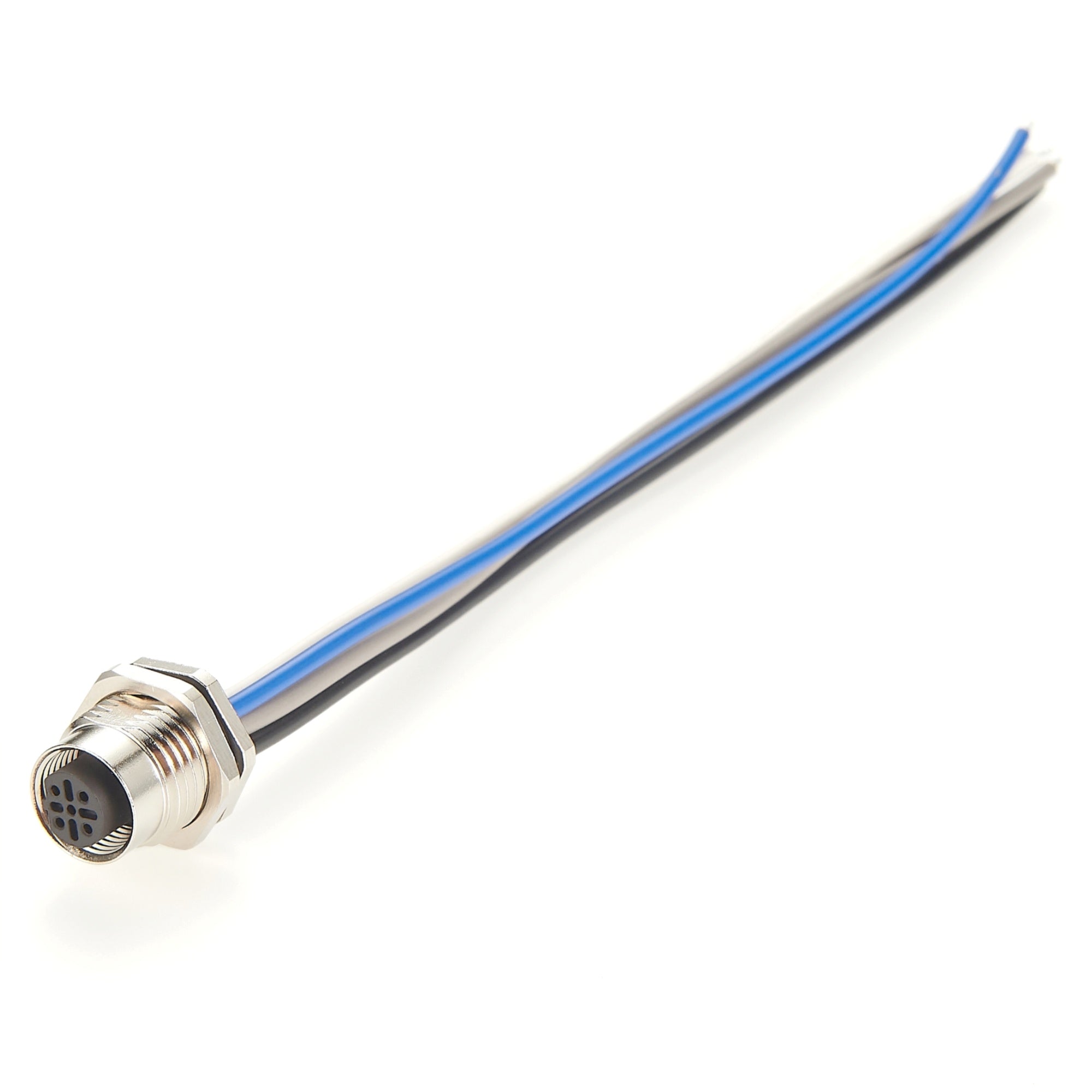

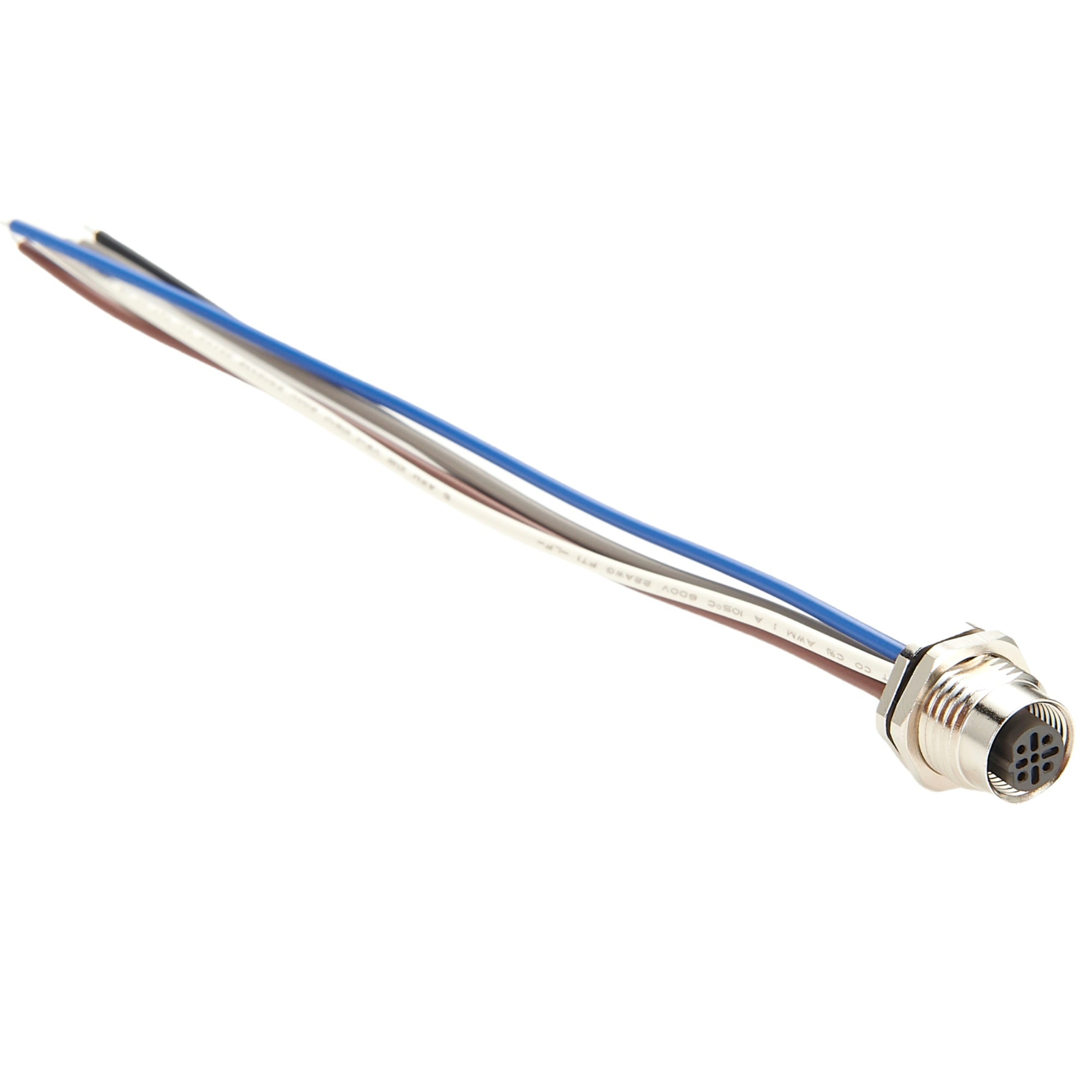

    IP67 Waterproof M12 B Coded 5 Pin Female Bulkhead Connector with 20 CM 5-Core 22AWG Hook-Up Wire, Featuring a Front Panel Mount Design with 16mm Cutout Size, Supports Multiple Protocols: CAN Bus, CANopen, PROFIBUS, PROFINET, CC-Link, DeviceNet. Premier Cable Part No.: PCM-HD-0099

    • 24/7 Customer Support
    • No MOQ & Ready to Ship
    • Fast Lead Time: Less than 3 days!
    • Global Shipping: Anywhere, anytime!
    • Customizable Lengths & Bulk Orders Available
    • Note: The prices are for small-scale orders. For bulk quantities or customized specifications, please feel free to contact me at sales06@premier-cable.net or via the online chat for a tailored quotation.
    Description

    The M12 B Code 5 Pin Panel Mount Cable plays an important role in ensuring reliable connection and stable data communication industrial applications. It is equipped with an M12 B-coded 5 pin circular connector with front panel-mount design, enabling stable installation and seamless integration into panels, chassis, or cabinets. Additionally, it comes with a pre-wired 5-core 22 AWG wire of 20 cm in length, ensuring stable signal transmission and reliable performance.

    Key Features of M12 B-Code 5 Pin Panel Mount Cable:

    • IP67 Waterproof Protection
    • Standard M12 B-Coded 5 Pin Circular Connector
    • Front Panel Mount Design for Stable Connection
    • Just Drill a Ø16mm Hole to Enable Quick Installation
    • 5-core 22AWG Pigtail Wires for Stable Data Transmission
    • Colored wiring for Easy identification and Quick Connection
    • Easy Integration into Control Panels, Junction Boxes, and Equipment Housings
    • Supports CC-Link, CAN Bus, CANopen, PROFIBUS, PROFINET, and DeviceNet Protocols
    Specification

    Brand Name

    Premier Cable

    Cable Length

    0.2m, Or OEM

    Origin

    Mainland China

    Cable Diameter

    2.4 ± 0.1mm

    Part No.

    PCM-HD-0099

    Waterproof Rating

    IP67

    Type

    M12 Panel Mount Wire

    Wire Gauge

    22AWG

    Product Name

    M12 B-Code 5 Pin Female Front Panel Mount Connector with Wire

    Mounting Type

    Panel Mount / Chassis Mount

    Connector Type

    M12

    Mounting Feature

    Front Mount

    Code

    B Code

    Recommended Cutout Size

    Ø16.0mm

    Number of Pins

    5 Pin

    Supported Protocols

    NMEA2000, CAN Bus, CANOpen, DeviceNet

    Gender

    Female




    Drawing
