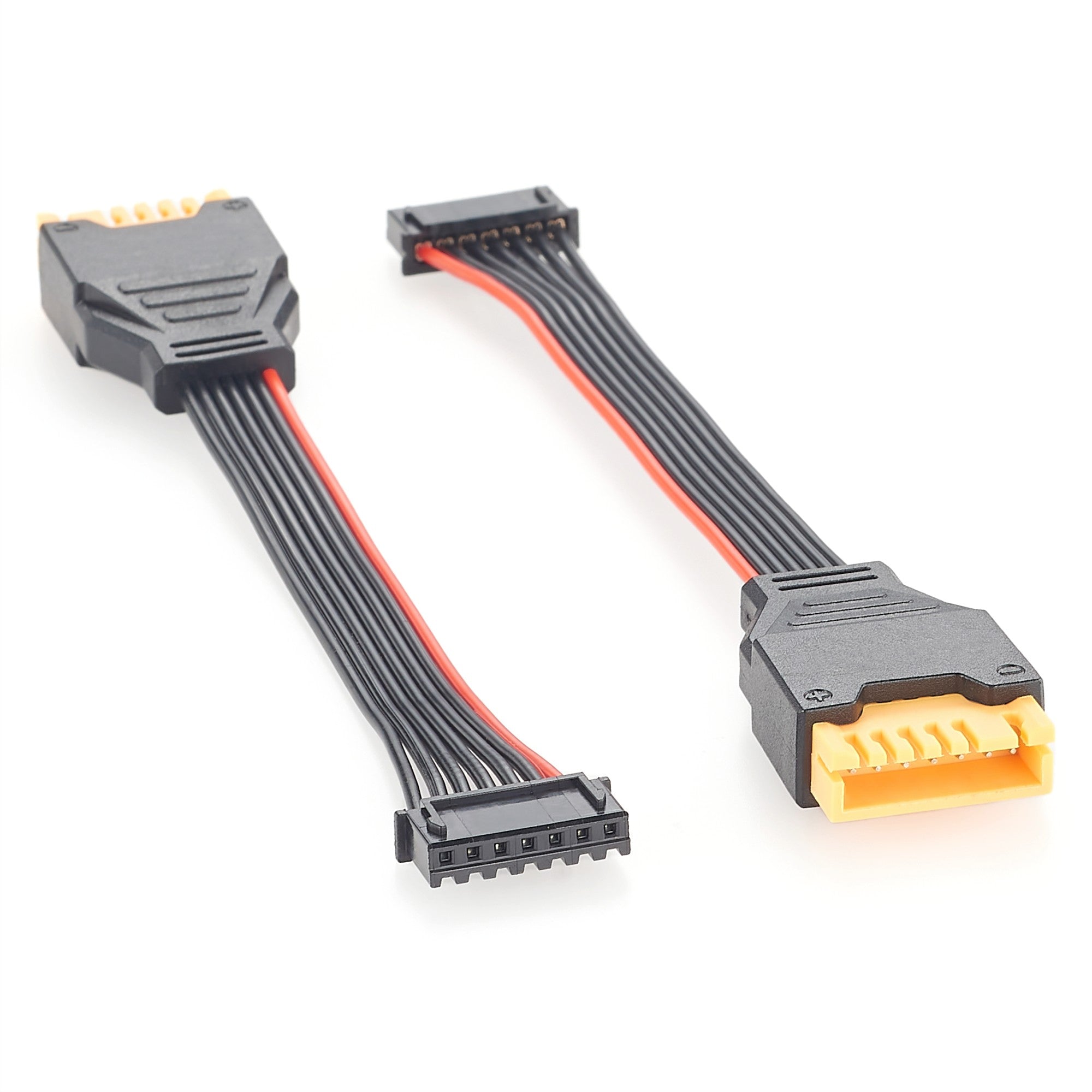

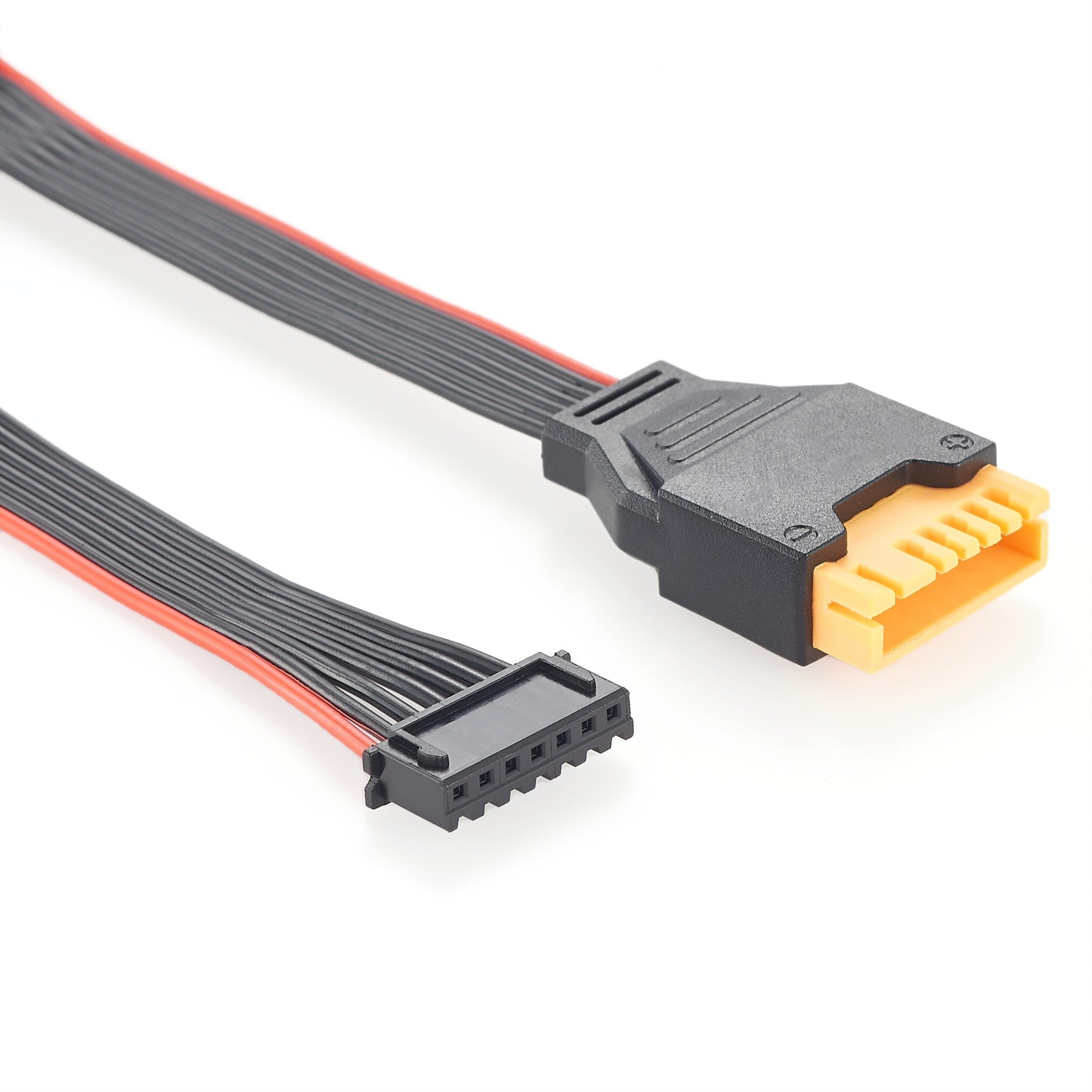

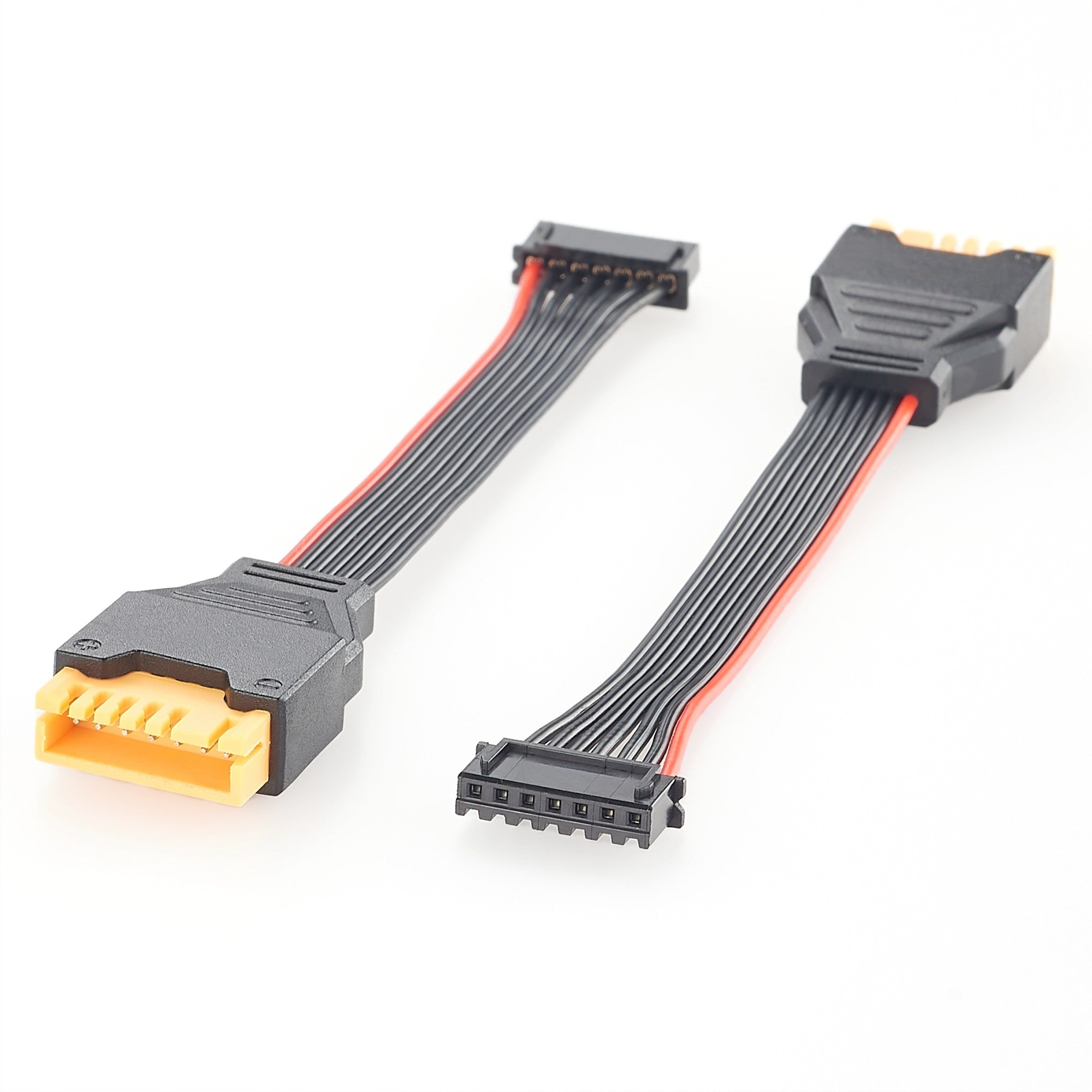

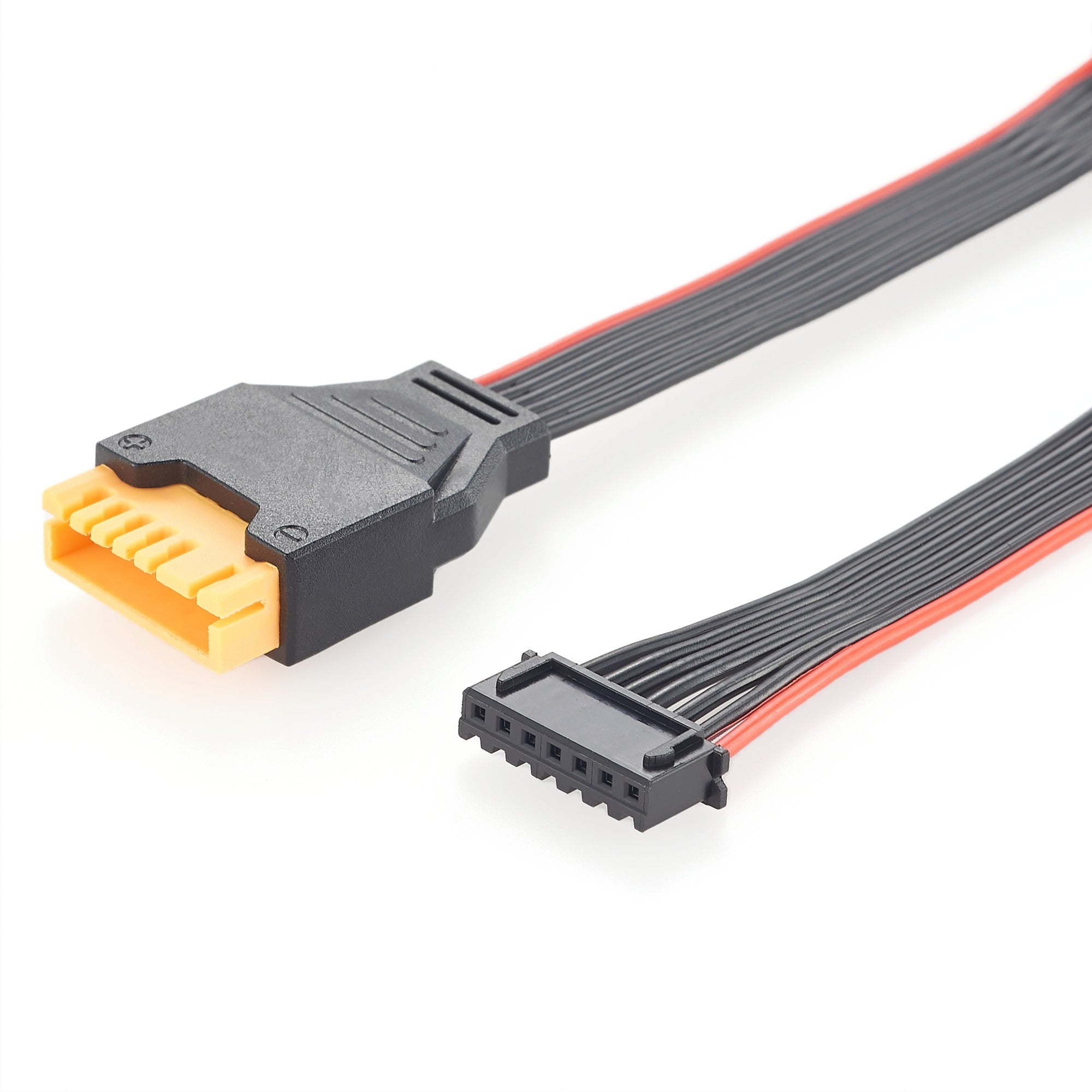

The PremierCable JST-XH 2-6S LiPo Battery Balance Charging Extension Cable is designed to extend the connection distance between your LiPo battery balance port and charger, providing a more flexible and convenient charging setup for RC models, drones, FPV equipment, and battery testing applications.

Featuring a standard JST-XH 7 pin connector, this extension cable is downward compatible with 3 pin, 4 Pin, 5 Pin, and 6 Pin JST-XH style balance connectors, making it suitable for most lithium battery configurations from 2S to 6S.

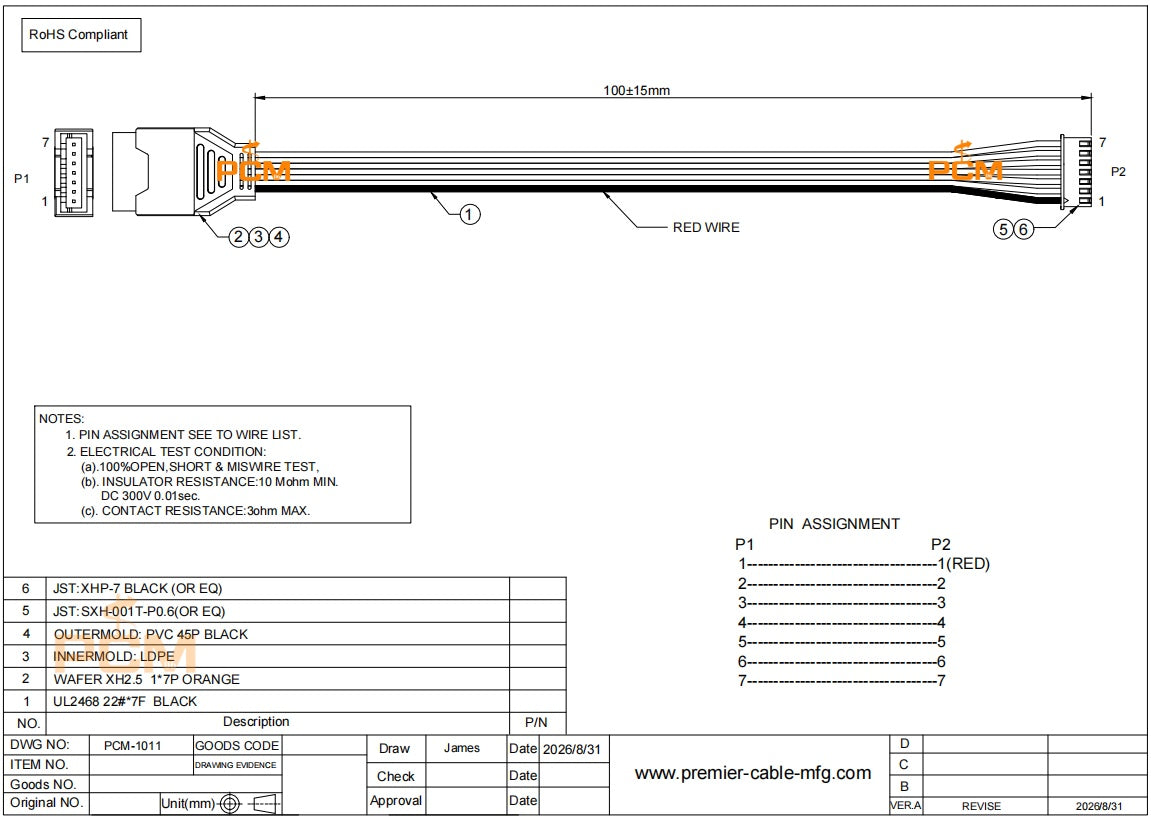

This cable is 100mm (4 inches) long and features high-quality 22AWG flexible charging wire. Its compact length is suitable for most applications, helping to minimize excess cable and keep installations neat.

JST-XH Series 2.5mm Pitch Connector

2S LiPo → 3 Pin → XHP-3 → B3B-XH-A

3S LiPo → 4 Pin → XHP-4 → B4B-XH-A

4S LiPo → 5Pin → XHP-5 → B5B-XH-A

5S LiPo → 6 Pin → XHP-6 → B6B-XH-A

6S LiPo → 7 Pin → XHP-7 → B7B-XH-A

JST XH vs JST XHP: What's the Difference?

XH refers to the connector series name, while XHP is the specific part number prefix for the JST XH series plug. In simple terms:

• XH = Connector series (2.5mm pitch)
• XHP = Wire-side housing (plug housing)

Common JST-XH Series Components:

• XHP-3, XHP-4, XHP-5...
  → Wire-side plug housings available in different circuit (pin) counts
• B3B-XH, B4B-XH, B5B-XH...
  → PCB headers corresponding to different pin counts
• SXH-001T-P0.6
  → Crimp terminals used with XHP housings (one terminal required for each wire)
