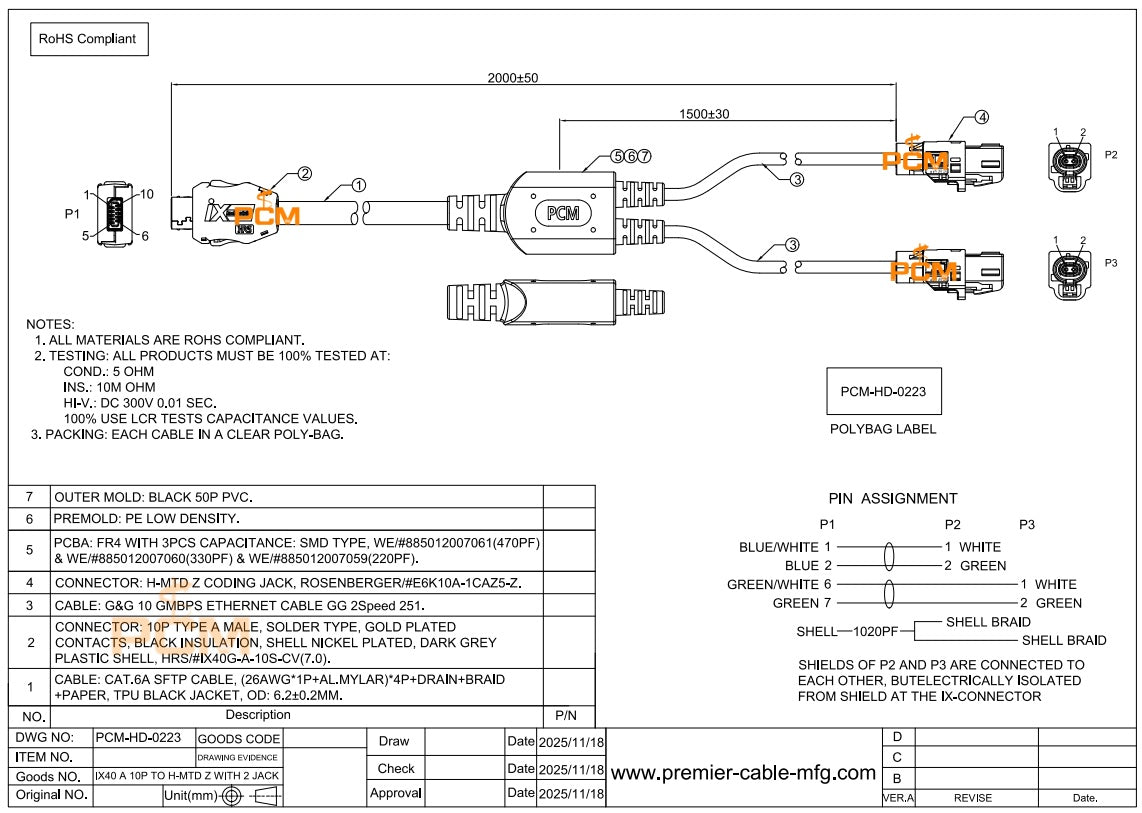

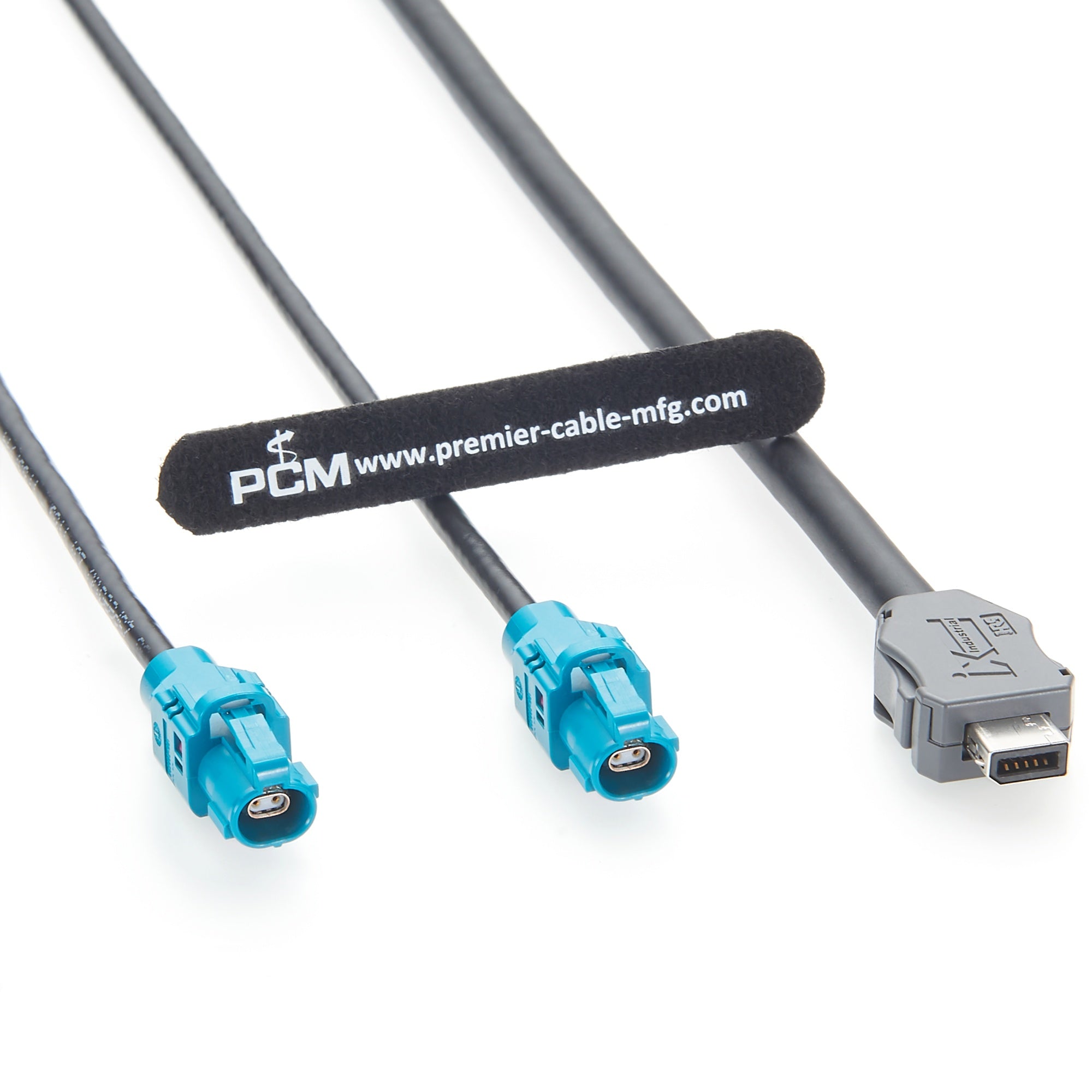

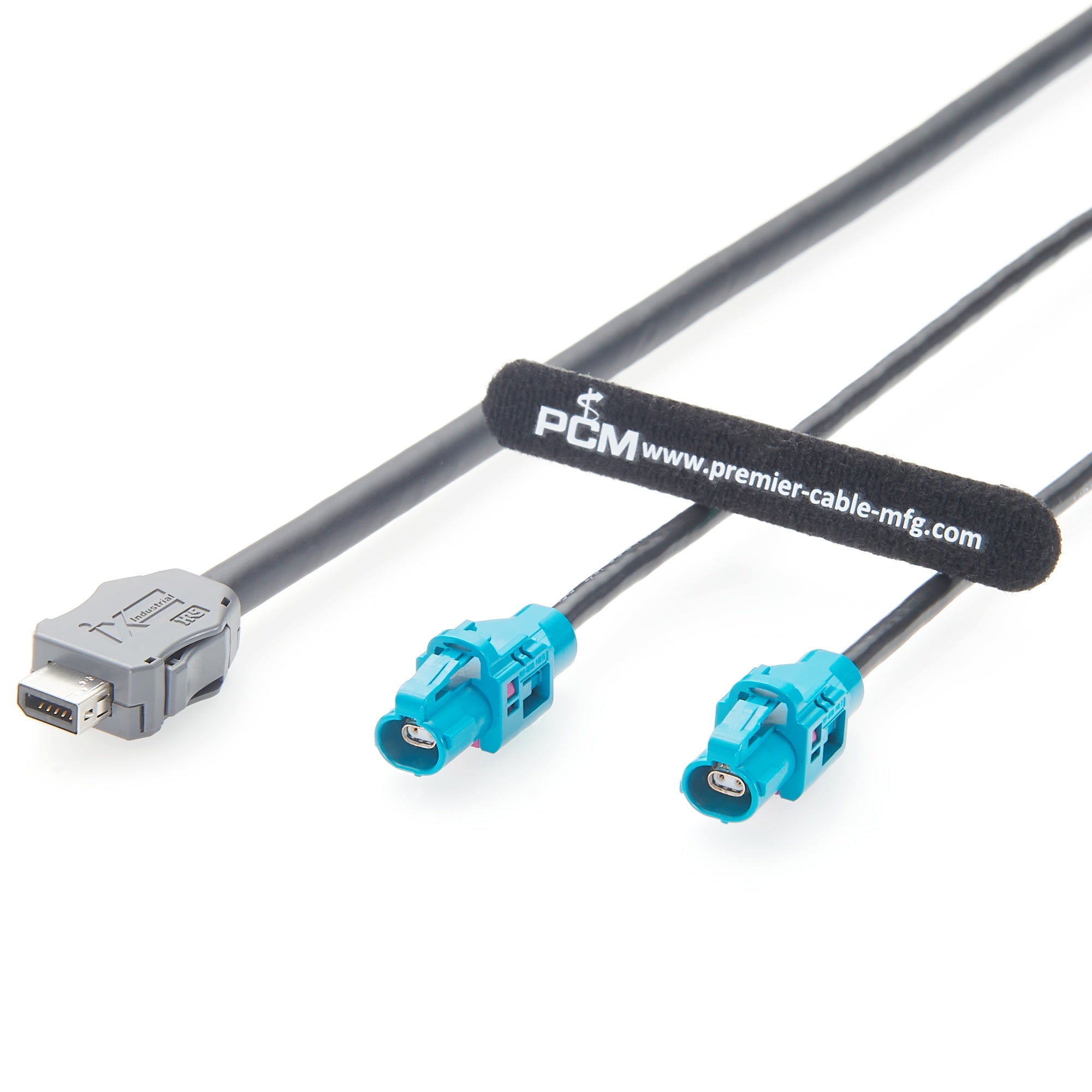

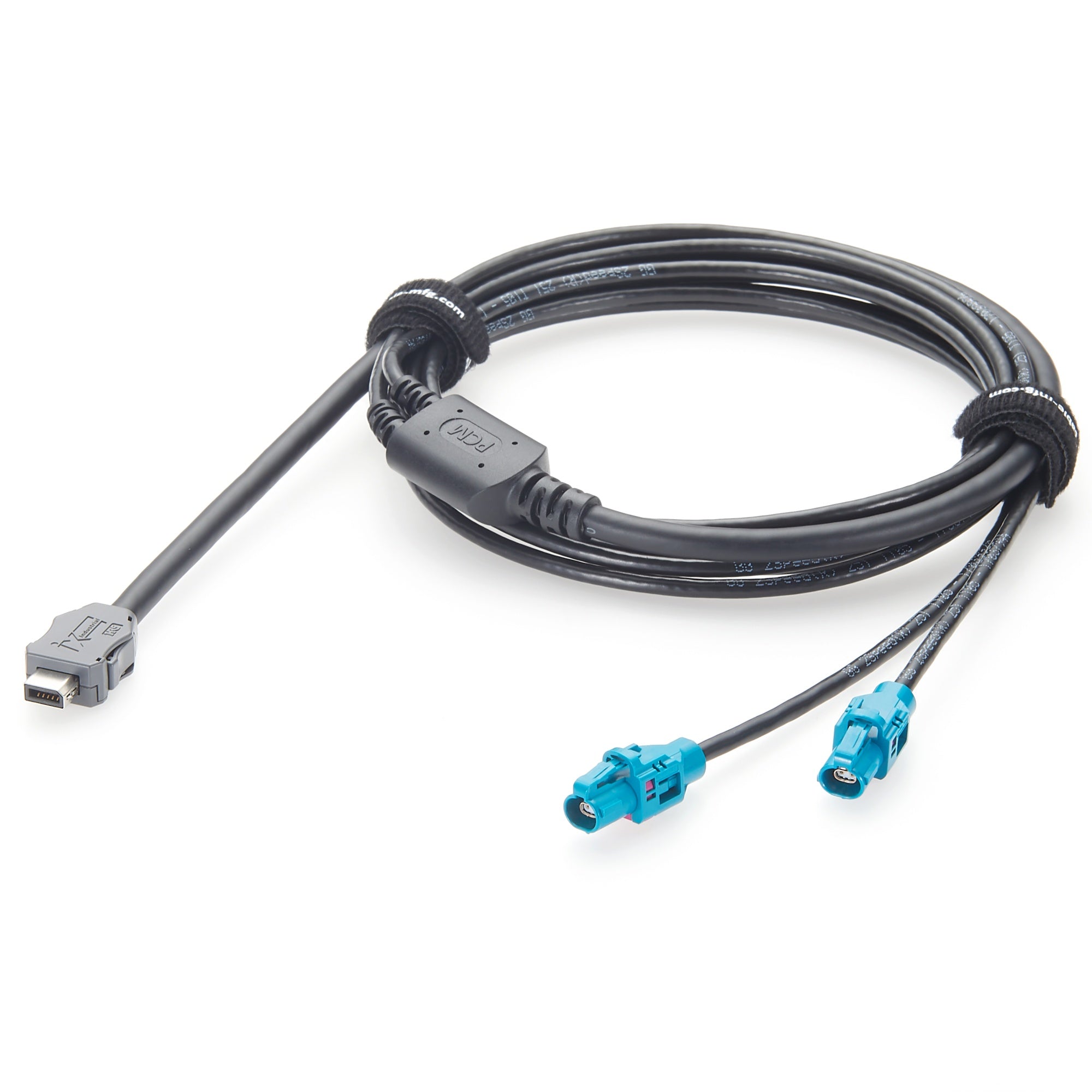

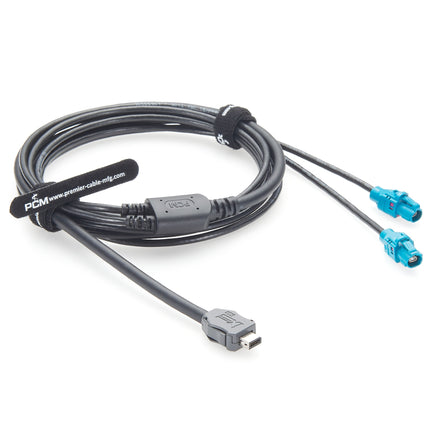

The IX to Dual H-MTD Automotive Ethernet Cable from Premier Cable is designed for 100BASE-T1 and 1000BASE-T1 Ethernet network applications, splitting two Ethernet channels into two separate cables through an integrated splitter box. Featuring a Hirose ix industrial plug connector IX40G-A-10S-CV (7.0) on one side and two rosenberger H-MTD automotive Ethernet jack connectors (E6K10A-1CAZ5-Z) on the other, this cable assembly enables high-speed data transmission simultaneously between multiple devices, such as ADAS cameras, radar sensors, domain controllers, and infotainment modules.

Notably, the shields of CHA and CHB are connected to each other, yet remain electrically isolated from the network interface shield via capacitors. This design prevents direct current flow and minimizes low-frequency interference, ensuring reliable signal integrity.

Why Choose Us

• An original Hirose IX industrial Ethernet connector IX40G-A-10S-CV (7.0) on the input side.
• Two original Rosenberger H-MTD automotive Ethernet connectors E6K10A-1CAZ5-Z on the output side.
• IX Type-A plug connector is compatible with Harting 09451812561 and Hirose IX30G-A-10S-CV.
• Capable of simultaneous data transmission between multiple automotive Ethernet modules.
• Supports high-speed Ethernet transmission, rated up to 10 Gbps, ensuring fast and reliable data communication.
• Multiple H-MTD connector types available- including H-MTD Zjj, Zpp, and Zjp, for flexible automotive Ethernet integration.

H-MTD Zjj: 2x H-MTD, coding Z, type jack; Original Rosenberger E6K10A-1CAZ5-Z

H-MTD Zpp: 2x H-MTD, coding Z, type plug; Original Rosenberger E6S10A-1CAZ5-Z

H-MTD Zjp: 1x H-MTD, coding Z, type jack + 1x H-MTD, coding Z, type plug; Original Rosenberger E6K10A-1CAZ5-Z + E6S10A-1CAZ5-Z
