The Premier Cable IPEX to Fakra RF Cable Assembly is a high-performance 50Ω RF coaxial cable designed to link compact RF modules to automotive-grade Fakra antenna systems.

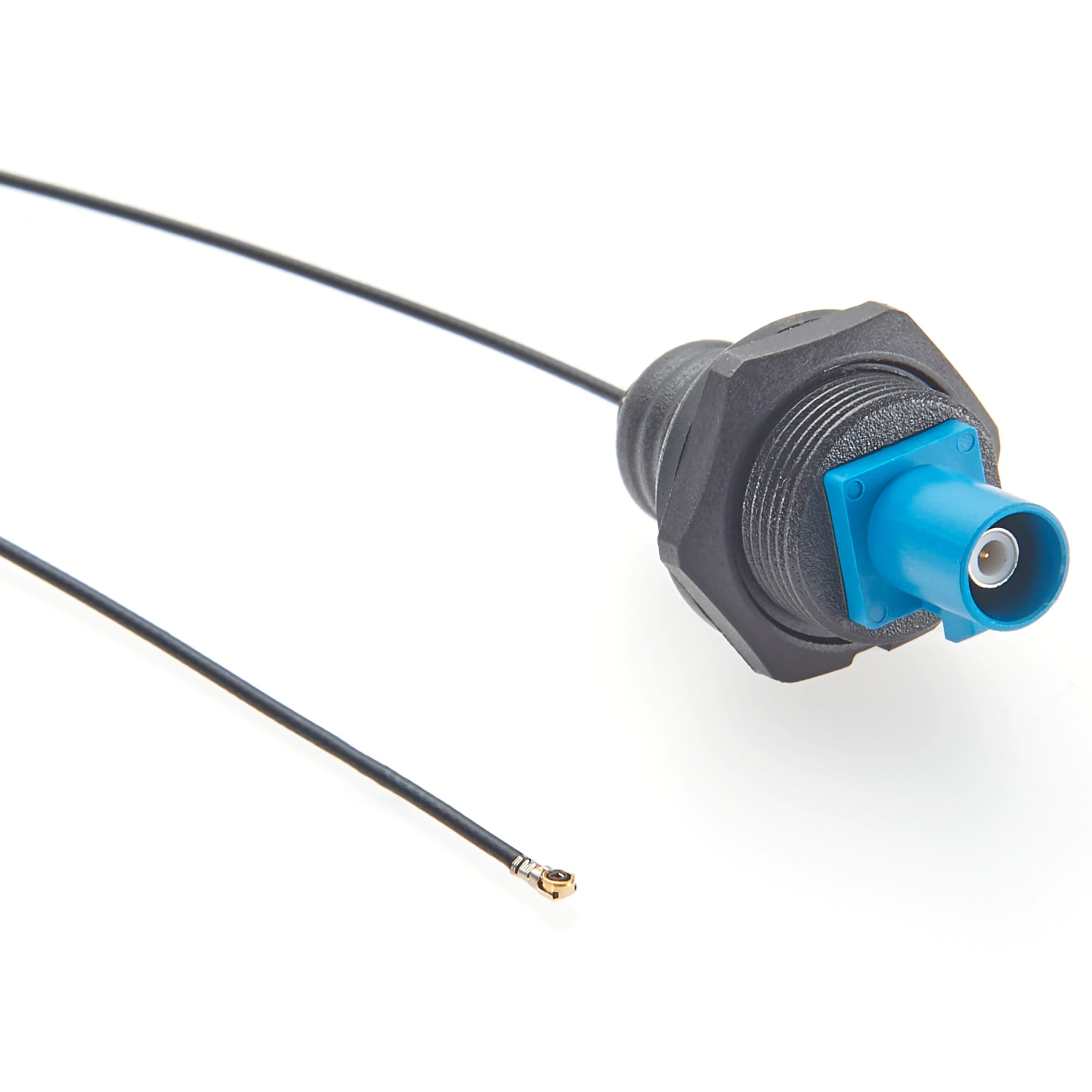

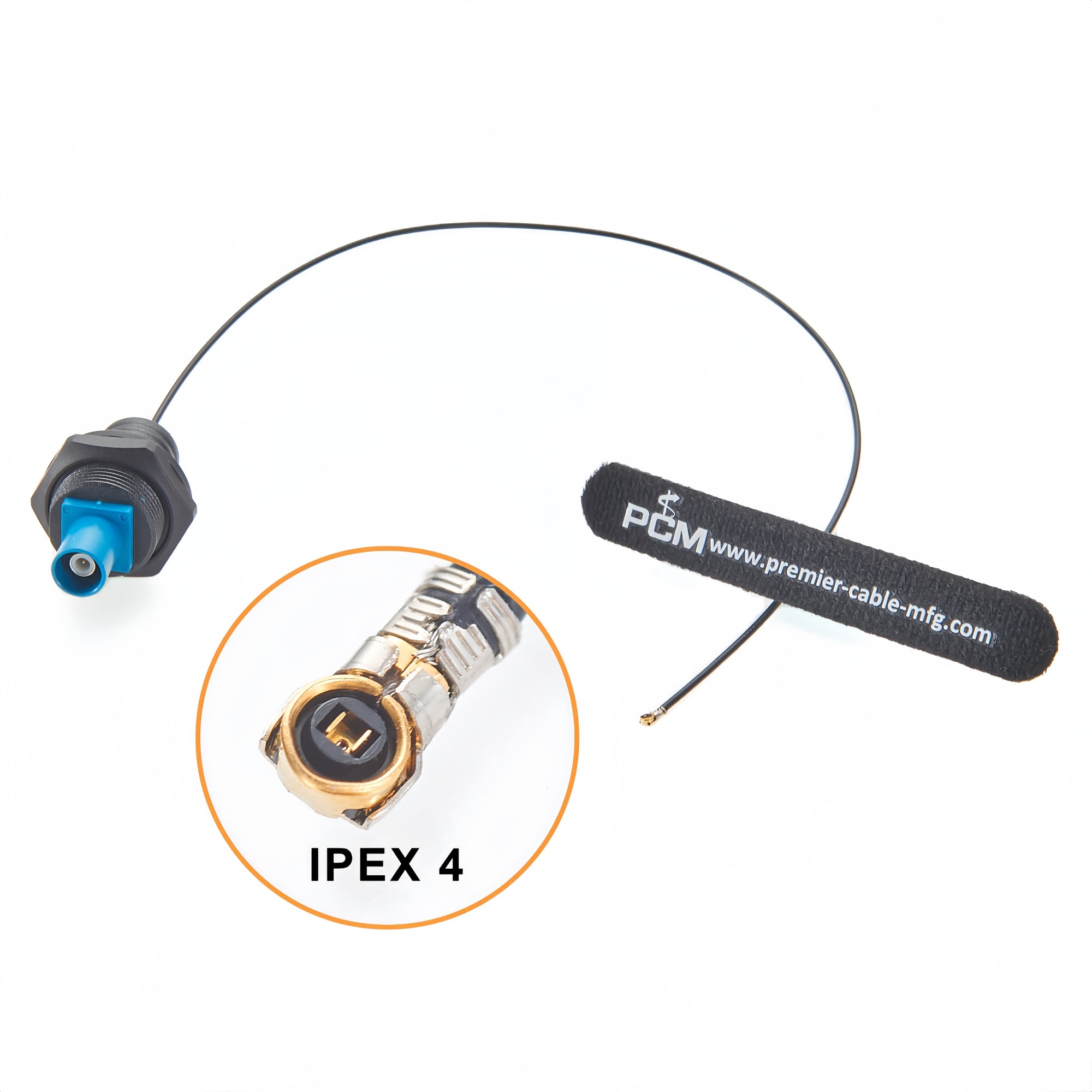

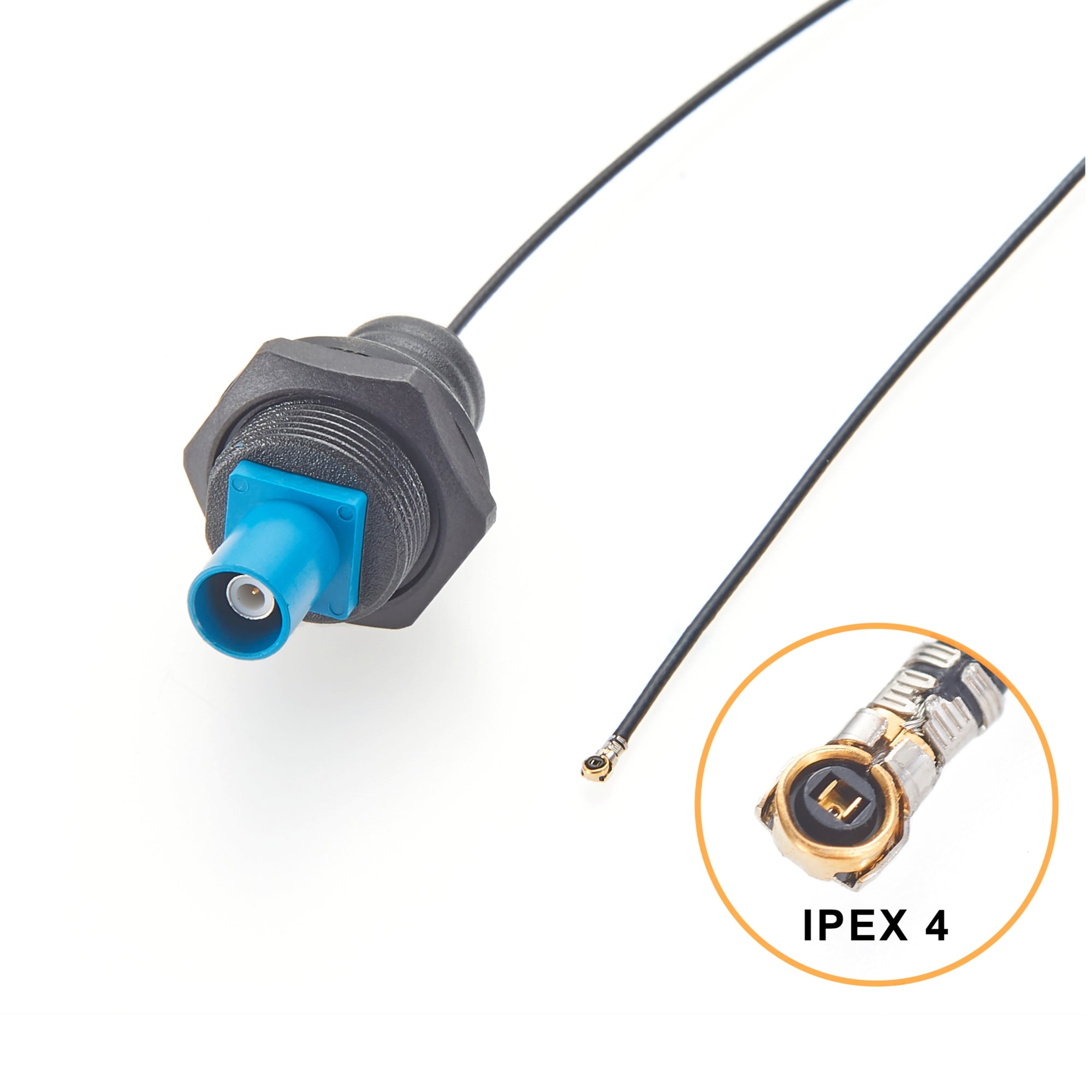

This assembly features an I-PEX Gen 4 & MHF Gen 4 micro RF connector on one end and a Fakra Z-Code male straight bulkhead panel mount connector on the other. It enables high-frequency RF signal transmission from embedded modules to robust, sealed external antenna interfaces.
Constructed with RG113 micro-coaxial cable OD 1.13 mm, the assembly ensures low insertion loss, stable impedance, and superior signal integrity, suitable for Wi-Fi, Bluetooth, LTE, 4G&5G modules, GNSS, and other wireless communication systems.

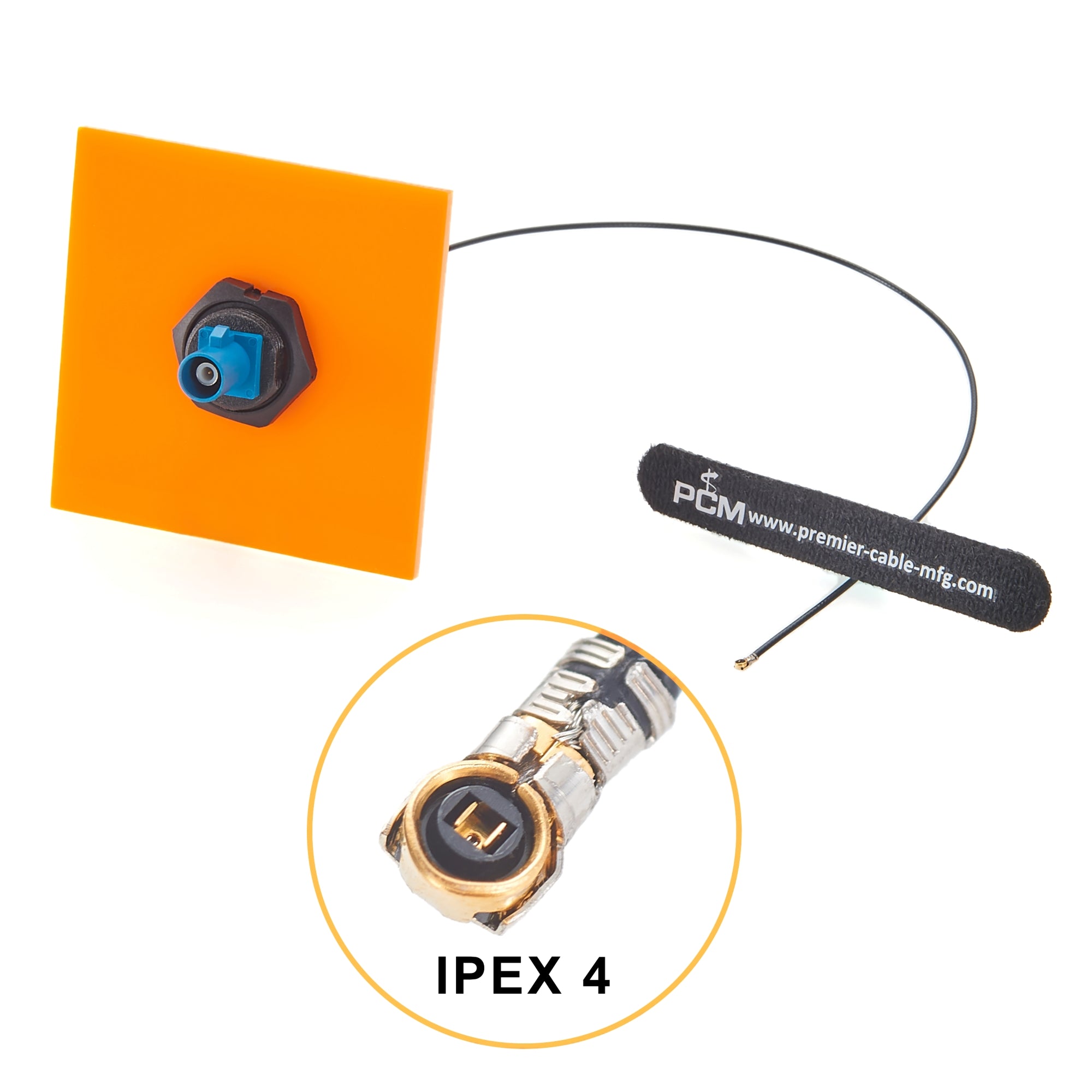

The Fakra bulkhead connector supports 16 mm front panel mounting and provides IP67-rated protection, making it ideal for automotive, industrial, and outdoor enclosures where vibration resistance and environmental sealing are critical.
I-PEX & MHF Gen 4 Usage:
- RF test points for high-speed wireless communications
- Space-constrained PCB and industrial IoT applications
- Embedded wireless modules requiring miniaturized, high-density RF connectors
- High-frequency RF connections for Wi-Fi, Bluetooth, LTE, GNSS, and 5G modules

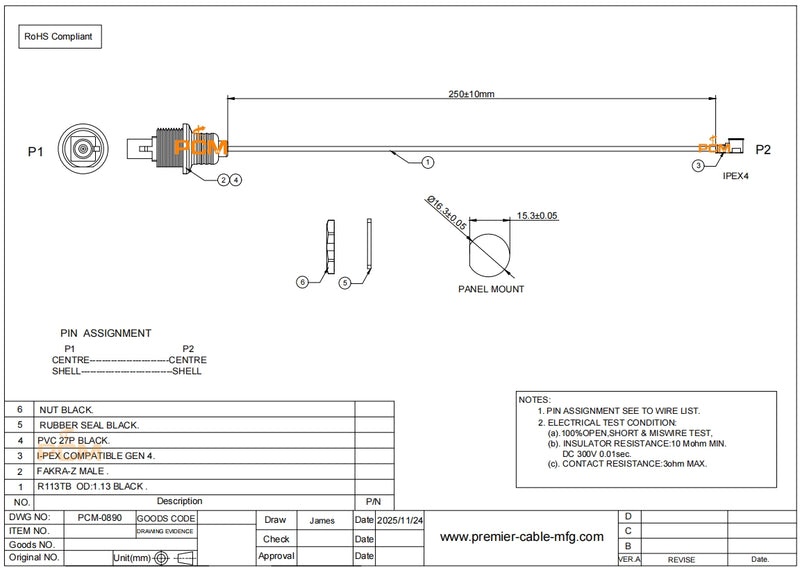

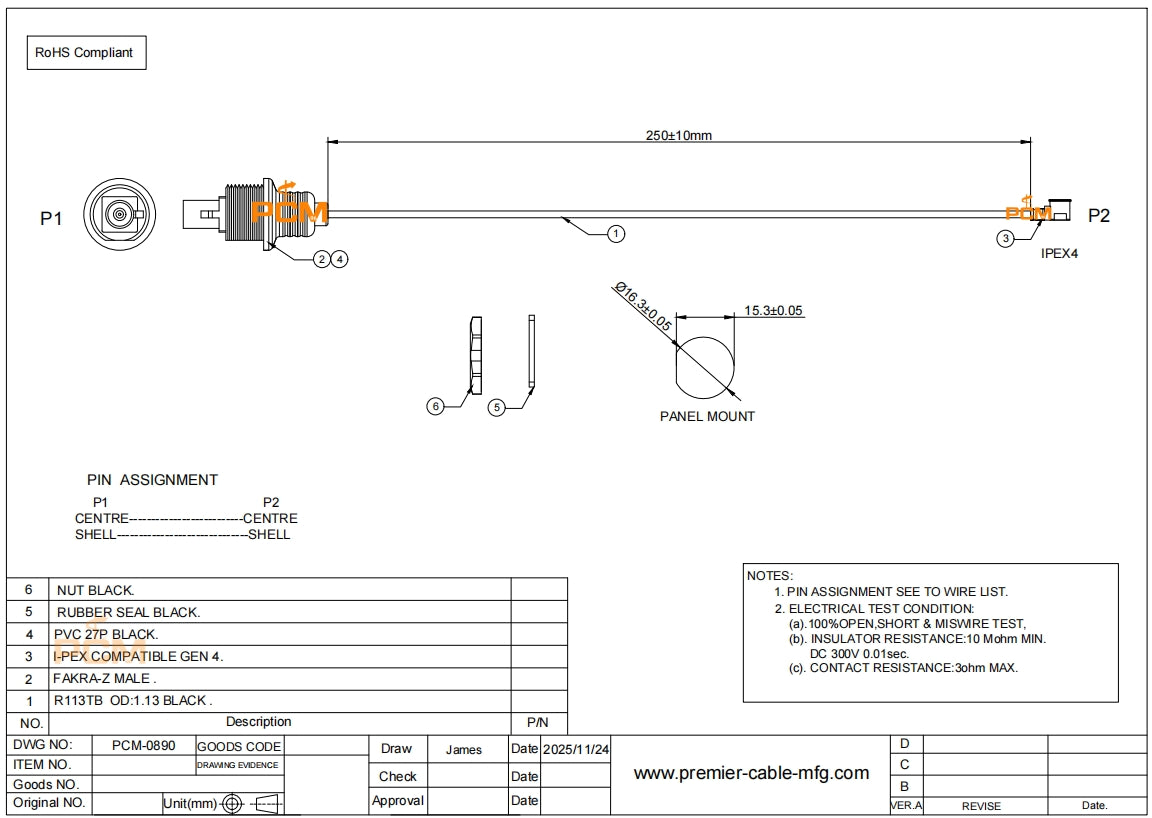

Key Specifications:
- Cable OD : 1.13 mm
- Impedance : 50 Ohm
- Panel Cutout : 16 mm
- Protection : IP67 Fakra side
- Cable Type : RG113 Micro-Coax
- I-PEX Connector : Gen 4 & MHF Gen 4
- Fakra Connector : Z Code Male, Straight, Bulkhead, Front Mount
