HSD Z Code Panel Mount Extension Cable, 20cm LVDS High-Speed Automotive Data Cable Leoni Dacar 535

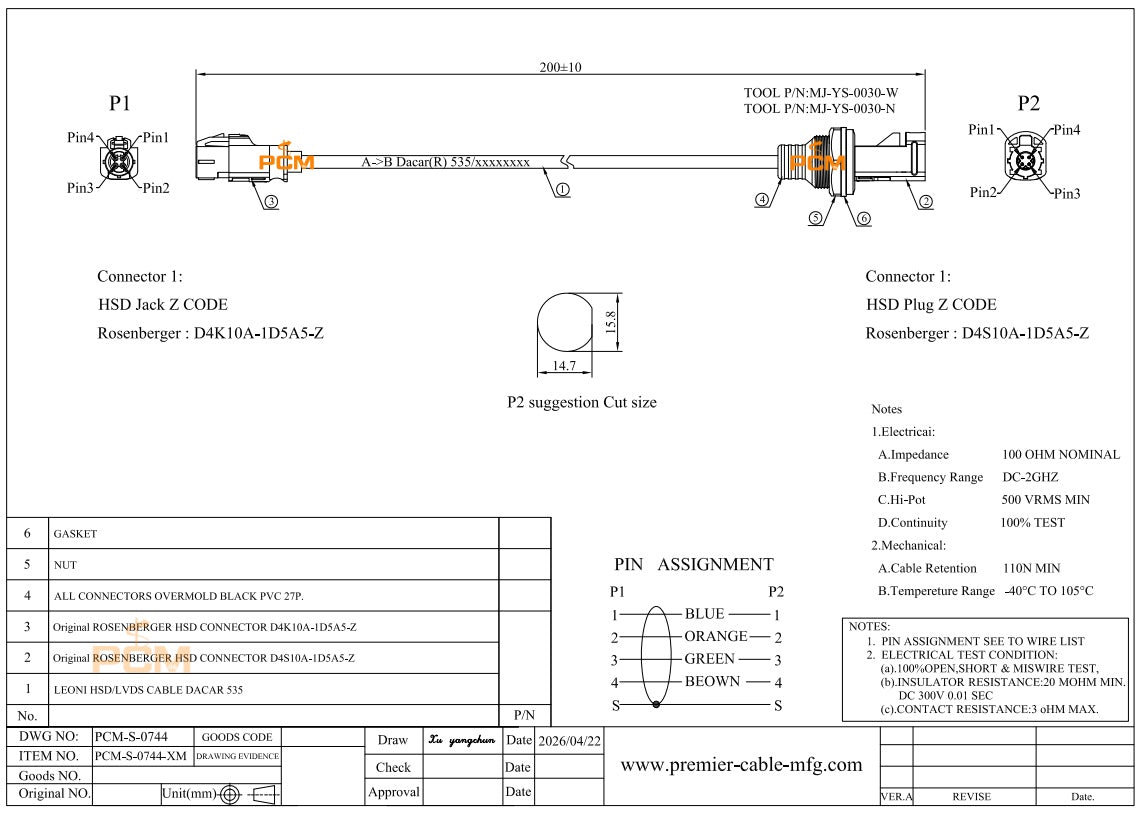

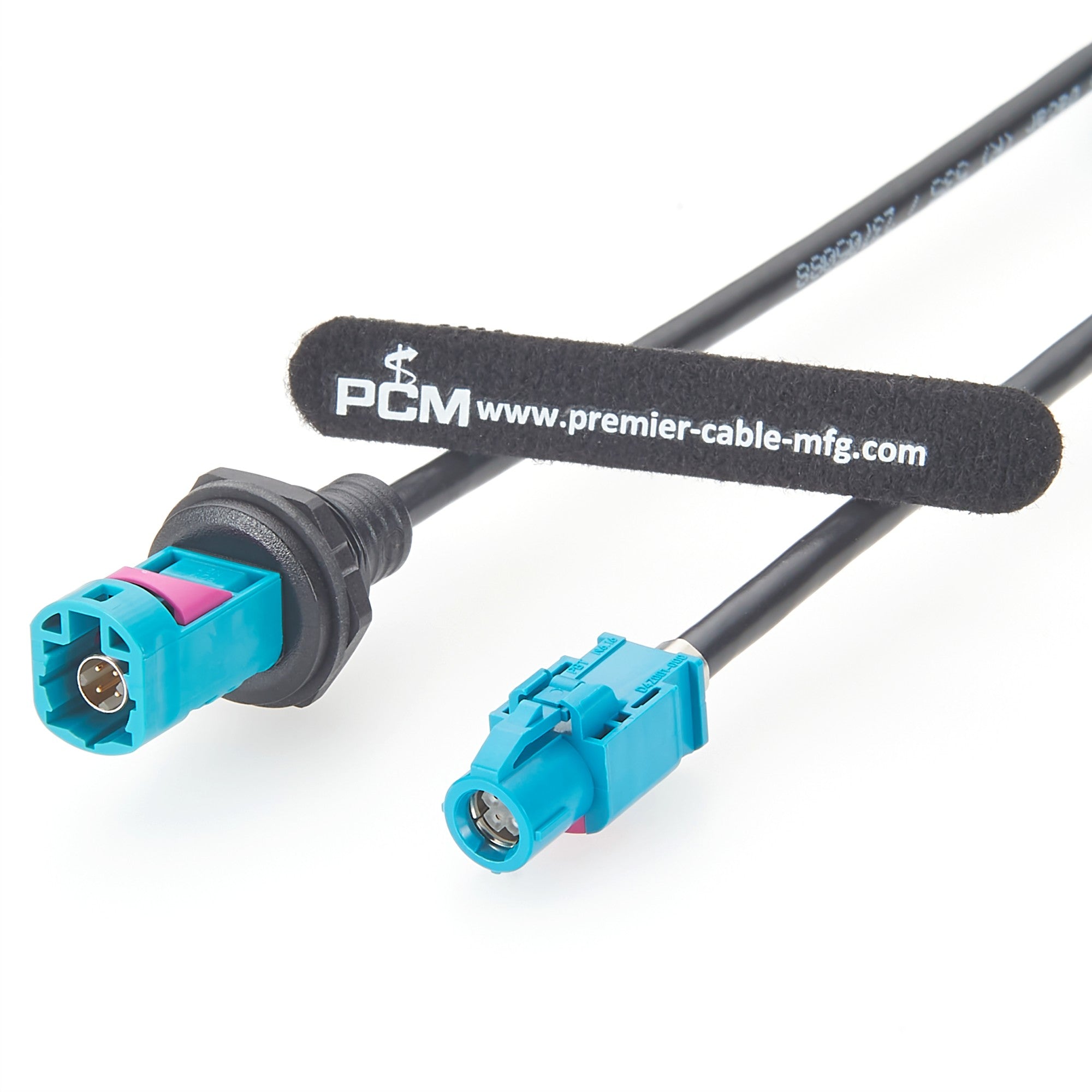

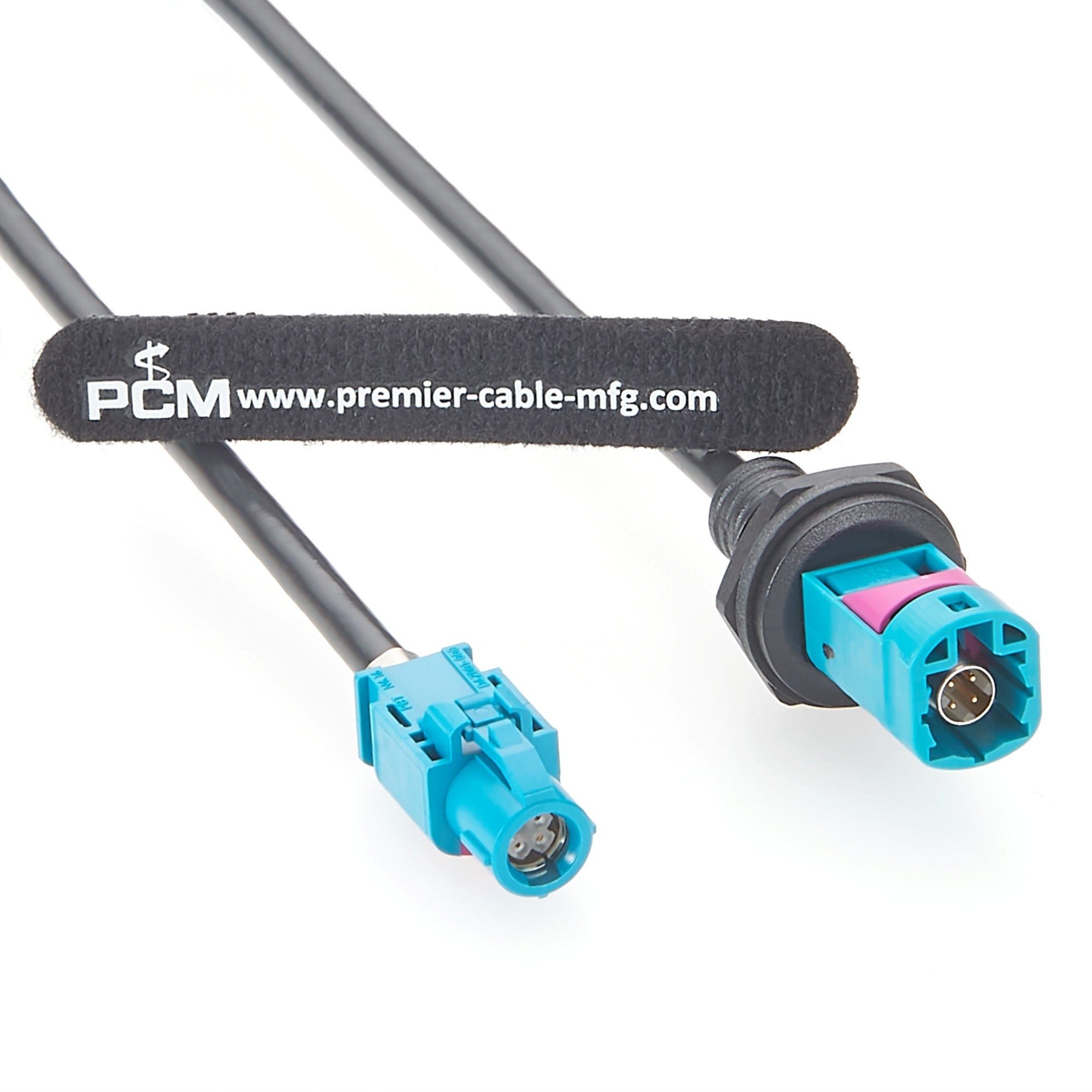

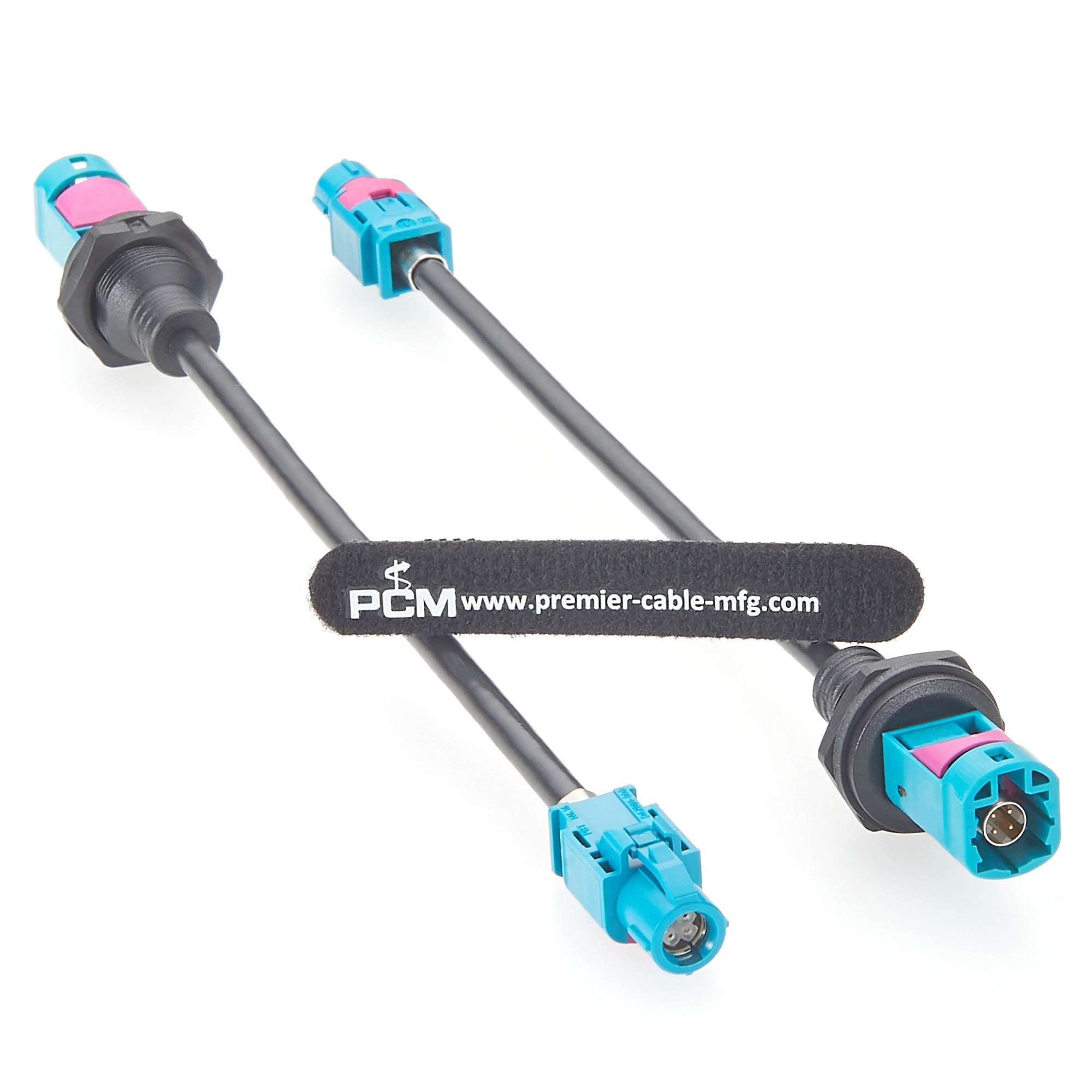

This HSD High-Speed Data Z Code Panel Mount Plug to Jack Extension Cable is engineered for high-frequency data transmission in automotive and industrial environments.
Designed using a 100-ohm shielded twisted quad structure, it supports data rates up to 6 GHz and 8 Gbps, ensuring stable and reliable signal integrity for mission-critical systems.

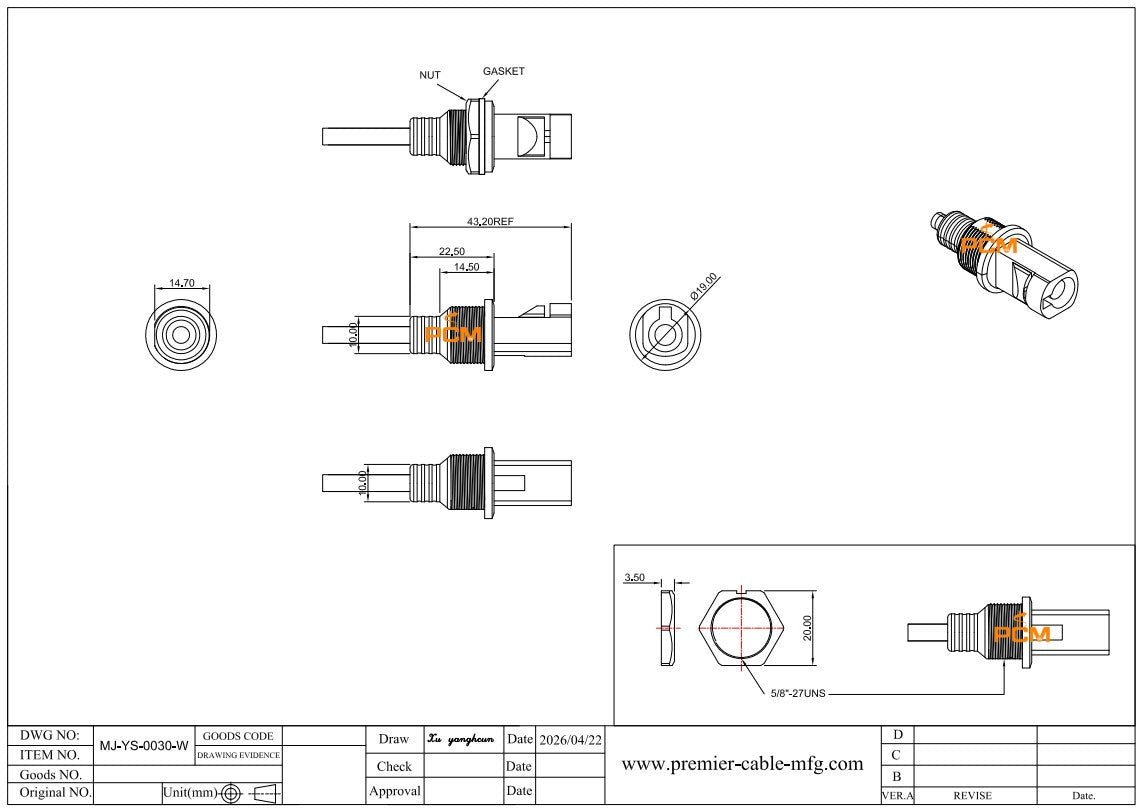

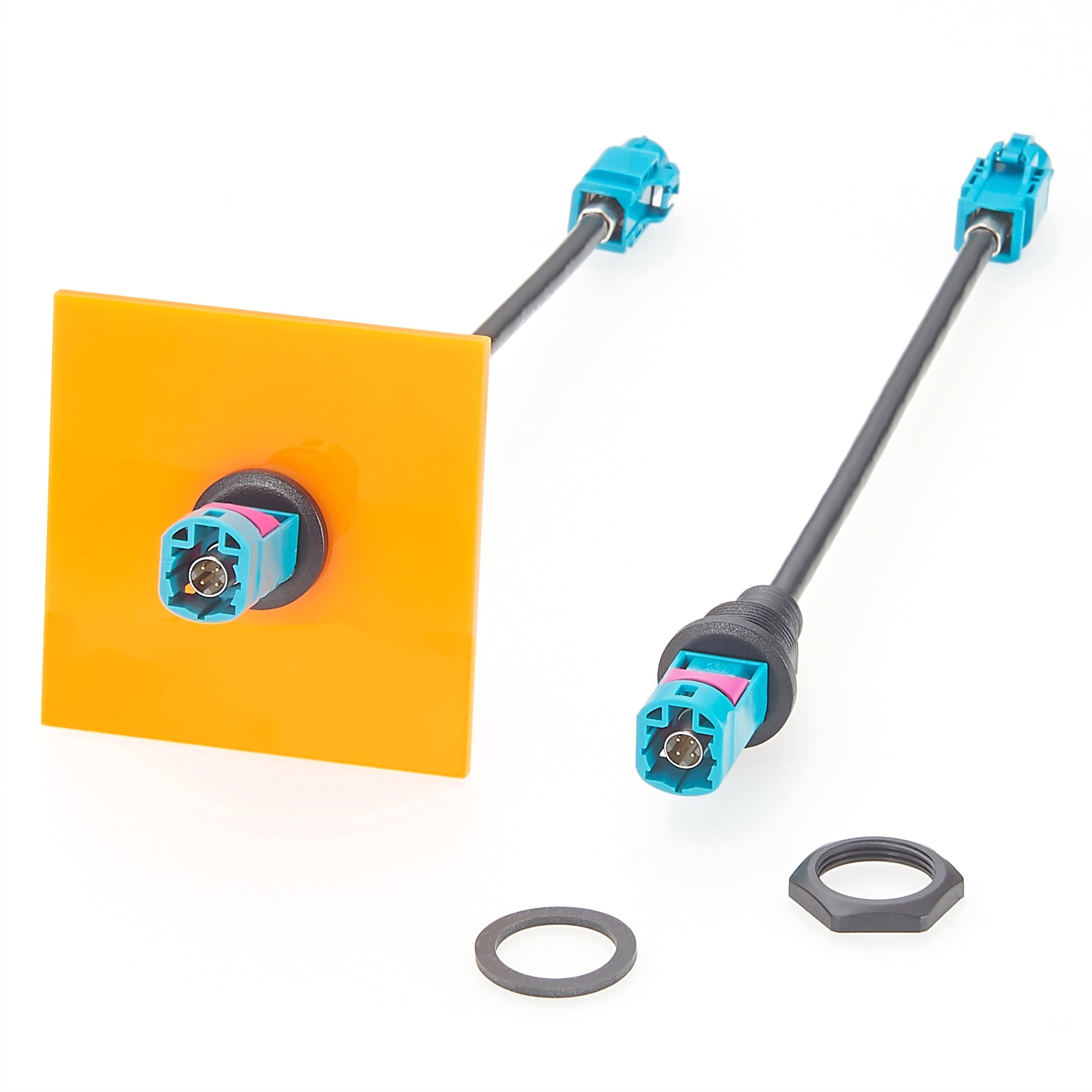

The assembly features a panel mount HSD plug Z Code on the front side, enabling secure installation on enclosures, cabinets, or control panels with a standard 16mm cutout, while the rear-end HSD jack connects directly to internal PCB-mounted male headers. This design effectively extends internal board-level interfaces to an accessible external panel, solving the limitation of non-panel-mountable HSD connectors.
Built with Leoni Dacar 535 LVDS cable, the product provides excellent EMI shielding performance, mechanical durability, and consistent impedance control, making it ideal for high-speed differential signal transmission.
Key Features
- Excellent EMI shielding performance
- Z Code keyed interface to prevent mismating
- High-speed data transmission up to 8 Gbps / 6 GHz
- Panel mount design with 16mm cutout for easy integration
- 100Ω shielded twisted quad structure for superior signal integrity
Applications
- LVDS video transmission
- Automotive camera system
- In-vehicle infotainment systems
- Automotive Ethernet & USB interfaces
- Industrial control cabinets and enclosures
- High-speed data extension from PCB to panel interface
