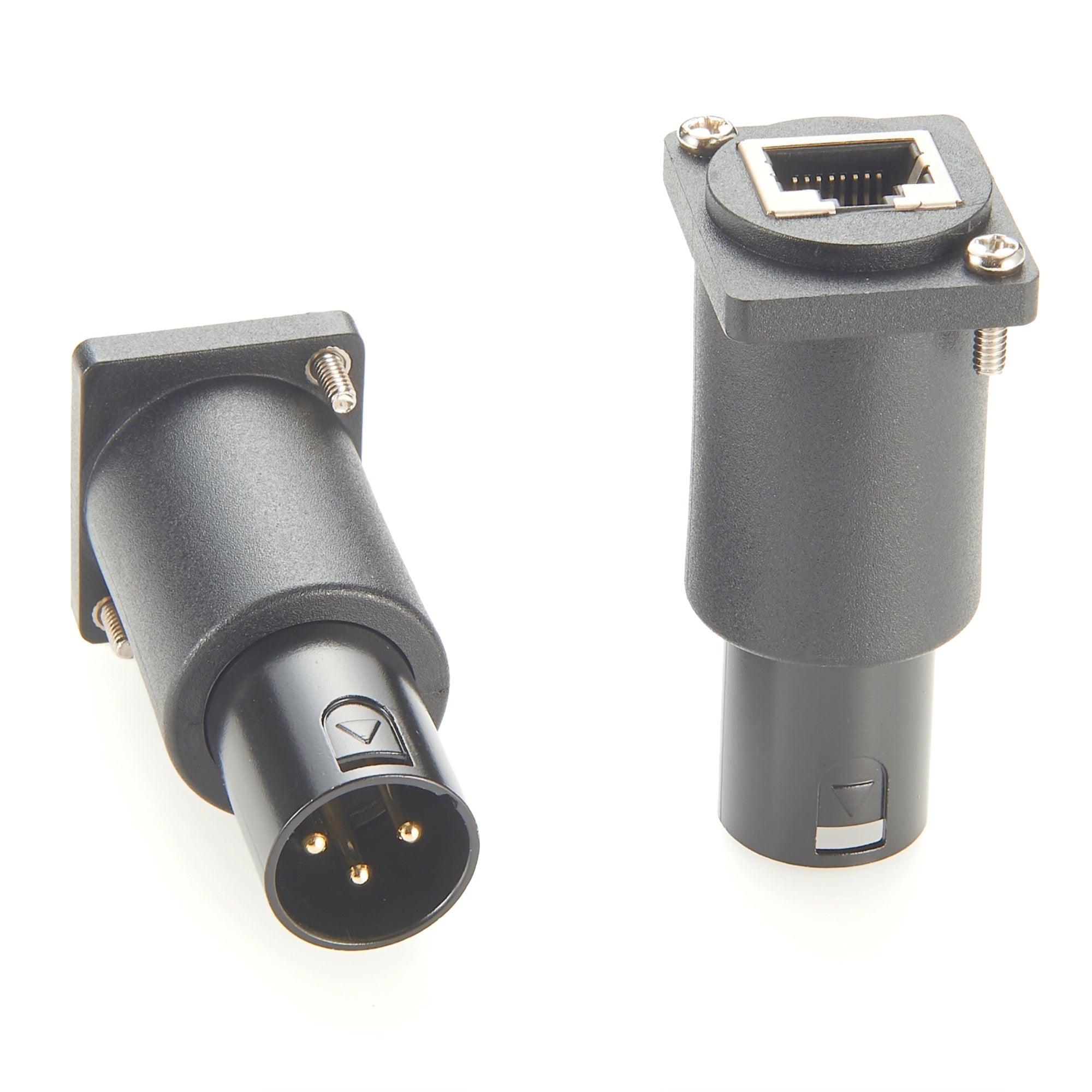

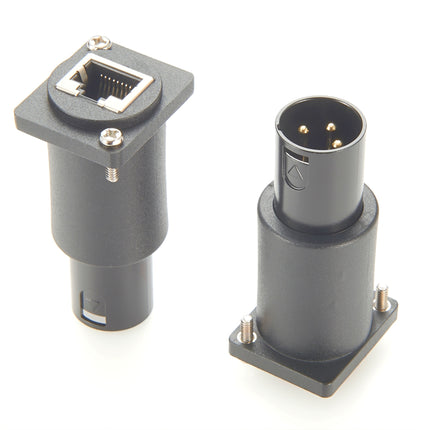

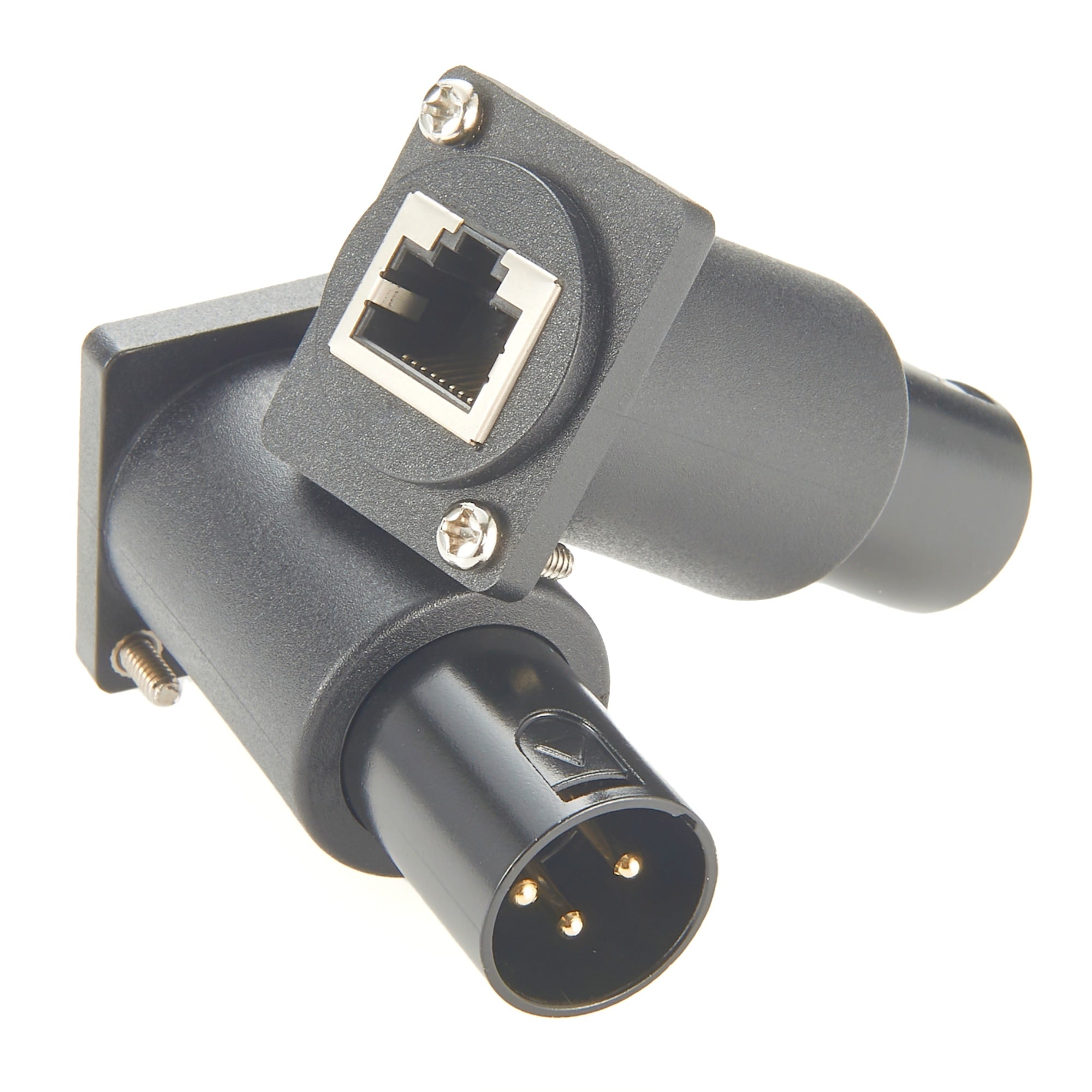

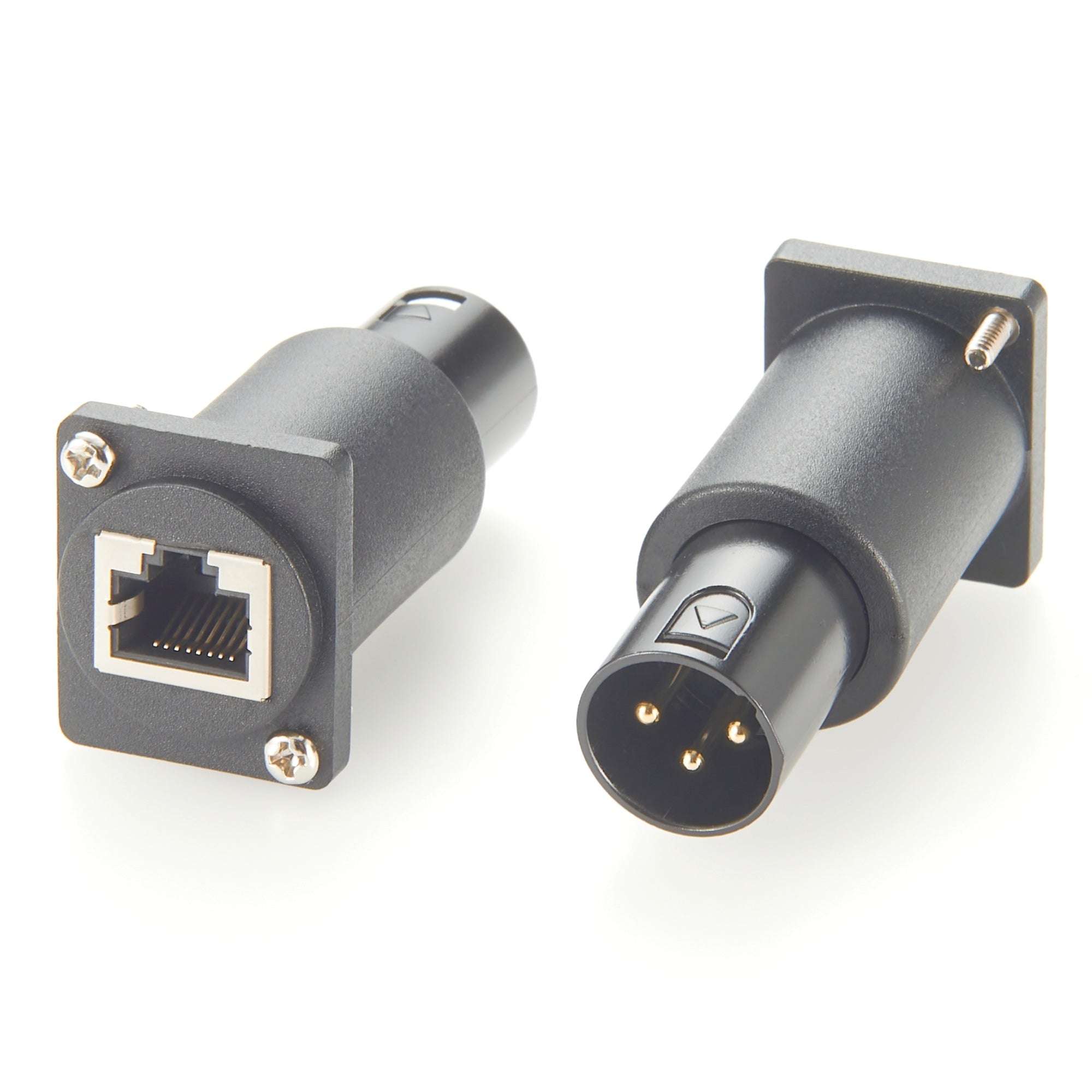

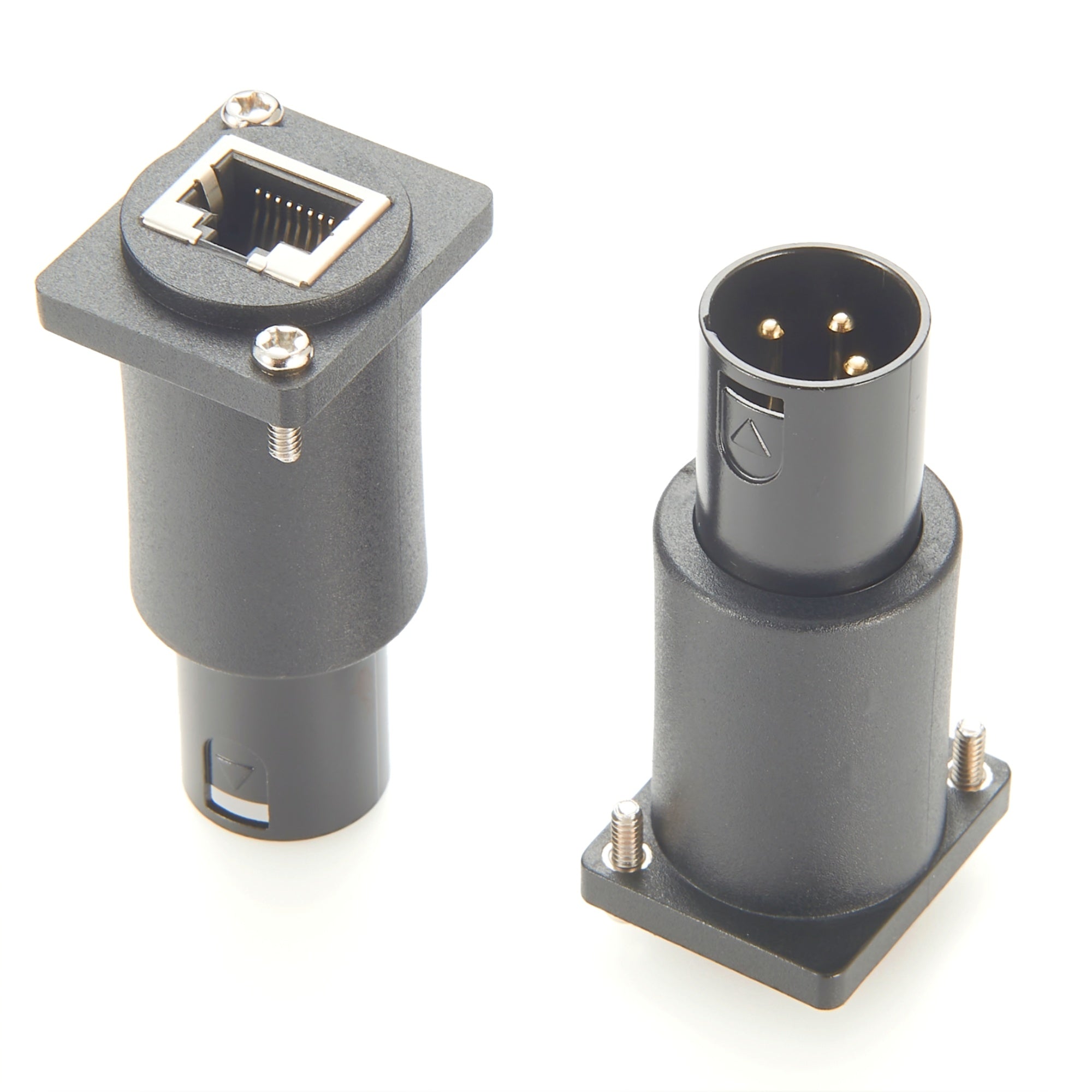

DMX512 3 Pin XLR Male to RJ45 Female D-Type Panel Mount Adapter

DMX512 3 Pin XLR Male to RJ45 Female D-Type Panel Mount Adapter

Product form

$11.00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay

    D-Type Panel Mount DMX Lighting Adapter, 3 pin XLR Male to RJ45 Female | Premier Cable Part No.: PCM-S-0622 | CAT5E Shielded | 1Gbps Transmission Rate | Perfect for connecting DMX512 lighting controllers, LED dimming controllers, intelligent lighting fixtures, and other stage equipment.

    • 24/7 Customer Support
    • No MOQ & Ready to Ship
    • Fast Lead Time: Less than 3 days!
    • Global Shipping: Anywhere, anytime!
    • Customizable Lengths & Bulk Orders Available
    • Note: The prices are for small-scale orders. For bulk quantities or customized specifications, please feel free to contact me at sales06@premier-cable.net or via the online chat for a tailored quotation.
    Description

    ★ Premier Cable PCM-S-0622 is a high-quality XLR 3 Pin Male to RJ45 Female Panel Mount Adapter designed for DMX512 stage lighting systems.

    ★ It enables interface conversion from a 3-pin XLR DMX512 connector to an RJ45, allowing reliable lighting control signal transmission over standard Cat5 or Cat5e Ethernet cables.

    ★ Equipped with a 3-pin XLR male connector compliant with DMX512 standards on one side, and an RJ45 female connector one the other, supporting Cat5e Ethernet cables for up to 1 Gbps transmission rate.

    ★ Featuring a D-type panel-mount design with RJ45 female on the panel side and a 3-pin XLR male on the back side for secure installation and easy connection.

    ★ Adopting shielded twisted pair to reduce electromagnetic interference (EMI) and crosstalk, ensuring stable and high-quality signal transmission.

    ★ The latch-locking mechanism ensures a robust and secure connection, preventing accidental disconnections in dynamic stage environments.

    Specification

    Brand Name

    Premier Cable

    Screw

    #4-40UNC; 5.0*12.0 mm

    Origin

    Mainland China

    Nut

    #4-40UNC; 4.5*4.0 mm

    Part No.

    PCM-S-0622

    Locking Mechanism

    Latch-Locking

    Product Name

    D-Type Panel Mount RJ45 to XLR 3 Pin Male DMX512 Lighting Adapter

    Transmission Frequency

    100MHz

    Connector 1

    		 XLR 3-Pin Male Ethernet Cable Category Cat 5e

    Connector 2

    		 RJ45 8P8C Female (Panel Side) Transmission Frequency 100MHz

    Color

    		 Black Transmission Rate Up to 1Gbps

    Shielded

    		 Yes Mounting Type Chassis / Panel Mount

    Housing Material

    		 PVC Chassis Shape D

    Contact Material

    		 Gold-Plated Wire 24AWG
    Drawing
