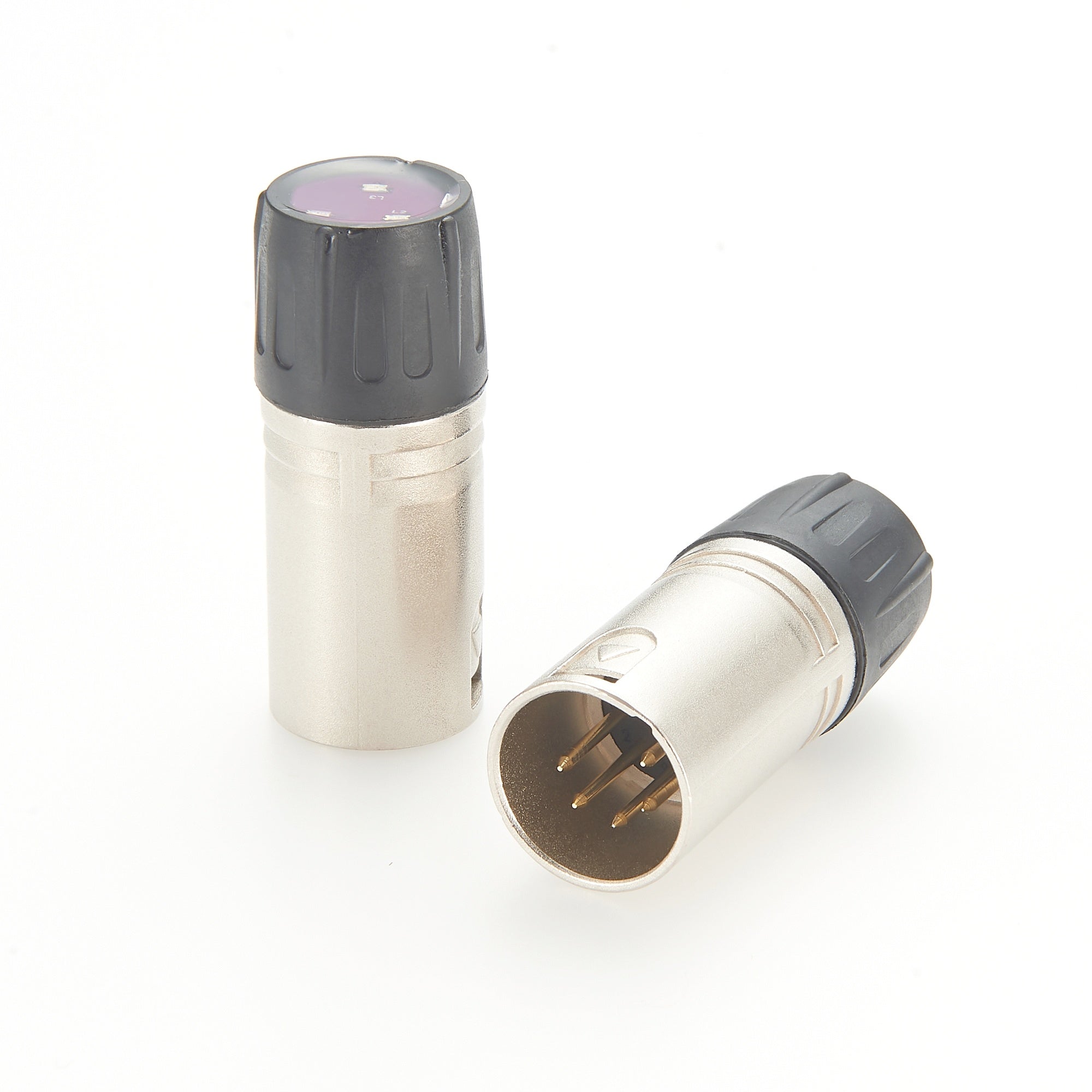

5 Pin XLR DMX512 Light Signal Tester is a professional tool for monitoring DMX512 light signals. It features three LED indicators, allowing users to quickly check signal continuity, polarity, and short circuits to ensure stable operation of DMX equipment. Compact and easy to use, it is suitable for lighting setup, testing, and maintenance in theaters, concerts, clubs, and other performance venues.

5 Pin DMX Signal Tester – Instructions for Use

1. Indicator Lights & Pin Correspondence

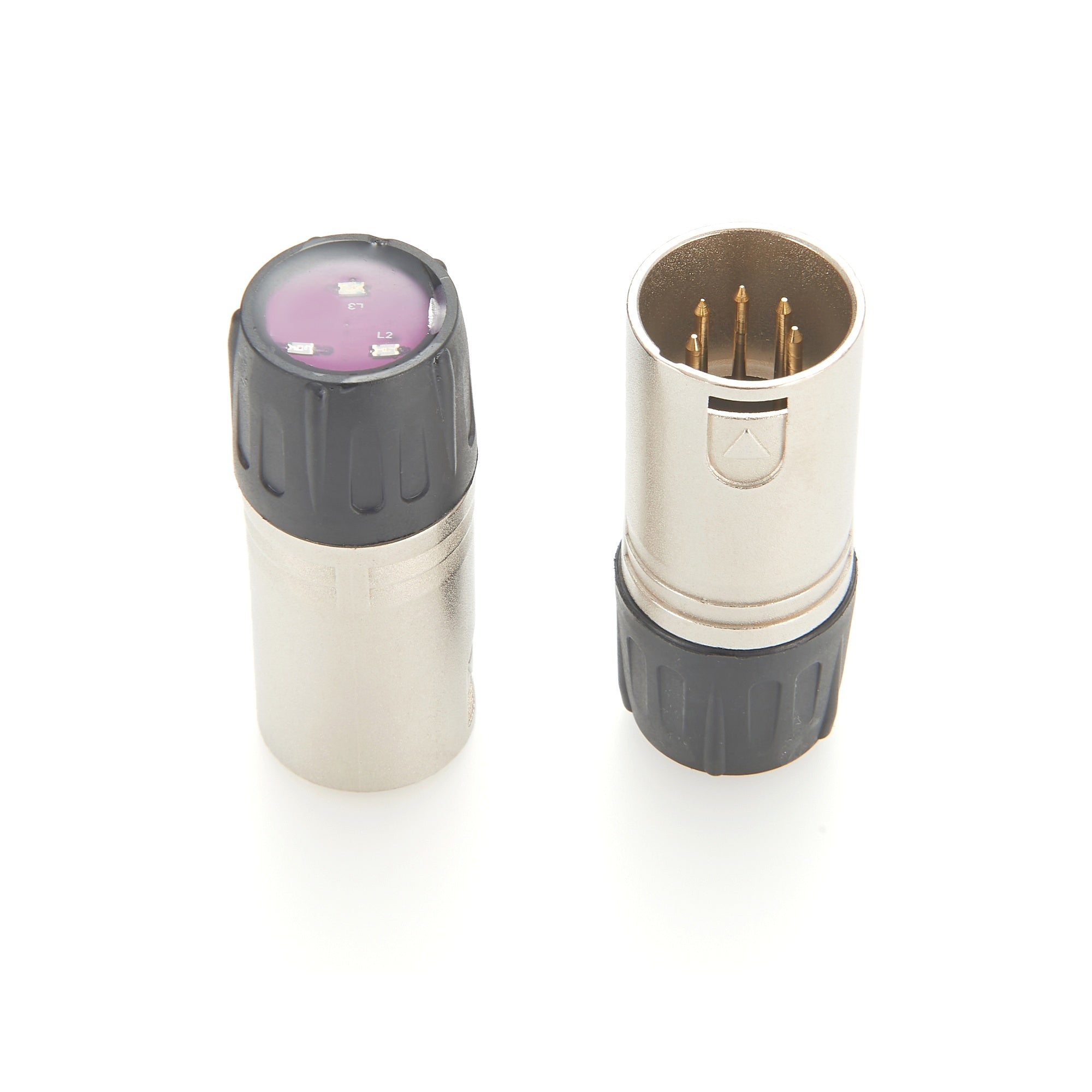

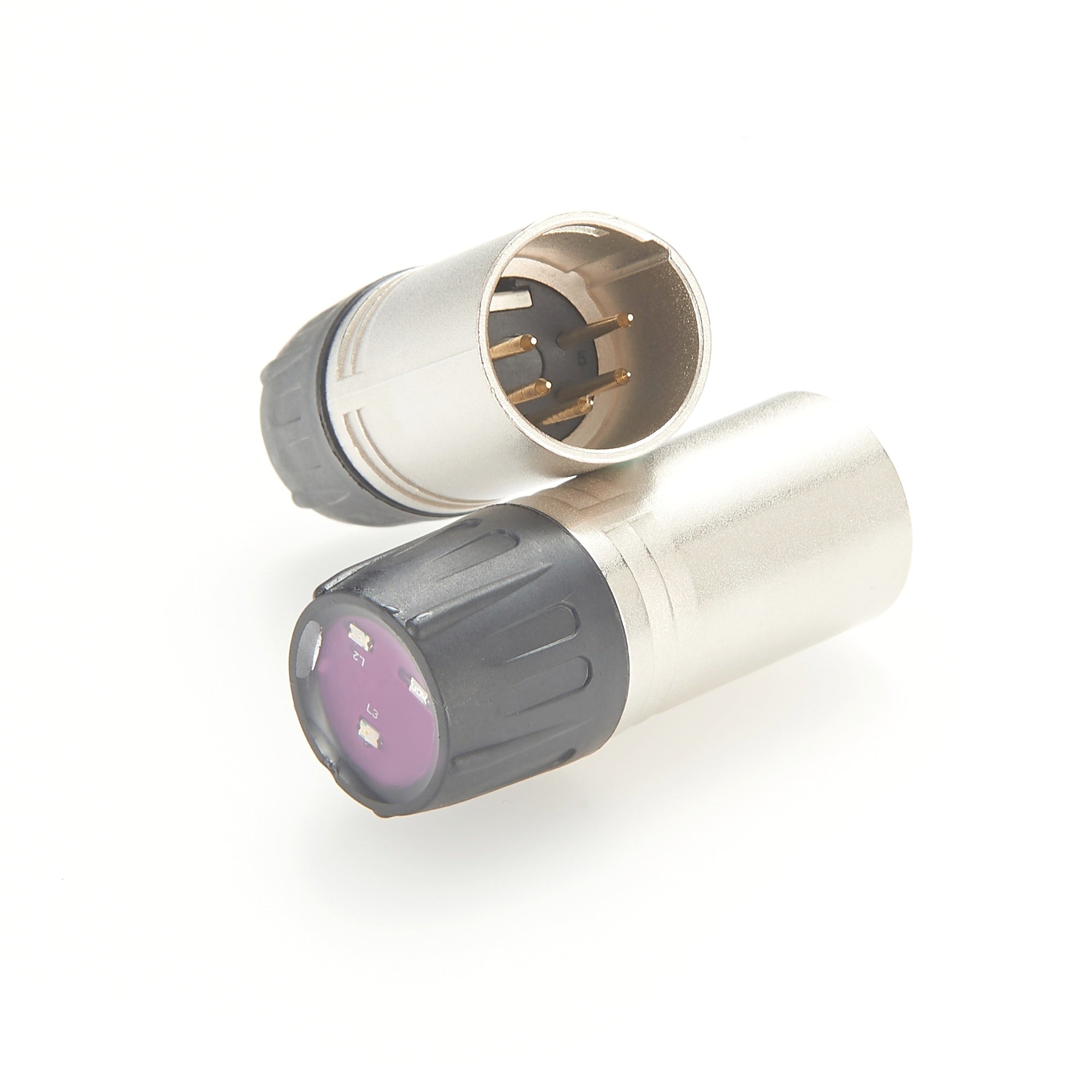

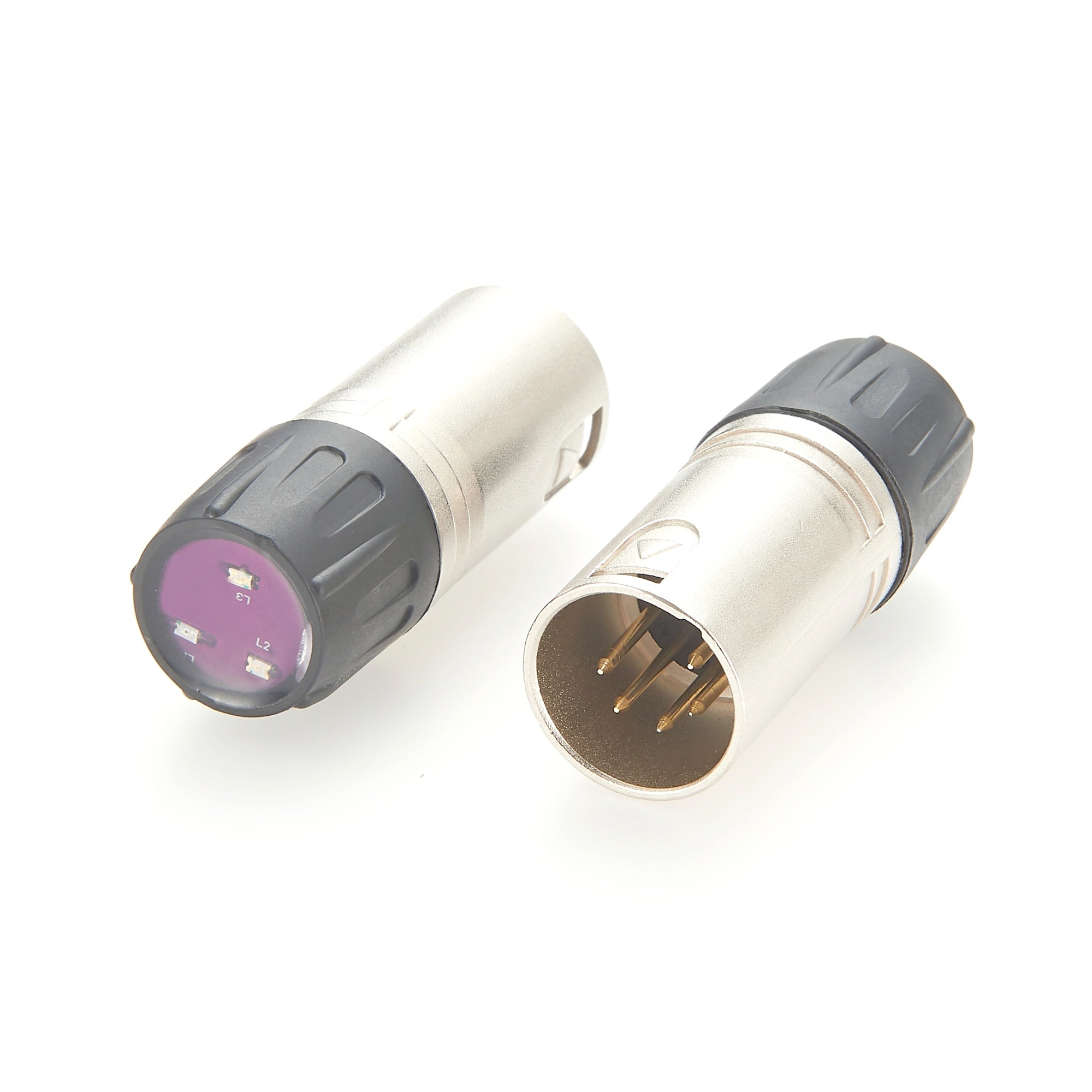

There are three LED indicators on the tester:

• L1 (Red) → Pin 1
• L2 (Green) → Pin 2
• L3 (Blue) → Pin 3

2. LED Indicator Status:

• All LEDs on → Signal output normal.
• Only L1 on → Pin 1 open-circuited or no signal.
• Only L2 on → Pin 2 open-circuited or no signal.
• Only L3 on→ Pin 3 open-circuited or no signal.
• L1 + L2 on → Pin 1-2 short-circuited.
• L1 + L3 on → Pin 1-3 short-circuited.
• L2 + L3 on → Pin 2-3 short-circuited.
• All LEDs off → More than two pins open-circuited or no signal.

3. Notes:

• Limited to DMX512 light signal use.
• Do not test on other equipment to prevent damage.
