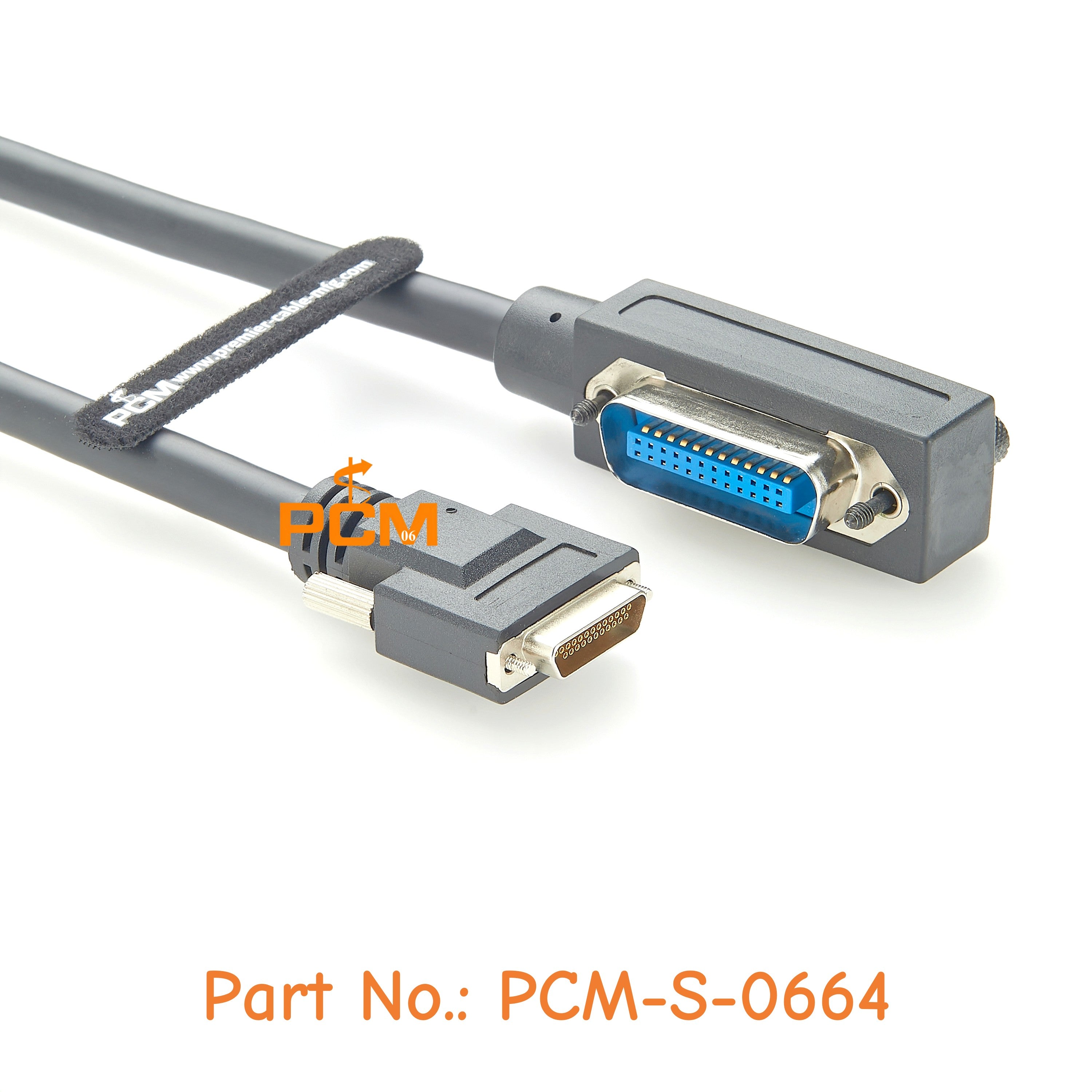

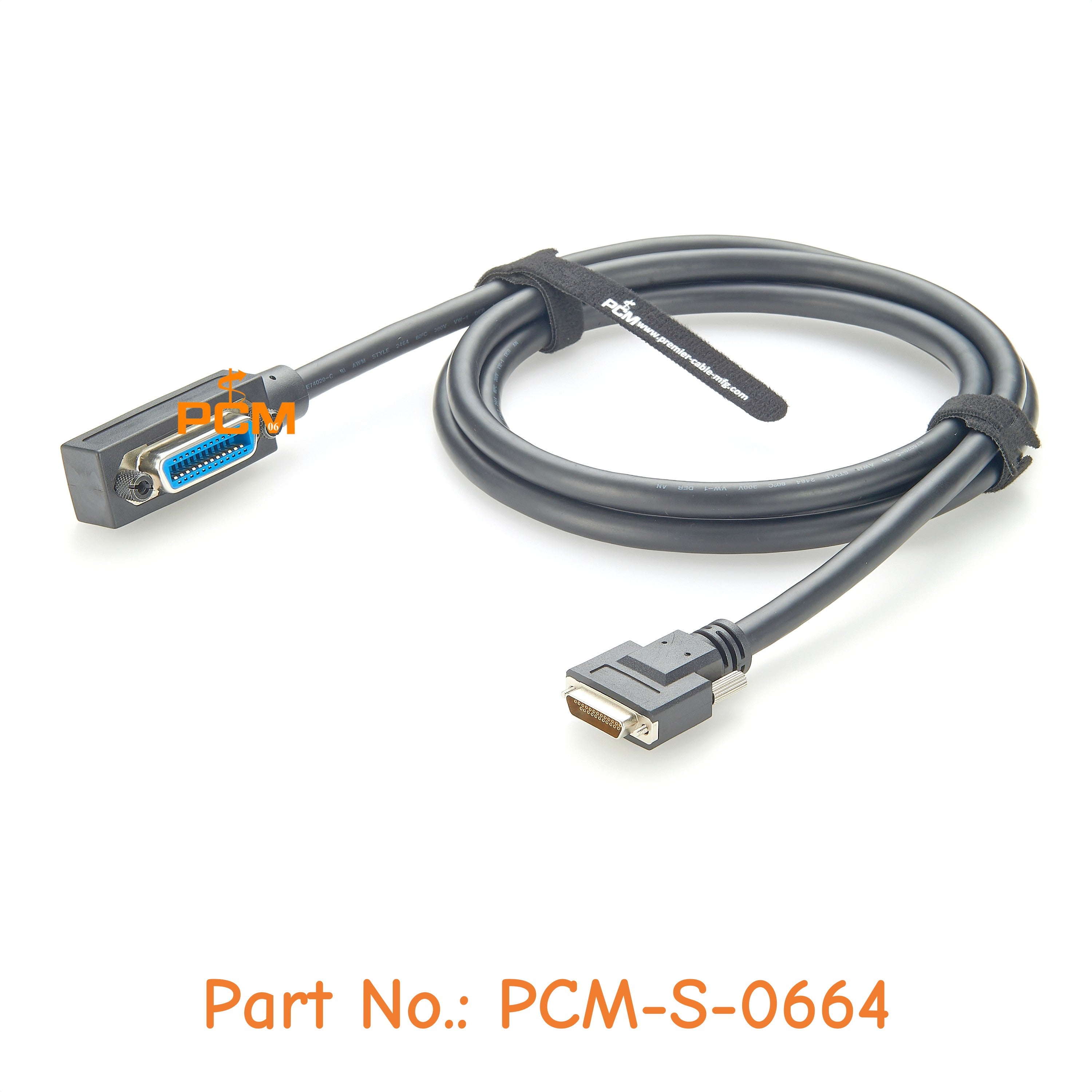

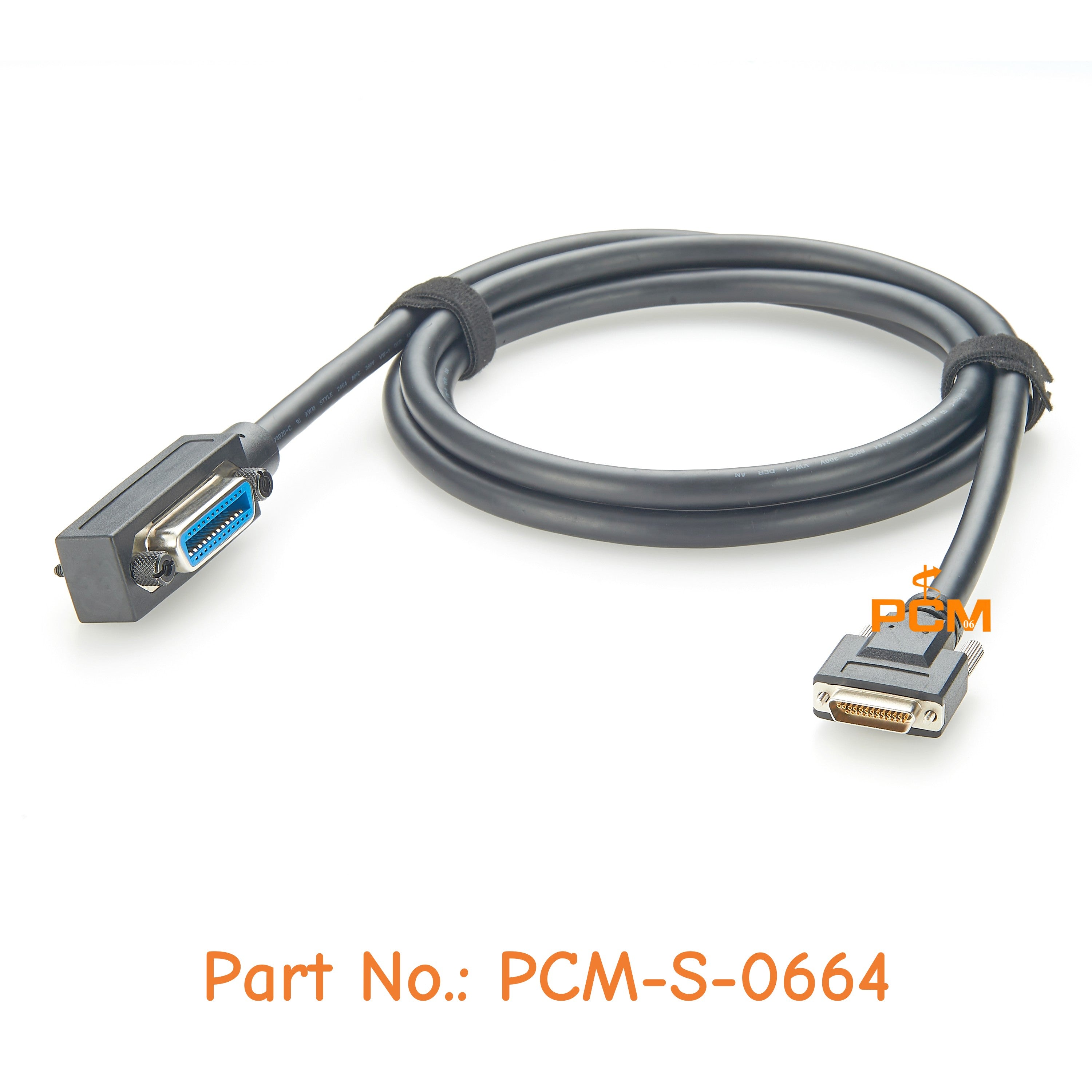

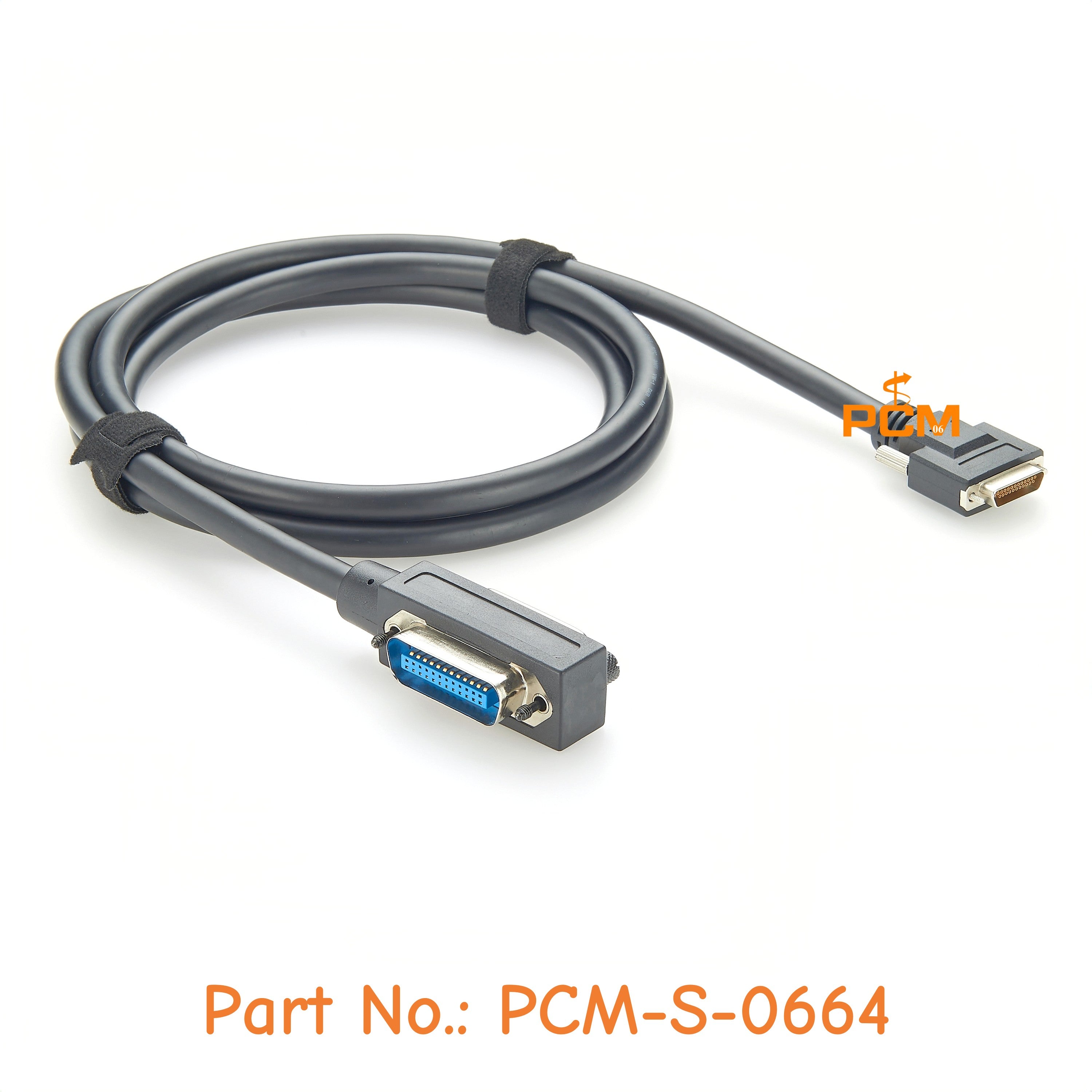

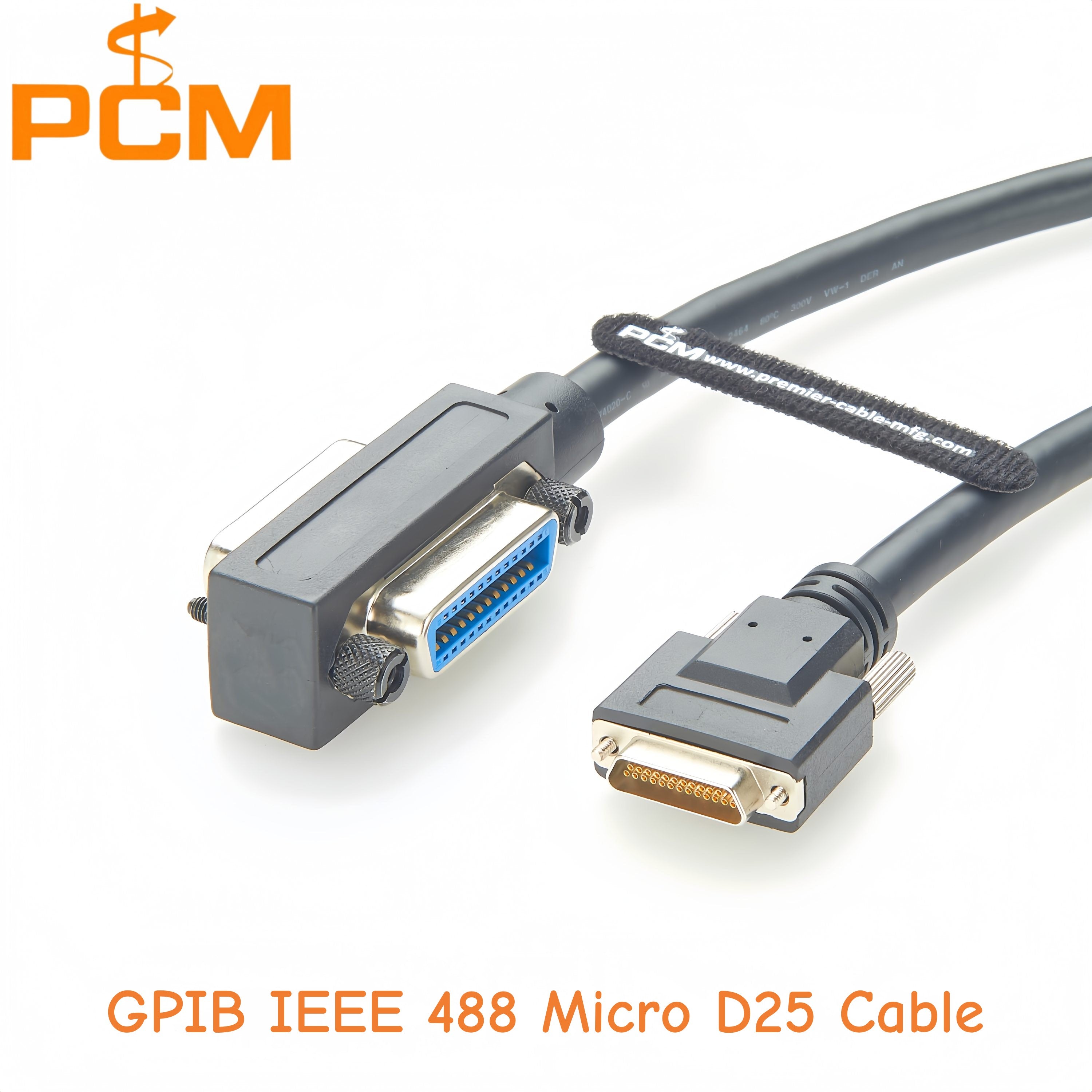

25-pin Micro-D to GPIB Cable GPIB IEEE 488 Micro D25 Cable Micro Dsub GPIB Cable Compatible Keysight PX0110A, PX0114A, Y1260A

25-pin Micro-D to GPIB Cable GPIB IEEE 488 Micro D25 Cable Micro Dsub GPIB Cable Compatible Keysight PX0110A, PX0114A, Y1260A

Product form

$75.00 Excl. VAT

    • Guaranteed secure & safe checkout.

      shop pay
    • 24/7 Customer Support
    • No MOQ & Ready to Ship
    • Fast Lead Time: Less than 3 days!
    • Global Shipping: Anywhere, anytime!
    • Customizable Lengths & Bulk Orders Available
    • Note: The prices are for small-scale orders. For bulk quantities or customized specifications, please feel free to contact me at sales06@premier-cable.net or via the online chat for a tailored quotation.
    Description

    Compact Micro DB25 connector on one end for stable and secure connection to Embedded Controllers and PXIe System Modules.

    Standard 24-pin GPIB (IEEE 488) connector for seamless integration with legacy test and measurement instruments.

    Supports IEEE 488.1/488.2 standards for efficient instrument control and data acquisition.

    Shielded design minimizes electromagnetic interference (EMI) for stable signal integrity.

    Both the Micro-D 25-pin and GPIB IEEE 488 connectors feature locking screws for secure, stable connections.

    Fully compatible with Keysight PX0110A, PX0114A, Y1260A; ADLINK Technology ACL-IEEE488-MD1; National Instruments NI 183285-01, 183285-02.

    Works with ADLINK PXIe-3985 Controllers; M9037A PXIe Embedded Controller; M9024A PXIe High Performance System Module; M9537A AXIe High Performance Embedded Controller; Keysight PZ2100A High-Density Precision SMU Mainframe and other GPIB-compatible systems.

    Specification
    Type Micro-D Cable Assembly Product Name Micro GPIB Cable for Embedded Controllers and PXIe System Modules
    Part No. PCM-S-0664 Connector A Micro DB25 Connector
    Connector B IEEE-488 CN24Pin Cable Length 2m, Or OEM
    Cable Diameter 10.0 mm Wire Gauge 28AWG
    Screw (IEEE-488) 8.15 * 33.0 mm Screw (Micro DB25) #2-56 UNC, OD: 5.0 * 37.5 mm
    Compatible with Keysight PX0110A, PX0114A, Y1260A
    ADLINK Technology ACL-IEEE488-MD1
    National Instruments NI 183285-01, 183285-02    		 Suitable for ADLINK PXIe-3985 Controllers
    M9037A PXIe Embedded Controller
    M9024A PXIe High Performance System Module
    M9537A AXIe High Performance Embedded Controller
    Keysight PZ2100A High-Density Precision SMU Mainframe
    Drawing
