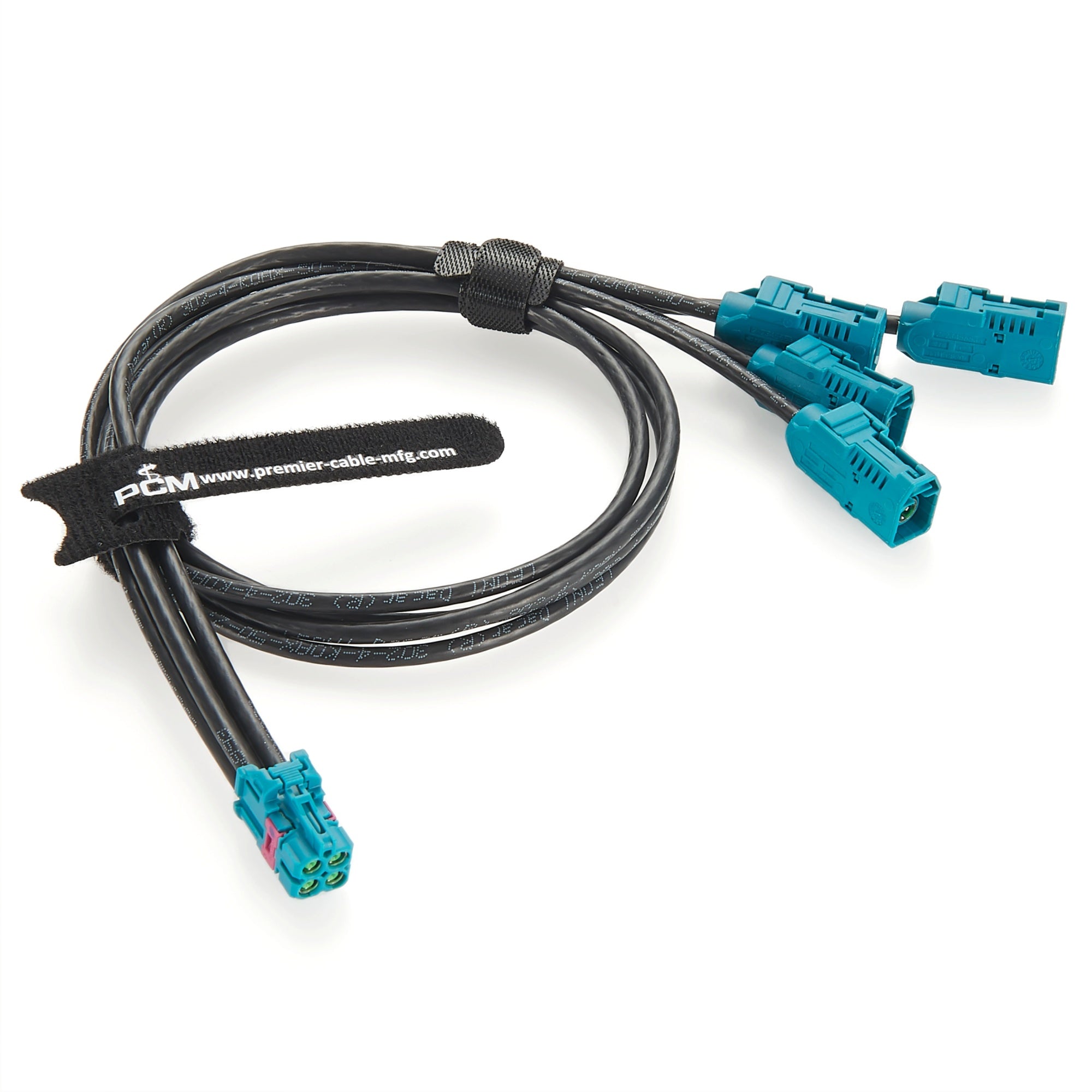

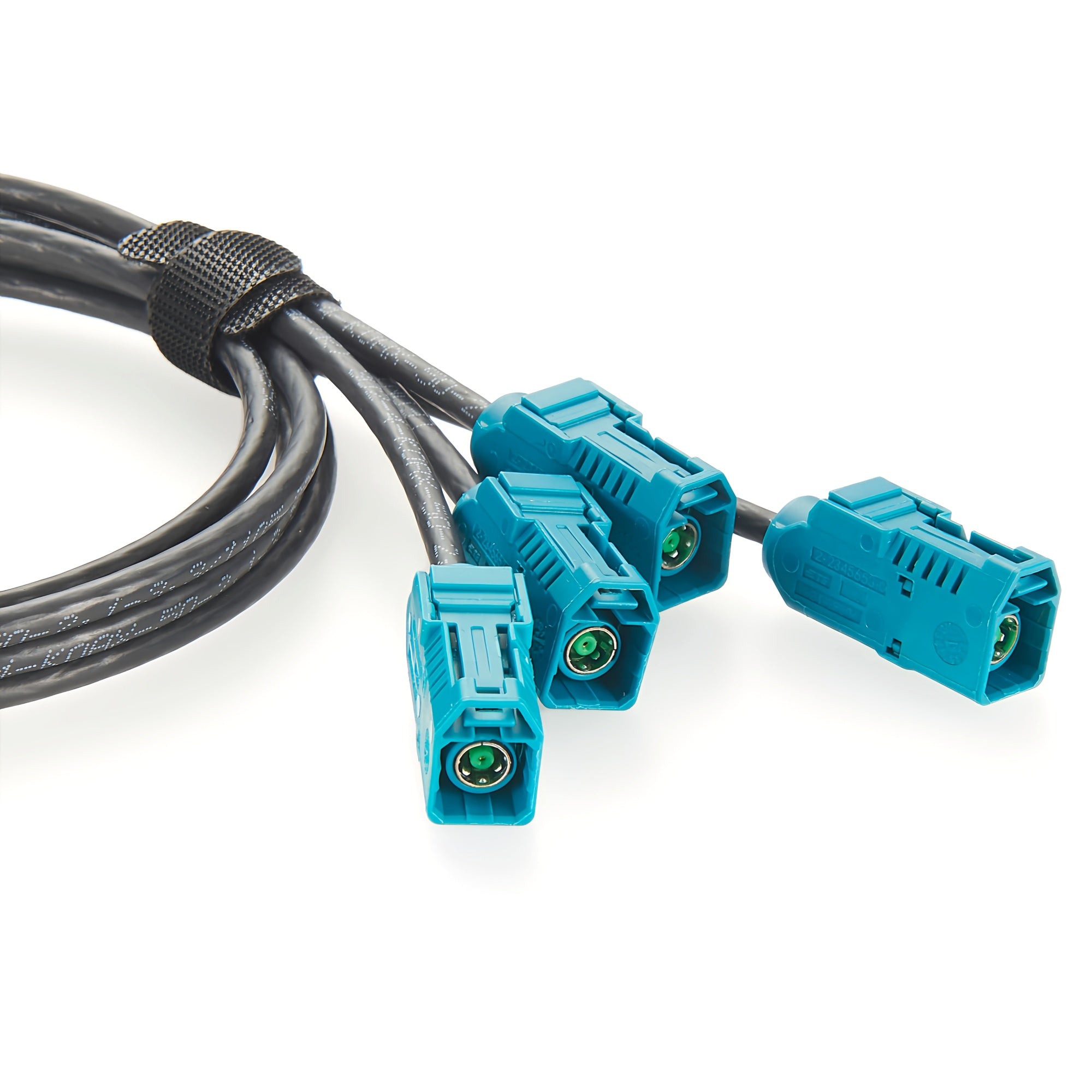

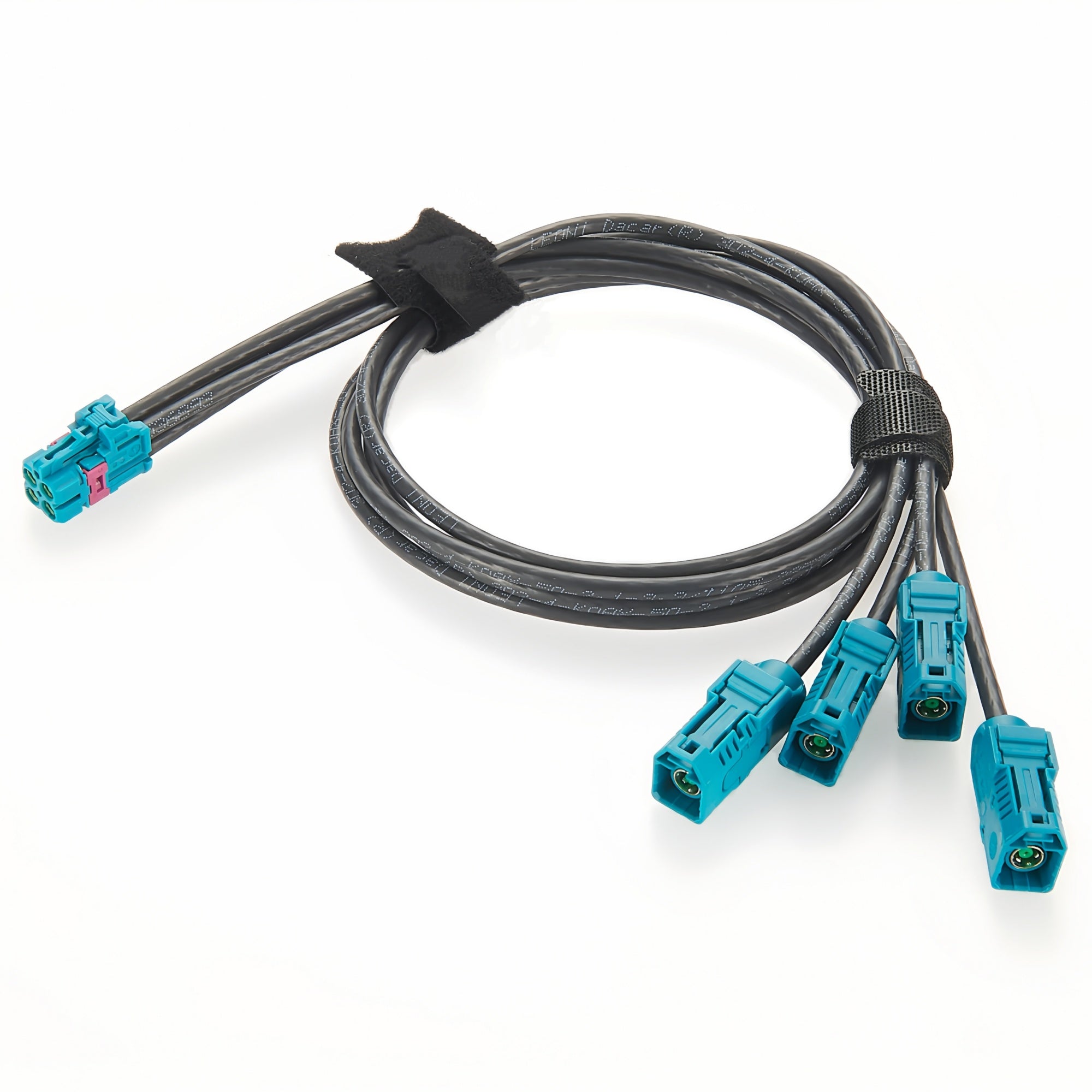

MATE-AX to Fakra Breakout Cable for NVIDIA DRIVE AGX Thor Developer System – Infotainment, Automated Driving, and Car Camera System. Equivalent to TE Part Number 2081393-1 and 2081393-3. Premier Cable P/N: PCM-ZC-0014
The MATE-AX Mini FAKRA 4-In-1 to FAKRA Breakout Cable is a high-quality RF coaxial cable assembly designed for automotive electronics, communication, and other high-frequency applications. It includes two main RF coaxial connectors: Mini FAKRA & FAKRA, providing stable signal transmission and excellent electrical performance. And compared to standard FAKRA connectors, the MATE-AX Mini FAKRA connectors offer a higher packaging density, supporting up to 75% space reduction and 34% weight savings.
Supported Protocols
Applications
Cameras:
Antennas:
|
Brand Name |
PremierCable |
Cable Length |
0.5m, 1m, 2m, OEM |
|
Origin |
Mainland China |
Impedance |
50 Ohm |
|
Part No. |
PCM-ZC-0014 |
Frequency |
DC-6GHZ |
|
Type |
RF Coaxial Cable Assembly |
VSWR |
1.800 MAX |
|
Product Name |
MATE-AX x4 to FAKRA Splitter Cable |
Hi-Pot |
800 VRMS MIN |
|
Connector A |
Original TE MATE-AX Connector, Quad Port, Z Code, Female Jack, 2298721-9 |
Wire |
LEONI DACAR 302-4 Coaxial Cable |
|
Connector B |
4pcs x Original TE FAKRA Connector, Single Port, Z Code, Female Jack, 2-2326910-0 |
Operating Temperature |
-40°C to +105°C |
